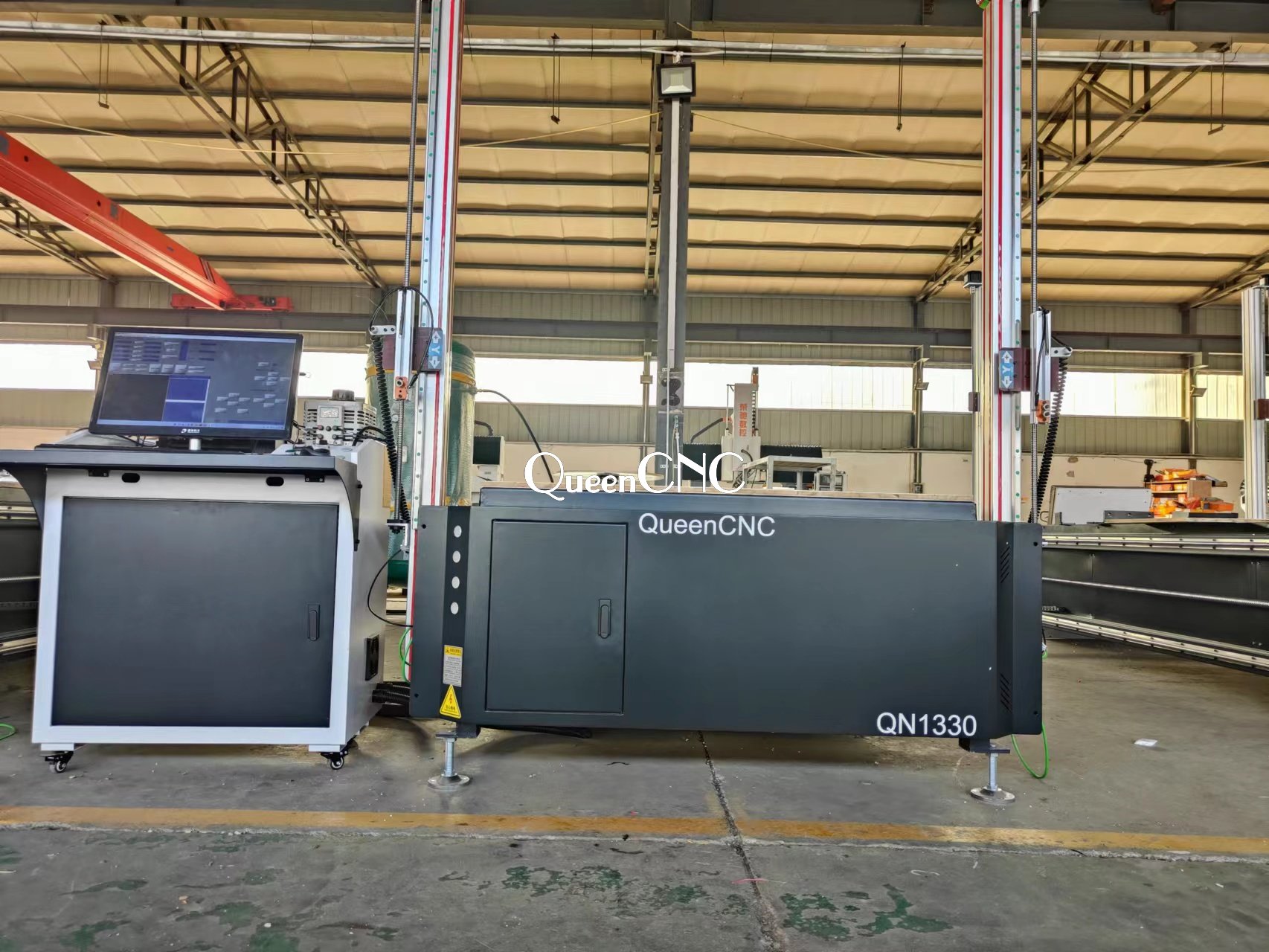

light structure economic QN1330 hot wire foam cutting machine

Application of hot wire foam cutting machine:
this light structure hot wire foam cutting machine is mainly designed for sign making or foam letter cutting industry and foam decoration. compared with heavy duty hot wire foam cutting machine, this light structure hot wire foam cutter lifespan is shorter, and the size can only be 1300*3000*1300mm, if want bigger size, have to use heavy duty frame foam cutter which use rack pinion transmission. and light structure hot wire cutter can only be single wire, if need multi wire, have to upgrade into heavy duty one.

Technical Parameter of QN1330 Light Structure Foam Cutter with Turn Table:
Cutting area	Length 3000mmwidth 1300mmheight 1300mm
Table surface	PVC table
Traveling Positioning Accuracy	±0.03mm
Repositioning Positioning Accuracy	±0.02mm
Working dpi	±0.04mm
Rotating Speed	0-6000mm/min
Machine Structure	Thick welded steel
Command	G-code.u00.mmg*.plt
Working voltage	AC220V/20HZ
Weight with package	850KGS
Package size	1.63.91.4M
Control System	Mach3 with industrial computer
Guide Rail	round guide
Humidity	10%-90%(without condensation)
Temperature	10-50℃
Gear box	Small gear box
Transmission	Ball screw
Net weight	600KGS
Regulator	1000W
Remark	Economic
Synchronous wheel x,y	5M,1:5
Synchronous belt	5M-285
Synchronous wheel Z	5M 20 wheel
transmission	ball screw
computer	industrial computer
Control box	Separate
Software	CAXA CAD

Working video:
