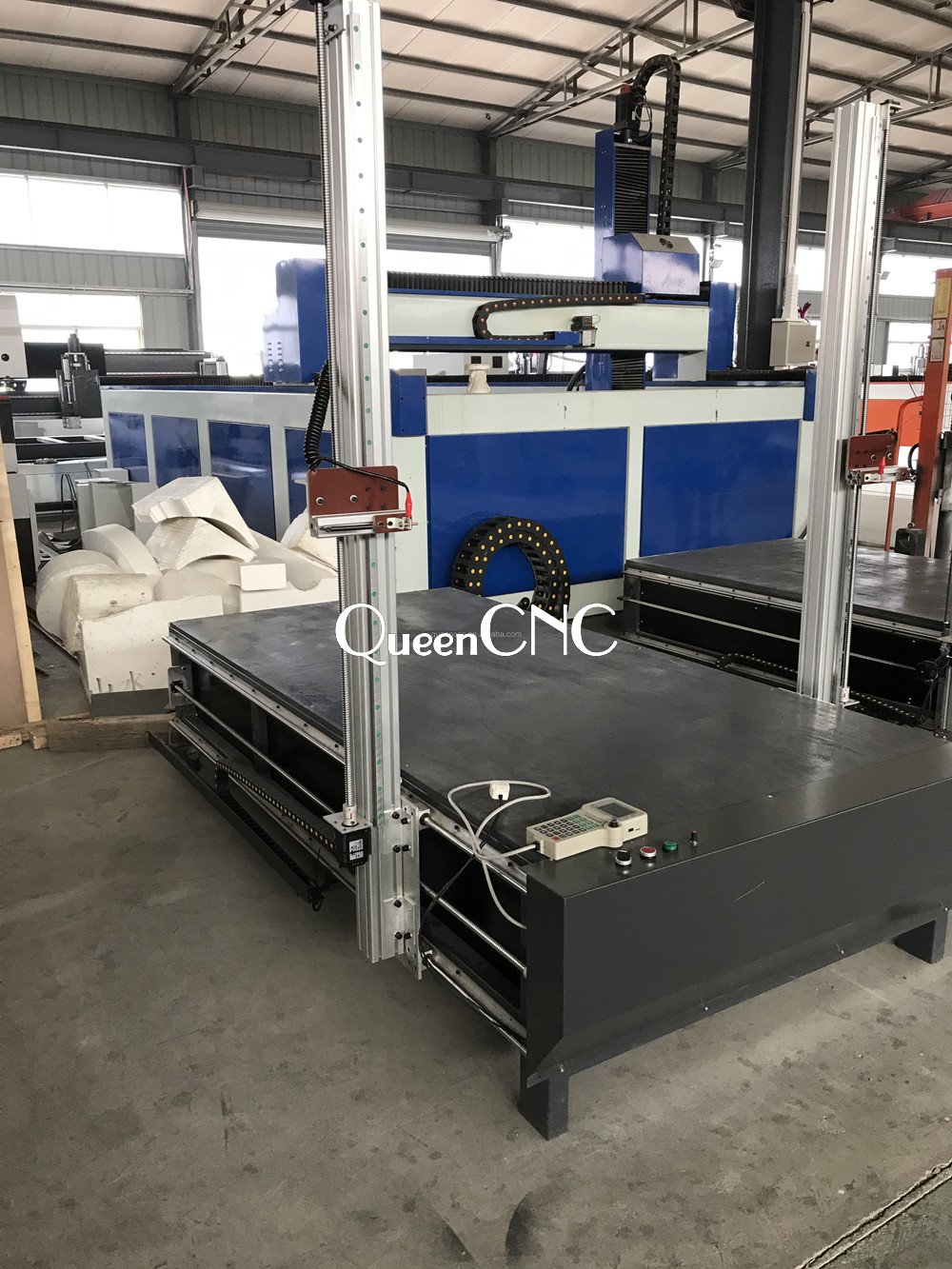

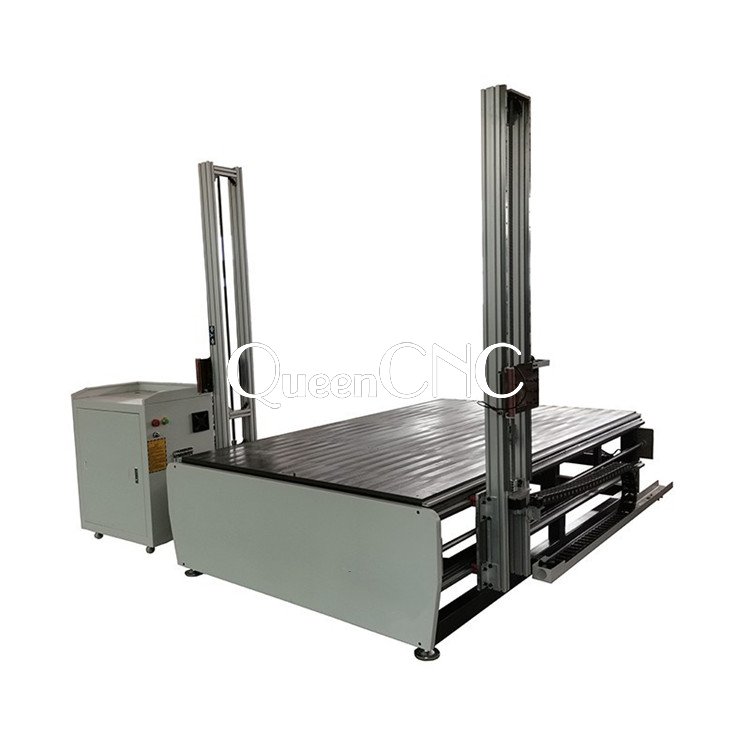

Hot wire foam cutting machine
| Technical Parameter of QN1330 Hot Wire Foam Cutting Machine: | |
| Cutting area | Length 1300mm*width 3000mm*height 1300mm |
| Table surface | PVC table |
| Traveling Positioning Accuracy | ±0.03mm |
| Repositioning Positioning Accuracy | ±0.02mm |
| Working dpi | ±0.04mm |
| Rotating Speed | 0-6000mm/min |
| Machine Structure | Thick welded steel |
| Command | G-code*.u00*.mmg*.plt |
| Working voltage | AC220V/20HZ |
| Weight with package | 1300KGS |
| Control System | Dsp offline or Mach3 |
| Guide Rail | Square guide |
| Humidity | 10%-90%(without condensation) |
| Temperature | 10-50℃ |
| Gear box | Small gear box |
| Transmission | Ball screw |
| Net weight | 600KGS |
| Regulator | 1000W |
| Remark | Economic |
| Synchronous wheel x,y | 5M,1:5 |
| Synchronous belt | 5M-285 |
| Synchronous wheel Z | 5M 20 wheel |
| Gear-wheel | YCAA670 |
| Gear shaft | 93 |
| Control box | Separate |
| Software | CAXA CAD |
