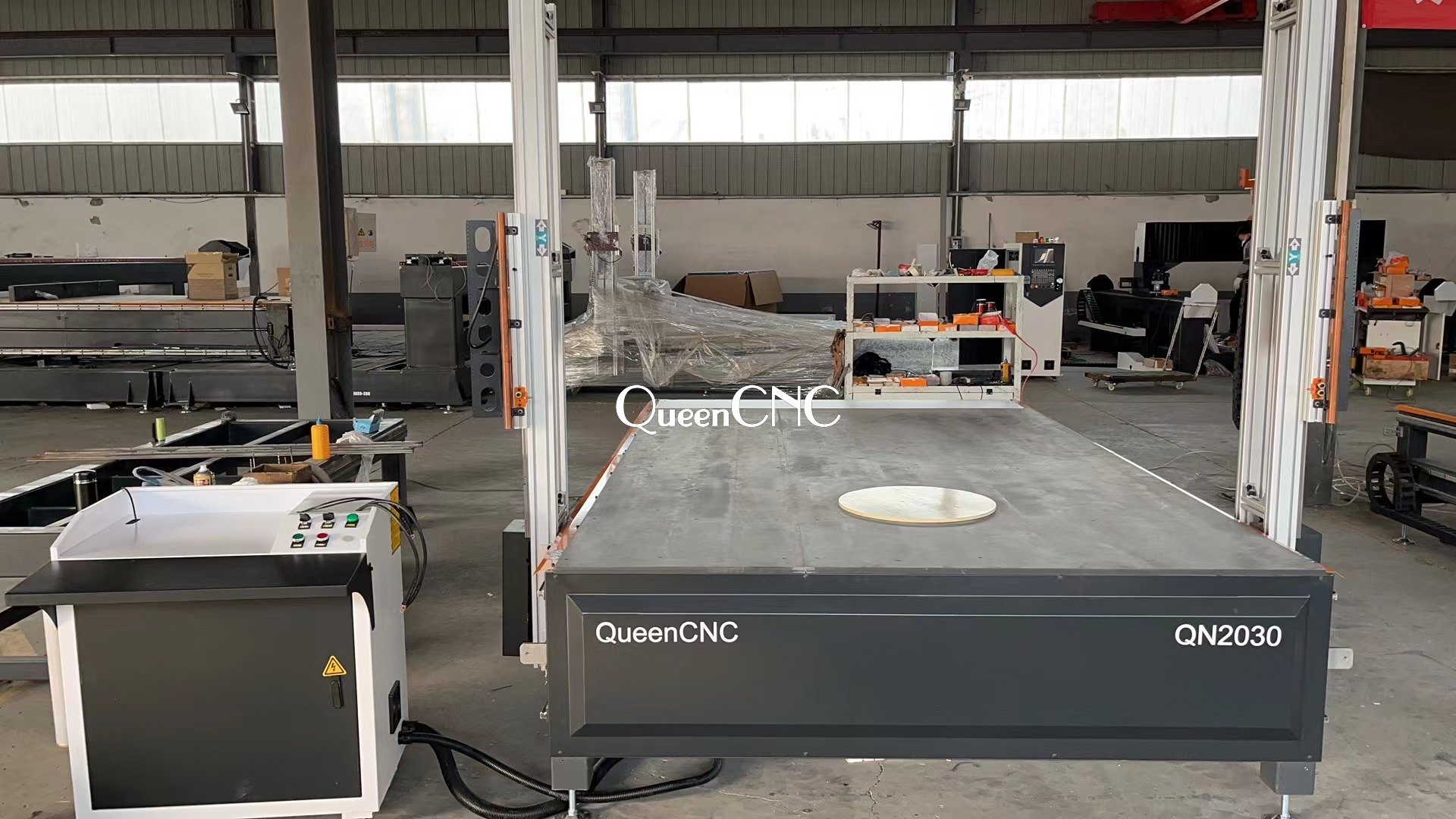

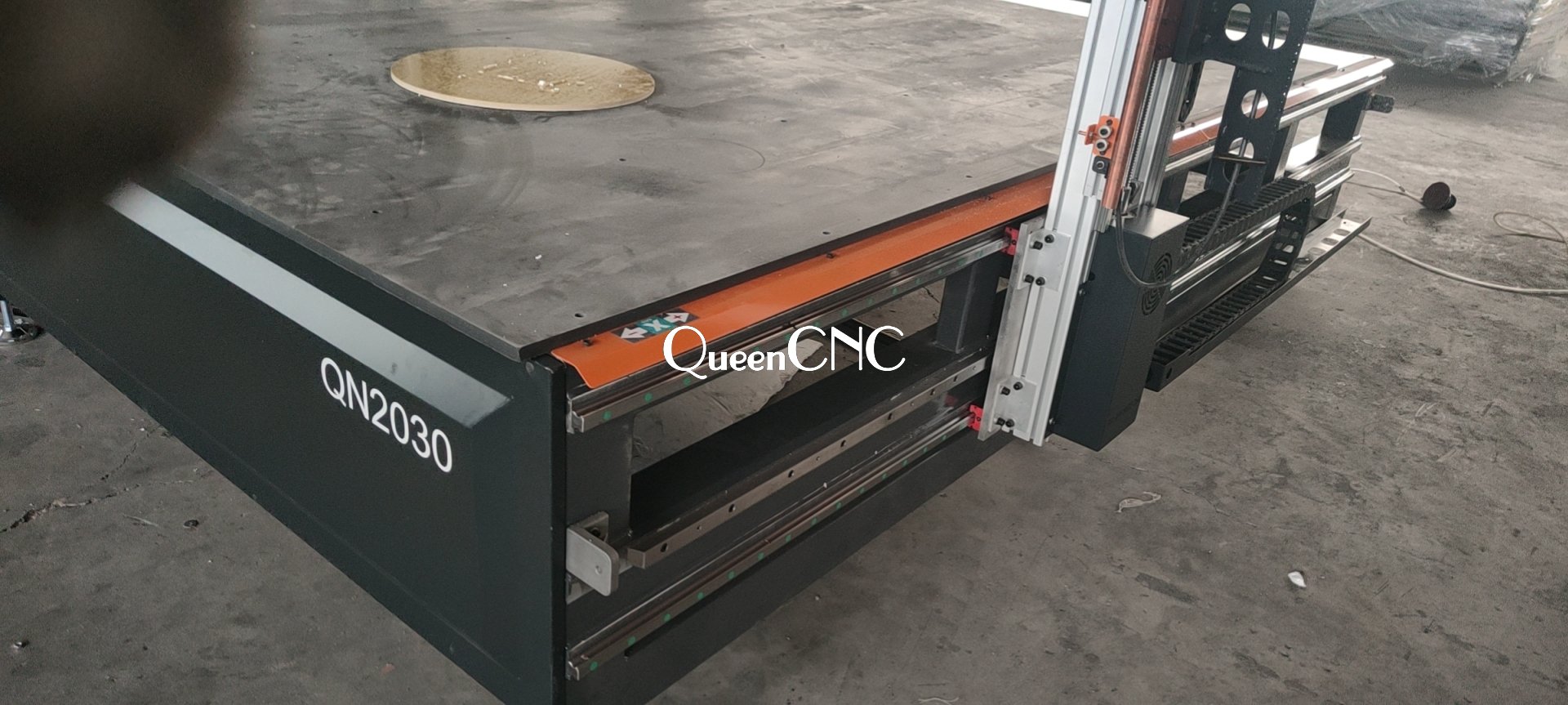

Economic QN2030 hot wire foam cutting machine

Release Time:2023-02-02 14:15 Reading Times:

Economic QN2030 hot wire foam cutting machine

Technical Parameter of Economic QN2030 hot wire foam cutting machine
Cutting area	Length 3000mmwidth 2000mmheight 1300mm
Table surface	PVC table
Traveling Positioning Accuracy	±0.03mm
Repositioning Positioning Accuracy	±0.02mm
Working dpi	±0.04mm
Rotating Speed	0-6000mm/min
Machine Structure	Thick welded steel
Command	G-code.u00.mmg*.plt
Working voltage	AC220V/20HZ
Weight with package	1300KGS
Control System	Dsp offline or Mach3
Guide Rail	Square guide
Humidity	10%-90%(without condensation)
Temperature	10-50℃
Gear box	Small gear box
Transmission	Ball screw
Net weight	600KGS
Regulator	1000W
Remark	Economic
Synchronous wheel x,y	5M,1:5
Synchronous belt	5M-285
Synchronous wheel Z	5M 20 wheel
Gear-wheel	YCAA670
Gear shaft	93
Control box	Separate
Software	CAXA CAD

Advantages of QN3030 hot wire foam cutting machine
1,Control system was researched by our own company, even people without any computer knowledge or CAD drawing experience, after one or two days training can operate by themselves.
2,Cutting software is compatible with CAXA and AUTOCAD drawing. No need counterdraw and programming. As long as input the file, machine can finish cutting conveniently.
3.Transmission system adopts Taiwan ball screw, when working with low noise and small gap. Much better than other company which use chain and gear rack or common threaded screw.
4.The anti-dust device and whole machine adopts big cnc milling device, process machine details very carefully.
Working video:
