Fiber laser marking machine
Mini enclosed 20w 30w 50w portable fiber laser marking machi
Release Time:2023-02-02 14:52 Reading Times:

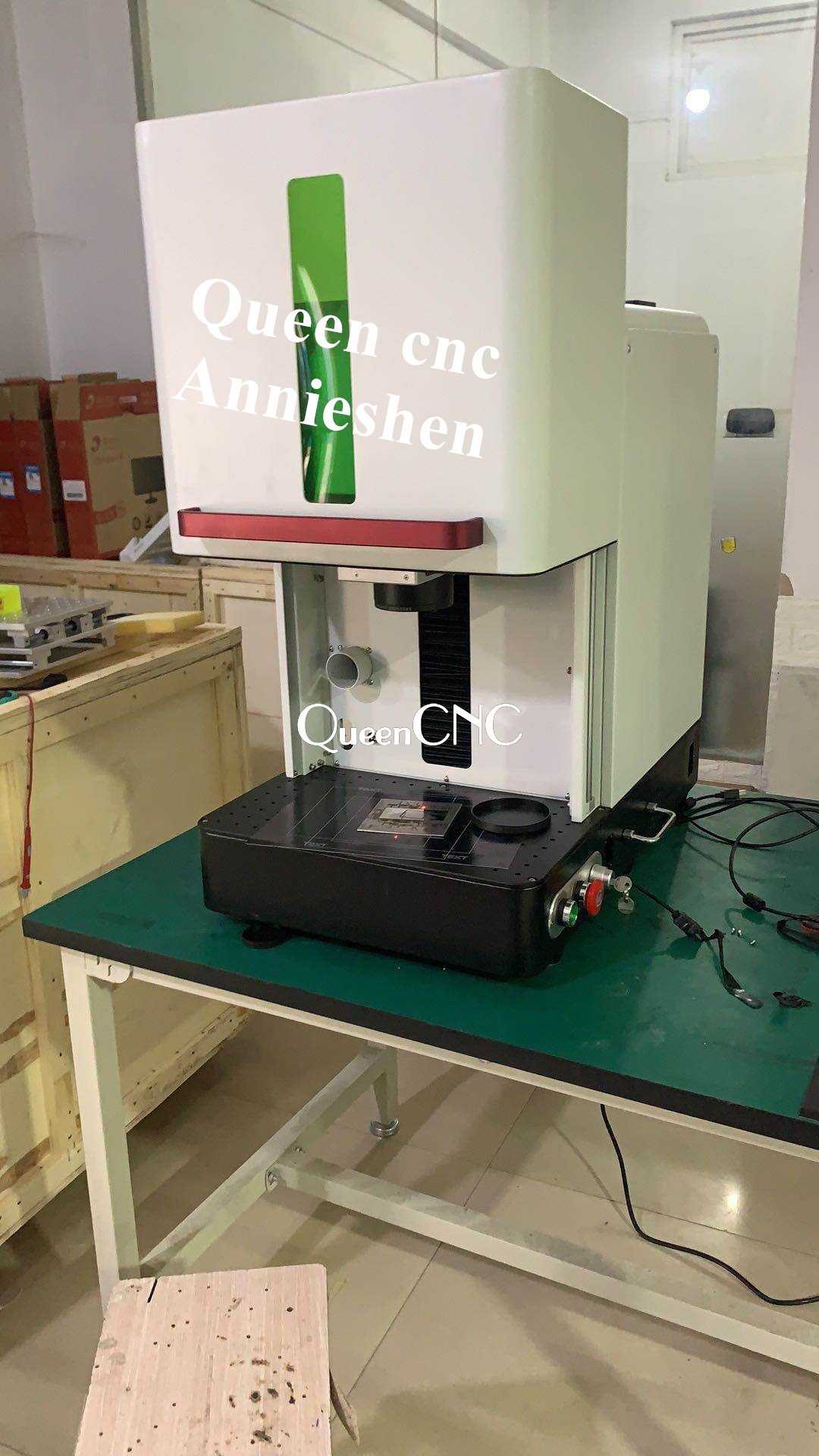

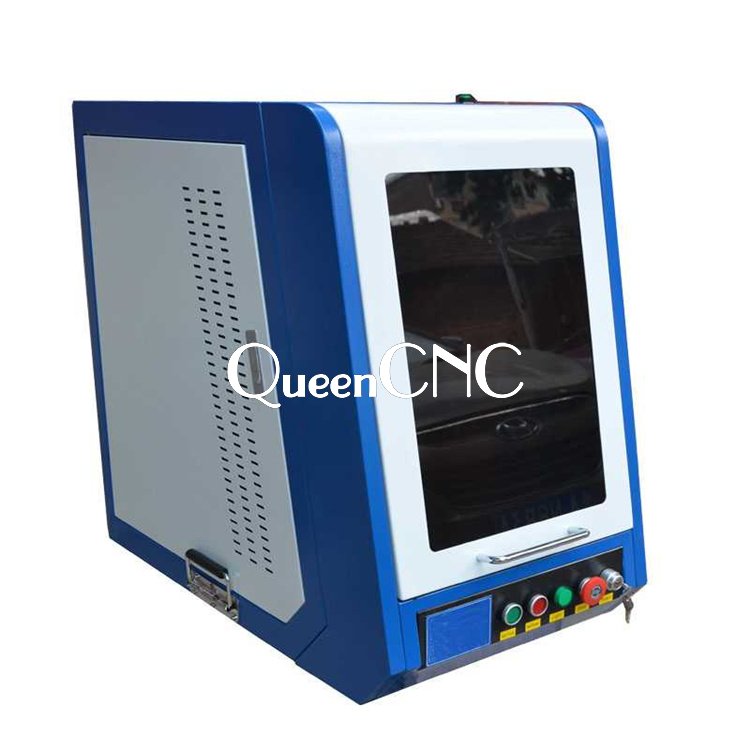

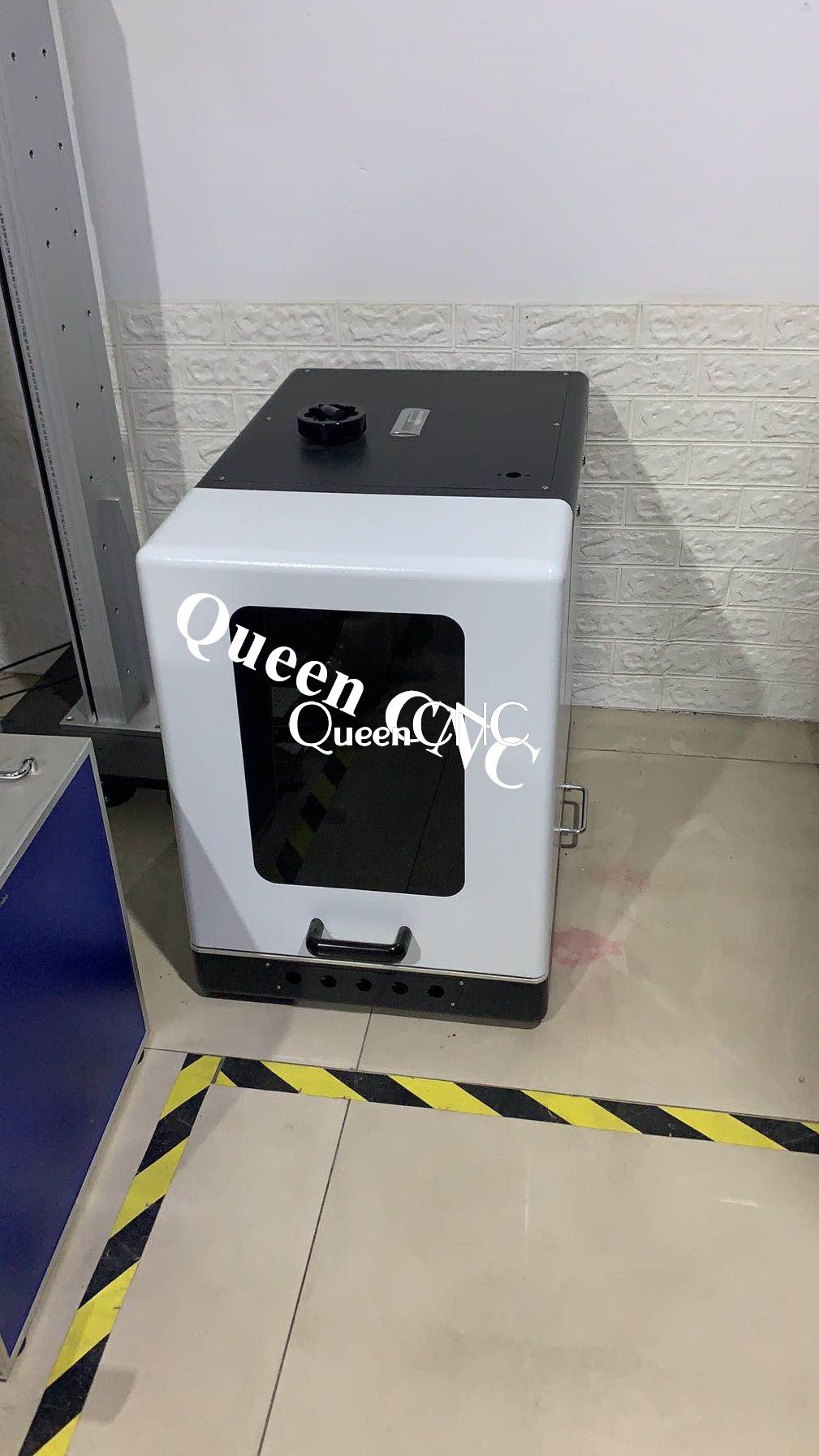

Mini enclosed 20w 30w 50w portable fiber laser marking machine
Main Features:
The laser marking machine for metal is featured by data transmission substantially without delay, power adjustable, high power pulsed laser, lifts fast focusing, targeting low light gray print!
It can work with a Laptop in small and compact size.
It is used to engrave signs, patterns, logos, letters, numbers or pictures on metal surface with different depths.
The laser marking machine for metal is especially designed for metal and alloy such as stainless steel, alloy steel, silver, copper, anodized aluminum, aluminum, chrome, silicon wafer, gold, etc.
Good laser beam and higher photoelectric conversion, the laser engraving quality will be more finely with higher precision.
No maintenance (100,000 hours service time)
Low operation cost.
High quality, permanent marks.
Repetitive high precise, rapid engraving speed.
Non-contact marking process, eliminates material stress.
fiber laser marking machine technical parameter :
|
model |
QN-10 QN-20 QN-30 QN-50 |
|
Laser power |
10w 20W 30W 50W |
|
Working area |
70*70 / 100*100 / 200*200mm / 300*300mm |
|
Laser Wavelength |
1064nm |
|
Marking speed |
≤7000mm/s |
|
Minimum character |
0.01mm |
|
Graphic format supported |
PLT, BMP, DXF, JPG, TIF, AI etc |
|
Supply Voltage |
220V/ 50Hz/2kVA |
