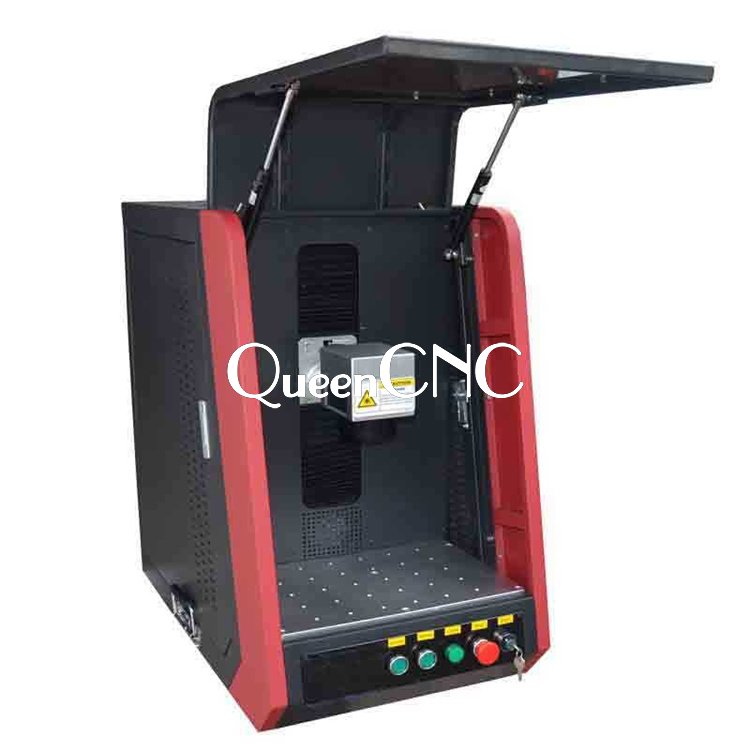

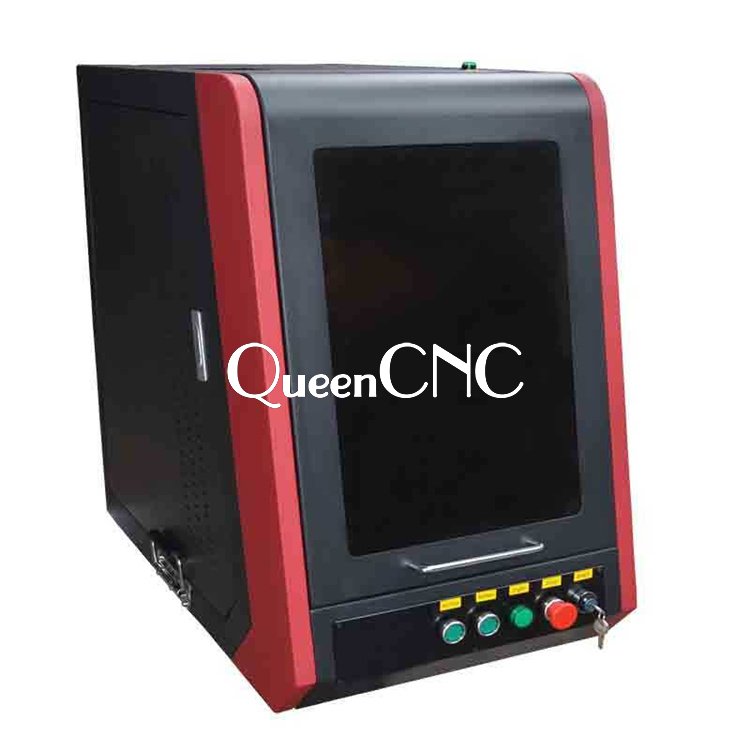

MOPA fiber laser marking
Main Features: The laser marking machine for metal is featured by data transmission substantially without delay, power adjustable, high power pulsed laser, lifts fast focusing, targeting low light gray print!
It can work with a Laptop in small and compact size.
It is used to engrave signs, patterns, logos, letters, numbers or pictures on metal surface with different depths.
The laser marking machine for metal is especially designed for metal and alloy such as stainless steel, alloy steel, silver, copper, anodized aluminum, aluminum, chrome, silicon wafer, gold, etc.
Good laser beam and higher photoelectric conversion, the laser engraving quality will be more finely with higher precision.
No maintenance (100,000 hours service time)
Low operation cost.
High quality, permanent marks.
Repetitive high precise, rapid engraving speed.
Non-contact marking process, eliminates material stress. echnical Parameters:
Type specification
QN-10
QN-20
QN-30
QN-50
Wave length of laser
1064nm
Laser repetition frequency
20kHz~100kHz
Laser power
10W
20W
30W
50W
Marking scope
70*70 / 100*100 / 200*200mm / 300*300mm
Laser sources
Fiber module
Laser Head
Scanning head
The minimum focus facula diameter
20μm
Minimal character
0.01mm
Marking speed
≤7000mm/s
Repeated accuracy
0.0025mm
Cooling ways
Force-air Cooling
Power supply
220V/ 50Hz/2kVA
Process Material
All kinds of metal and part of Non-metal Materials
Support format
PLT, BMP, DXF, JPG, TIF, AI etc
Package
Standard Crate for export
Main Applications:
Fiber Laser Marking Machine can mark all kinds of metal materials and some non metallic materials,industrial plastic,electroplates,metal-coated
materials, rubbers, ceramics,mobile button,plastic transparent button. Electronic parts,IC,tools,commu ication products.

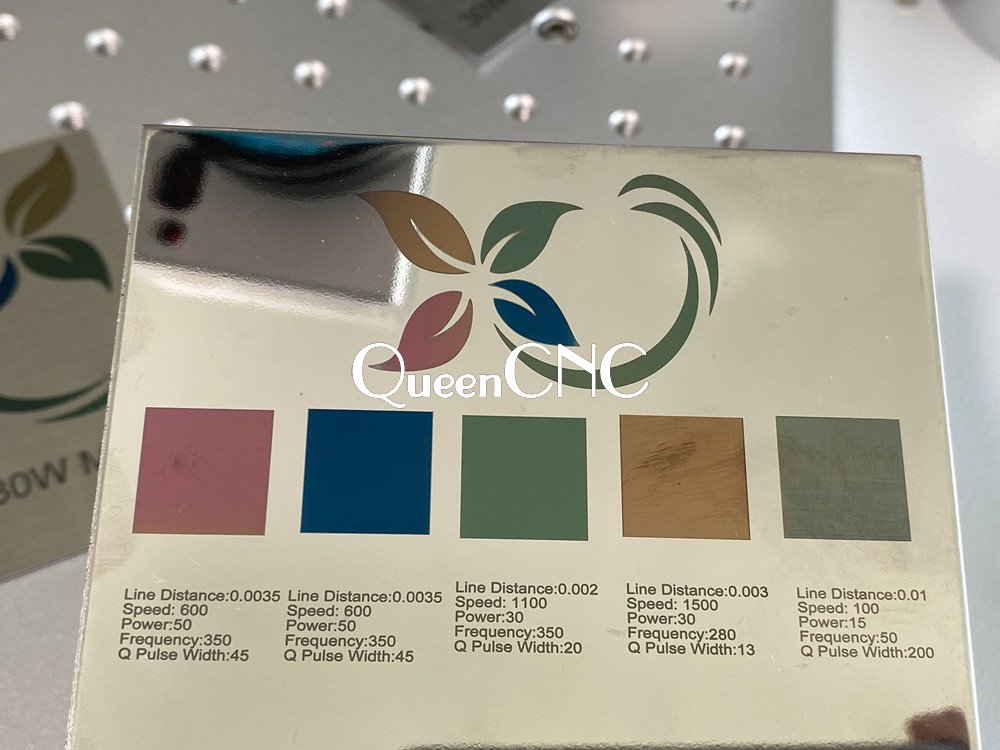

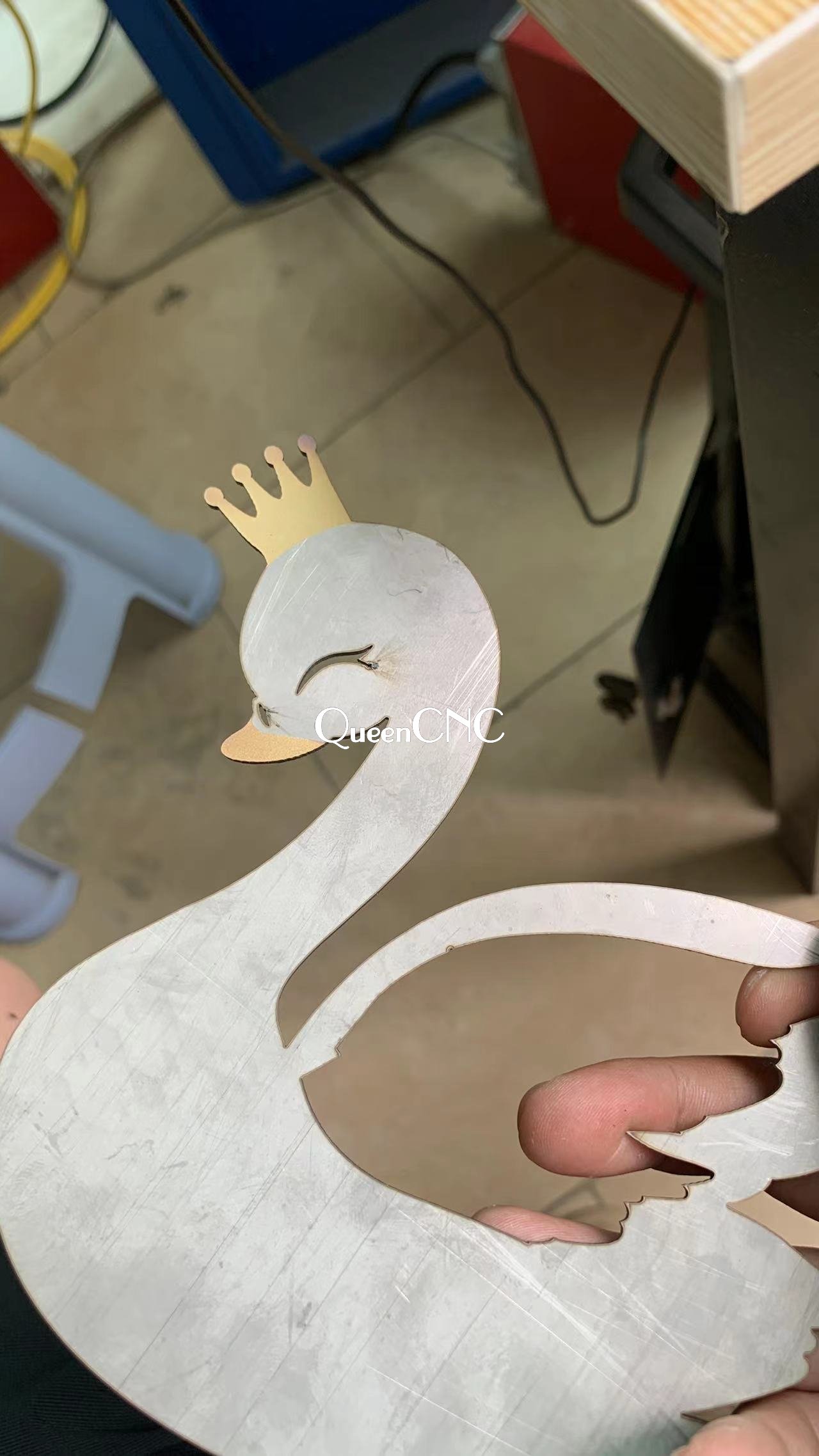

Bathing products,tool accessories, glasses and watches,jewelry,button decoration for boxes and bags, cookers,stainless steel products and so on. Samples:
