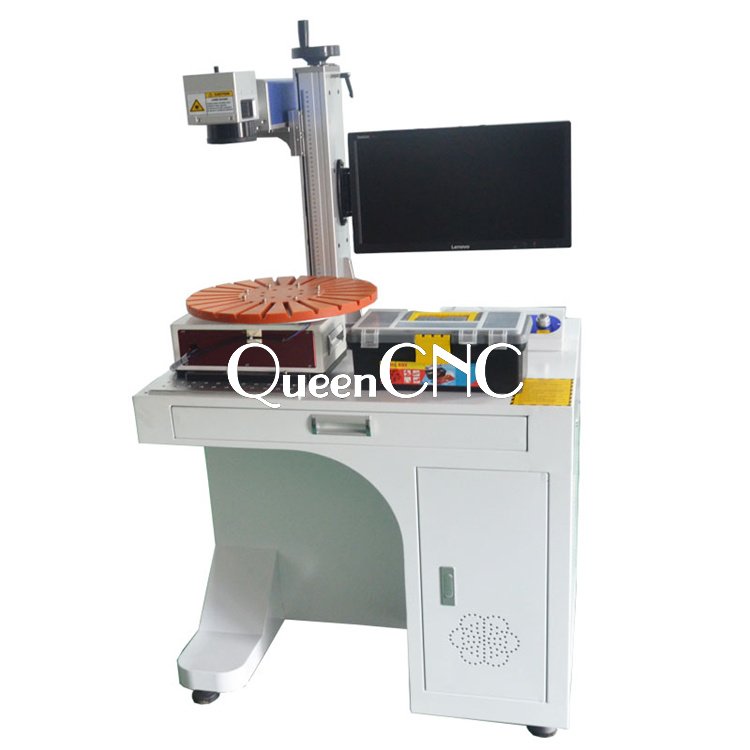

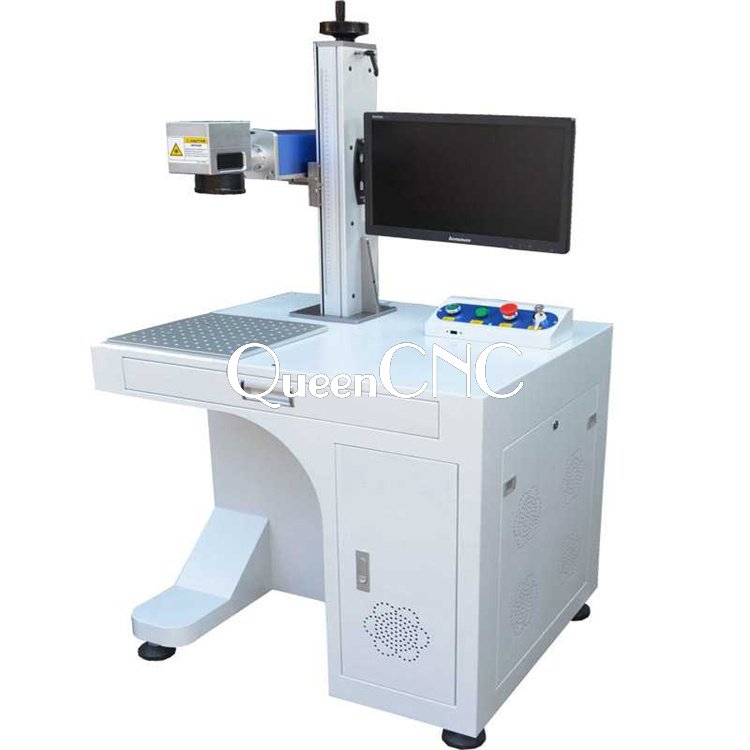

Fiber laser marking machine for pen

Features:
1. The laser marking machine has exquisite marking effects, and all kinds of fine and complex patterns can be marked on the surface of the product with fiber laser marking system, which is suitable for all types of fantastic marking.

2. Optional multi-power laser light source: No matter what industry you belong to, no matter what material you use, this fiber laser marking machine can customize the suitable marking for your personality.

3. Fast marking and high efficiency: In the same time, the output of workpieces processed by the laser marking machine is obviously improved, and the return on investment of users is accelerated.

4. Long life: The laser marking machine can work continuously in harsh working environments, and the laser is free of maintenance for 100,000 hours.

5. High-efficiency photoelectric conversion rate: no loss of power coupling, no consumables, obviously reducing operating costs or customers.

6. Compact and compact: easy to handle and save production space.
Technical Parameters:
Type specification   QN-20 QN-30 QN-50
Wave length of laser 1064nm
Laser repetition frequency 20kHz~100kHz
Laser power   20W 30W 50W
Marking scope 70*70 / 100*100 / 200*200mm / 300*300mm
Laser sources Fiber module
Laser Head Scanning head
The minimum focus facula diameter 20μm
Minimal character 0.01mm
Marking speed ≤7000mm/s
Repeated accuracy 0.0025mm
Cooling ways Force-air Cooling
Power supply 220V/ 50Hz/2kVA
Process Material All kinds of metal and part of Non-metal Materials
Support format PLT, BMP, DXF, JPG, TIF, AI etc
Package Standard Crate for export
