Model

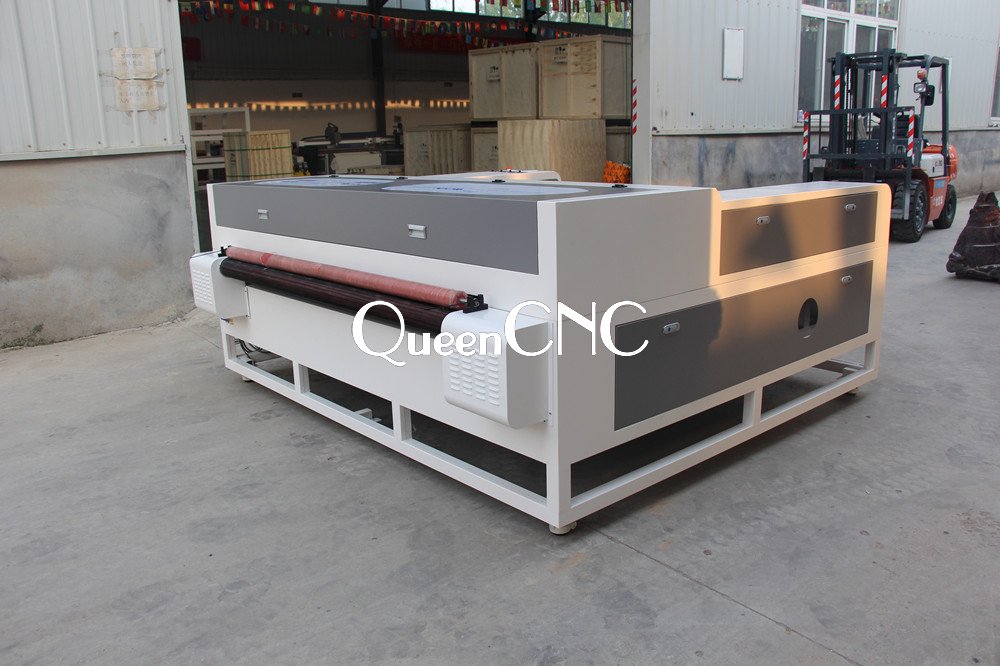

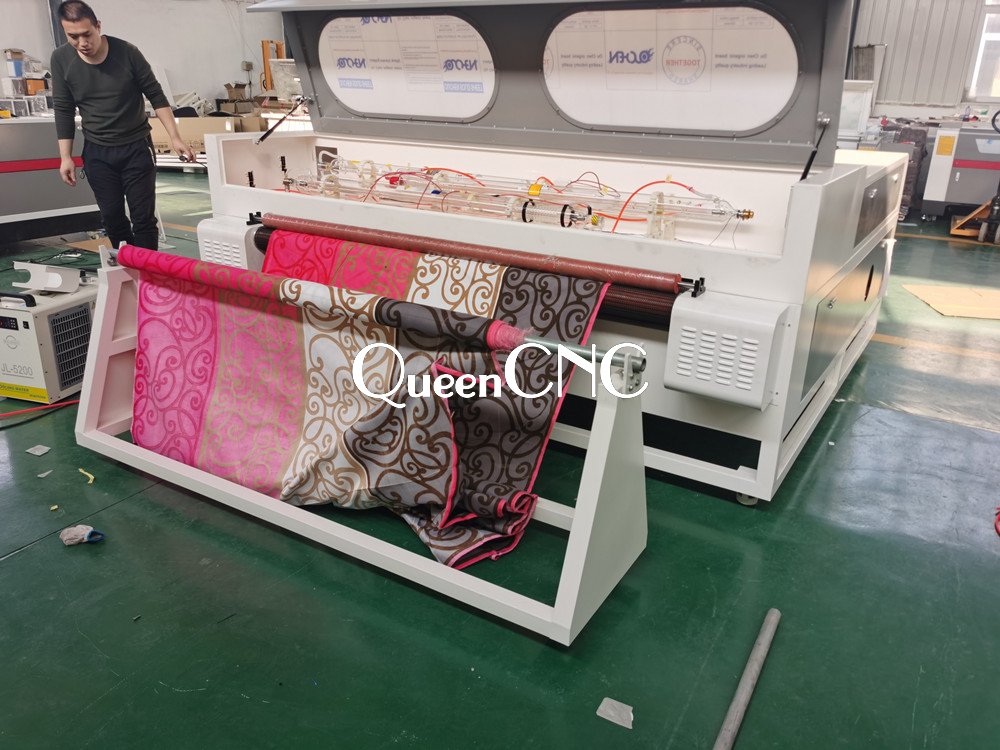

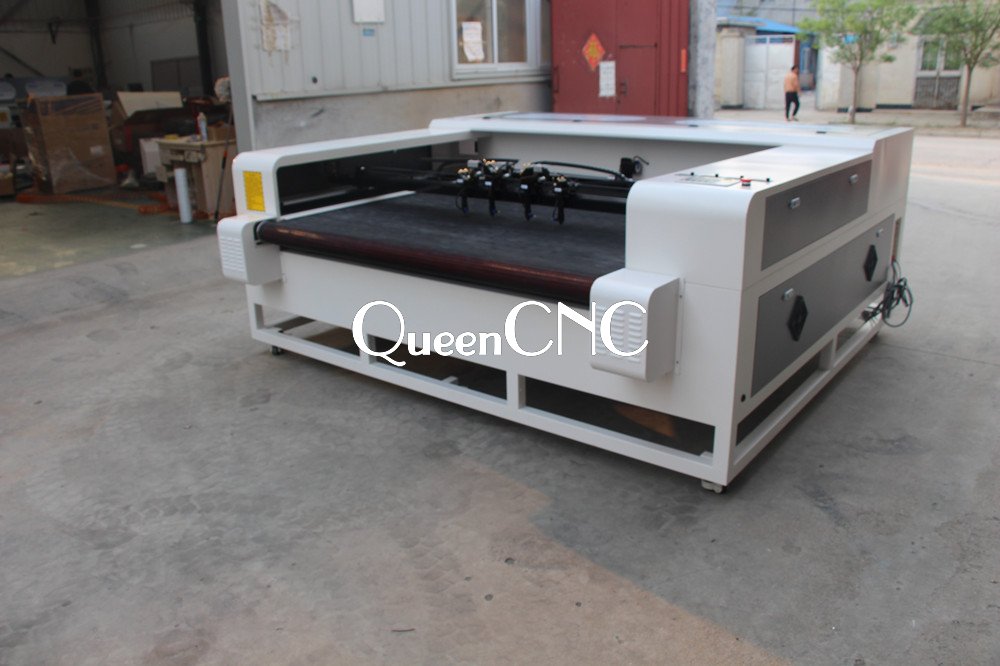

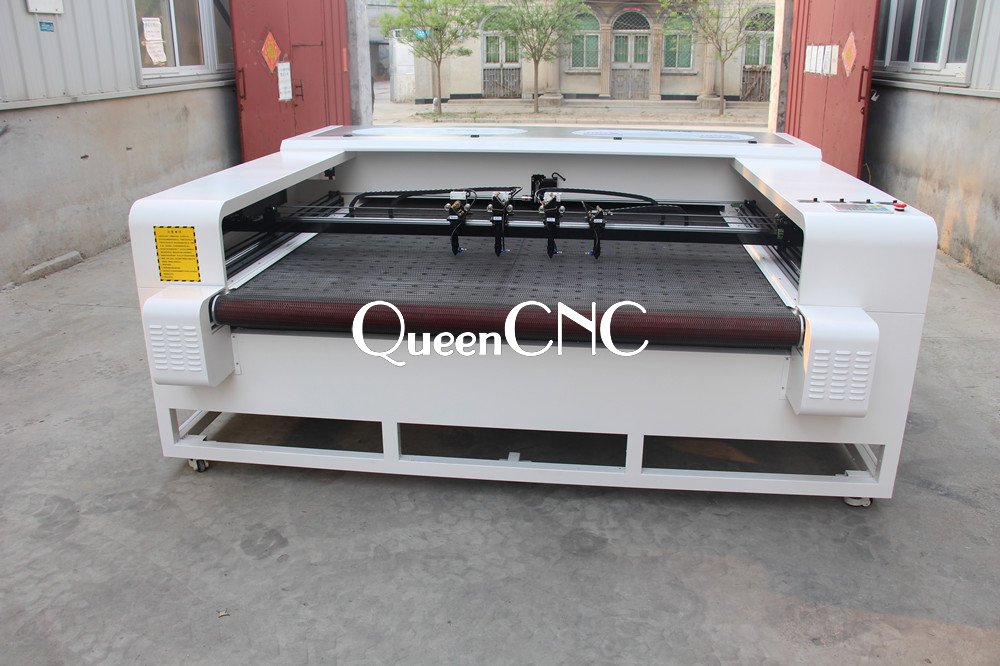

Auto feeding Laser engraving machine HZ1610

Working area

1600*1000mm

Laser tube power

80w,100w,130w,150w(can be optional)

laser stype

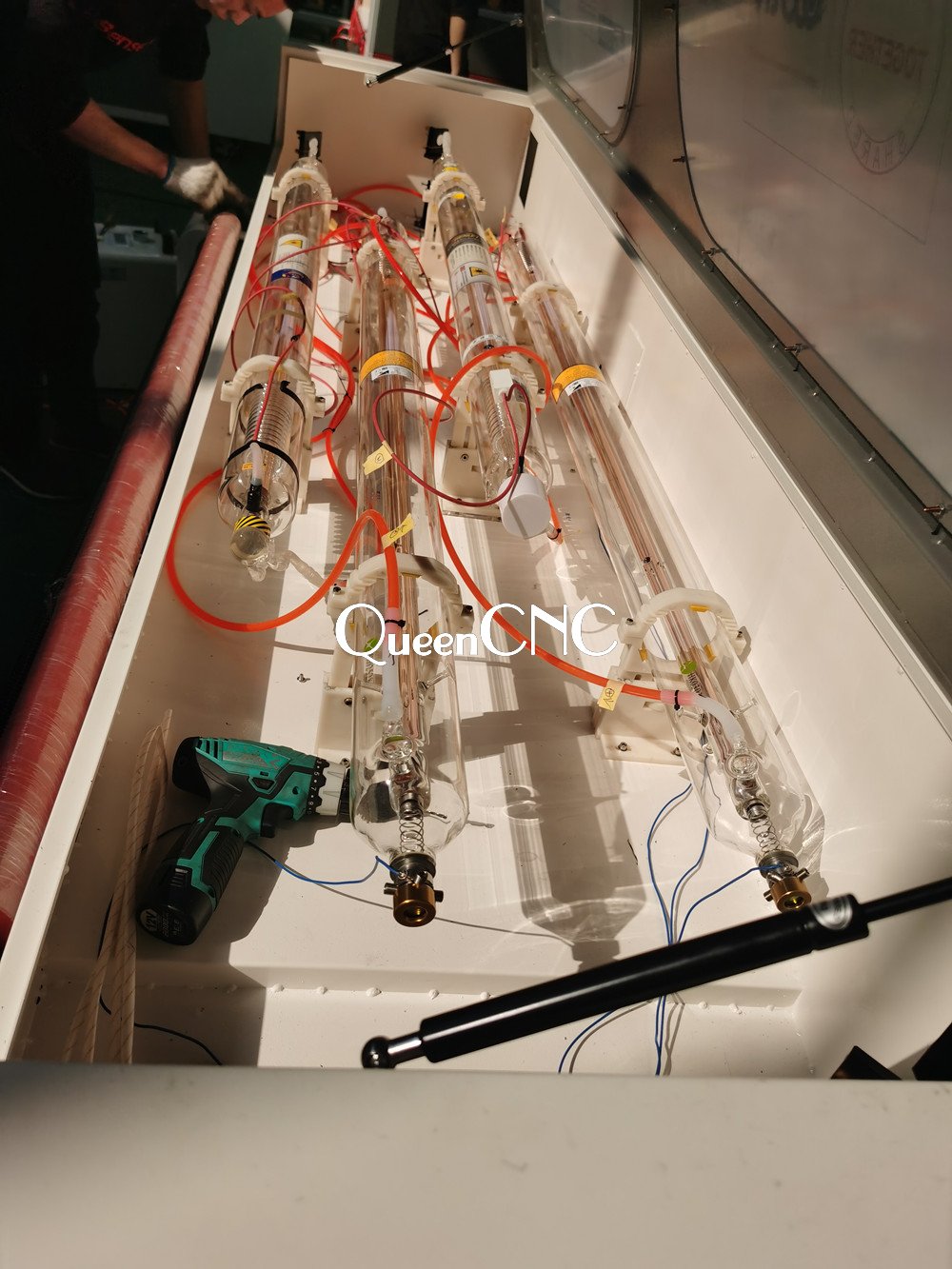

Sealed CO2 laser tube, water-cooling, 10.6um

Working life of tube

1500hours/10000 hours for Reci

Max Engraving speed

0 - 60,000mm/min

Cutting speed

0- 30,000mm/min

Location precison

≤0.01mm

Resetting positioning accuracy

0.01mm

Resolution ratio

≤1000 dpi

Laser tuber cooling

Water cooling

Power supply

AC 110 - 220V , 50 - 60Hz

Min. shaping character

Chinese 2mm*2mm,English 1mm*1mm

Supported graphic

BMP, CDR, PLT, DST, DXF, and AI

Driving system

Stepper motor

360° slope engrave

Yes

Cooling system

Water-cooling and protection system

Operating system

Windows98/ME/2000/XP/VISTA/2007

Software supported

CorelDraw, AutoCAD , Photo shop

Operating temperature

0°C~45°C

Operating humidity

5%~95%

Gross power

≤1000w

Computer interface

USB port and Standard printer port

English manual

Tell you how to run the laser machine and also the problems and solutions
