QN1325 Ball Screw High Accuracy CO2 Laser Cutting Engraving
Release Time:2023-02-01 14:09 Reading Times:
QN1325 Ball Screw High Accuracy CO2 Laser Cutting Engraving Machine for Blank Wood Acrylic Plywood Sheet Metal and Tube
|
QN1325
|
|
Working area
|
1300mm*2500mm
|
|
Laser power
|
Reci W6 130-150W Glass tube, 15000 hours life span
|
|
Laser type
|
CO2 sealed laser tube, water-cooled
|
|
Engraving speed
|
0-70000mm/min
|
|
Cutting speed
|
0-40000mm/min
|
|
Highest scanning precision
|
2500DPI
|
|
Power supply
|
220v/50Hz , 110v/60Hz
|
|
Min. shaping character
|
English 1.0 x 1.0mm, Chinese 1.5 x 1.5mm
|
|
Graphic.format.supported
|
BMP, PLT, DST, DXF, AI, etc.
|
|
Software supported
|
CorelDraw, PhotoShop, AutoCAD,TAJIMA, Lasercut
|
|

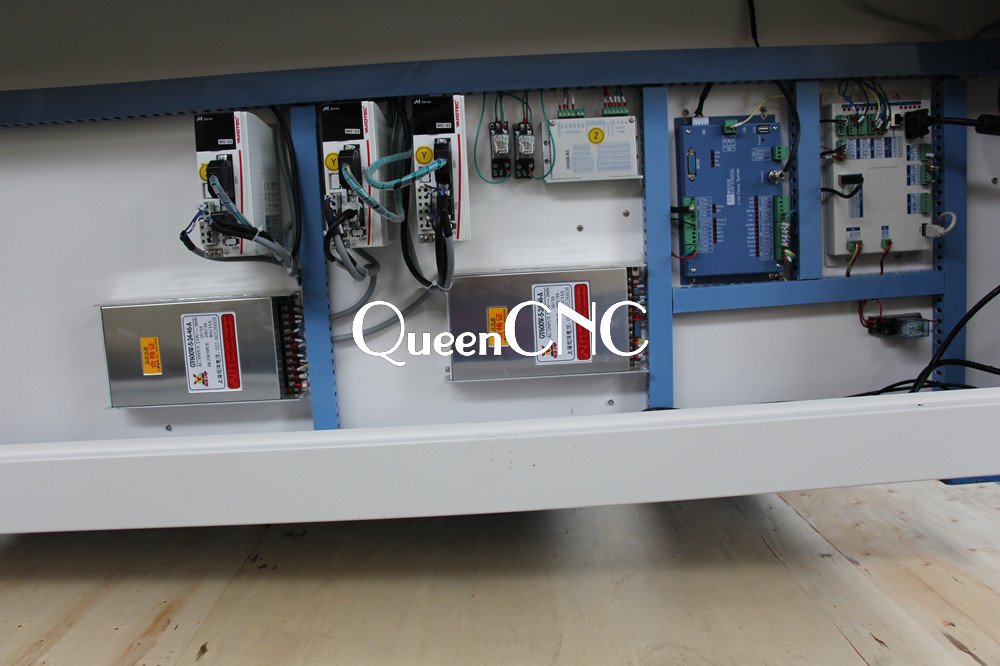

Control system
|
Ruida RDC6442S controller
|
|
Driving system
|
Stepper motor and driver
|
|
Color separation
|
Yes
|
|
N.W/G.W
|
900kg/1000kg
|
|
Machine size/ box size
|
2.07x3.42x1.10m (W*L*H)
|
|
Consumable parts
(Recommended)
|
1.Extra laser tube
2.Extra 1 focus lens and 3 reflect mirror
|
|
TS1325
|
|
Working area
|
1300mm*2500mm
|
|
Laser power
|
Reci W6 130-150W Glass tube, 15000 hours life span
|
|
Laser type
|
CO2 sealed laser tube, water-cooled
|
|
Engraving speed
|
0-70000mm/min
|
|
Cutting speed
|
0-40000mm/min
|
|
Highest scanning precision
|
2500DPI
|
|
Power supply
|
220v/50Hz , 110v/60Hz
|
|
Min. shaping character
|
English 1.0 x 1.0mm, Chinese 1.5 x 1.5mm
|
|
Graphic.format.supported
|
BMP, PLT, DST, DXF, AI, etc.
|
|
Software supported
|
CorelDraw, PhotoShop, AutoCAD,TAJIMA, Lasercut
|
|
Control system
|
Ruida RDC6442S controller
|
|
Driving system
|
Stepper motor and driver
|
|
Color separation
|
Yes
|
|
N.W/G.W
|
900kg/1000kg
|
|
Machine size/ box size
|
2.07x3.42x1.10m (W*L*H)
|
|
Consumable parts
(Recommended)
|
1.Extra laser tube
2.Extra 1 focus lens and 3 reflect mirror
|
