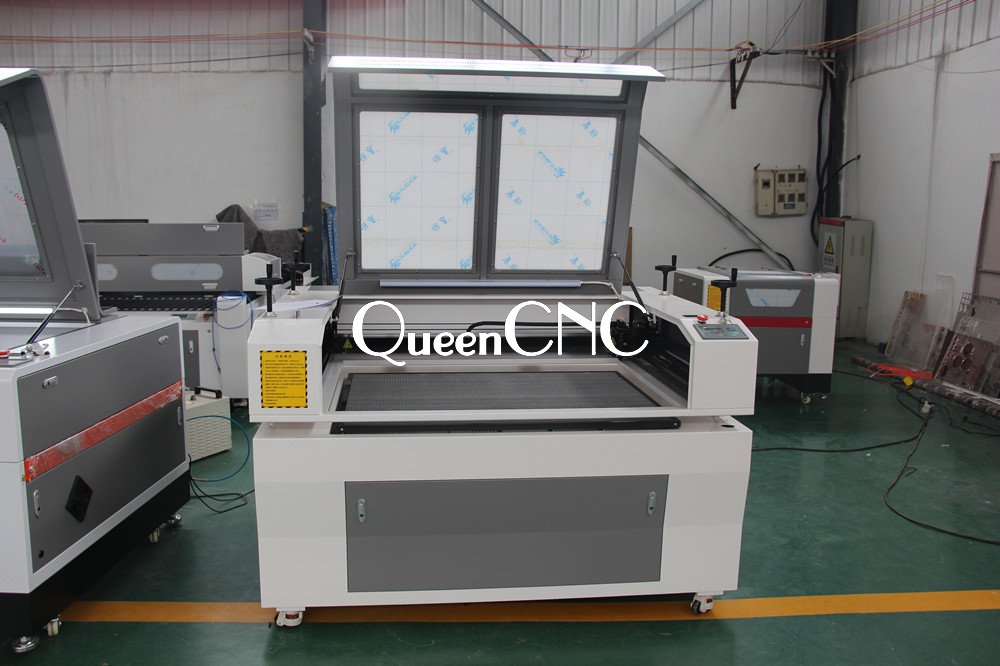

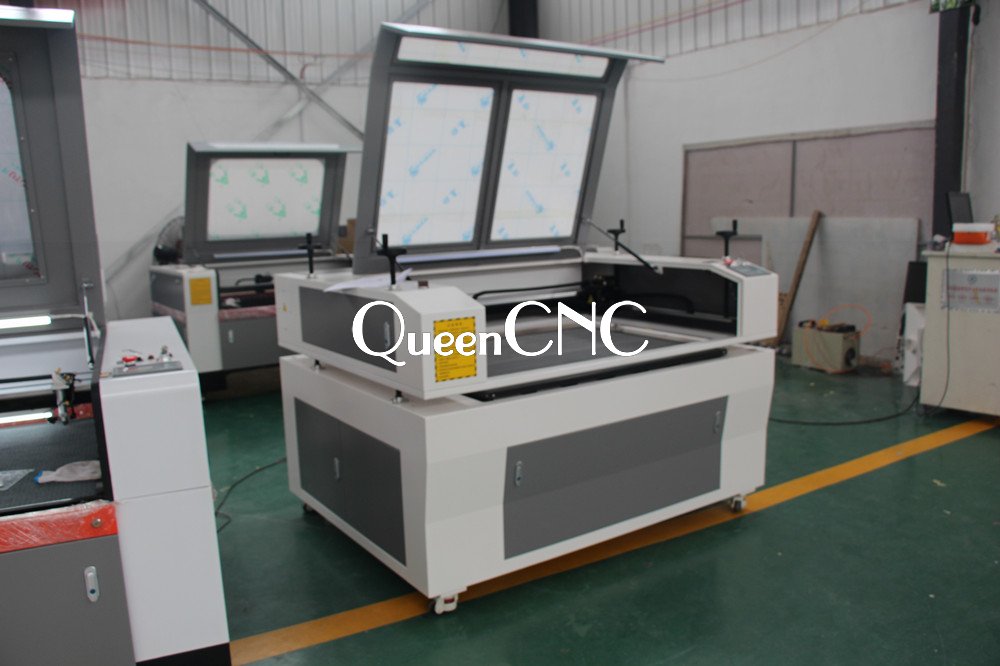

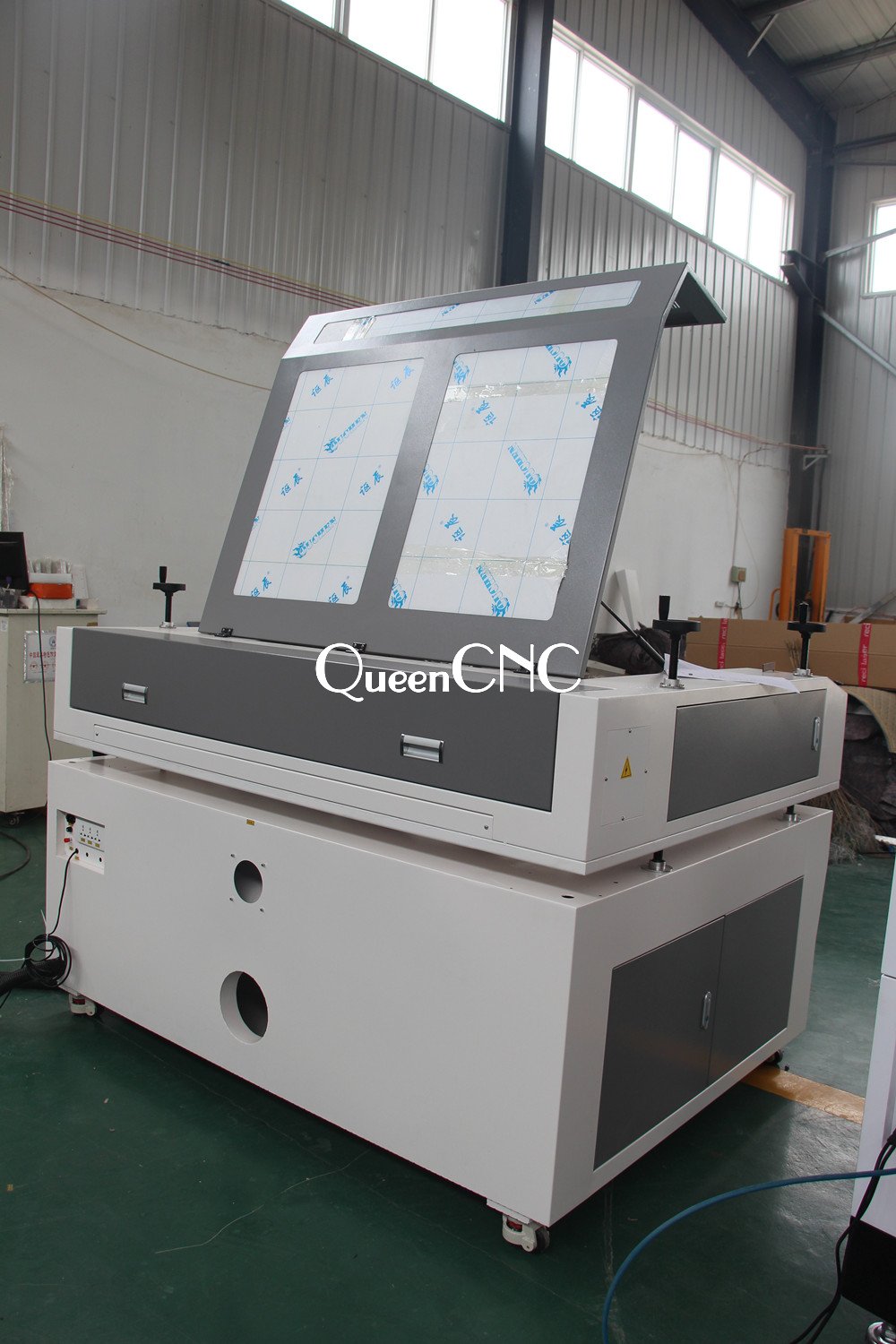

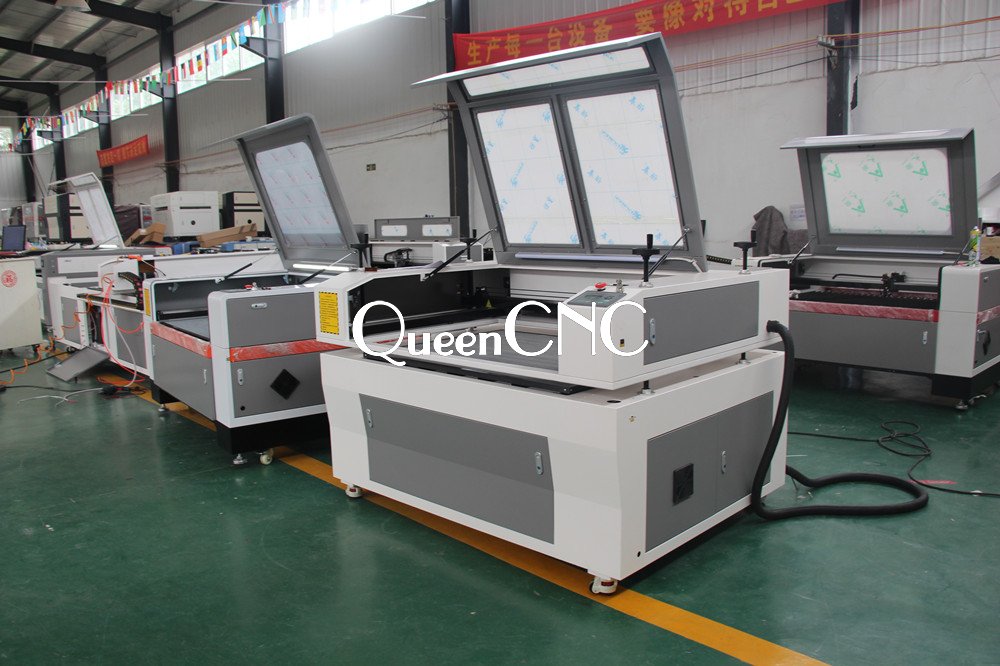

QN1390 laser engraving machine for stone engraving

Release Time:2023-02-01 15:03 Reading Times:

Granite GraveStone Engraver tombstone photo laser engraving machine for stone carving etching

Machine Model: QN1610/QN1390
							Work size:1600*1000mm/1300*900mm

							Structure: Motor Lifting

							Features:

							1. Compact structure, flexible to move.

							2. Motorized structure, 4 motors to move the machine in Z axis by screw. Machine suitable to load onto any size work piece. 3. Transparent visible tempering glass window. 4. Linear Guide rail, 3Ph stepper motor. 5. Ruida RDC6445G advanced control system. 6. Water chiller Cooling, Air compressor assist

													Model

													QN1610/QN1390

													Working area

													160cm*100cm/63in*39in

													130cm*90cm/51in*35in

													Equipment size(L*W*H)

													287cm*195cm*98cm/ 113in*77in*39in

													236cm*175cm*65cm/92in*69in*26in

													Laser power

													W1 80W standard (90W/100W optional)

													Laser type

													CO2 sealed laser tube, water-cooled, 10.6um

													Engraving speed

													0-70000mm/min

													Cutting speed

													0-40000mm/min

													Laser output control

													1-100% software setting

													Communication interface

													USB

													Smallest Character Engraving

													English 1.0mm*1.0mm

													Locating Precision

													≤±0.01mm

													Highest Scanning precision

													4000DPI

													Operating temperature

													0 - 45°C

													Cooling type

													Water cooling

													Power supply

													220V/50HZ-60Hz , 110V/60HZ

													Graphic format supported

													BMP, PLT, DST, DXF, AI

													Software supported

													CorelDraw, PhotoShop, AutoCAD,TAJIMA

													Driving system

													3 phase stepper motor

													Gross weight

													489Kgs

													Optional Parts

													1. Water chiller 2. Rotary tool with rollers/Rotary tool with clips 3. Red dot positioner 4. Auto focus

Samples:
