QN2040 nesting atc cnc router with drilling block
Release Time:2023-02-07 17:43 Reading Times:

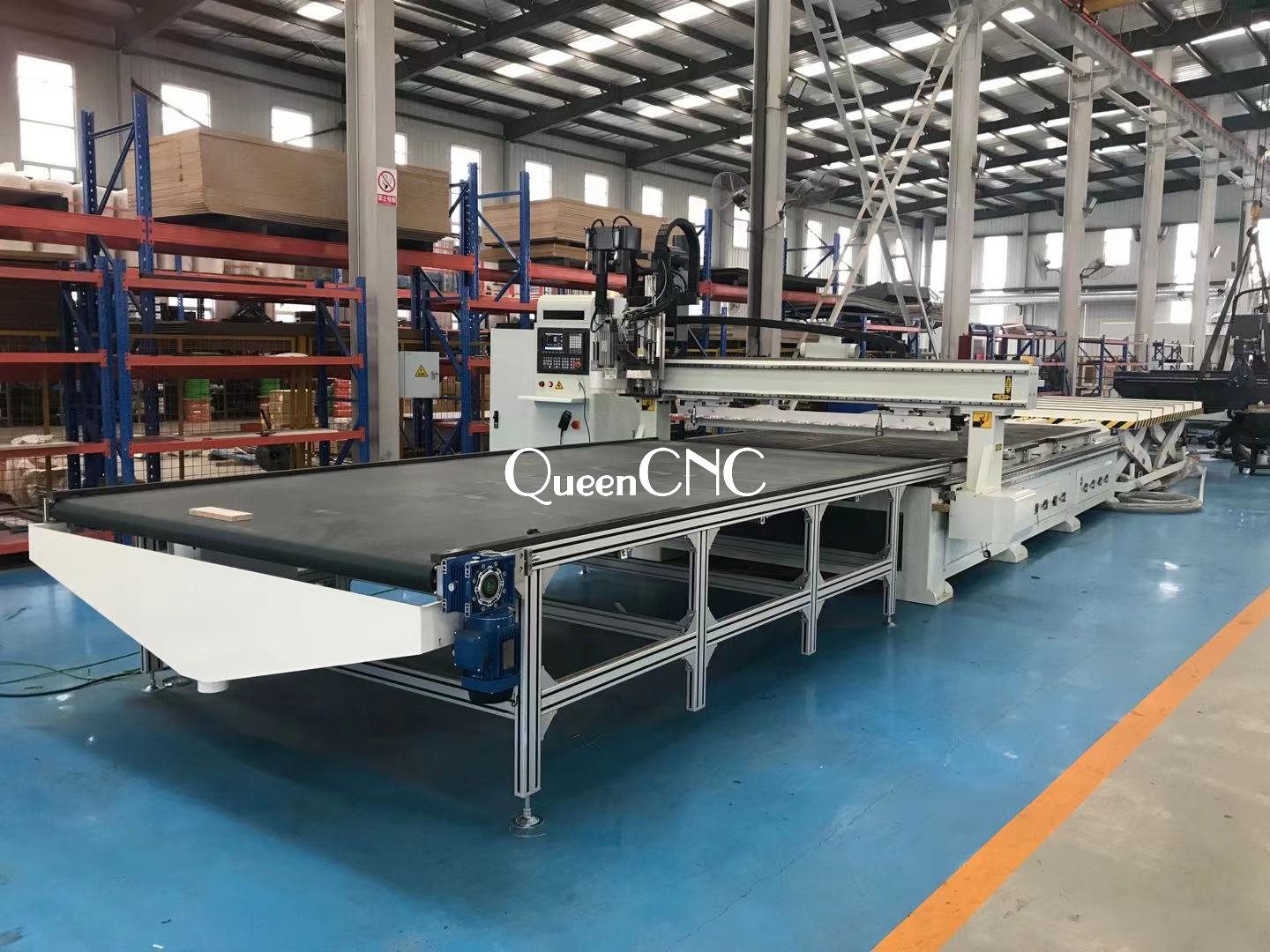

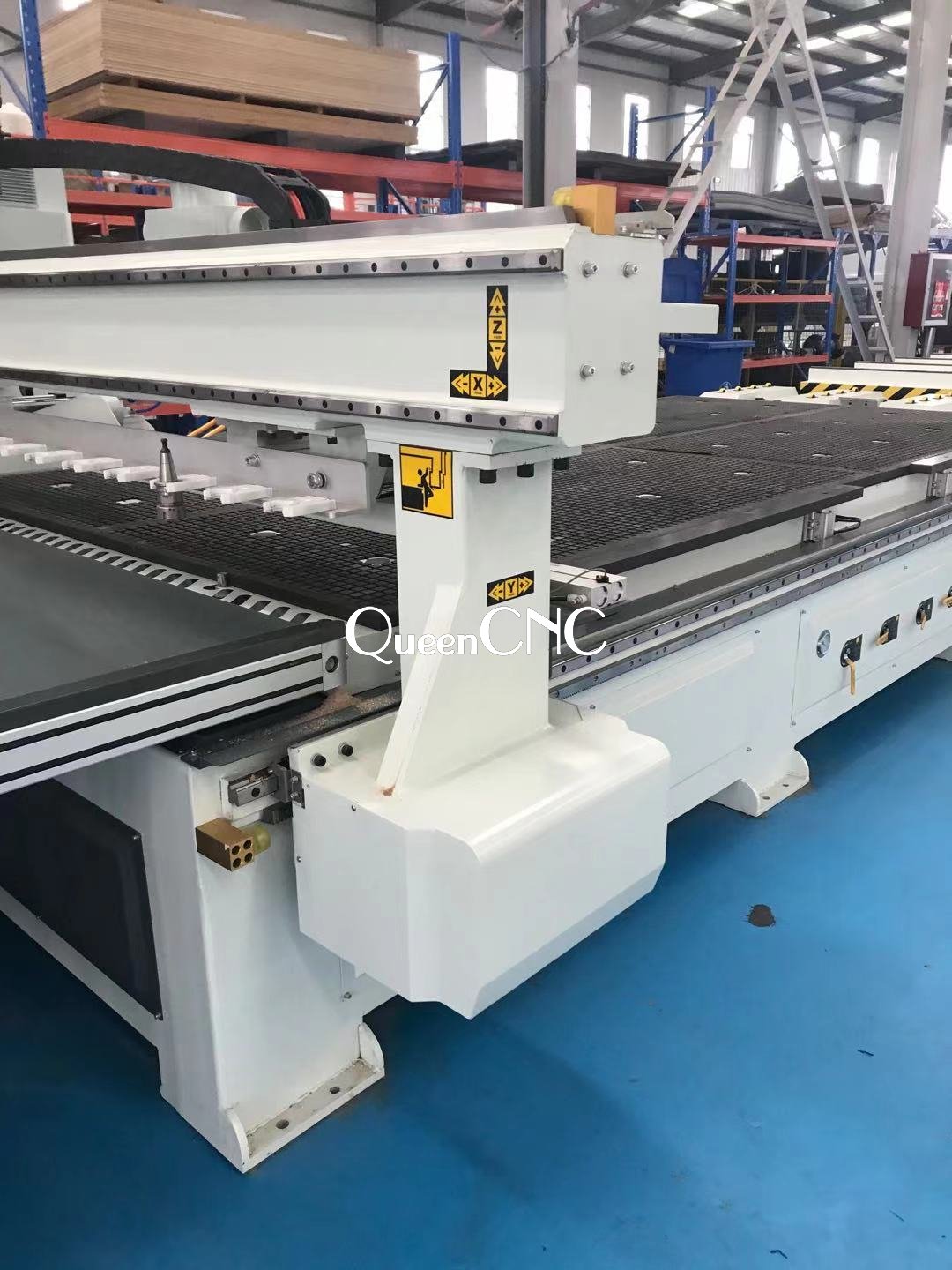

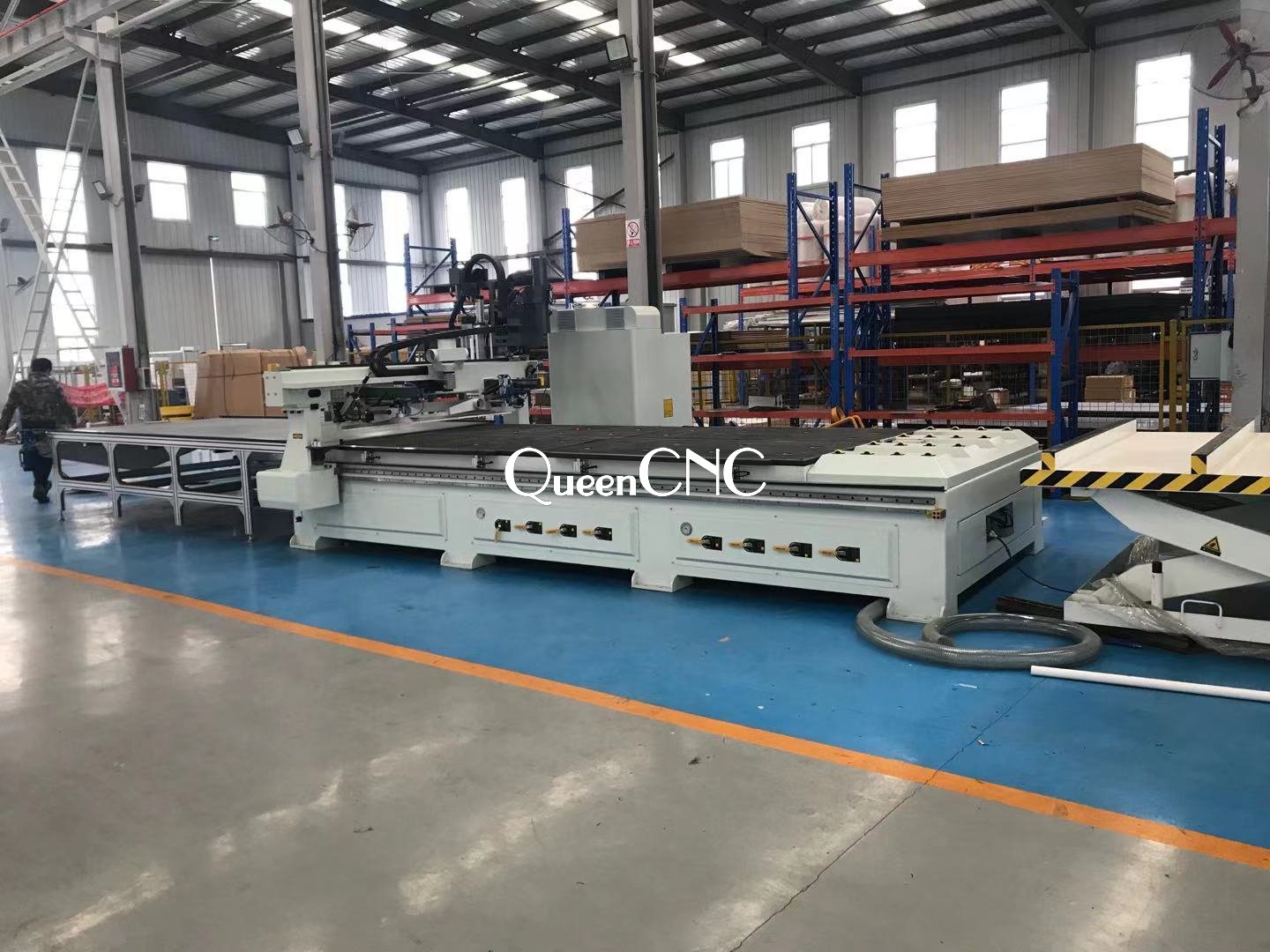

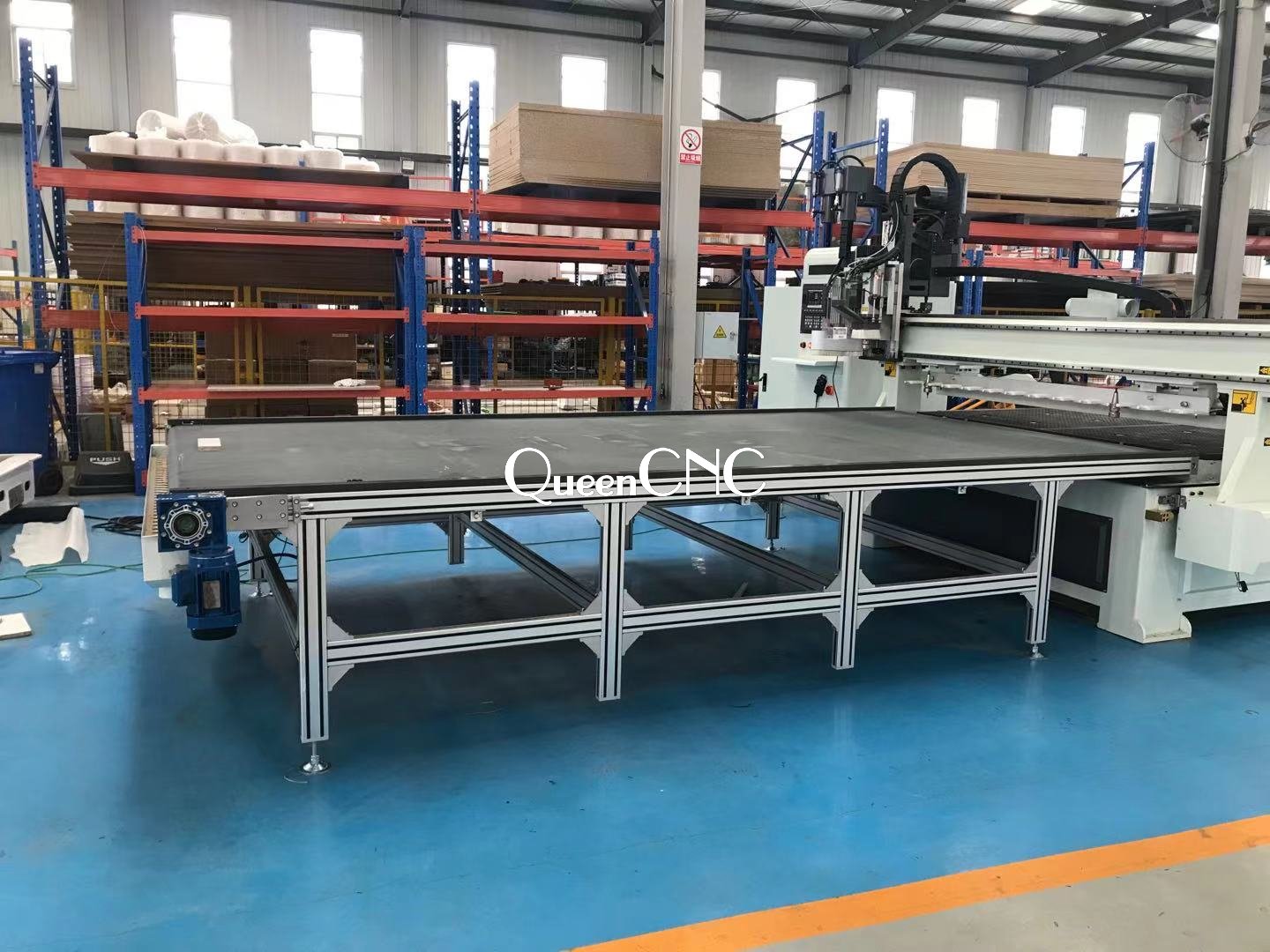

QN2040 nesting atc cnc router with drilling block pics in factory:
Specs:
|
Max. working size |
2000x4000mm(or other customized working sizes) |
|
Spindle |
Chinese brand 9 KW air-cooling ATC spindle, JST or CC, depends on stock |
9 KW air-cooling ATC + 9 V drill unit |
|
X/Y axis transmission |
1.5 module precision helical racks |
|
Z axis transmission |
Taiwan ball screw |
|
X/Y/Z axis guide rail |
Taiwan LAPPING or TIWIN 25mm linear rails |
|
X/Y/Z axis servo system |
Delta or Syntec servo motors and drivers |
|
X/Y/Z axis reducer |
Japanese SHIMPO reducers |
|
VFD (Inverter) |
HPMONT |
|
Storage of ATC |
12 positions with free 12 ISO 30 type tool holders |
|
DC power system |
Taiwan DELTA |
|
Main electrical element |
Schneider |
|
Main pneumatic part |
AIRTEC |
|
Working table |
Vacuum working table with 6 suction zones |
|
Control system |
Taiwan Delta or Syntec with MPG hand-wheel |
|
Lubrication System |
Automatic lubrication |
|
Vacuum pump |
Equip one 7.5KW water cooling vacuum pump |
|
Position |
Equip 6 (2 front + 4 side) Air Cylinders |
|
Dust collector |
Equip one 4.0 KW with two bags, 380V |
|
Tool sensor |
Equipped |
|
Option |
Add automatic loading,unloading tables/two working tables/pre-labeling |
Features:
1. Lathe structure with aging treatment. It can be used for a long time without deformation,and it guarantees high performance.
2. Control interface is more humanized,and is easy to operate.Instead of skilled worker,the operator can work after a simple training.High speed and efficiency lead to high yield.
3. Optional automatic loading and unloading.This machine can load and unload automatically,cut wooden boards optimally, drill vertical holes in once time.Uninterrupted processing achieve output maximum efficiency. Compared with traditional cutting,it can save a lot of labor cost.It only need one person to operate, even one person can operate several devices with zero error,simple operation and high efficiency.
4. Automatic labeling can be chosen.When this machine is cutting and drilling, it identify boards in advance, then paste the corresponding bar code on boards.The whole process without human intervention and it really achieves zero error.
5. Delta/SYNTEC high-end CNC machine control system
6. Good stability, fast data processing speed and more accurate signal feedback.
7. Aging treatment of bed and gantry milling
8. The machine has higher stability, high precision and long service life.
9. 9KW high power automatic tool change spindle with large capacity tool magazine
10. With strong cutting ability, it can automatically solve various complicated processing.
11. Taiwan high-power drive system
12. High torque drive, faster processing speed.
13. New generation/Delta high-end CNC machine tool control system
14. Good stability, fast data processing speed and more accurate signal feedback.
15. During the production process of the whole machine and before leaving the factory, it accepts strict quality inspection control and processing test to ensure that the backboard grooves and the front and back holes are accurately drilled. Ensure that the back plateslot and the front and back holes are accurately drilled.
