QN2040 atc cnc router with drilling unit
Release Time:2023-02-07 17:45 Reading Times:

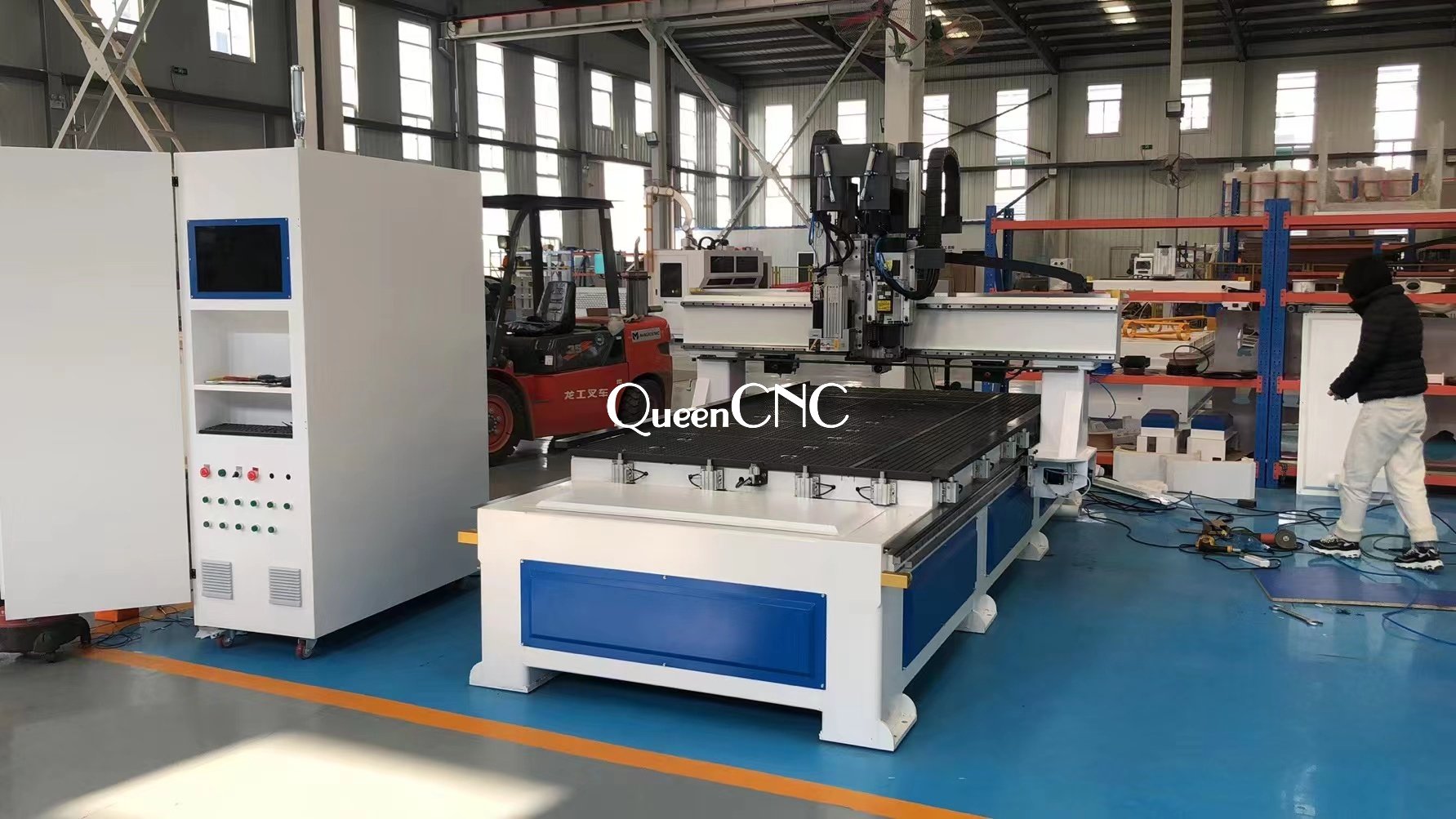

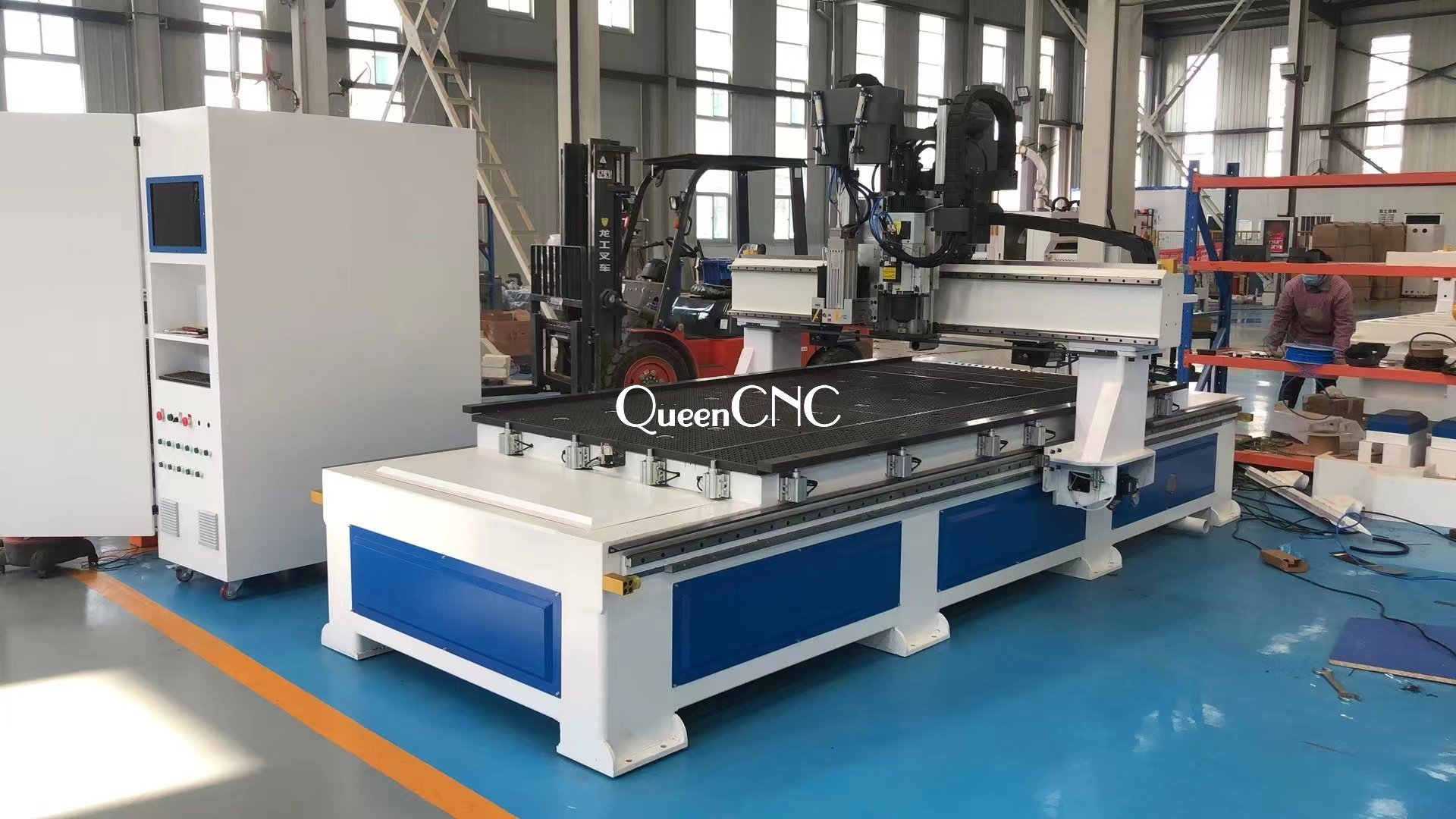

More pics:
Techinical specs:
|
Model |
QN2040 cnc drilling machine woodworking / 2040 atc cnc router with boring hole block |
|
Working Stoke |
2000*4000*300mm |
|
Body Structure |
Heavy-duty thicken steel structure, w/ tempering |
|
Spindle Power |
HSD 9KW air cooling spindle |
|
Spindle Speed |
0 ~ 24000 rpm/min |
|
Drilling Head |
Italy HSD 5+4 gang drill |
|
Tool Magazine |
Carousel, 8pcs |
|
Control System |
Syntec/ Osai |
|
Drive System |
Yaskawa/ Delta servo motor |
|
Lubrication System |
Automatic |
|
Transmission |
XY axis rack and pinion, Z axis ball screw |
|
Guide Rail |
Taiwan Hiwin linear rail |
|
Transformer |
630VA |
|
Vacuum Pump |
5.5KW |
|
Max Travelling Speed |
50m/min |
|
Max Processing Speed |
30m/min |
|
Dictate Format |
G code/ HPGL |
|
Working Accuracy |
±0.02mm |
|
Re-positioning Accuracy |
±0.05mm |
|
Support Software |
Professional cutting optimization software |
|
Working Voltage |
AC380/ 3PH/ 50HZ |
|
Net Weight |
3000KG |
|
Machine Size |
3700*3100*1900mm
|
Features for QN2040 atc cnc router with drilling unit

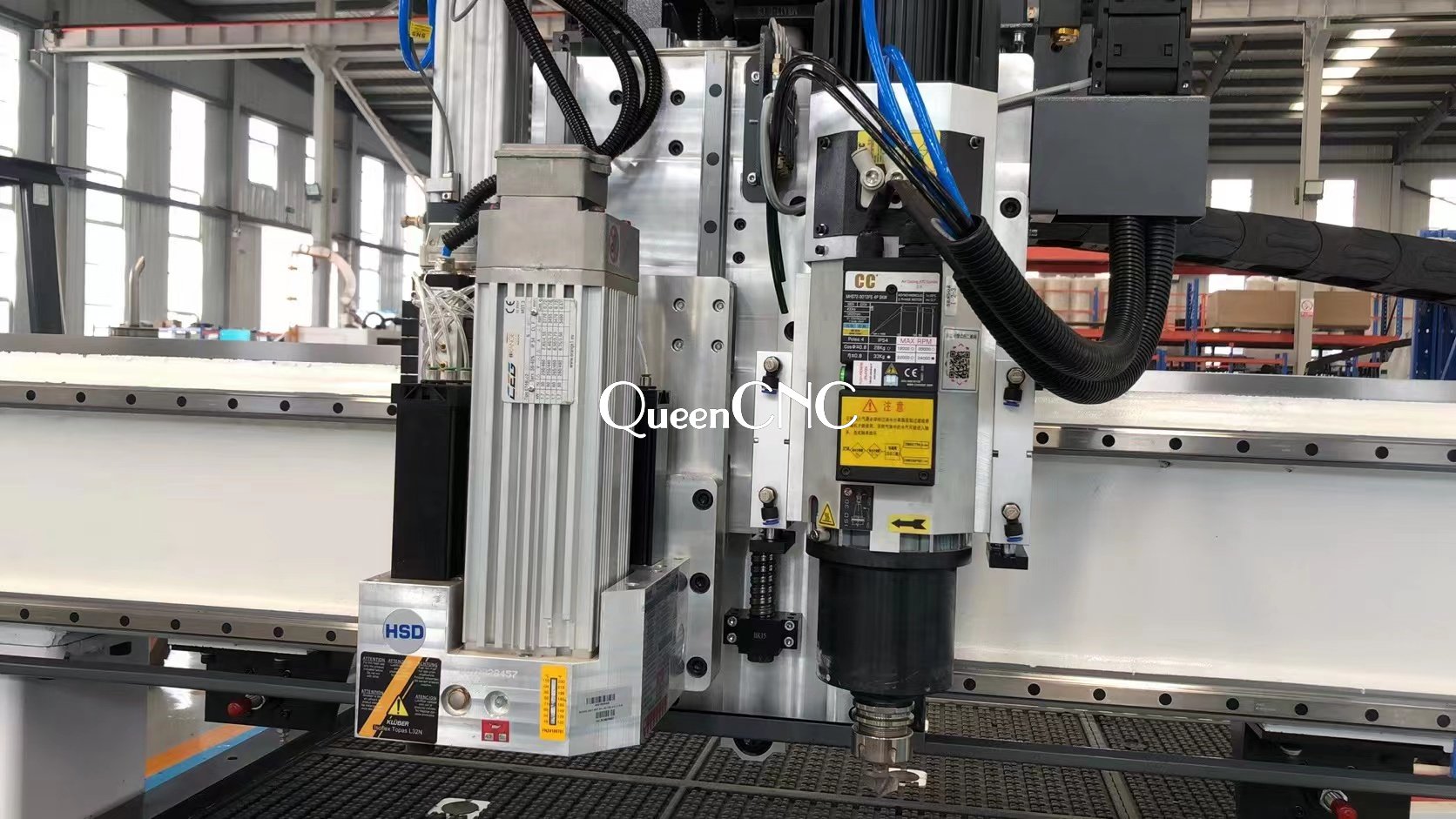

1. Spindle Power: HSD 9KW air-cooling spindle, with 8pcs disc type tools magazine.

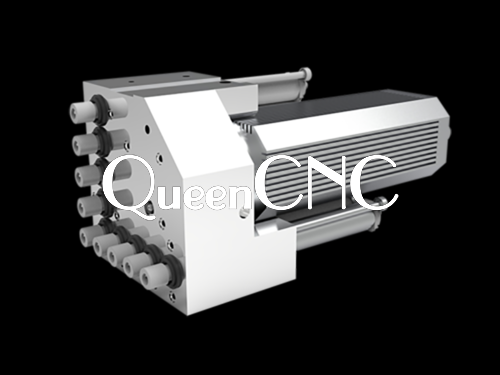

2. Drilling Head: Italy HSD 5+4 gang drill.
3. Driving System: XYZ axis Japan Yaskawa servo motor drive, Z-axis with brake.
4. Control System: Taiwan Syntec, high precision and best stability.
5. Converter: Zoncn/ Fuling brand.
6. Cylinder: 10pcs Positioning Cylinders, pneumatic device for loading and unloading platform.
7. Transmission: Taiwan Hiwin square guide rails (Y 30mm, X/Z 25mm), Lifetime free-lubrication, high precision helical rack gear.
8. Beam: Reinforcing steel structure.
9. Cable: YANGLI special shielded cables for drag chain, anti-static, anti-interference, with good bending resistance.
10. Limit Switch: Japan Omron.
11. Electrical Components: French Schneider Brand.
12. Body Structure: Heavy-duty integral welding steel structure, with tempering aging treatment, which ensure the body durable and never deformation. With big cover outside.
13. Table: Overall steel truss structure, good stability, with no distortion; Vacuum table.
14. Vacuum Pump: 5.5KW.
15. Software: Be compatible with G-code NC file.
16. Optional: Loading and unloading platform, Scanning gun, Automatic coding machine, Dust collector.
