QN2040F following type atc cnc router
Release Time:2023-02-07 17:41  Reading Times:

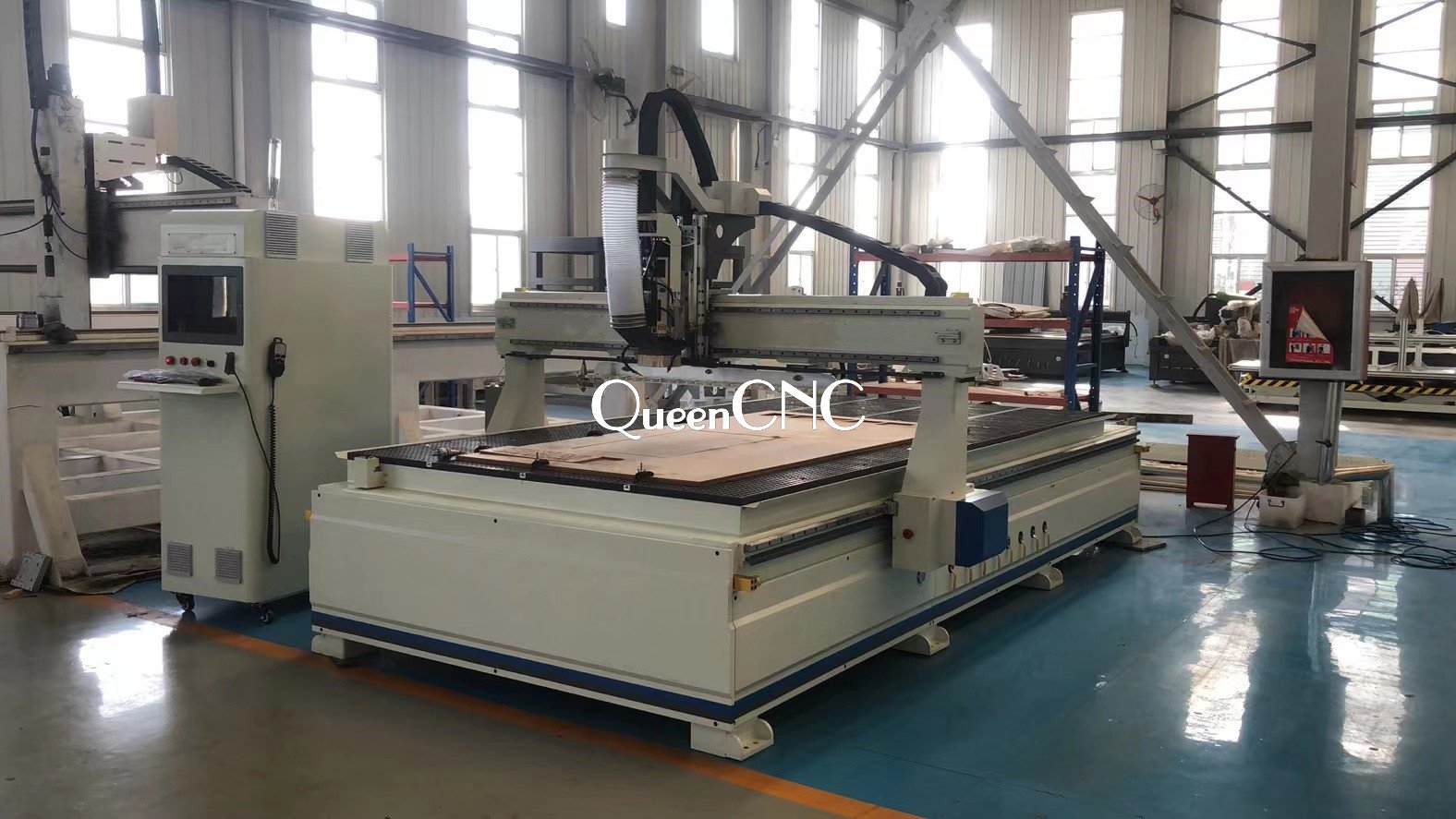

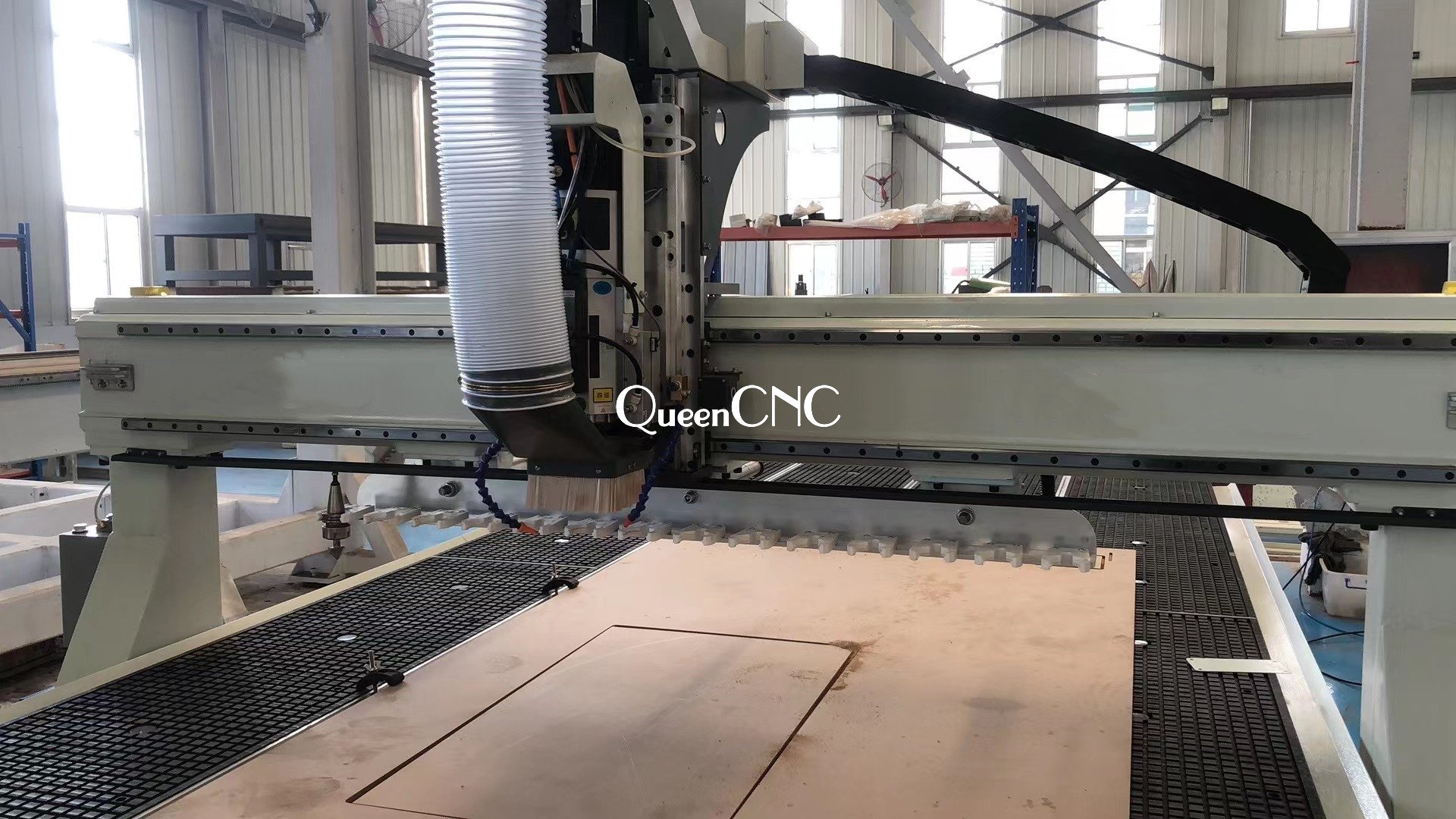

QN2040F following type atc cnc router pics:

Machine specs:
Model QN2040 following type auto tool changer cnc router
Working size 2000*4000*300mm
Spindle 9.0kw air cooled auto tool changer spindle
Driver motor leadshine servo motors and drivers 750w
Inverter Fuling inverter 11kw
Machine table Vacuum and T-slot combined
Positioning system Yes
Control system NK280 control system
Linear rails Taiwan T-win linear square rails
Z axis transmission Germany Ball screw transmission
Transmission Rack and pinion
Auto Oiling system Yes
7.5kw vacuum pump Yes,one set
Voltage 380v,Three phase,50HZ/220v,single phase
Precision <0.1mm
Max speed 70m/min
Tool sensor Yes
Limits Yes
Tool chuck 8 pcs
Machine frame Thicken heavy duty
Net weight 2200KG
Gross weight 2300KG
