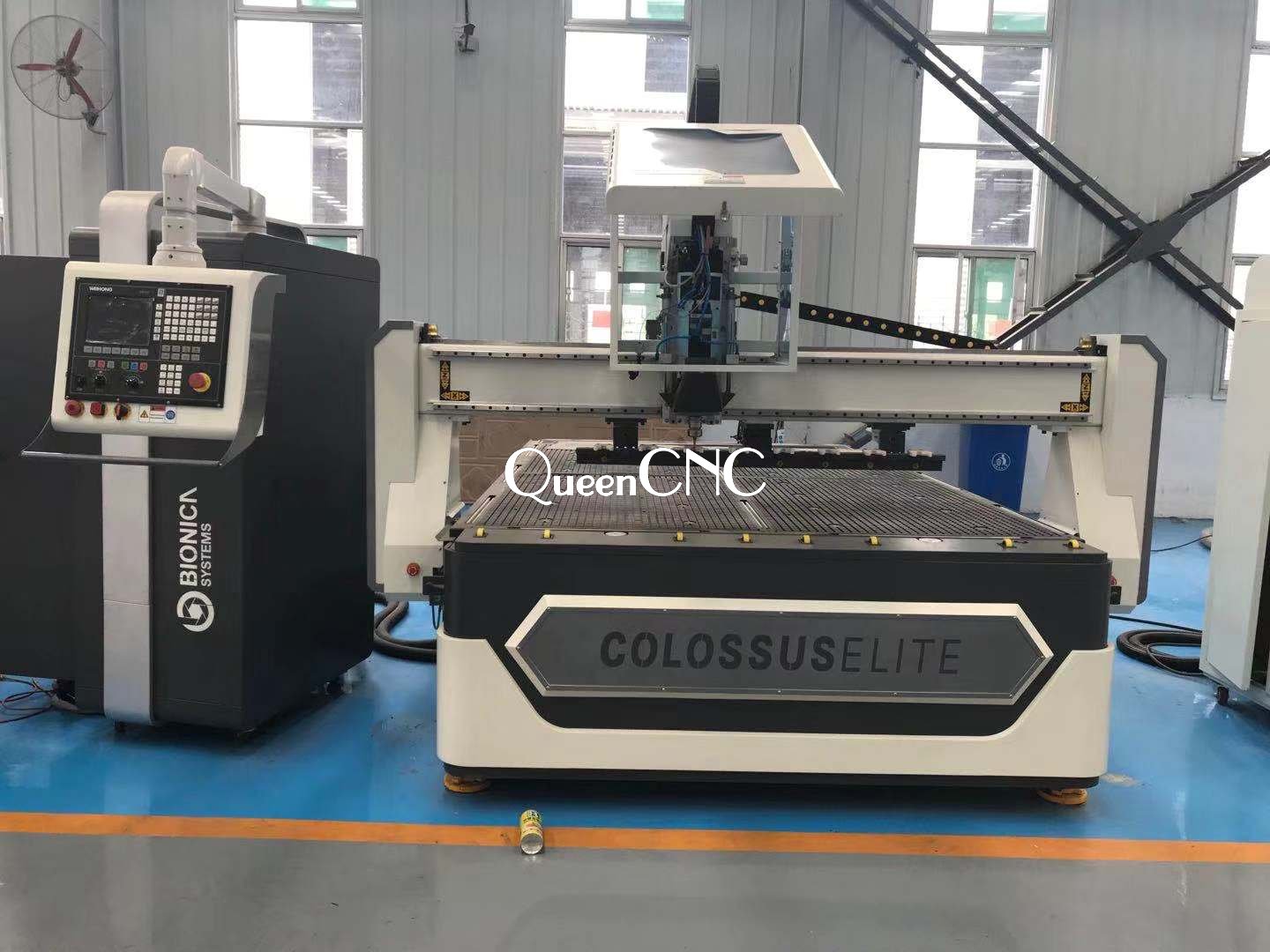

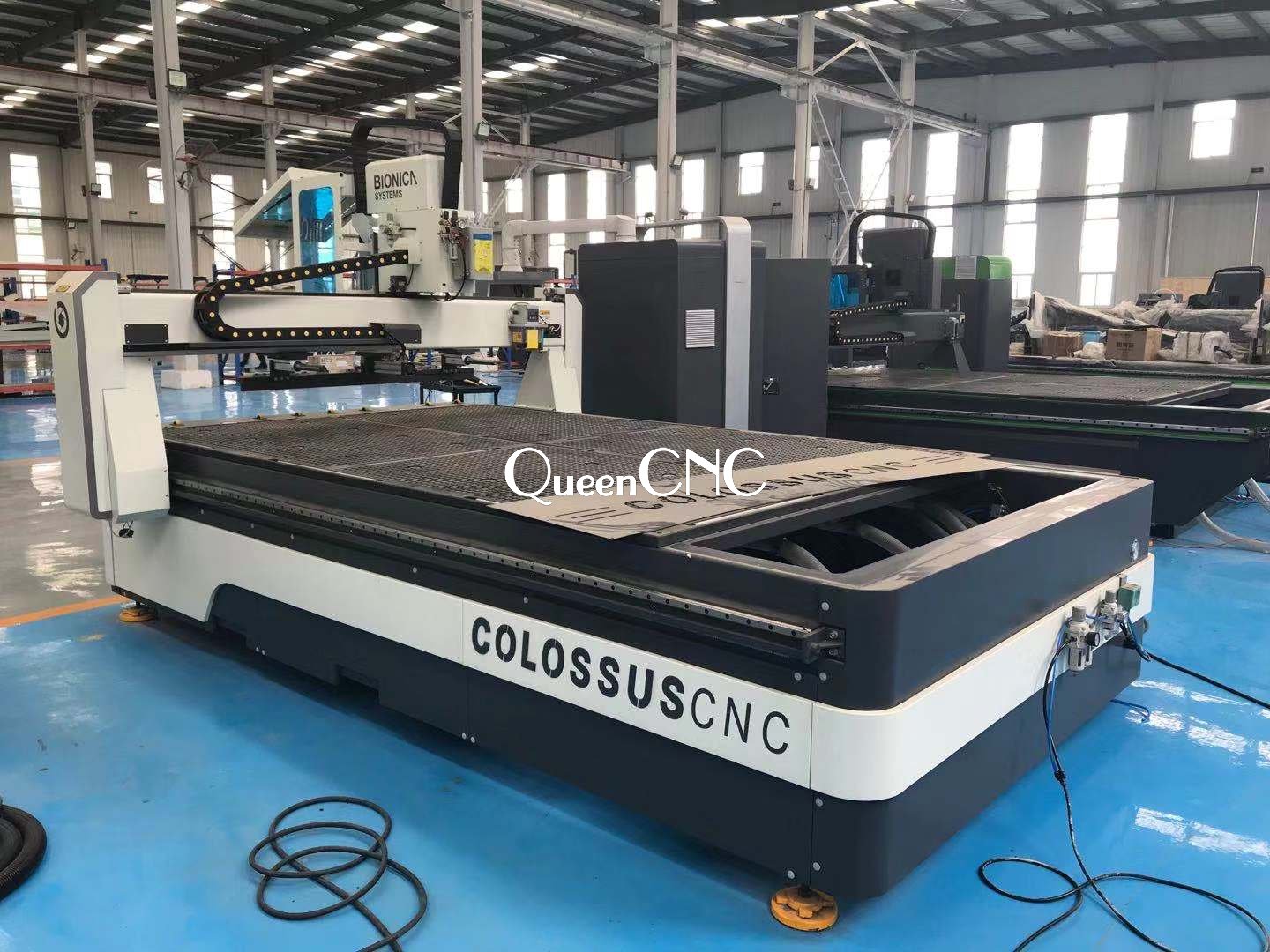

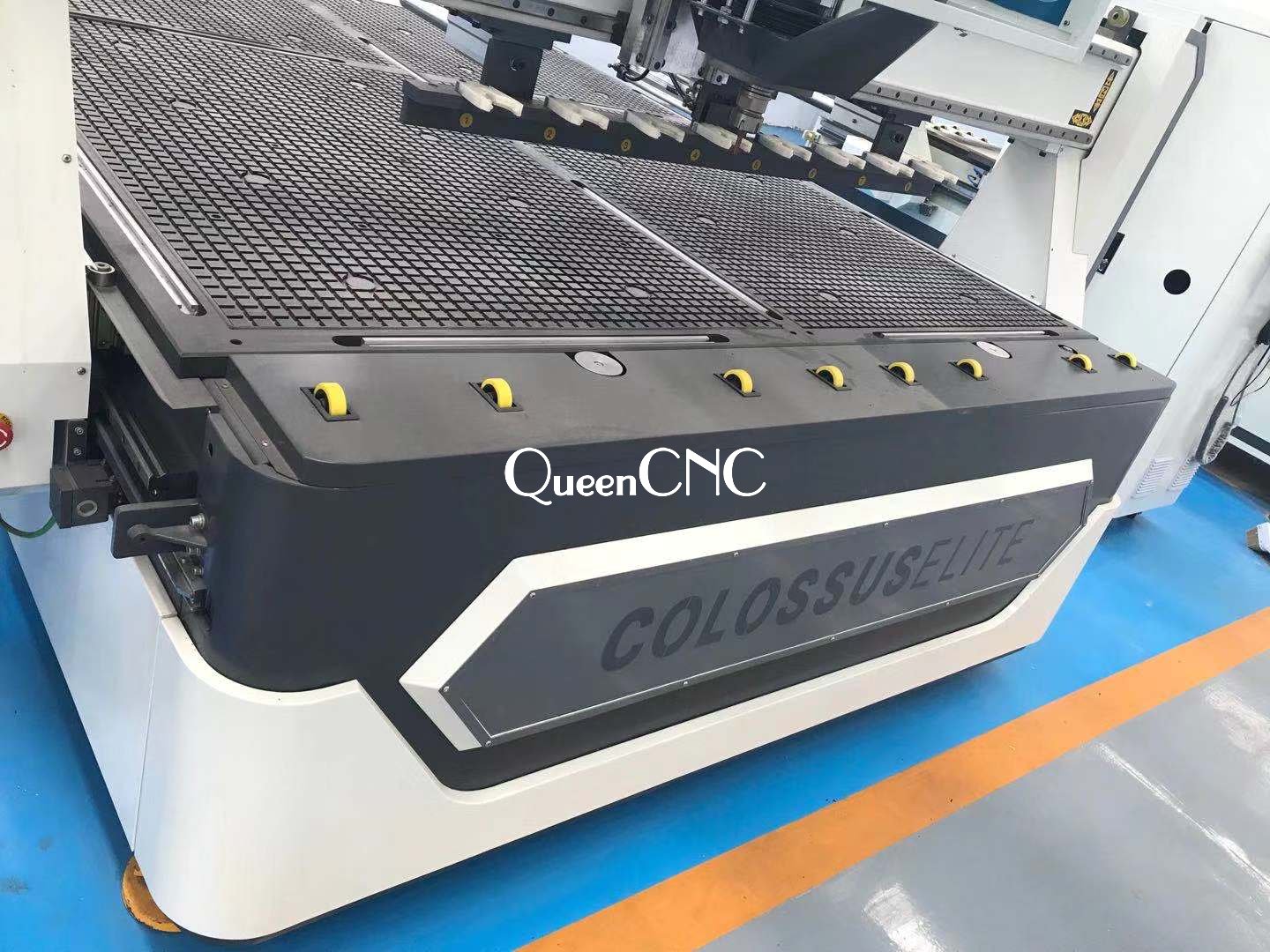

QN2030F fllowing type atc cnc router for UK customer
Release Time:2023-02-07 17:49 Reading Times:
This is a customized atc cnc router according to customer’s need.Heavy duty design,control cabinet with rocker arm,mist cooling system etc. Model
QN2030 follow type linear auto tool changer cnc router
Working size 2000*3000*300mm
Machine table Vacuum table with T-slot
Spindle 9.0kw air cooled ATC spindle
Driver motor and
driver Delta 750w servo motor and drivers
Inverter Delta inverter
Control system Weihong NK260 control system
Linear rails Original PMI25 linear square rails
Tool magazine 8 tools
Z axis transmission Germany ball screw transmission
Transmission Rack and pinion
Tool sensor Yes
Limit switch Yes
Oiling system Yes
Oil mist cooling system Yes
Voltage 380v,three phase,50/60HZ
Machine frame Thicken heavy duty
Net weight 2100KG
Gross weight 2300KG
