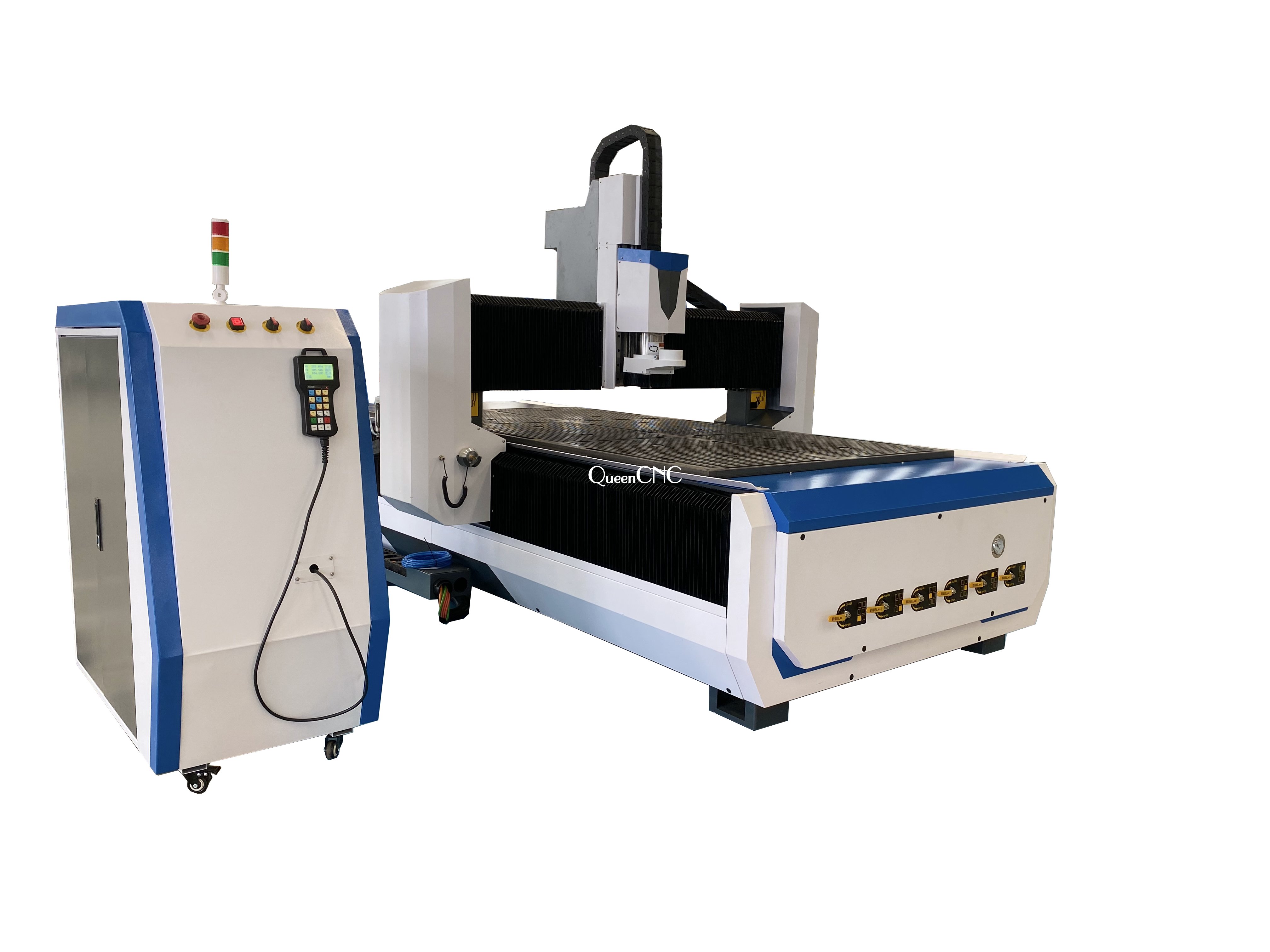

Machine pic:
Max. working size2000x3000mm(or other customized working sizes)
SpindleChinese brand 9 KW air-cooling ATC spindle, JST or CC, depends on stock9 KW air-cooling ATC + 9 V drill unit
X/Y axis transmission1.5 module precision helical racks
Z axis transmissionTaiwan ball screw
X/Y/Z axis guide railTaiwan LAPPING or TIWIN 25mm linear rails
X/Y/Z axis servo systemDelta or Syntec servo motors and drivers
X/Y/Z axis reducerJapanese SHIMPO reducersVFD (Inverter)HPMONT
Storage of ATC12 positions with free 12 ISO 30 type tool holders
DC power systemTaiwan DELTA
Main electrical elementSchneider
Main pneumatic partAIRTEC
Working tableVacuum working table with 6 suction zones
Control systemTaiwan Delta or Syntec with MPG hand-wheel
Lubrication SystemAutomatic lubrication
Vacuum pumpEquip one 7.5KW water cooling vacuum pump
PositionEquip 6 (2 front + 4 side)Air Cylinders
Dust collectorEquip one 4.0 KW with two bags, 380V
Tool sensorEquipped
Option Add automatic loading,unloading tables/two working tables/pre-labeling
