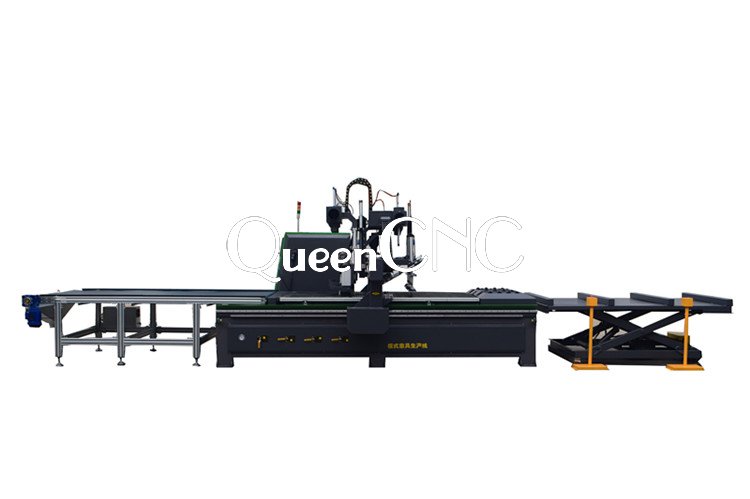

Cnc Router
| Max. working size | 2000x3000mm(or other customized working sizes) | |
| Spindle | Chinese brand 9 KW air-cooling ATC spindle, JST or CC, depends on stock | 9 KW air-cooling ATC + 9 V drill unit |
| X/Y axis transmission | 1.5 module precision helical racks | |
| Z axis transmission | Taiwan ball screw | |
| X/Y/Z axis guide rail | Taiwan LAPPING or TIWIN 25mm linear rails | |
| X/Y/Z axis servo system | Delta or Syntec servo motors and drivers | |
| X/Y/Z axis reducer | Japanese SHIMPO reducers | |
| VFD (Inverter) | HPMONT | |
| Storage of ATC | 12 positions with free 12 ISO 30 type tool holders | |
| DC power system | Taiwan DELTA | |
| Main electrical element | Schneider | |
| Main pneumatic part | AIRTEC | |
| Working table | Vacuum working table with 6 suction zones | |
| Control system | Taiwan Delta or Syntec with MPG hand-wheel | |
| Lubrication System | Automatic lubrication | |
| Vacuum pump | Equip one 7.5KW water cooling vacuum pump | |
| Position | Equip 6 (2 front + 4 side) Air Cylinders | |
| Dust collector | Equip one 4.0 KW with two bags, 380V | |
| Tool sensor | Equipped | |
| Option | Add automatic loading,unloading tables/two working tables/pre-labeling | |
