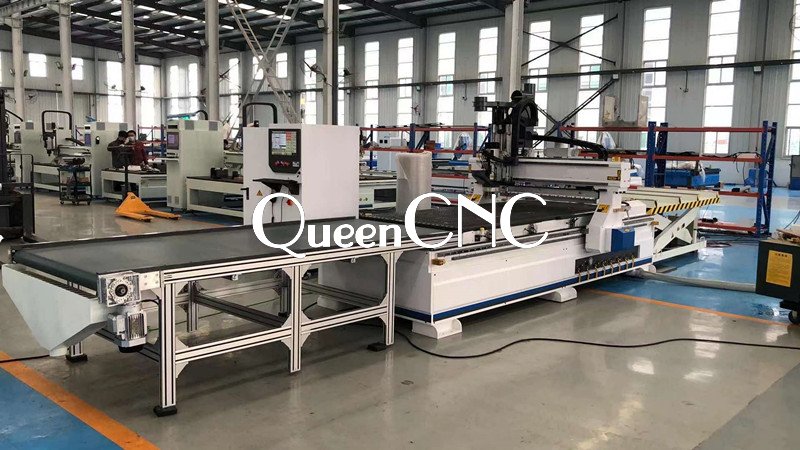

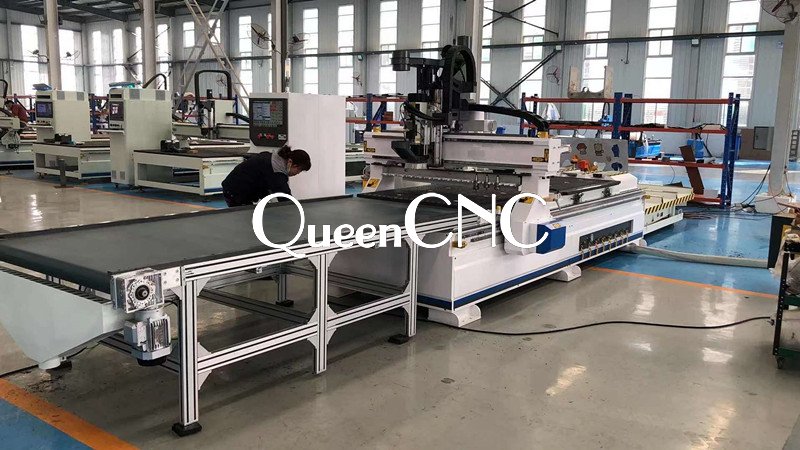

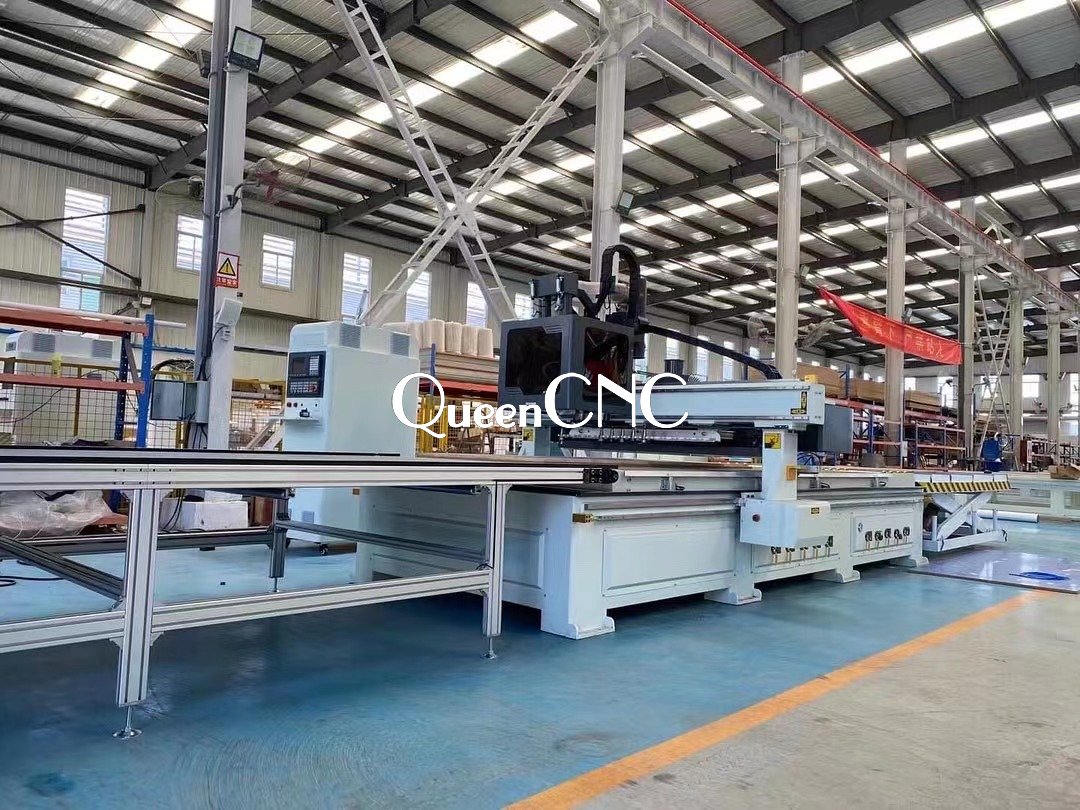

QN1836 nesting atc cnc router for furniture mass production
Release Time:2023-02-07 17:57 Reading Times:
Pics: Features:
1. Lathe structure with aging treatment. It can be used for a long time without deformation,and it guarantees high performance.
2. Control interface is more humanized,and is easy to operate.Instead of skilled worker,the operator can work after a simple training.High speed and efficiency lead to high yield.
3. Optional automatic loading and unloading.This machine can load and unload automatically,cut wooden boards optimally, drill vertical holes in once time.Uninterrupted processing achieve output maximum efficiency. Compared with traditional cutting,it can save a lot of labor cost.It only need one person to operate, even one person can operate several devices with zero error,simple operation and high efficiency.
4. Automatic labeling can be chosen.When this machine is cutting and drilling, it identify boards in advance, then paste the corresponding bar code on boards.The whole process without human intervention and it really achieves zero error.
5. Delta/SYNTEC high-end CNC machine control system
6. Good stability, fast data processing speed and more accurate signal feedback.
7. Aging treatment of bed and gantry milling
8. The machine has higher stability, high precision and long service life.
9. 9KW high power automatic tool change spindle with large capacity tool magazine
10. With strong cutting ability, it can automatically solve various complicated processing.
11. Taiwan high-power drive system
12. High torque drive, faster processing speed.
13. New generation/Delta high-end CNC machine tool control system
14. Good stability, fast data processing speed and more accurate signal feedback.
15. During the production process of the whole machine and before leaving the factory, it accepts strict quality inspection control and processing test to ensure that the backboard grooves and the front and back holes are accurately drilled. Ensure that the back plateslot and the front and back holes are accurately drilled. Specs:
Max. working size
1800x3600mm(or other customized working sizes)
Spindle
Chinese brand 9 KW air-cooling ATC spindle, JST or CC, depends on stock
9 KW air-cooling ATC + 9 V drill unit
X/Y axis transmission
1.5 module precision helical racks
Z axis transmission
Taiwan ball screw
X/Y/Z axis guide rail
Taiwan LAPPING or TIWIN 25mm linear rails
X/Y/Z axis servo system
Delta or Syntec servo motors and drivers
X/Y/Z axis reducer
Japanese SHIMPO reducers
VFD (Inverter)
HPMONT
Storage of ATC
12 positions with free 12 ISO 30 type tool holders
DC power system
Taiwan DELTA
Main electrical element
Schneider
Main pneumatic part
AIRTEC
Working table
Vacuum working table with 6 suction zones
Control system
Taiwan Delta or Syntec with MPG hand-wheel
Lubrication System
Automatic lubrication
Vacuum pump
Equip one 7.5KW water cooling vacuum pump
Position
Equip 6 (2 front + 4 side) Air Cylinders
Dust collector
Equip one 4.0 KW with two bags, 380V
Tool sensor
Equipped
Option
Add automatic loading,unloading tables/two working tables/pre-labeling
