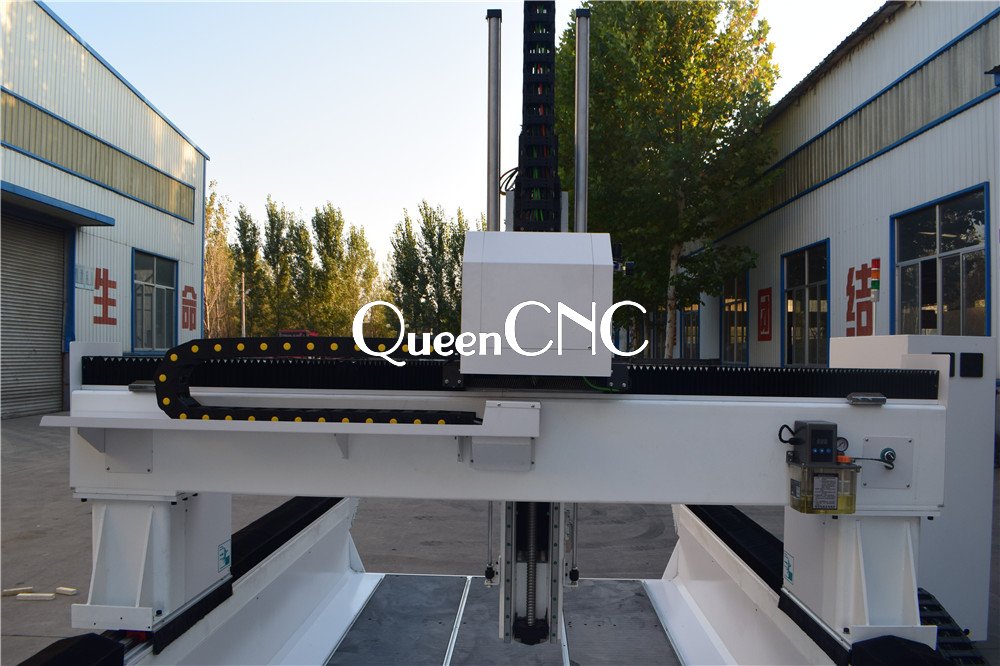

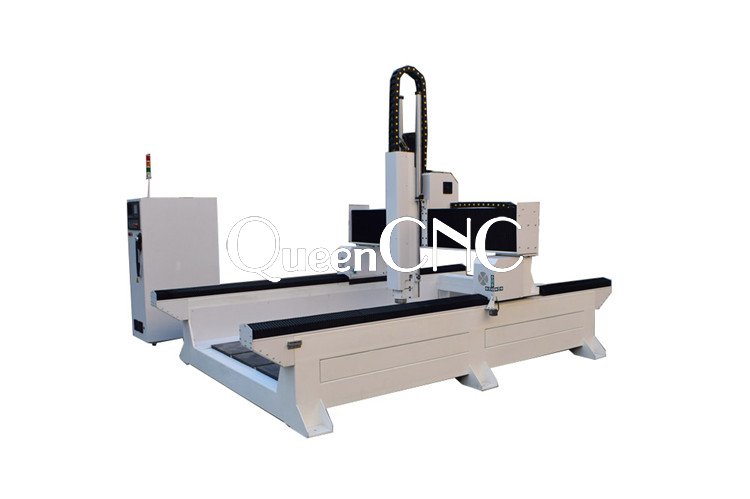

QN1825 high z axis cnc router for EPS foam mold
Release Time:2023-01-31 14:44 Reading Times:
Product Description

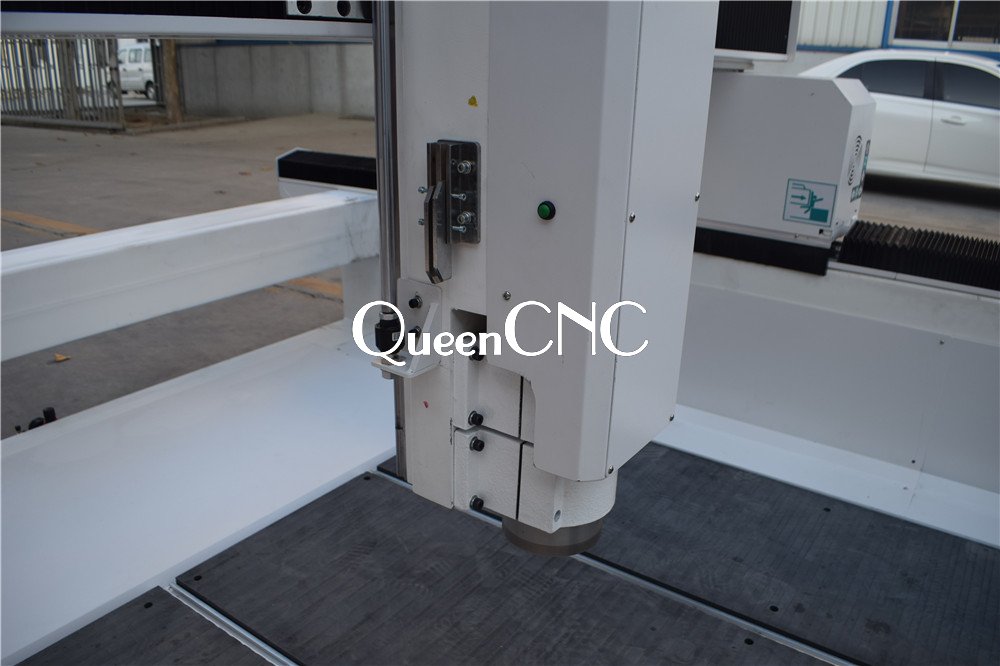

1.Adopts 8 mm steel Machine welding bed, after hundred times' special vibrate experiment, we ensure that the lathe will not deform during their long-term working hours. With enhanced welding technicals, we provide our machines good stability, longer life and amazing accuracy rate. 2. 3KW Water cooling spindle with good cooling effect. Almost no noise, long life. 3. Taiwan Hiwin square rails has more higher precision, less wear and tear can maintain high accuracy. it's apply to high-speed move and greatly reduce the drive horse power the machine required. What's more, can bear the load from left and right / up and down at the same time. 4. Leadshine stepper motor and driver, won't lose step when it work, guarantee the positional accuracy of the motor. 5.DSP control system don't need connect to PC. it is easily operate and learned, especially for the freshman. 6.The 4 axis rotary device is convinently for round materials working. 7. Software: compatible with Type3/Artcam/Castmate / Ucancam a variety of CAD / CAM Design Software.
|
No |
Item |
Data |
|
1 |
Model |
QN-1625 |
|
2 |
Name |
High Z axis Gantry CNC Router Milling Engraving Machine for EPS foam mold |
|
3 |
X .Y Axis working area |
1600X2500mm |
|
4 |
Z-Axis working area |
1100mm |
|
5 |
Repeatability |
0.025(+/-mm) |
|
6 |
Max Cutting Speed |
24000mm/min |
|
7 |
command |
G code*.u00*.mmg*plt |
|
8 |
Spindle power rate |
6KW(water cooled) |
|
9 |
Spindle rotating speed |
0-24000rpm |
|
10 |
Work Mode |
Servo Motor |
|
11 |
Transmission |

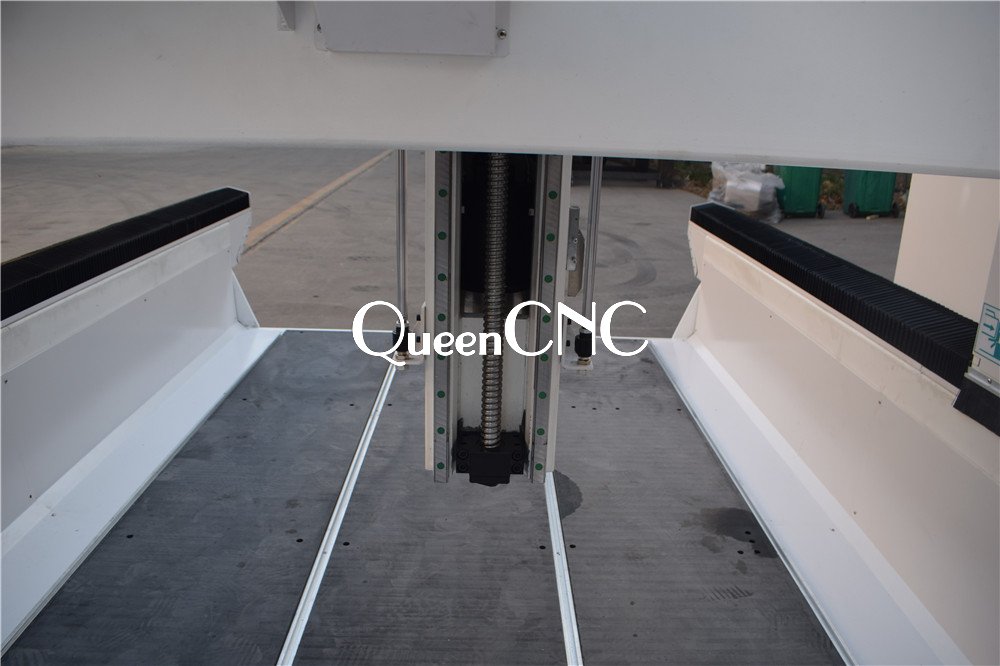

XY axis helical rack, Z Ball screw |
|
12 |
Guide way |
Linear guide way |
|
13 |

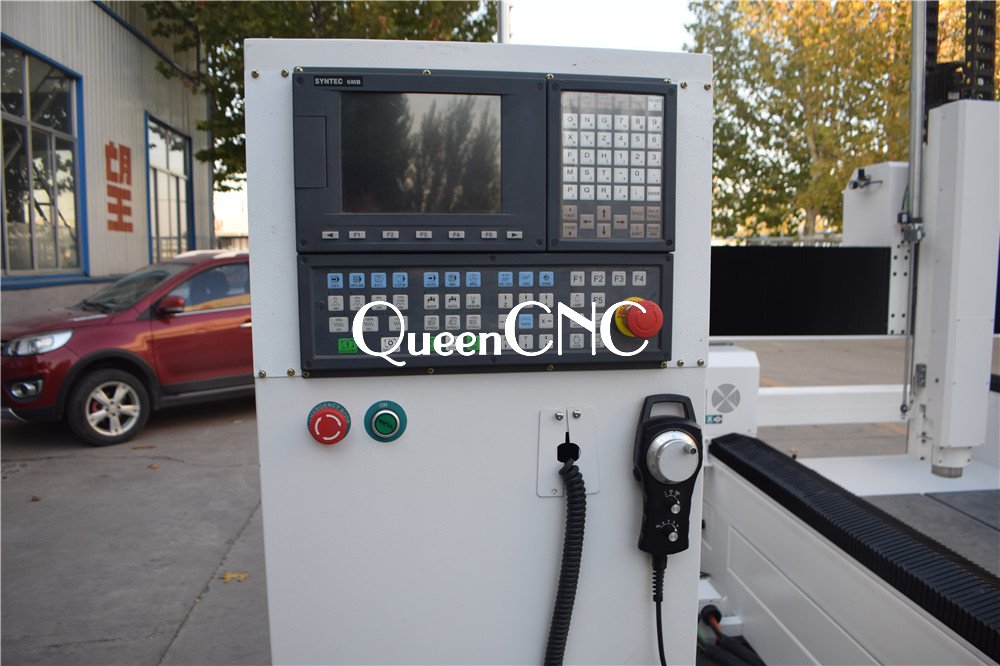

Control system |
LNC |
|
14 |
Power |
AC380V/50~60Hz |
