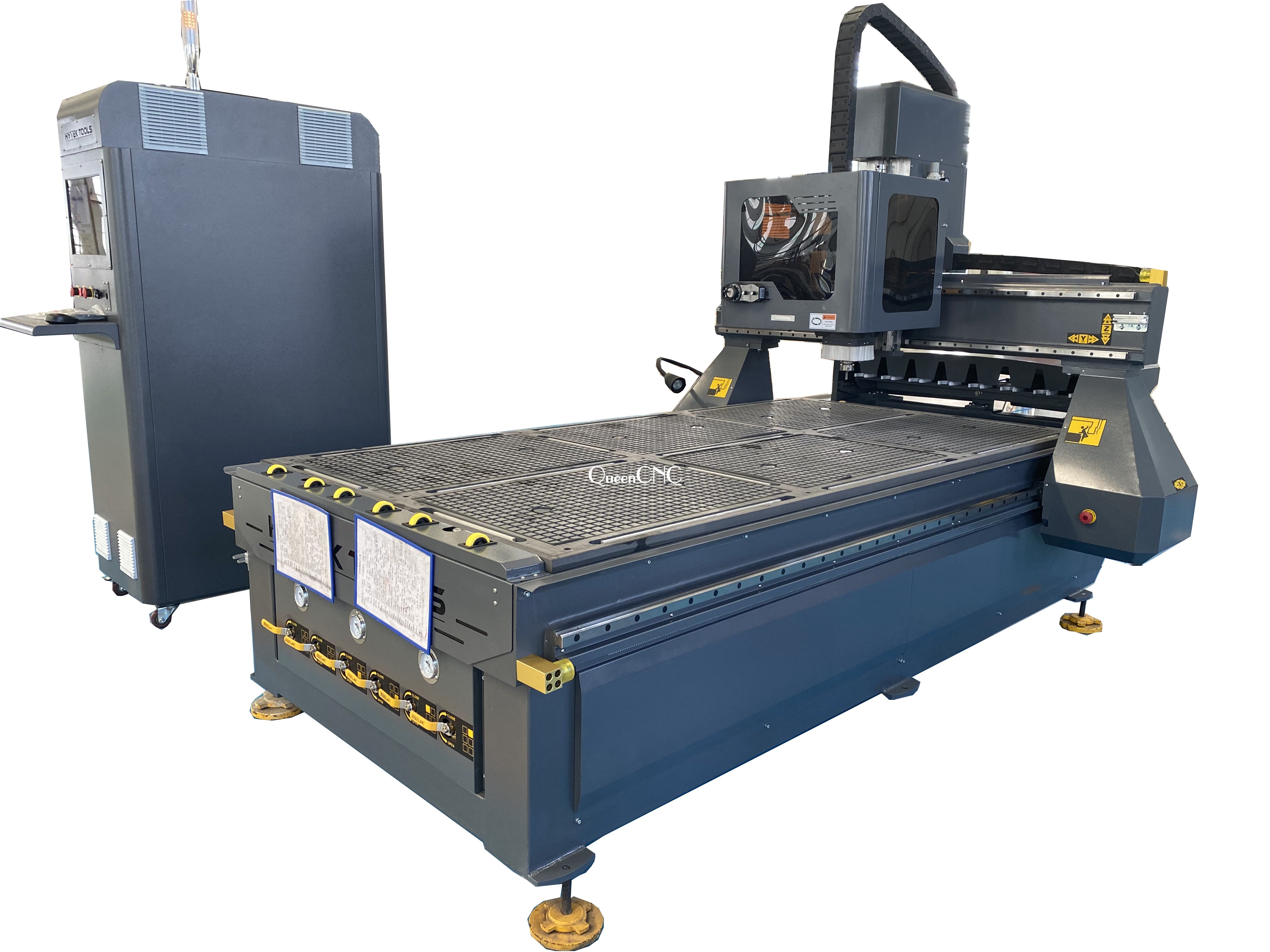

Cnc Router
| Working size | 1300*2500*300mm |
| Tool magazine | Linear type,8 tools |
| Machine table | Vacuum table with T-slot |
| Spindle | 9.0kw air cooled atc spindle |
| Spindle dust shoe | Yes |
| Dust collector | Yes,dual bag |
| Driver motor | Leadshine servo motor 1500w and drivers |
| Inverter | Fuling inverter |
| Control system | NK260 control system |
| Linear rails | T-win linear square rails imported from taiwan |
| Z axis transmission | TBI ball screw transmission |
| Transmission | Rack and pinion |
| Machine table | Vacuum table and T slot combined |
| Vacuum pump | Yes ,7.5kw |
| Auto Tool sensor | Yes |
| Limit switch | Yes |
| Auto Oiling system | Yes |
| Extra tool holder | 4 pieecs,total with machine is 14 pieces |
| Voltage | 220v/380v,three phase,50/60HZ |
| Max cutting speed | 60m/min |
| Max engraving speed | 75m/min |
| Machine frame | Thicken steel welded ,heavy duty design |
| Net weight | 1500KG |
| Gross weight | 1600KG |
