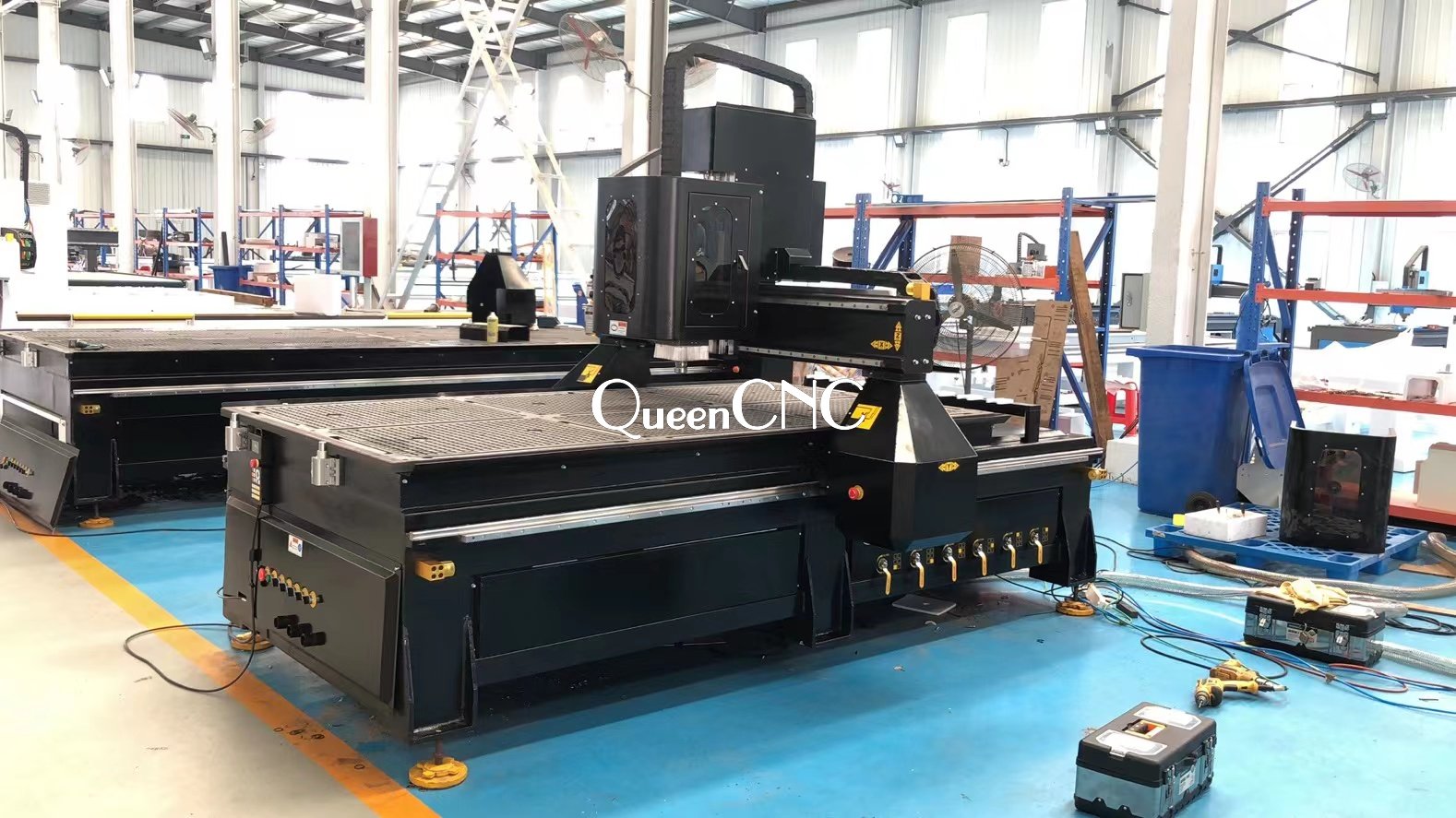

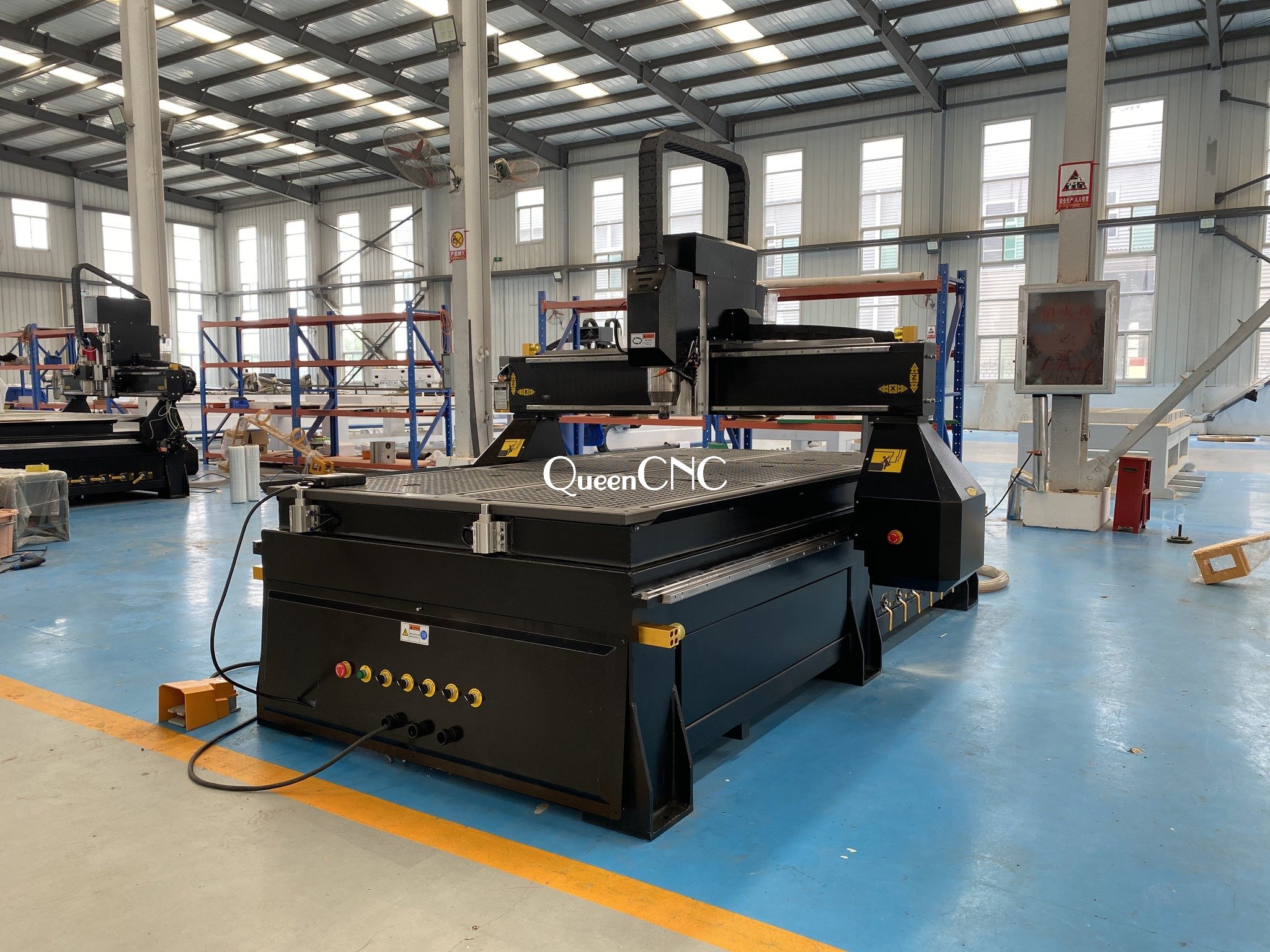

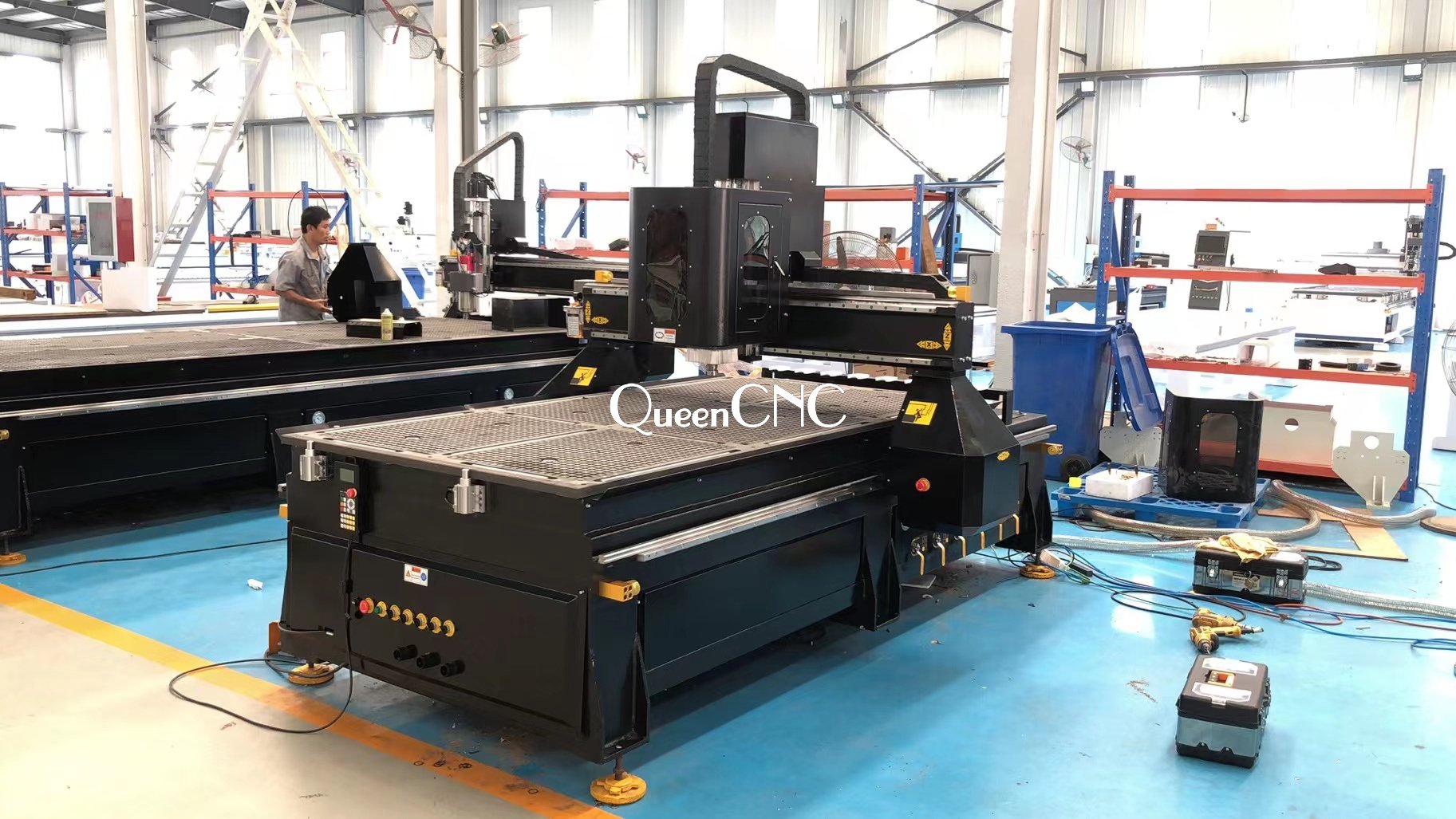

QN1530 Economic atc cnc router with inner control cabinet

Release Time:2023-01-31 14:37 Reading Times:

This is an economic atc cnc router with inner control cabinet to save space,a very suitable machine for customers who has a limited budget and space.
Technical parameter of QN1530 Economic atc cnc router with inner control cabinet:

Model	QN530 linear type auto tool changer cnc router
Working size	15003000300mm
Spindle	9.0kw air cooled auto tool changer spindle
Driver motor	leadshine servo motors and drivers 750w
Inverter	Fuling inverter 11kw
Machine table	Vacuum and T-slot combined
Positioning system	Yes
Control system	Mach3 Nk105 G3 control system
Linear rails	Taiwan T-win linear square rails
Z axis transmission	Germany Ball screw transmission
Transmission	Rack and pinion
Auto Oiling system	Yes
Voltage	380v,Three phase,50HZ/220v,single phase
Precision	<0.1mm
Max speed	70m/min
Tool sensor	Yes
Limits	Yes
Tool chuck	8 pcs
Machine frame	Thicken heavy duty
Net weight	1400KG
Gross weight	1500KG
