Cnc Router
| Working area | 1500*3000*300mm |

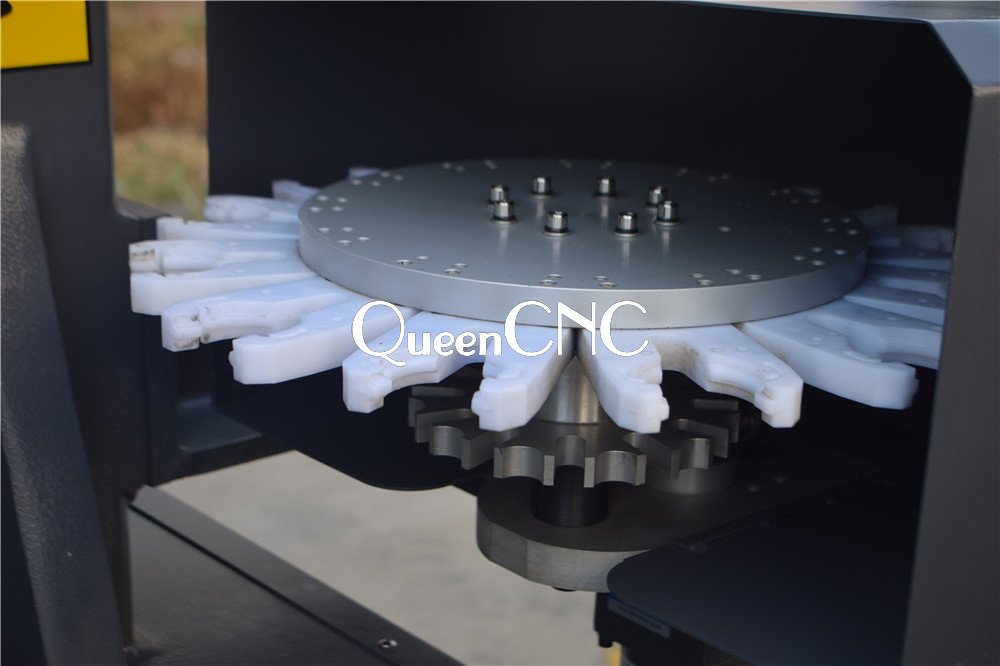

| Tool magazine | Carousel type tool magazine,12-18 tools |
| Max speed | 60m/min(MAX) |
| Working speed | 15-20m/min(MAX)( depends on materials and thickness ) |
| Voltage | AC380V/3PH/50HZ |
| Main spindle | HQD 9KW (24000r/min) depends on delivery time |
| Body frame | Annealing and finishing milling a molding process, stable structure, high precision, small deformation |
| Gear rack | Taiwan alloy hard tooth face helical rack + alloy hard tooth face helical gear |
| Guide | 30mm |
| Control system | Taiwan Syntec control system |
| Locate mode | High precision automatic positioning cylinder |

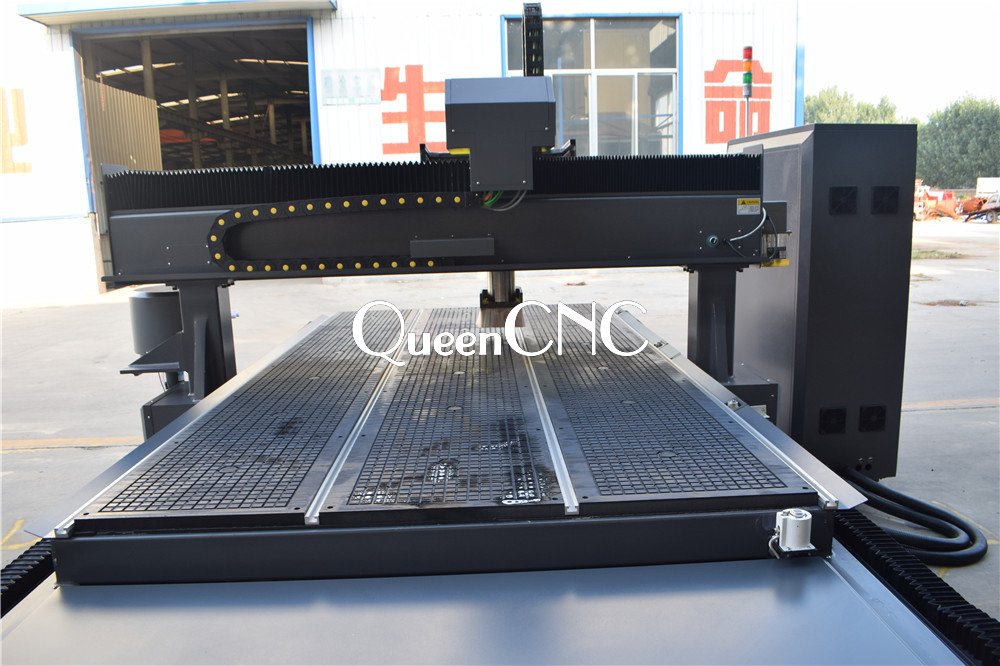

| Table structure | Strong Vacuum worktable |
| Electrics | French Schneider |
| Inverter | Fuling |
| Vacuum pump | 7.5 kw water vacuum pump |
| Reducer | Yes,Japan SHIMPO reducer |
| Cable | shanghai BOSHI flexible towline cable (with shield) |
| Air components | Yes |
| Vacuum pump | 7.5 kw water vacuum pump |
