QN1530 atc cnc router with horizontal spindle
Release Time:2023-01-31 14:22  Reading Times:

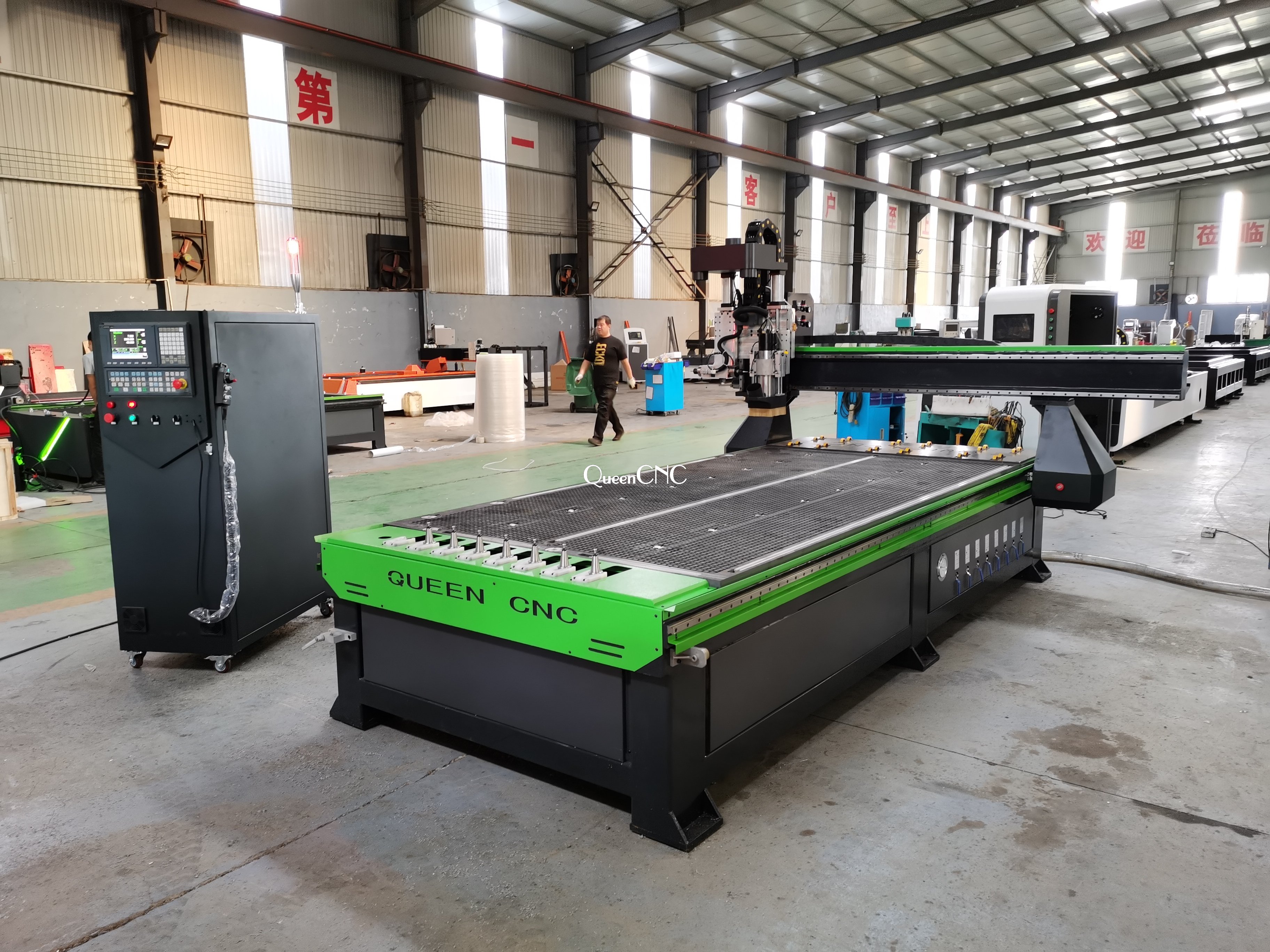

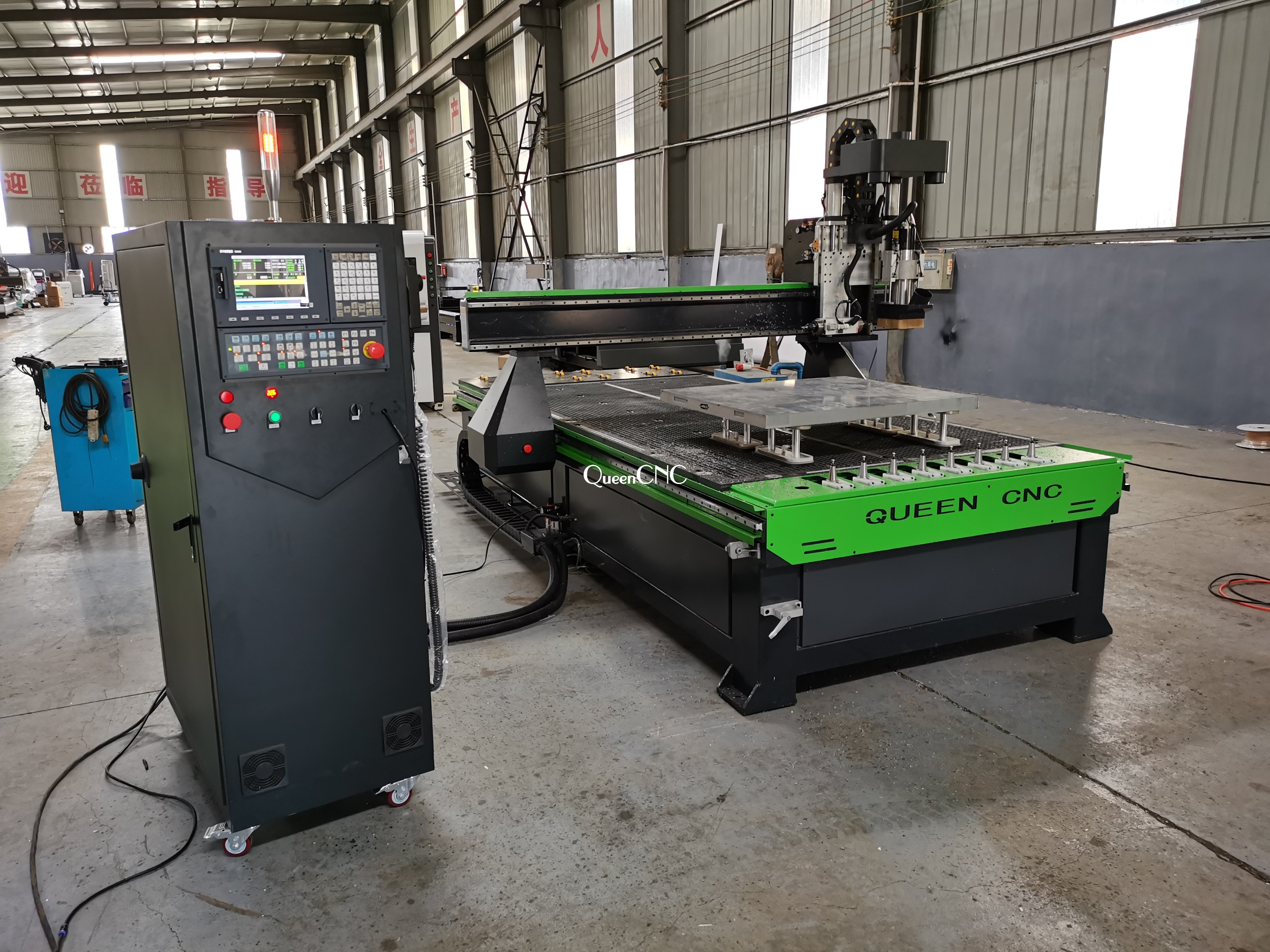

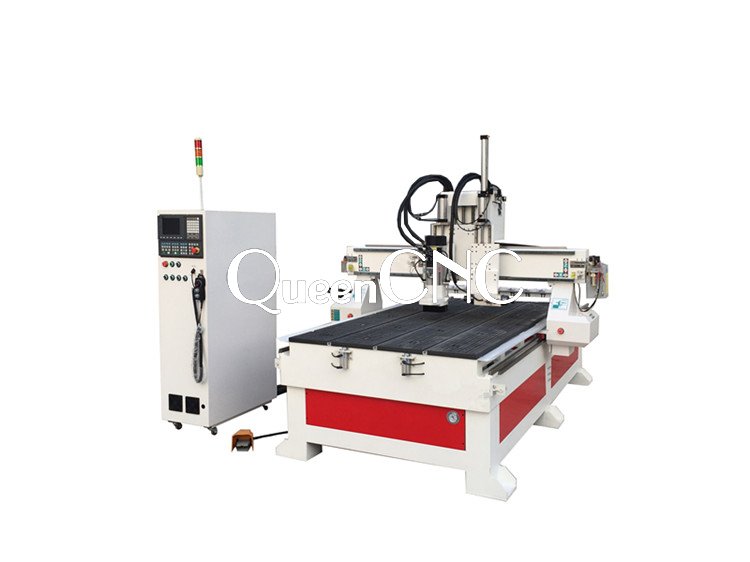

More pics of QN1530 atc cnc router with horizontal spindle:

This machine is specially used for processing door lock holes,window frame and other furnitures.
Technical parameter of QN1530 cnc router with horizontal spindle:

Model QN1530 linear auto tool changer cnc router
Working size 1500*3000*300mm
Machine table Vacuum table with T-slot
Spindle 5.5kw water cooled ATC spindle,3.5kw HQD on horizontal spindle
Driver motor and driver Leadshine 850w servo motor and drivers
Reducer SHIMPO reducer from Japan
Inverter Fuling inverter 5.5kw
Control system Taiwan SYNTEC 6MB control system
Linear rails Original PMI25 linear square rails from Taiwan
Tool magazine 8 tools
Z axis transmission Germany ball screw transmission
Transmission Rack and pinion
Tool sensor Yes
Limit switch Yes
Oiling system Yes
Pop up positioning cylinders Yes,6 pieces
Fix pads Yes
vacuum pump Yes,three sets air cooled pump
2.2kw dust collector Yes ,dual bag
Voltage 220v,single phase,50/60HZ
Max speed 40m/min
Precision <0.1mm
Machine frame Thicken heavy duty
Net weight 1800KG
Gross weight 1900KG
Spare parts 8pcs tool holder and other Standard parts with machine

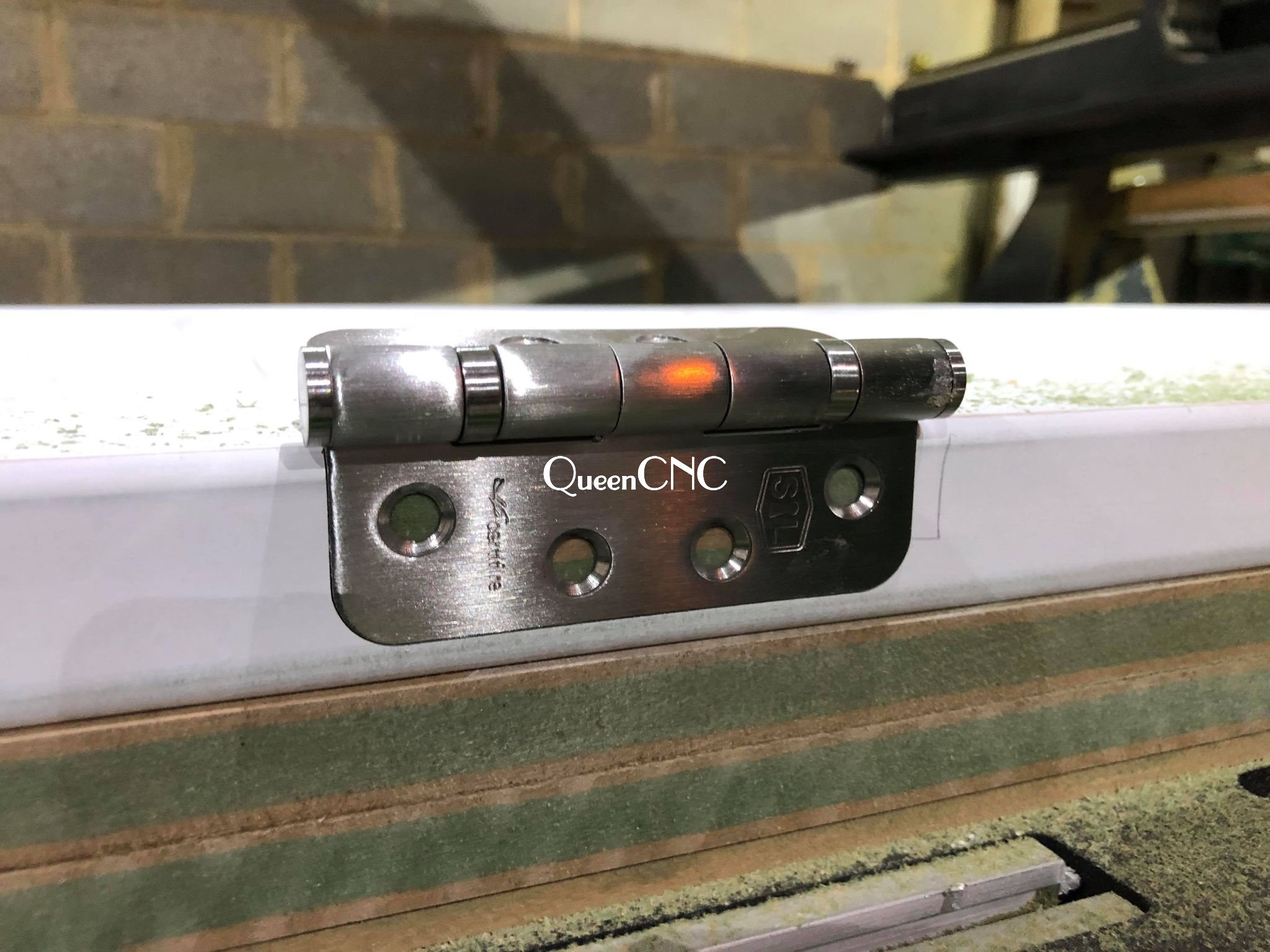

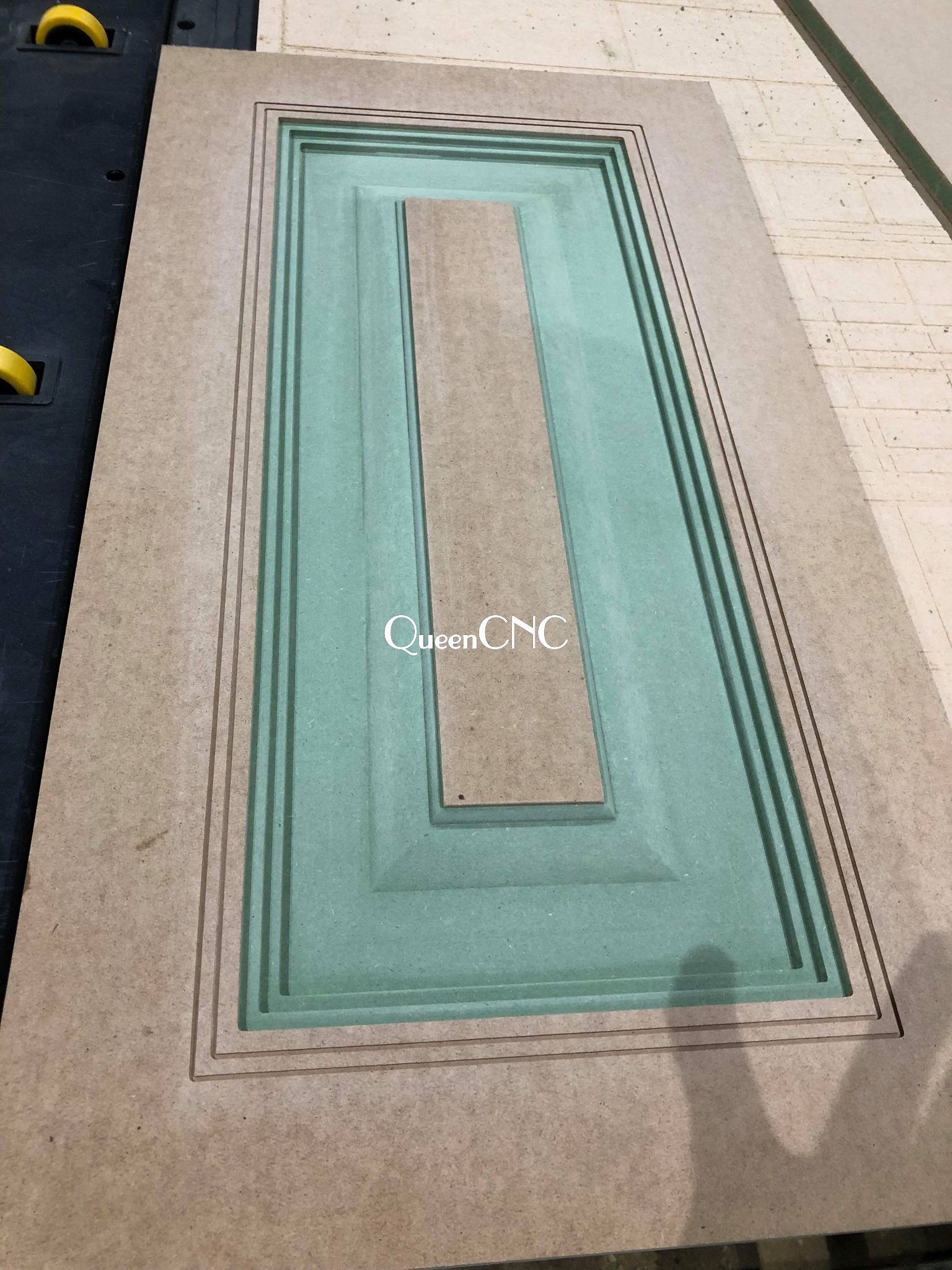

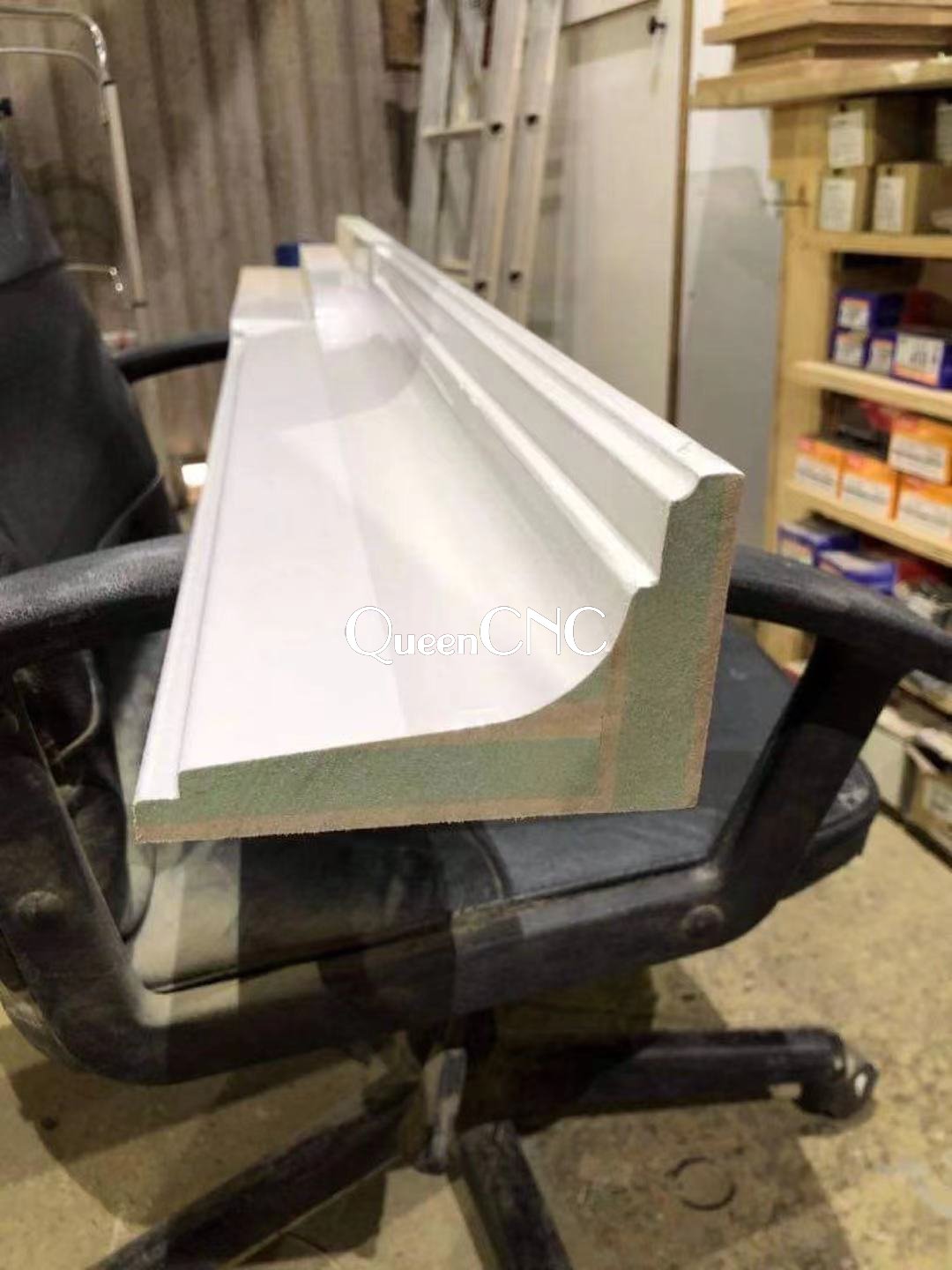

works made by QN1530 cnc router with horizontal spindle:
