QN1530 4 axis Atc cnc router machine with 9kw spindle for wo

Release Time:2023-01-31 14:17 Reading Times:

Featuresa and techinical specs:
1. With a linear type tool changer, this cnc wood design machine can change more than 8 tools automatically in the cnc wood carving engraving process.

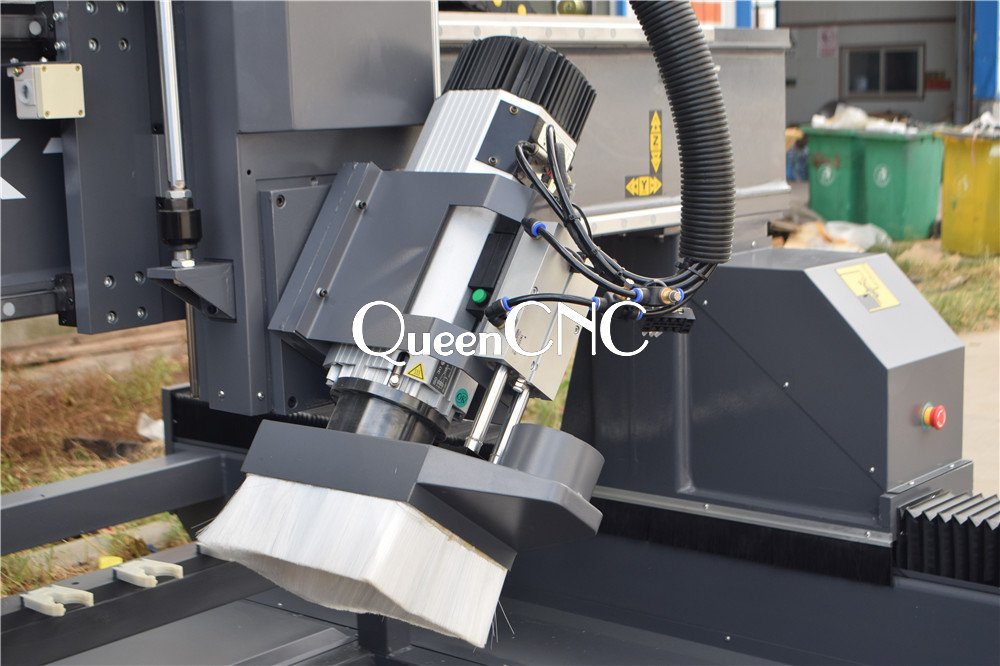

2. The cnc spindle can swing up to 180 degrees which enables the machine to process 3D molds, statues and other objects.
3. With a heavy-duty frame and gantry, the machine has a stronger structure, ensuring stable and safe operation.
4. All the specifications can be customized according to your own actual processing needs.

X,Y axis travel	1500x3000mm, option: 13002500mm, 21003000mm, 2100*4000mm, etc.
Z axis travel	200mm, option: 300mm, 400mm, 500mm, 600mm,etc.

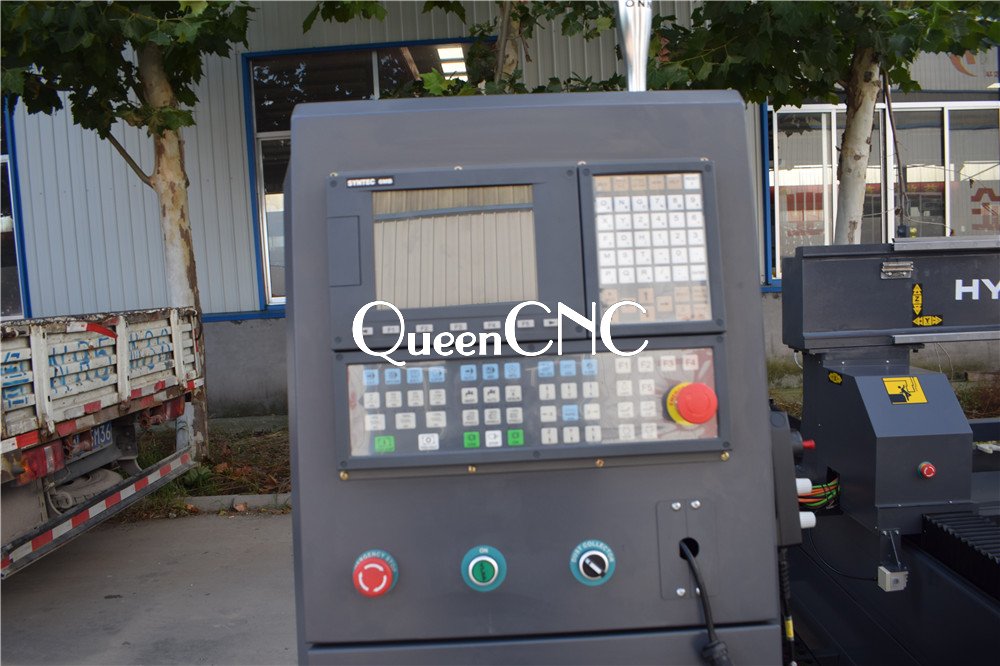

Control System	WEIHONG PM95A-3L
Spindle	9kw ATC air cooling spindle, ISO30, ER32
Drilling bank	Optional
Tool magazine	Linear type auto tool changer Option: Carousel type auto tool changer
Tool holder with collet	ISO30, ER32 collet: φ4, φ6, 1/8, 1/2
Control system	Taiwan SYNTEC /LNC controller
Driving system	1kw Japan YASKAWA AC servo driver and 850w AC servo motor,4 sets. option: 1kw Taiwan Syntec servo
Reducer	Japan SHIMPO reducer
Machine structure	Heavy duty body with quenching treatment
Work table	Aluminum T-slot & vacuum work table
Positioning cylinder	Optional: 5 pieces (X2,Y3)

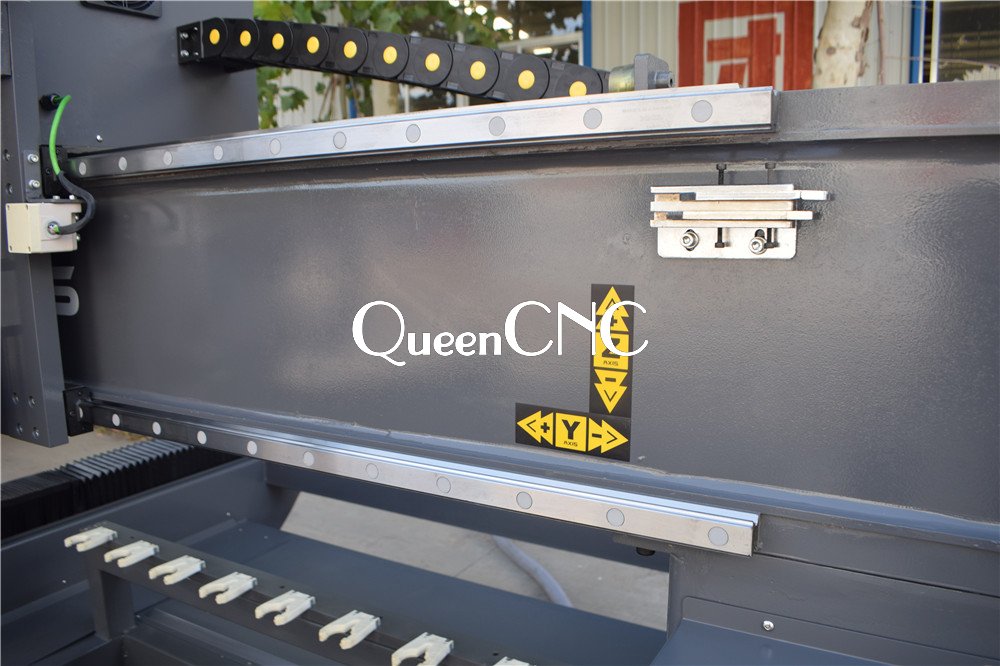

Linear guide	Taiwan Linear guide with dust proof

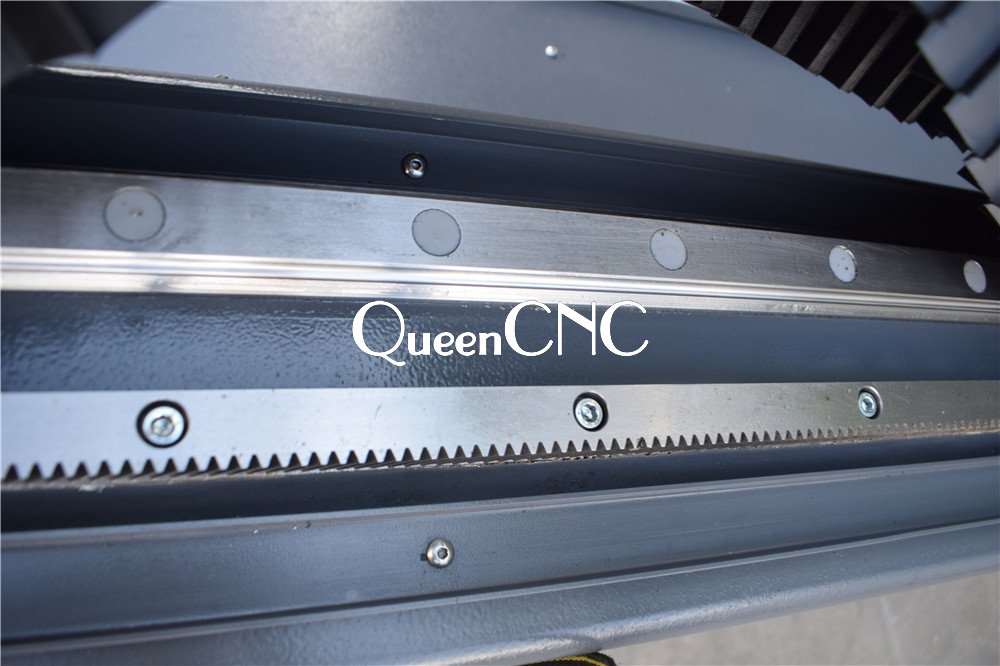

Transmission	X, Y axis: Taiwan / Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw
Lubrication system	1.5L automatic lubrication system
Tool calibration	Automatic tool sensor calibration
Traveling speed	80m/min
Working speed	0-25m/min
Re-positioning accuracy	±0.03mm
Working air pressure	0.6MPa
Working voltage	220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ
