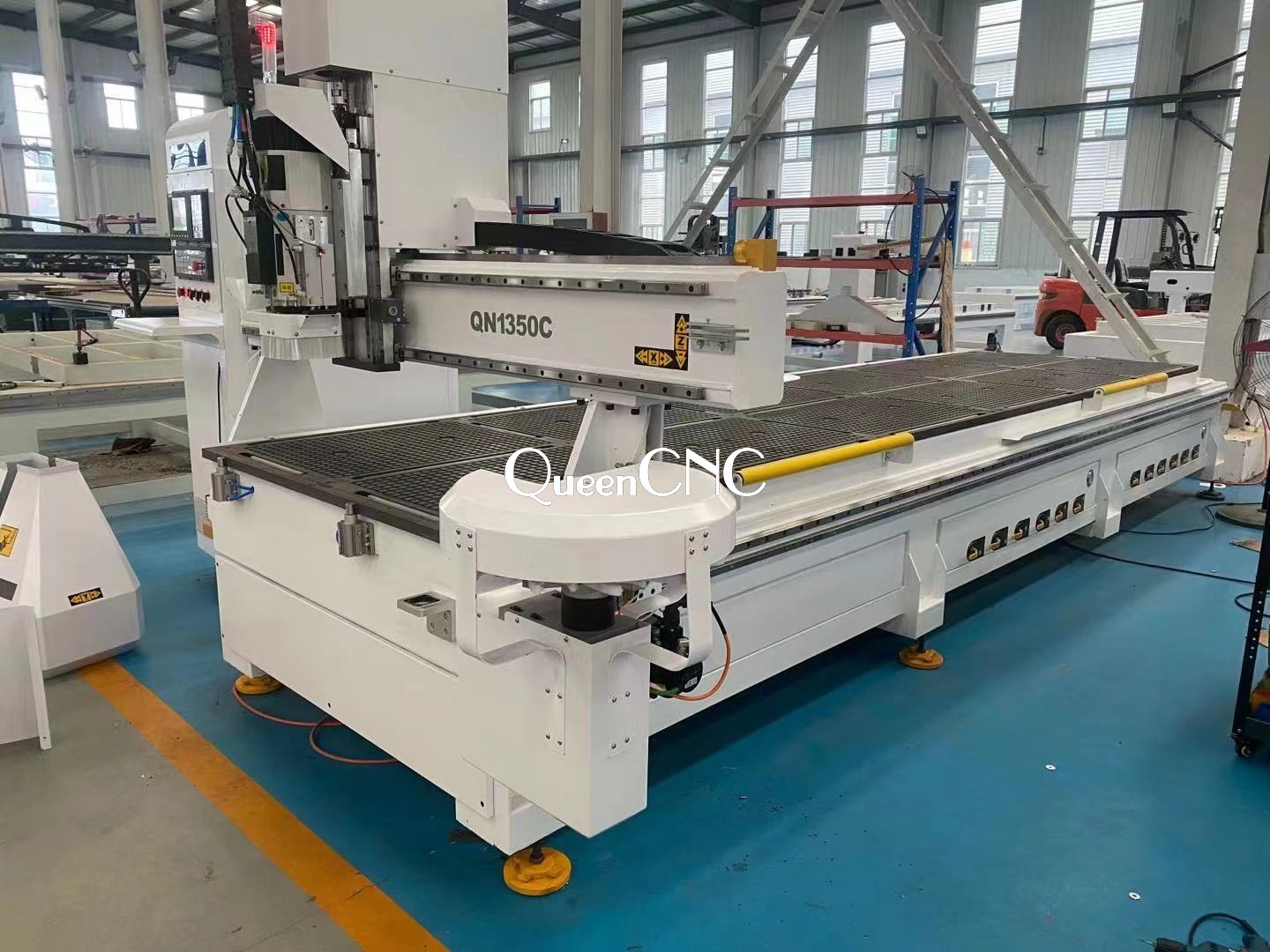

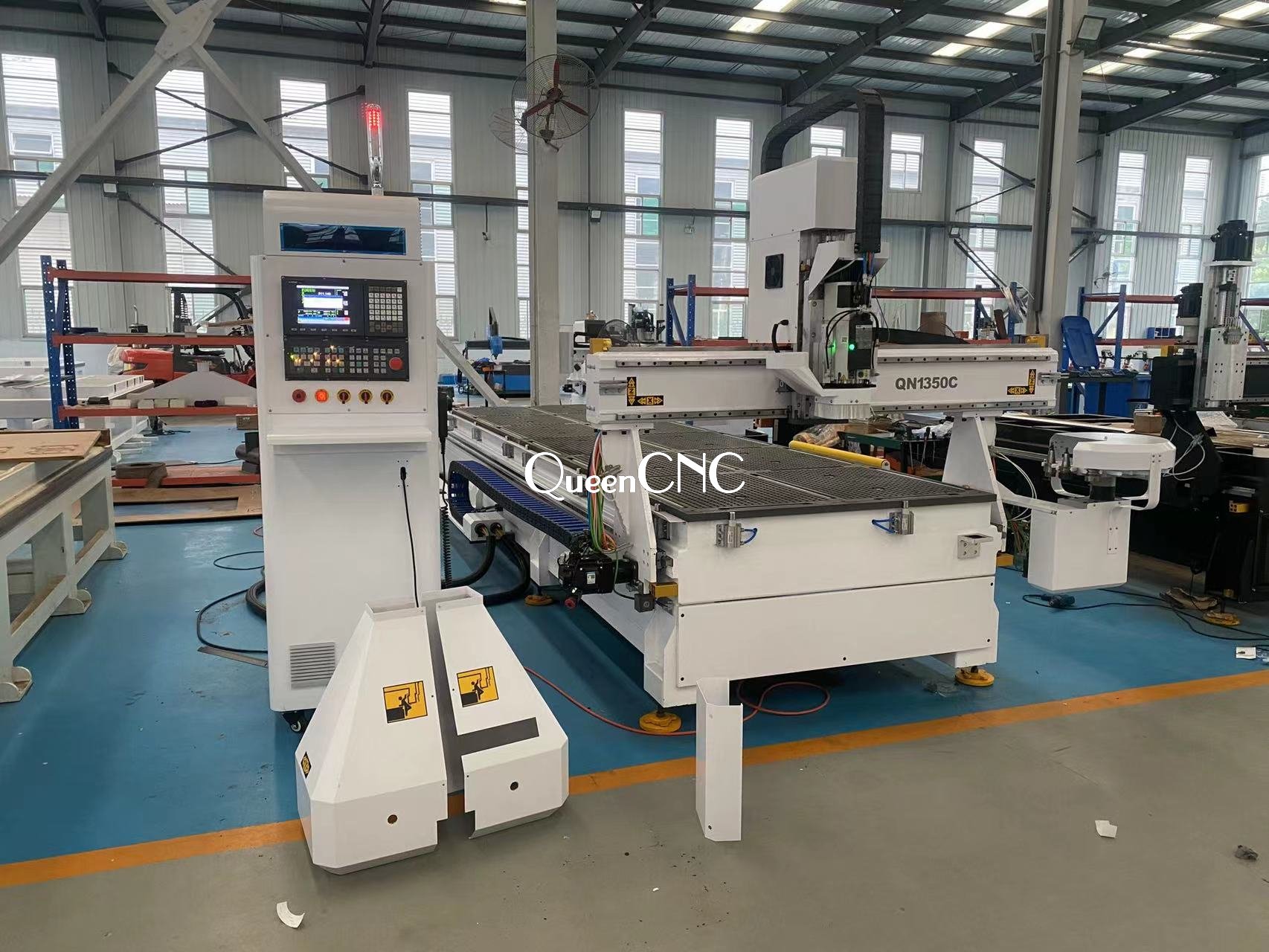

Cnc Router
| Working area | 1300*5000*300mm |
| Max speed | 60m/min(MAX) |
| Working speed | 15-20m/min(MAX)( depends on materials and thickness ) |
| Voltage | AC380V/3PH/50HZ |
| Main spindle | CC 9KW (24000r/min) depends on delivery time |
| Body frame | Annealing and finishing milling a molding process, stable structure, high precision, small deformation |
| Drive system | INVT SERVO |
| Gear rack | Taiwan alloy hard tooth face helical rack + alloy hard tooth face helical gear |
| Guide | 30 |
| Control system | Taiwan LNC system |
| Locate mode | High precision automatic positioning cylinder |
| Table structure | Strong Vacuum worktable |
| Electrics | French Schneider |
| Inverter | Fuling |
| Vacuum pump | 7.5 kw water vacuum pump |
| Reducer | Dongguan ZhuoLan |
| Cable | shanghai BOSHI flexible towline cable (with shield) |
| Air components | BLCH |
| Vacuum pump | 7.5 kw water vacuum pump |
| Weight | 2.4 Ton |
