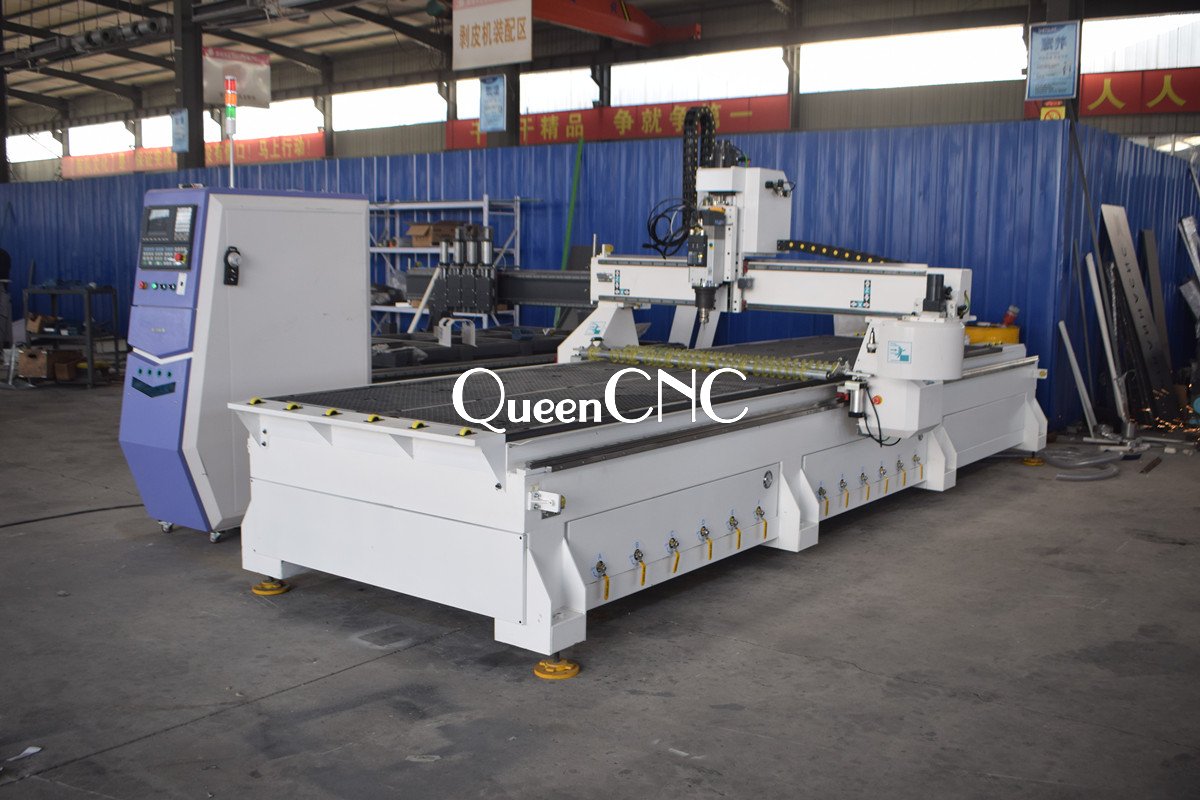

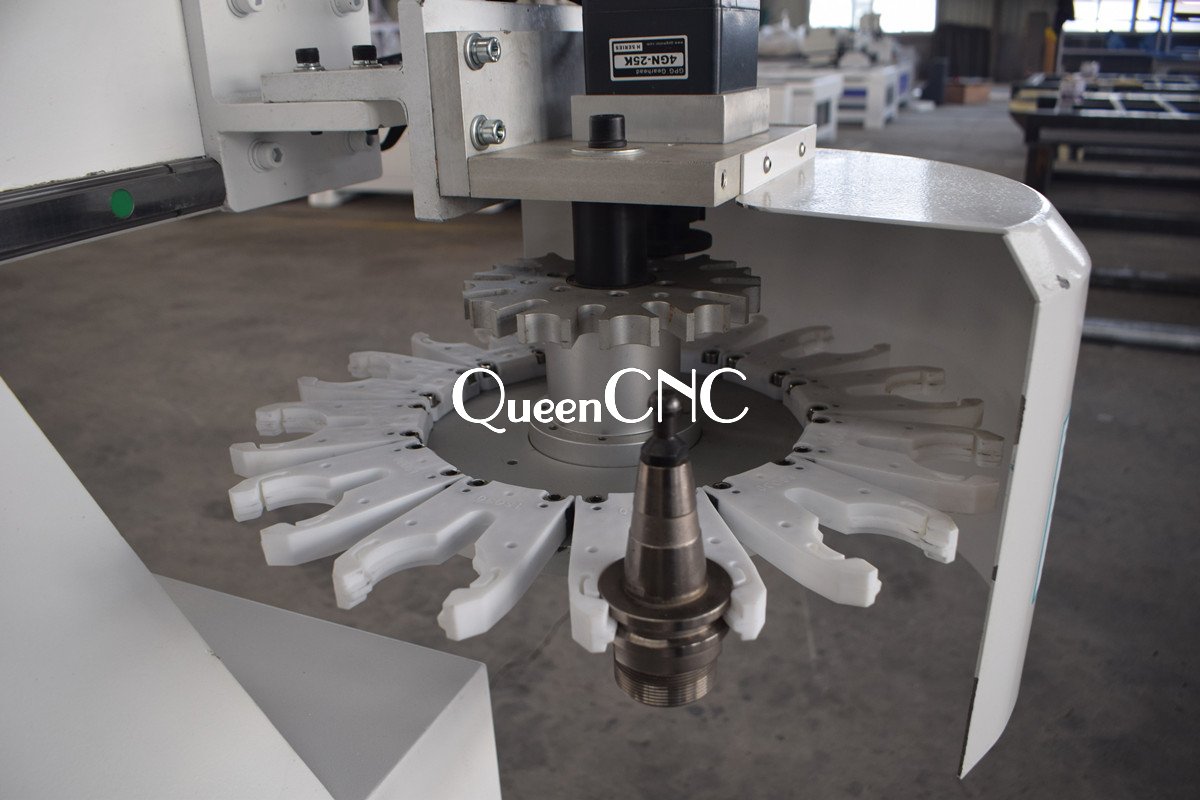

QN1350C carousel tool magazine atc cnc router for stairs
Release Time:2023-01-31 13:01 Reading Times:
Main confiquration QN 1350C carousel type atc cnc router:
1.Optimize cutting, drilling vertical holes, and automatic feeding in one go, without interruption in the process, to maximize the efficiency and output. The machine control interface is designed with humanity and fool-like peration, and the operator can be simply trained. No senior skilled workers are required for the job. The machine moves quickly and with high efficiency, helping you to achieve a leap in productivity.
2.This machine is a high-efficiency and cost-effective CNC cutting center, which can install more tools than a multi-process cutting machine.
3.Safety and intelligence, with intelligent processing cross-border protection, to prevent mechanical collisions caused by design layout exceeding the processing width. With functions such as continuous engraving after power failure, power failure recovery, processing time prediction, etc., the truly humanized design and the perfect oil injection lubrication system greatly extend the service life of the machine.
4.The vacuum suction is strong and powerful, which can perfectly realize special-shaped cutting, small piece cutting, and the smallest cutting board can be 25mm
|
Working area |
1300*5000*300mm |
|
Max speed |
60m/min(MAX) |
|
Working speed |
15-20m/min(MAX)( depends on materials and thickness ) |
|
Voltage |
AC380V/3PH/50HZ |
|

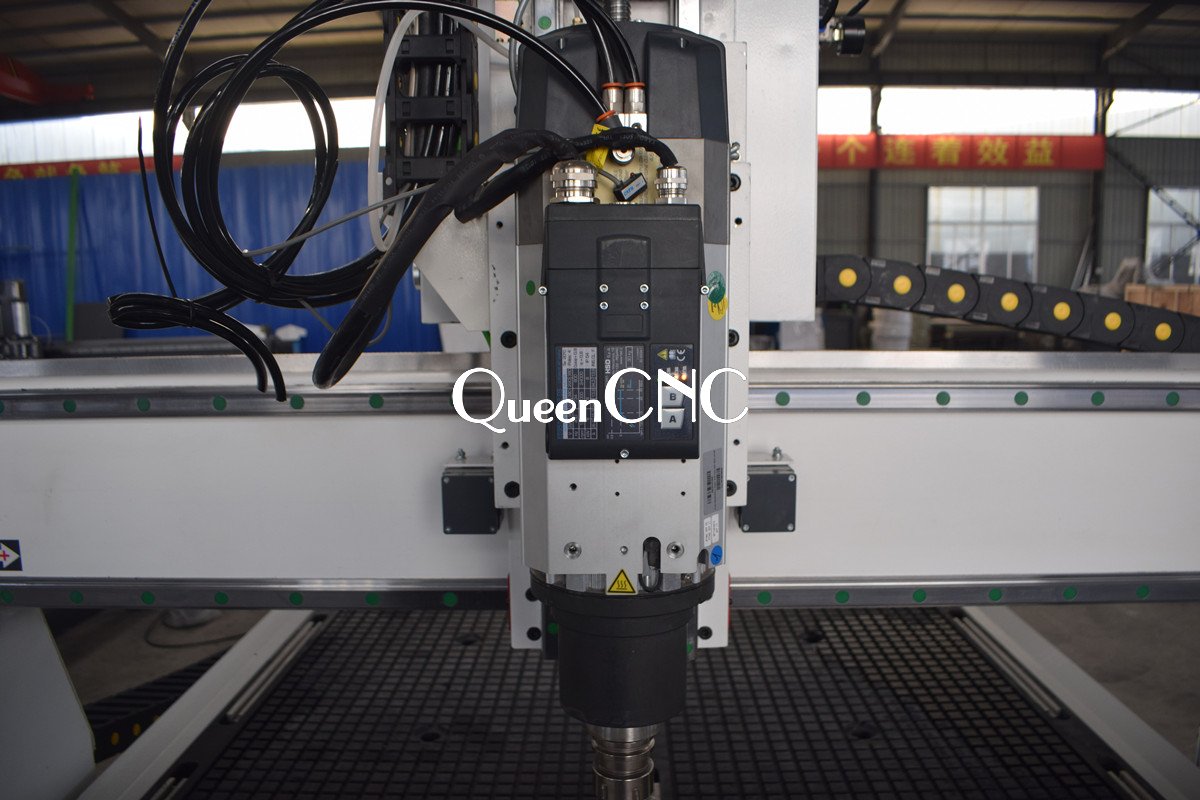

Main spindle |
CC 9KW (24000r/min) depends on delivery time |
|
Body frame |
Annealing and finishing milling a molding process, stable structure, high precision, small deformation |
|
Drive system |
INVT SERVO |
|
Gear rack |
Taiwan alloy hard tooth face helical rack + alloy hard tooth face helical gear |
|
Guide |
30 |
|

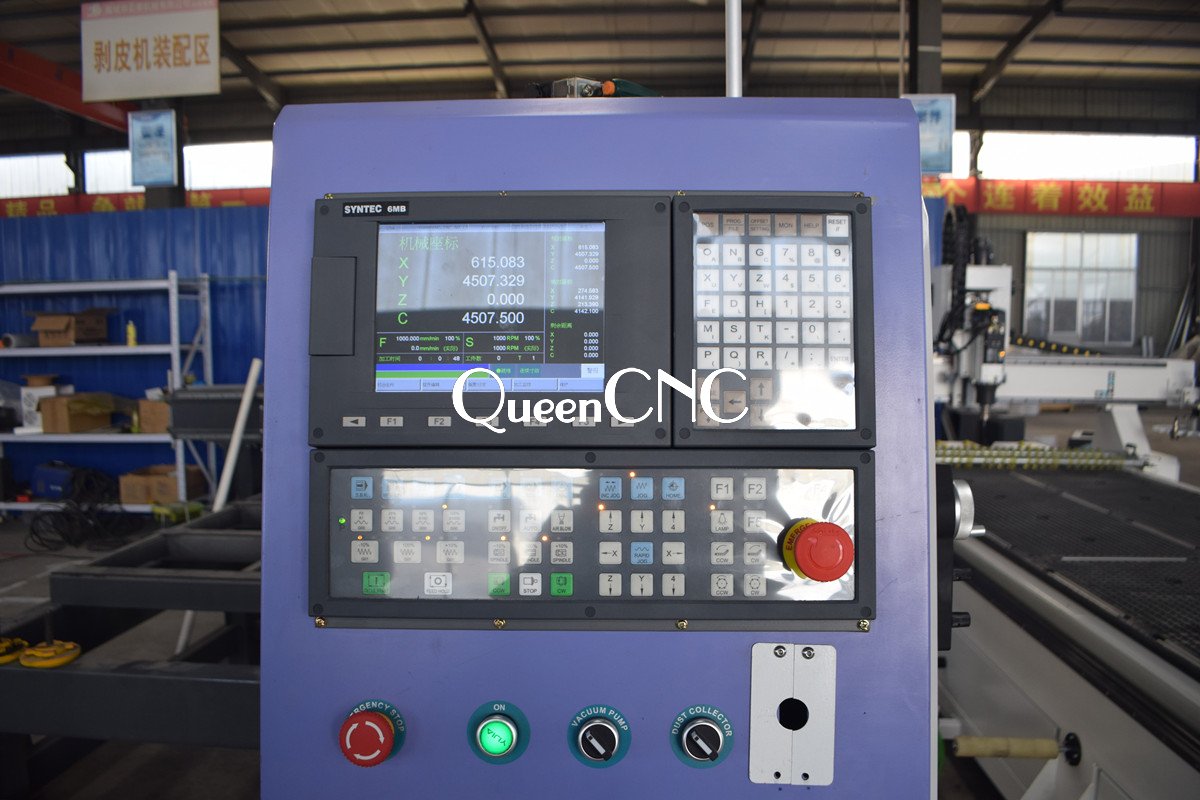

Control system |
Taiwan LNC system |
|
Locate mode |
High precision automatic positioning cylinder |
|

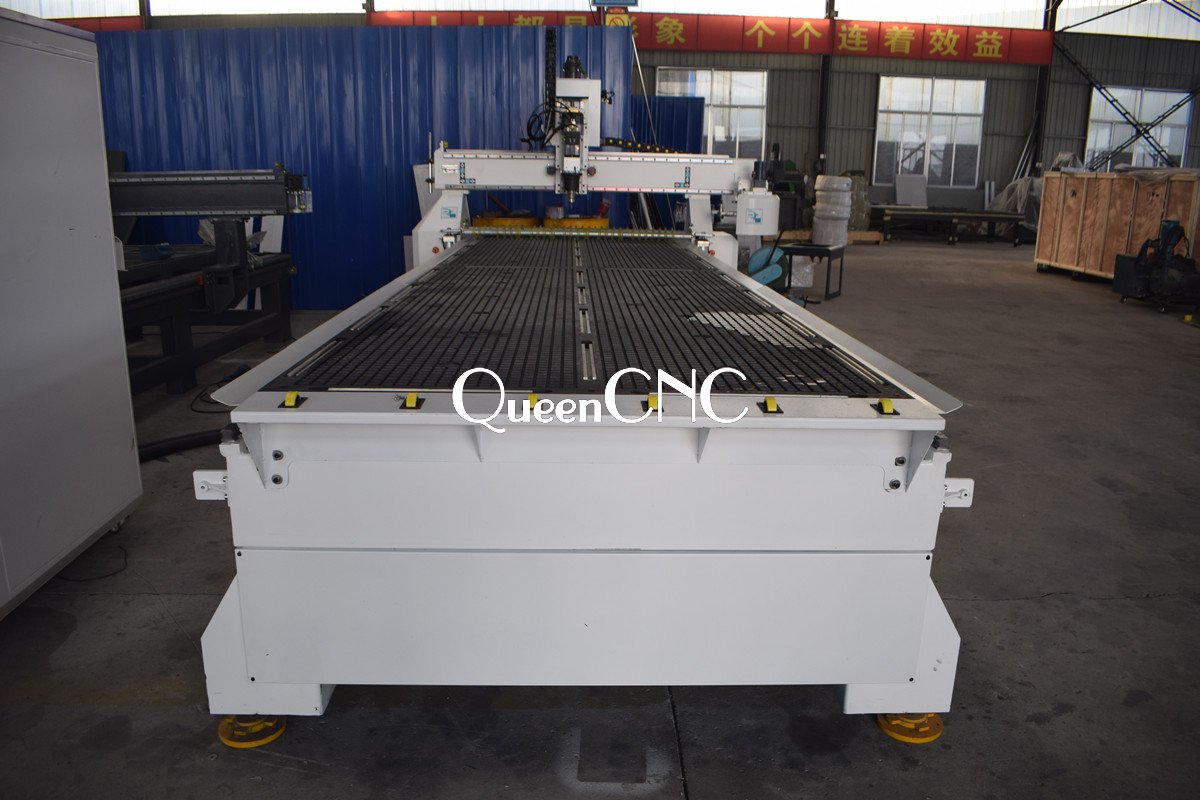

Table structure |
Strong Vacuum worktable |
|
Electrics |
French Schneider |
|
Inverter |
Fuling |
|
Vacuum pump |
7.5 kw water vacuum pump |
|
Reducer |
Dongguan ZhuoLan |
|
Cable |
shanghai BOSHI flexible towline cable (with shield) |
|
Air components |
BLCH |
|
Vacuum pump |
7.5 kw water vacuum pump |
|
Weight |
2.4 Ton |
