QN1325 multifunction four spindle woodworking cnc router for
Release Time:2023-01-31 12:53 Reading Times:
Multi-heads Router advantages：

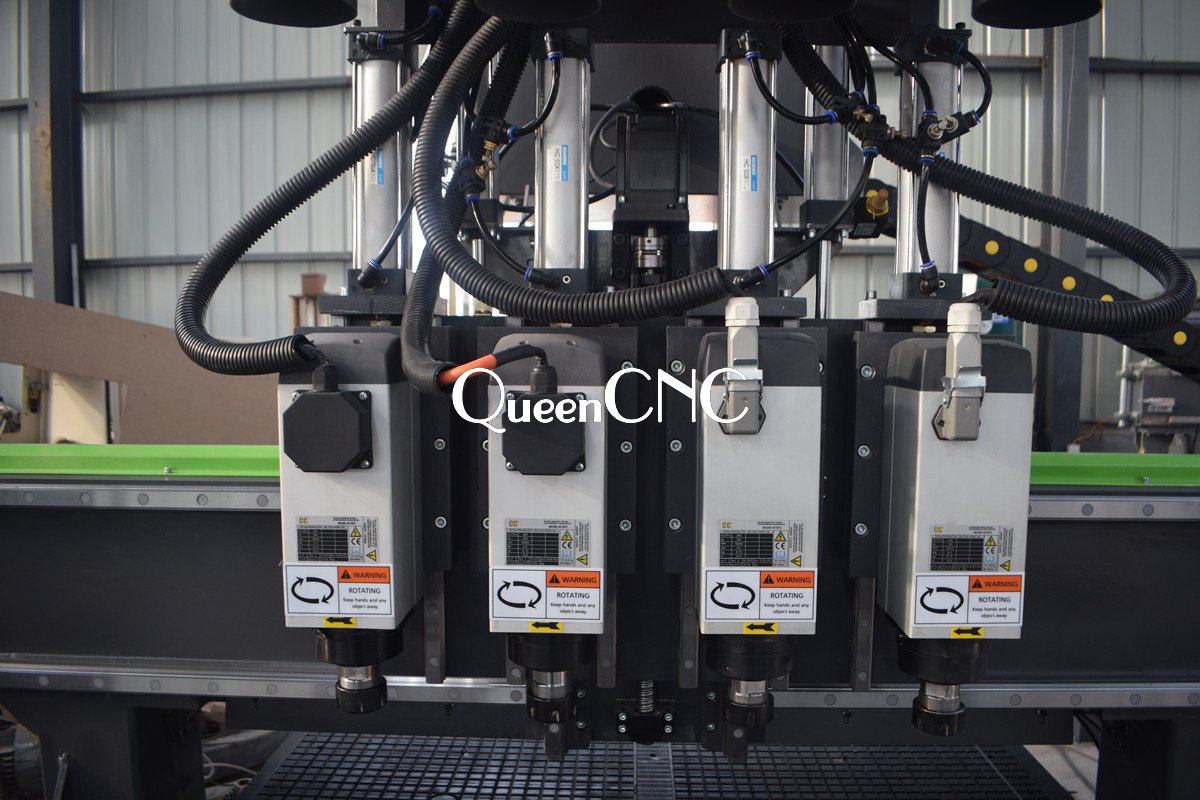

● Engraving, drilling, cutting, leading edge, milling and so on, the four-step switching head, the tool change process without
interruption, to achieve automation.

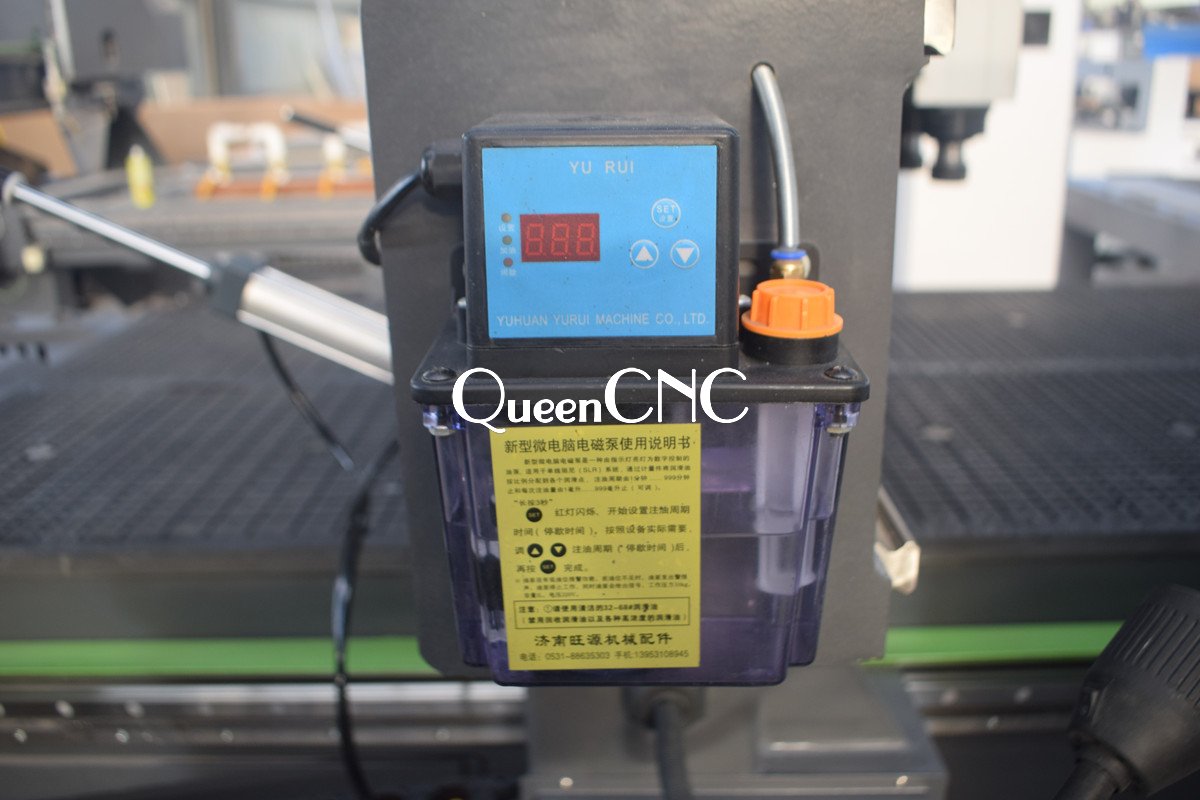

● Electric oil filling, automatic oiling can be set according to the time, to ensure the lubrication of the guide rail of the
screw, and extend the service life.

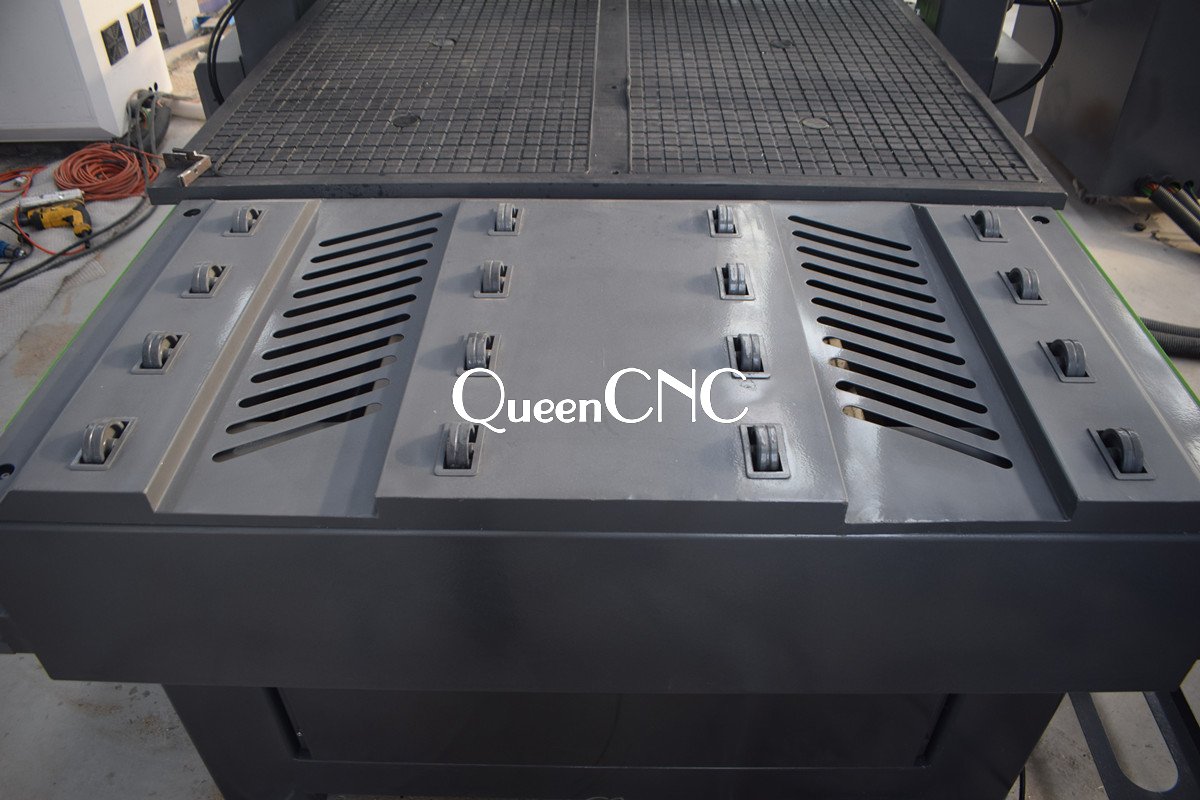

● Thickened and heavy-duty gantry, the steel plate is processed by precision cutting and planer, plus welding, to ensure that the gantry is durable and does not deform during work.
● With intelligent, humanization and high automatic operation. This machine can make the operator much more easier for handing all. Any people can learn in one of three hours for operation, can save costs of labor.
● All the working area and specifications can be customized according to your requests.
|
X Working Area |
1300mm |
|
Y Working Area |
2500mm |
|
Z Working Area |
280mm |
|
Table size |
1380x2750mm |
|
Traveling Positioning Accuracy |
±0.05mm |
|
X,Y ,Z Structure |
XY gear wheel, Z ball screw |
|
Max. Power Consumption |
≤20KW |
|
Max. Rapid Travel Rate |
45000mm/min |
|
Max. Working Speed |
25000mm/min |
|
Spindle |
2*4.5kw and 2*6.0kw air cooled spindle or according to your needs |
|
Spindle Speed |
0-18000rpm/min |
|
Working voltage |
AC220V/380V 50Hz/60Hz |
|
Control System |
Taiwan LNC2200 controller system/ncstudio/syntec/mach3 |
|
N.W./G.W. |
2000KGS/2200KGS |
|
Packing Size |
3300*2150*1850mm |
