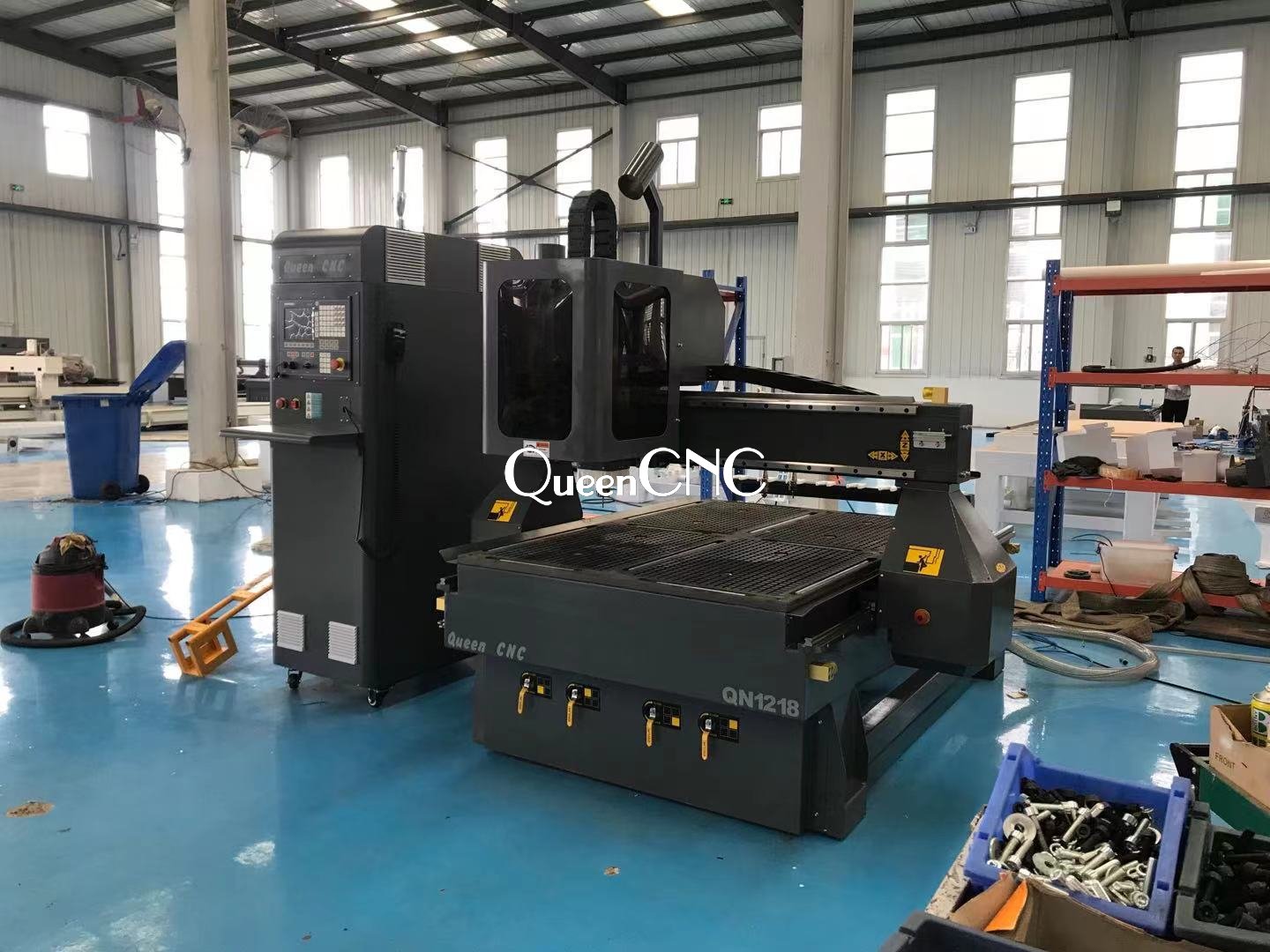

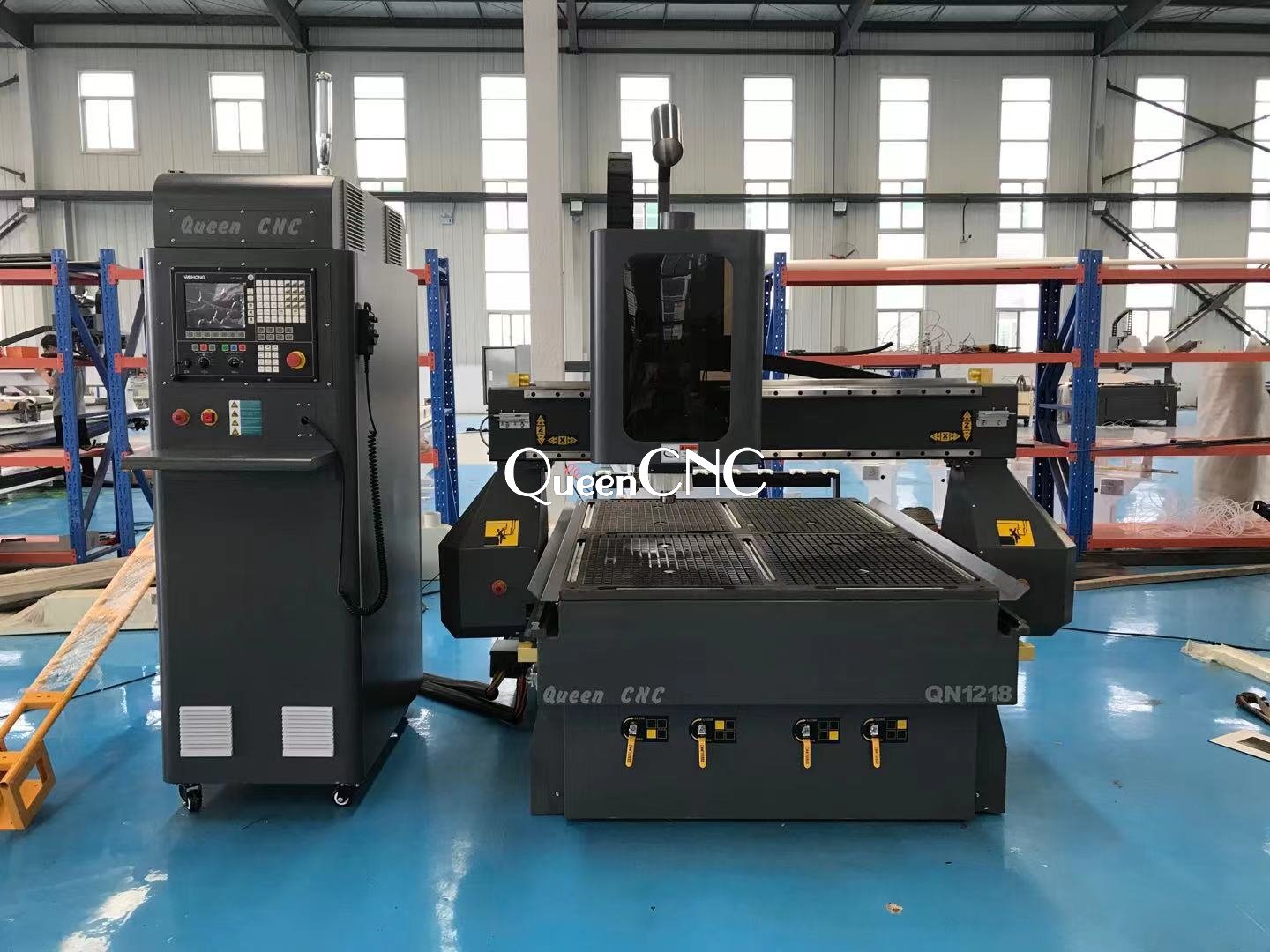

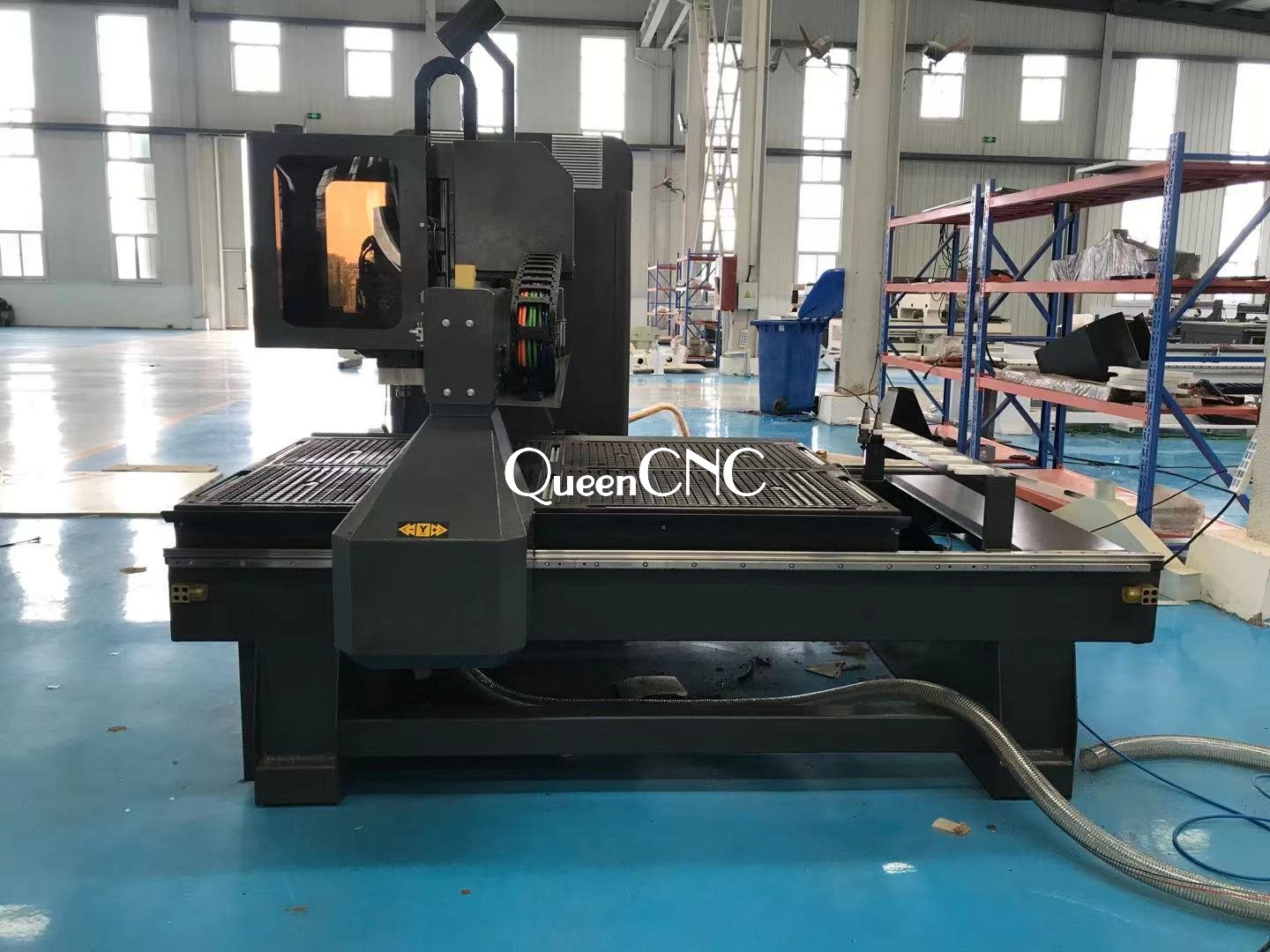

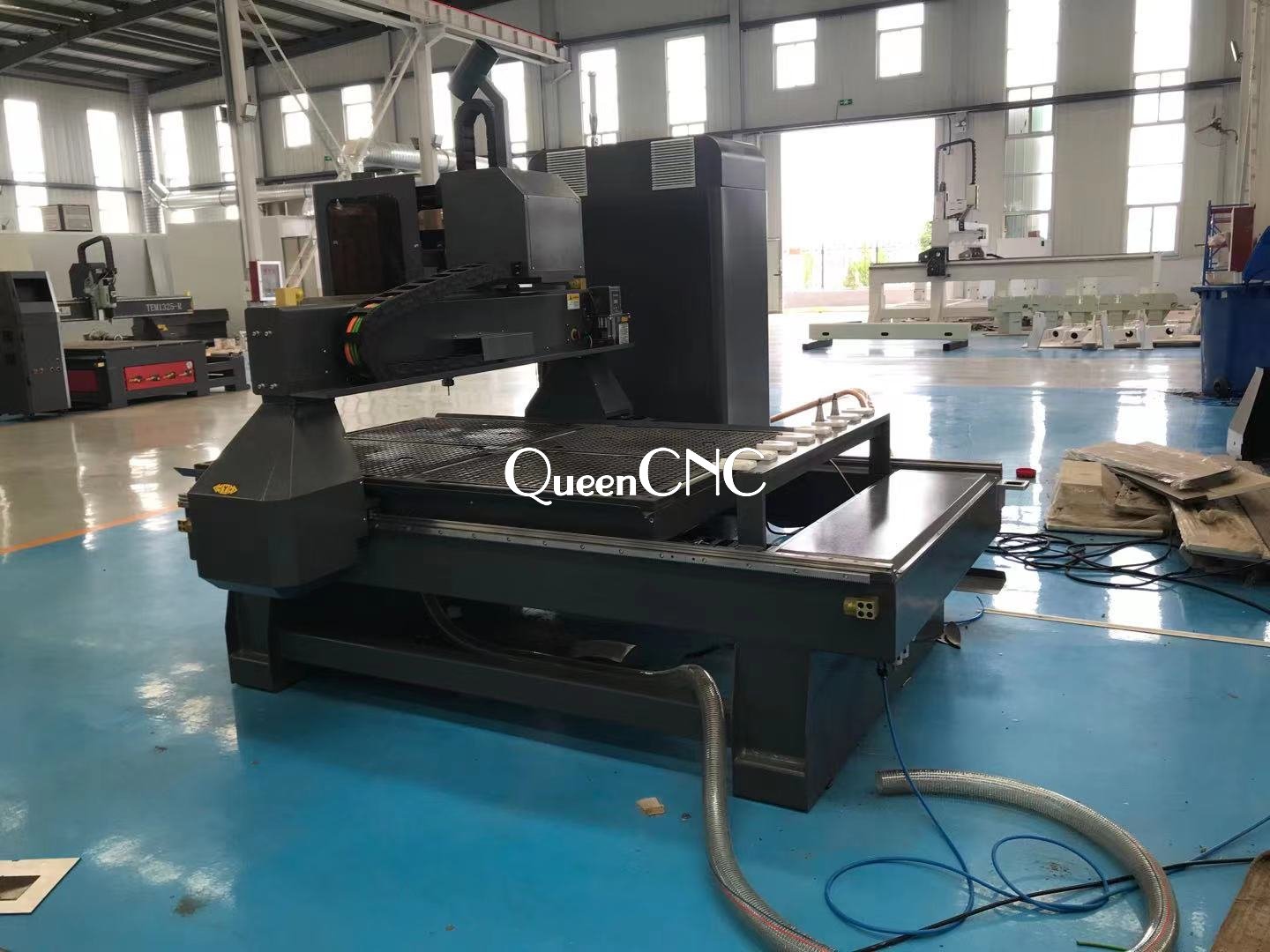

QN1218L linear type atc cnc router machine with economic pri

Release Time:2023-01-31 11:45 Reading Times:

Features of QN1218L linear type atc cnc router machine with economic price:
This is a customized economic atc cnc router according to customer’s budget.Though it is with a limit budget,but it also has a very good performance.If you are not ready for a high ends atc,then take it.

Model	QN1218 linear type auto tool changer cnc router
Working size	12001800300mm
Spindle	9.0kw air cooled auto tool changer spindle
Driver motor	leadshine servo motors and drivers 750w
Inverter	Fuling inverter 11kw
Machine table	Vacuum and T-slot combined
Positioning system	Yes
Control system	NK280 control system
Linear rails	Taiwan T-win linear square rails
Z axis transmission	Germany Ball screw transmission
Transmission	Rack and pinion
Auto Oiling system	Yes
7.5kw vacuum pump	Yes,one set
Voltage	380v,Three phase,50HZ/220v,single phase
Precision	<0.1mm
Max speed	70m/min
Tool sensor	Yes
Limits	Yes
Tool chuck	8 pcs
Machine frame	Thicken heavy duty
Net weight	1200KG
Gross weight	1300KG
