PIRANHA CNC QN2030 carousel type atc cnc router for Joinery

Release Time:2023-01-31 11:36 Reading Times:

Main configuration PIRANHACNC carousel type atc cnc router:
1,This machine was designed for our UK agent,though he passed away,but this model is still very popular.
2.This machine is a high-efficiency and cost-effective CNC cutting center, which can install more tools than a multi-process cutting machine.

3.Safety and intelligence, with intelligent processing cross-border protection, to prevent mechanical collisions caused by design layout exceeding the processing width. With functions such as continuous engraving after power failure, power failure recovery, processing time prediction, etc., the truly humanized design and the perfect oil injection lubrication system greatly extend the service life of the machine.

4.The vacuum suction is strong and powerful, which can perfectly realize special-shaped cutting, small piece cutting, and the smallest cutting board can be 25mm

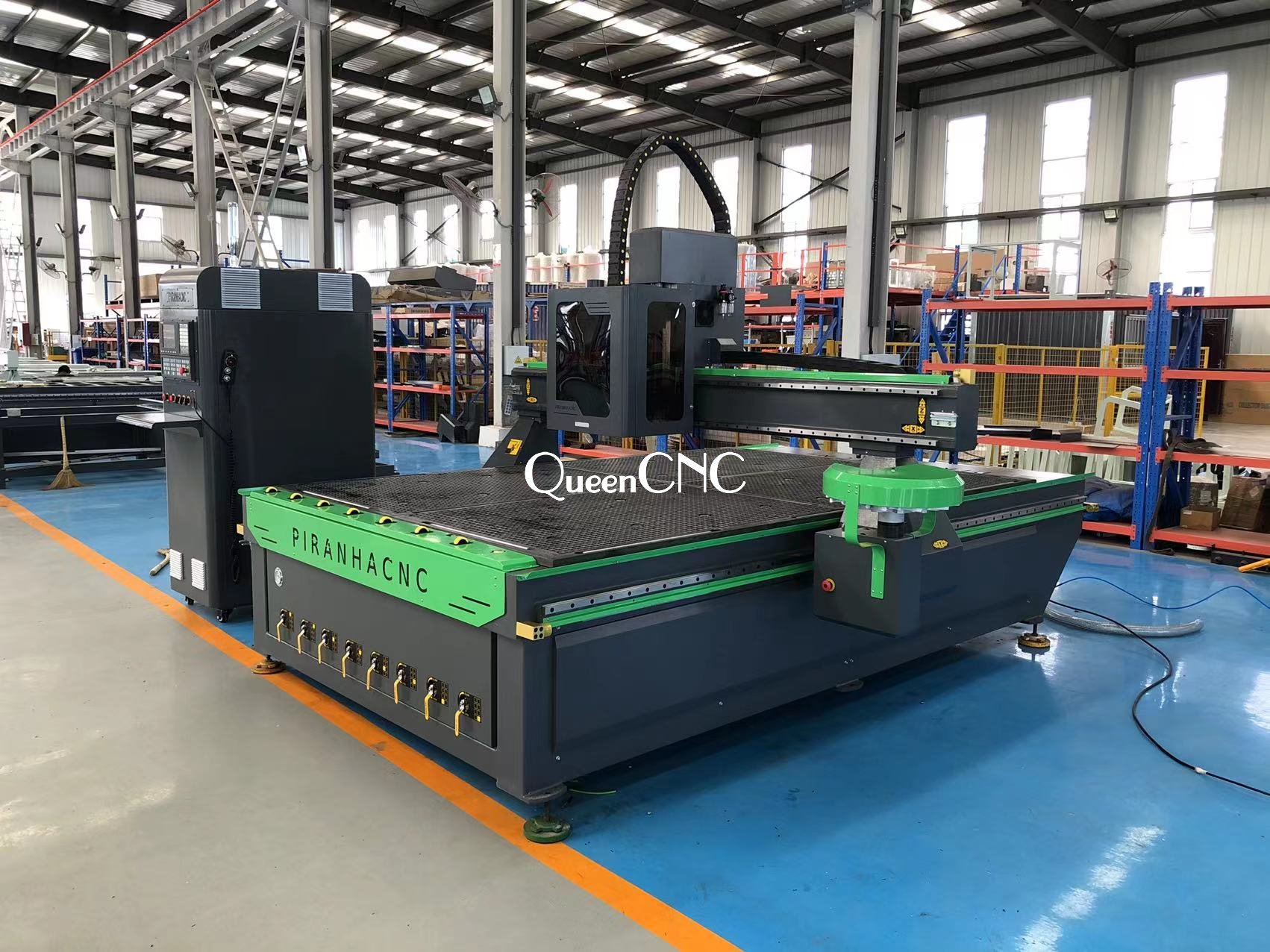

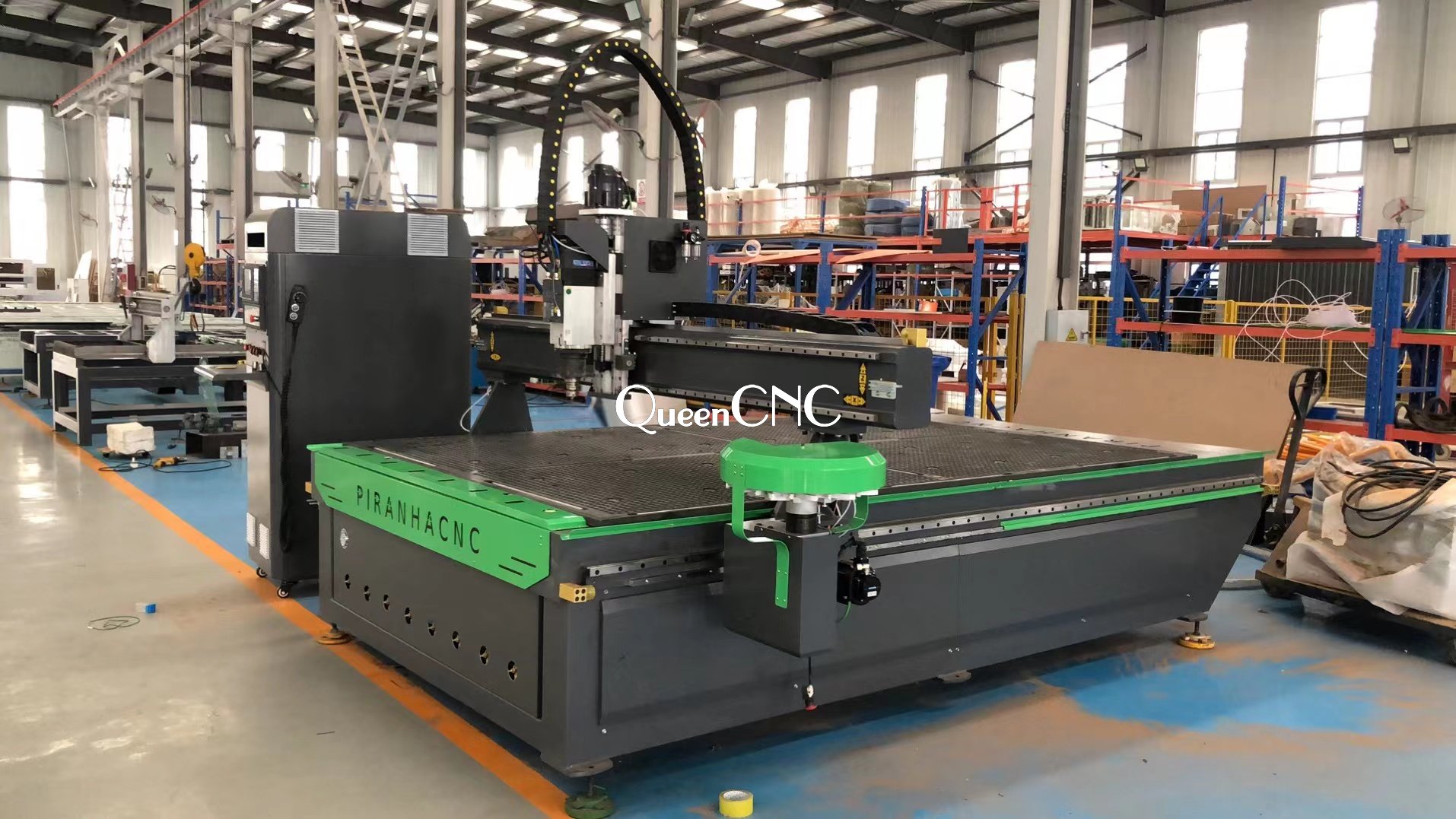

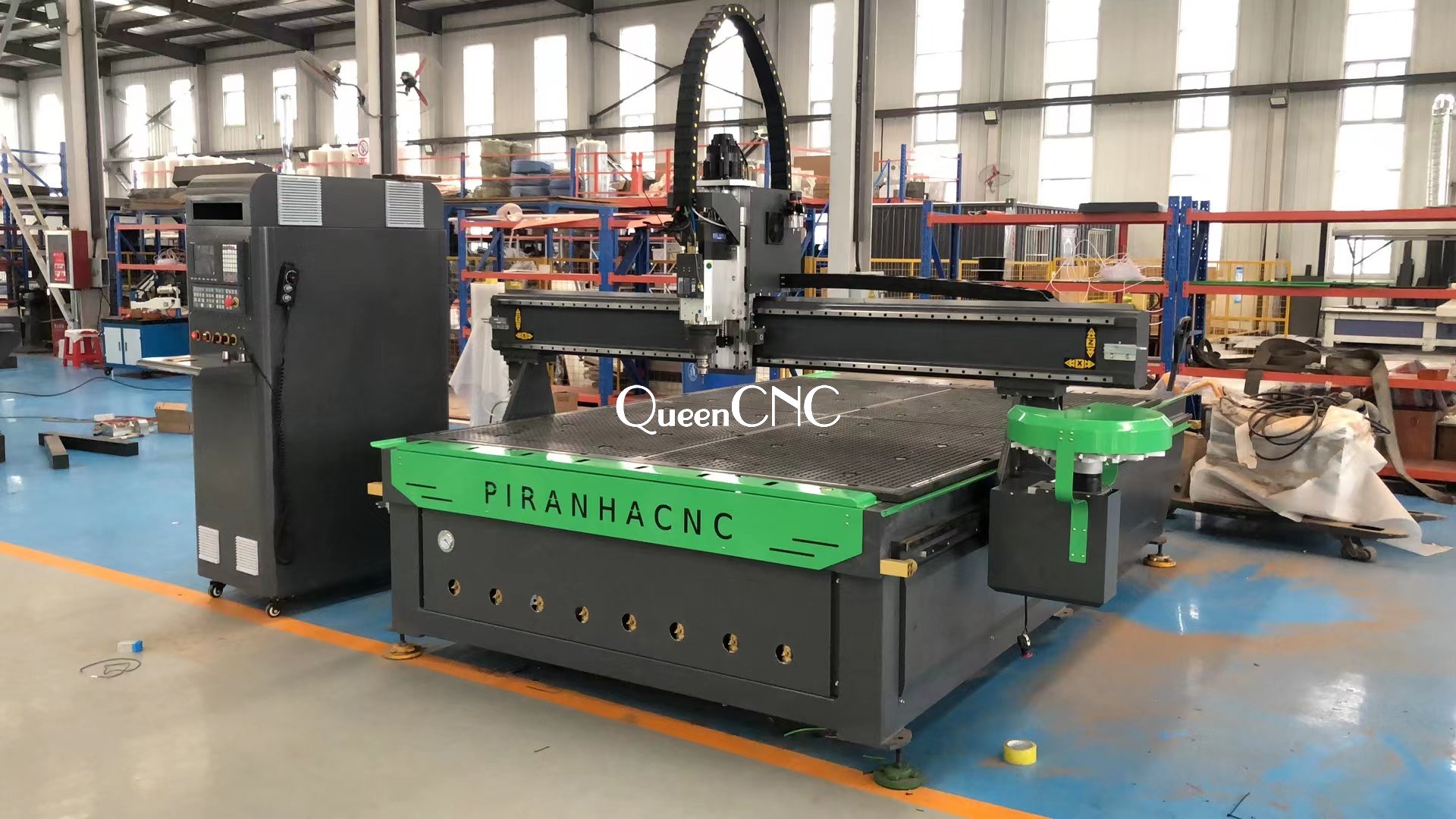

More pics of PIRANHA CNC QN2030 carousel type atc cnc router for Joinery:

Working area	20003000300mm(any size can be customized)
Max speed	75m/min(MAX)
Working speed	15-20m/min(MAX)( depends on materials and thickness )
Voltage	AC380V/3PH/50HZ
Main spindle	CC 9KW (24000r/min) depends on delivery time
Body frame	Annealing and finishing milling a molding process, stable structure, high precision, small deformation
Drive system	INVT SERVO
Gear rack	Taiwan alloy hard tooth face helical rack + alloy hard tooth face helical gear
Guide	30
Control system	Taiwan Syntec control system
Locate mode	High precision automatic positioning cylinder
Table structure	Strong Vacuum worktable
Electrics	French Schneider
Inverter	Fuling
Vacuum pump	7.5 kw water vacuum pump
Reducer	Japan SHIMPO reducer
Cable	shanghai BOSHI flexible towline cable (with shield)
Air components	BLCH
Vacuum pump	7.5 kw water vacuum pump
Weight	2.4 Ton

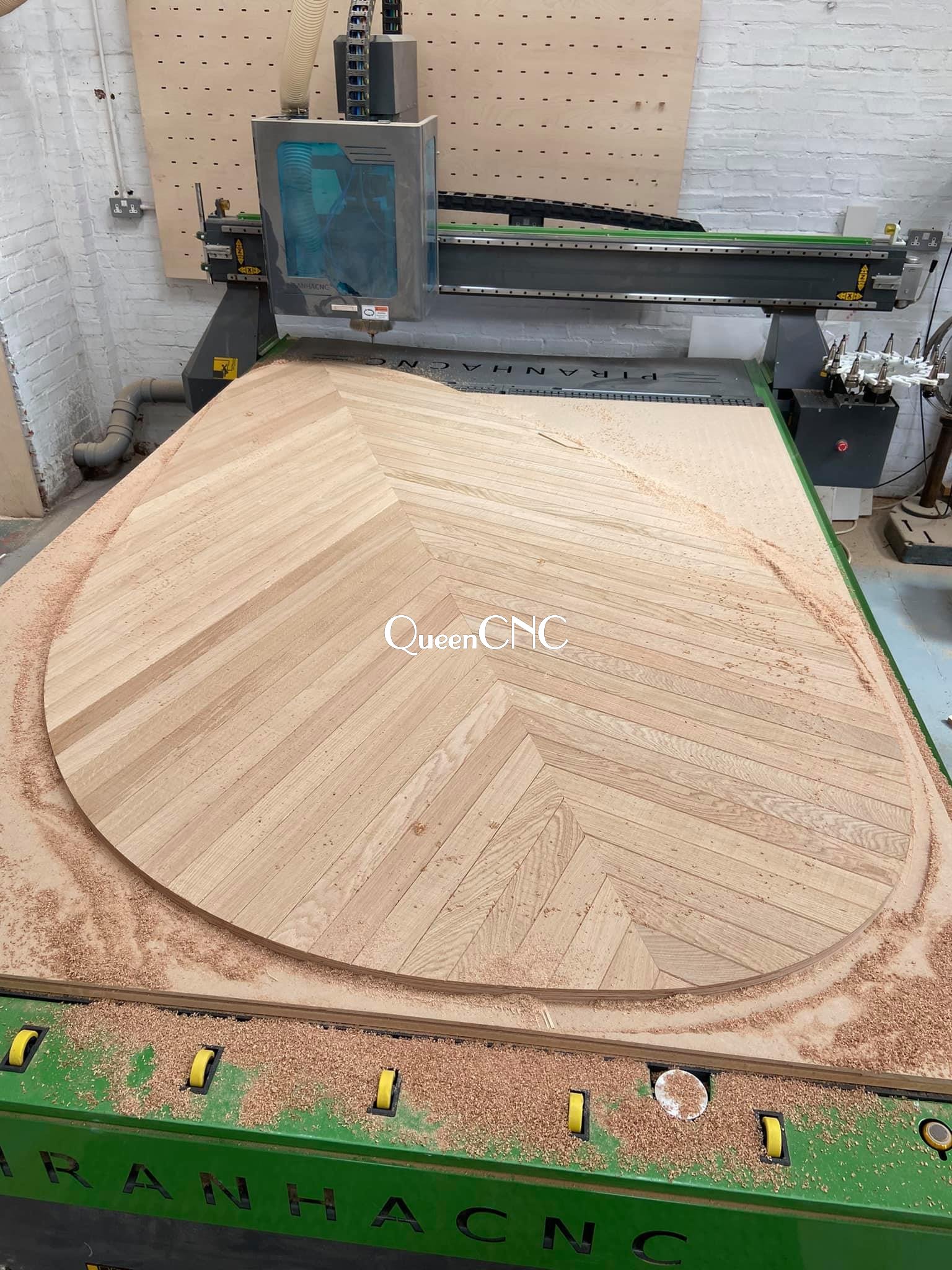

Works made by customer:
