Cnc Router
| Model | QN1313(4’x4’) 3axis cnc router |
| Working size | 1300*1300*300mm |

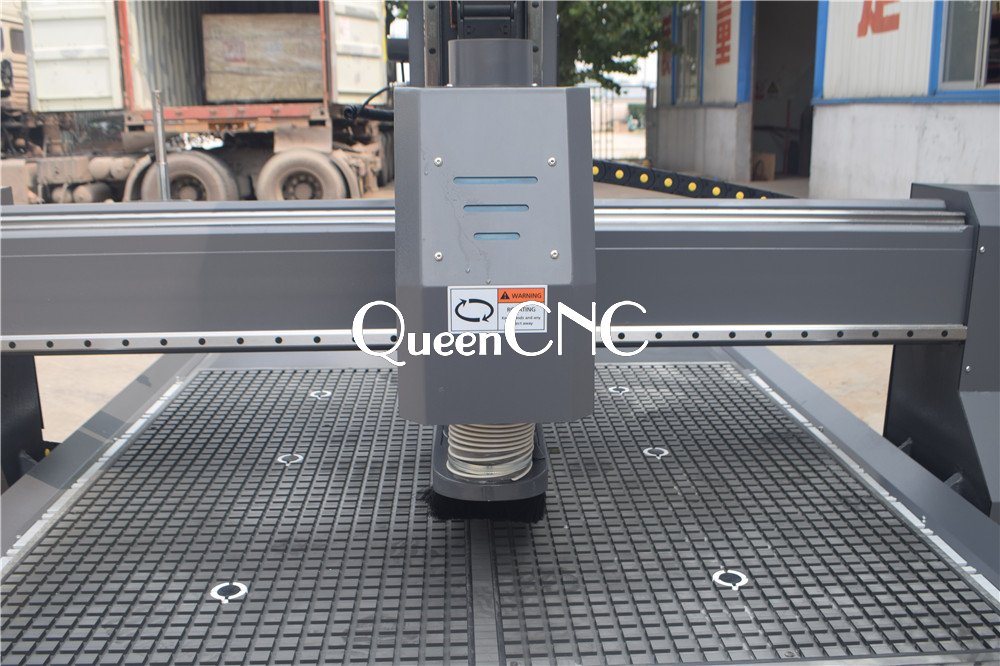

| Spindle | 4.5kw Air cooled spindle,HQD brand |
| Driver motor | Leadshine stepper motor and driver |
| Inverter | Fuling inverter 5.5kw |
| Machine table | Vacuum and T-slot combined |
| Control system | DSP control system |
| Linear rails | Original Taiwan T-win linear square rails |

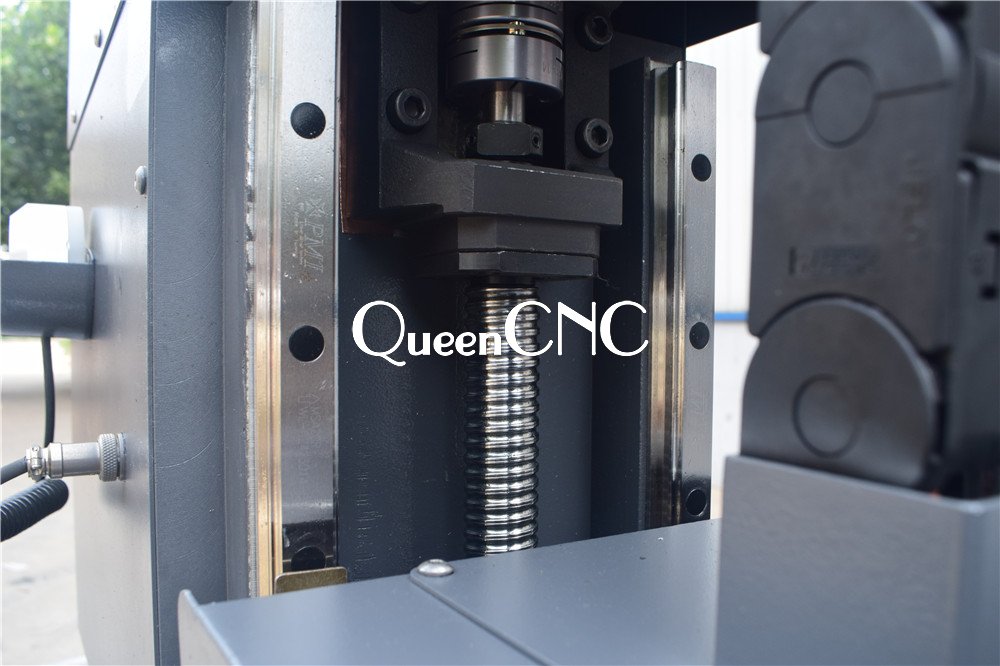

| Z axis transmission | Ball screw transmission |
| Transmission | Xinyue Helical rack and pinion |
| Oiling system | Yes |
| Dust collector | Yes,3.2kw |
| Vacuum pump | Yes,water recycle 5.5kw |
| Voltage | 220v,singlephase,50/60HZ |
| Tool sensor | Yes |
| Machine frame | Heavy duty body welded |
| Net weight | 800KG |
| Gross weight | 900KG |
