Cnc Router
| Model |

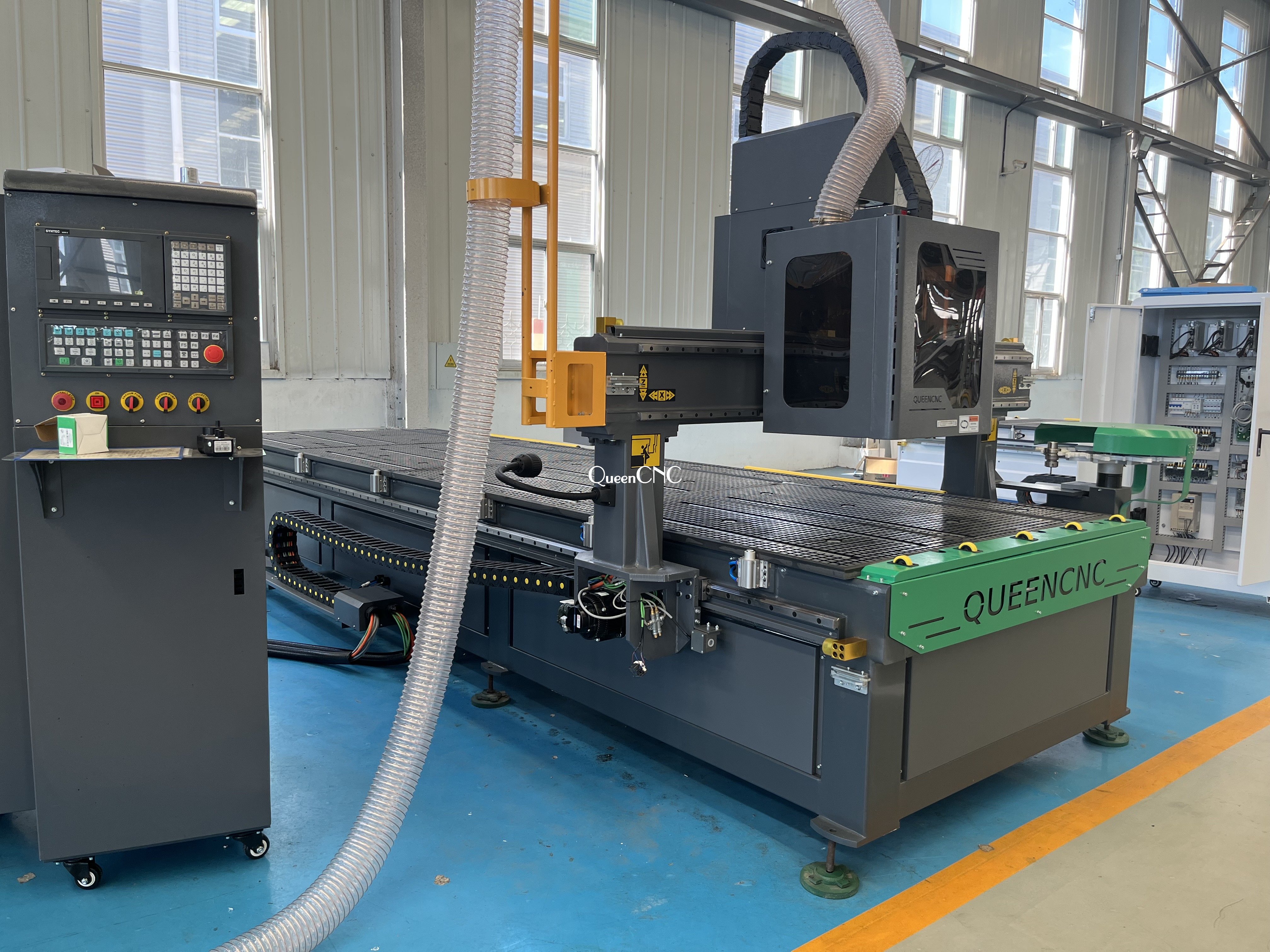

QN1550 carousel type atc cnc router |
| Working size | 1500*5000*300mm |
| Machine table | Thicken Vacuum table with T-slot |
| Spindle | 9.0kw HSD-HSK63 air cooled auto tool changer spindle,ES951 |

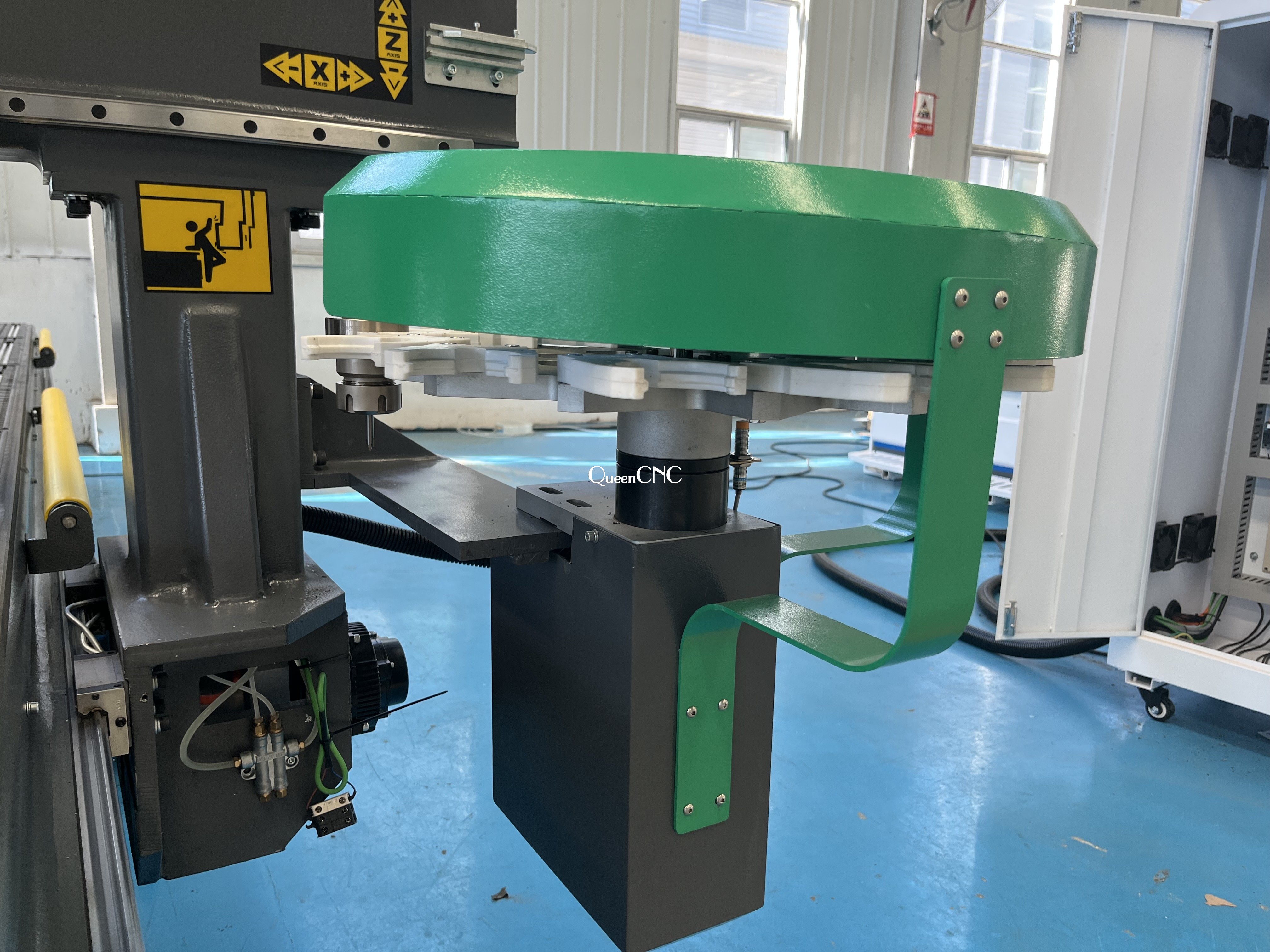

| Tool magazine | Carousel type,servo system,12 tools |
| Driver motor | Japan 850w YASKAWA servo motors and drivers |
| Reducer | Japan SHIMPO reducer |
| Control cabinet | International standard design,Schneider electrical parts |
| Inverter | Taiwan delta 11kw |
| Oil mist cooling system | Yes |
| Pop up positioning system | Yes |
| Tool sensor | Yes |
| Control system | Taiwan syntec control system 60w-E |
| Auto Oiling system | Yes |
| Linear rails | original Taiwan PMI linear square rails,25mm |
| Z axis transmission | Germany Ball screw transmission |
| Voltage | 415v,Three phase,50/60HZ |
| Precision | <0.1mm |
| Max speed | 70m/min |
| Machine frame | Thicken steel welded ,heavy duty design,,tempering process |
| Dust colletor | Yes ,dual bag |
| Two sets 7.5kw,265 cubic oil less vacuum pump | Yes |
| Air storage tank | Two sets |
| weight | 5000kg |
