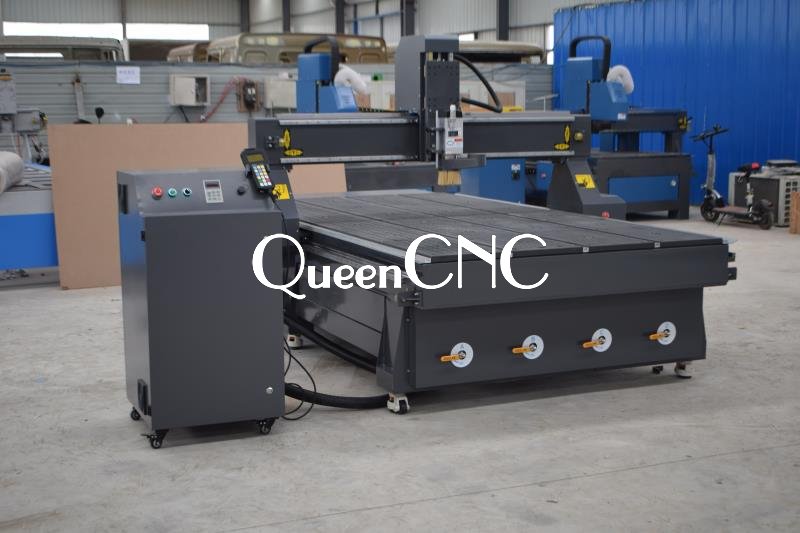

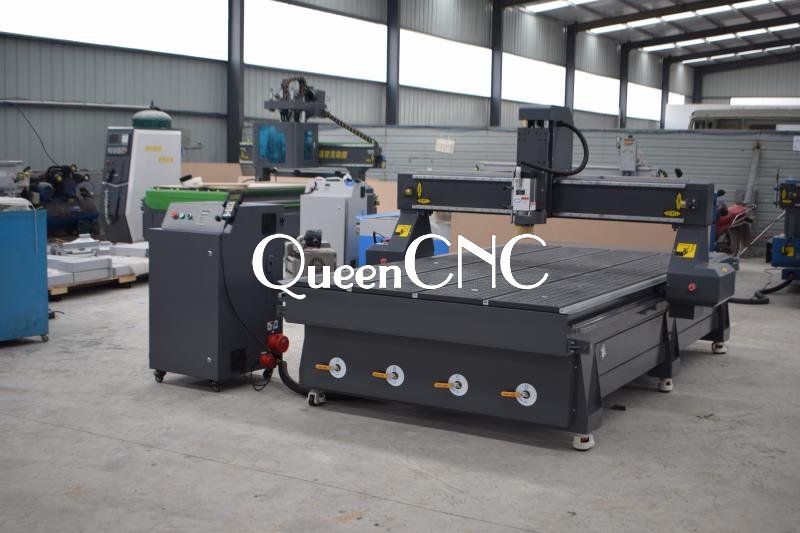

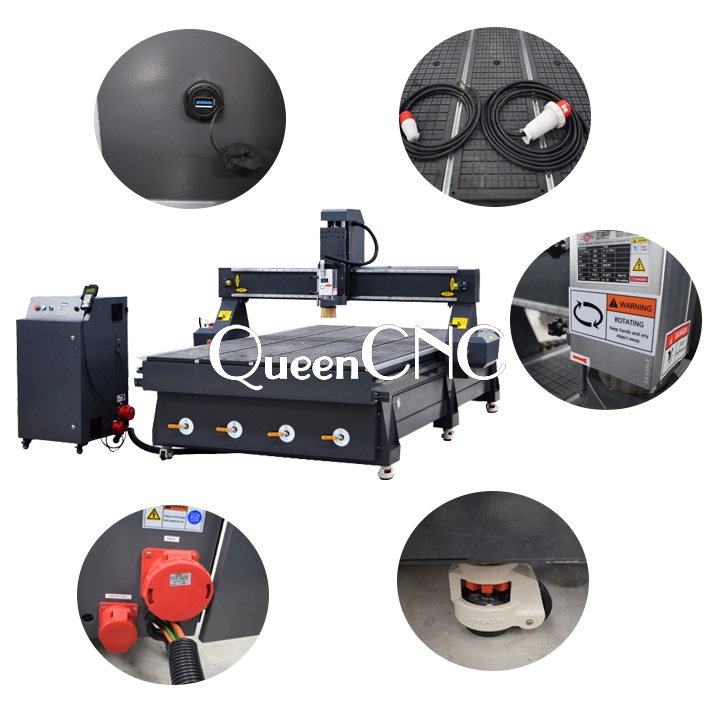

Cnc Router
| Working area | 1300*2500*200mm |
| Working Voltage | 380V/3PH/50Hz (option) |
| Table | Vacuum absorption table with 4 zones |
| Control System | DSP A11 control with handle for easy operation |
| Control box | built-in control box in the front of machine, save working space |
| Spindle | Chinese HQD 4.5kw air cooling spindle |
| Spindle Speed | 0-24000RPM |
| Inverter | 5.5 KW Fuling inverter |
| Drive Motors | FL118 Motor and Leadshine 860H drive |
| Lubrication | Manual Oil Lubrication System |
| Option | Oil Mist Cooling device; Vacuum pump, dust collector; |
| X, Y, Z Guide rail | 20# Taiwan HIWIN Linear Guide Rails |
| Helical rack | X axis and Y axis |
| Z transmission | Taiwan TBI Ball Screw |
| Limited Switch | Japan Omron Limited Switch and soft limit switch |
| Wire | High Soft Shjeld with Copper Wire to Protect Against Static Electricity |
| Accessories | Tool box, adjusting screw, clamps, collets, tool, cutter, spanner etc |
