Cnc Router

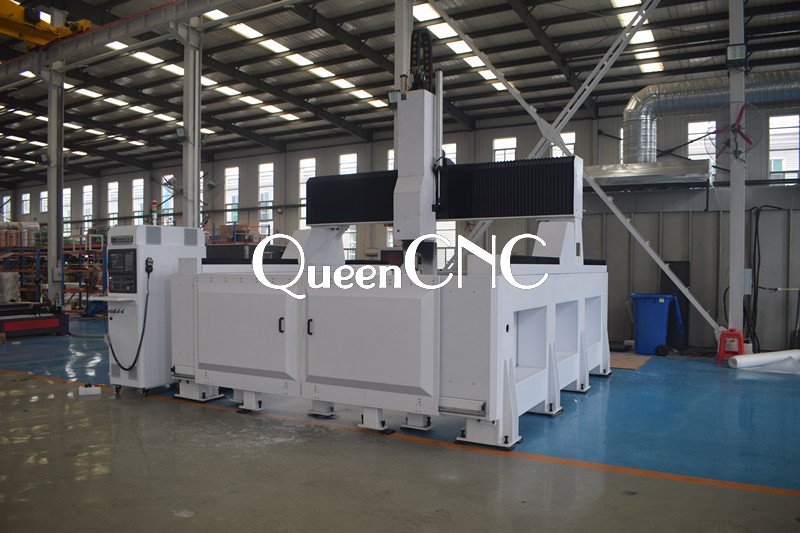

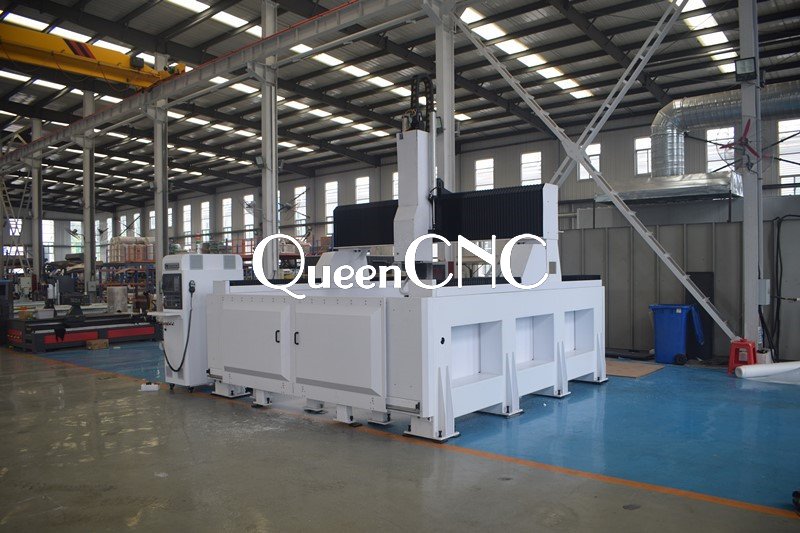

| Model | QN2030 5 axis cnc router |
| Effective Working area | 2000*3000*600mm |
| Spindle | 12kw HSD auto tool changer spindle |
| Driver motor | YASKAWA Bus absolute value servo motor 1800w and drivers |
| Reducer | France MOTOVARIO large rations high precision Reducer |
| Inverter | Delta inverter |
| Machine table | Vacuum and T-slot combined |
| Positioning system | Yes |
| Control system | Taiwan SYNTEC 610MA-E5 control system |
| Control cabinet | Schneider low voltage electrical cabinet |
| Linear rails | Taiwan T-win linear square rails,X 45mm,Y 45mm,Z 30mm |
| Z axis transmission | Taiwan TBI ball screw transmission,4010 |
| Transmission | Rack and pinion |
| Auto Oiling system | Yes |
| Voltage | 380v,Three phase,50HZ/220v,three phase |
| Precision | <0.1mm |
| Repeat positioning precision | 0.05mm |
| Max speed | 70m/min |
| Tool sensor | Yes |
| Limits | Yes |
| Tool magazine | Linear type,18 pieces |
| Oil mist cooling system | Yes |
| Machine frame | 12mm steel tube |
| Net weight | 8000KG |
