Technical parameter of 4 axis QN1325 cnc router machine with rotary axis:

Guide Rail	configure with Japan THK linear rail 25mm width
Package size	machine with disassemble into 3 parts,one gantry,one machine body and one control unit
X.Y working area	1300*2500mm, Machine transmitting by rack and gear
Z working area	150mm
Max.moving speeding	25m/min
Working table	Standard table with aluminum T-slot table ,can put pvc into the table
Control system	Most advance DSP Hand control
Spindle motor power	4.5KW air cooling spindle motor
Surrounding for software	Window 7/10/XP
Power (spindle is not inculded	More than 1500W
Working voltage	AC 380v/50-60HZ (standard )
Main axis rotating speed	0-24000rpm/min
Work mode	Large stepper motor and drive , Servo(Optional)
Software	Ucancam
Control	Handle control ,DSP 8GB NC control system
Engraving tpols &collets	7mm.6mm.12.7mm(sending you 10 pcs with the machine )8 collects standard with machine (ER20 Type)
Optional	Dust collect ,vaccum system, servo system

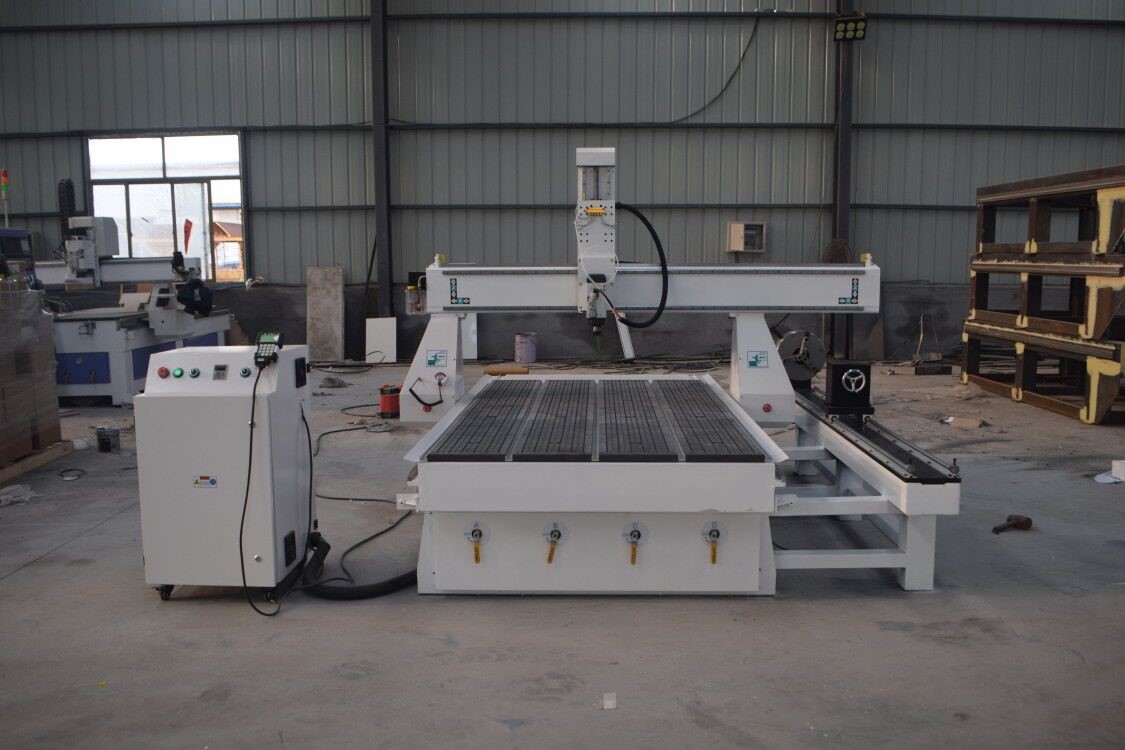

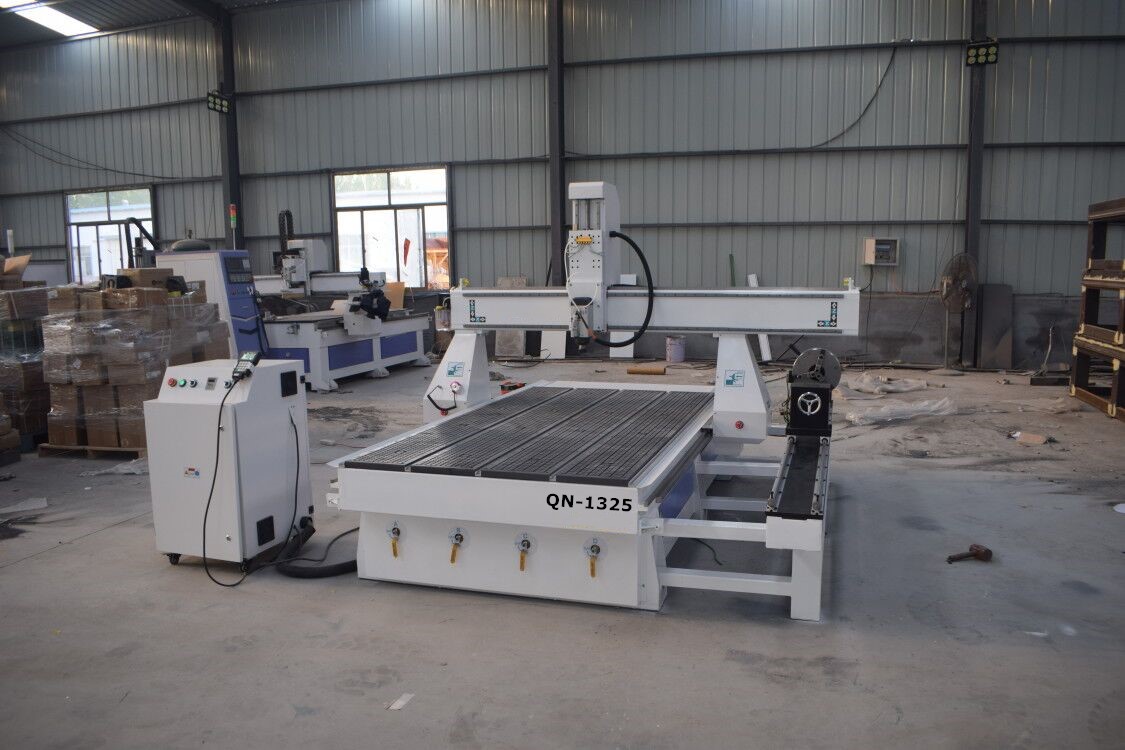

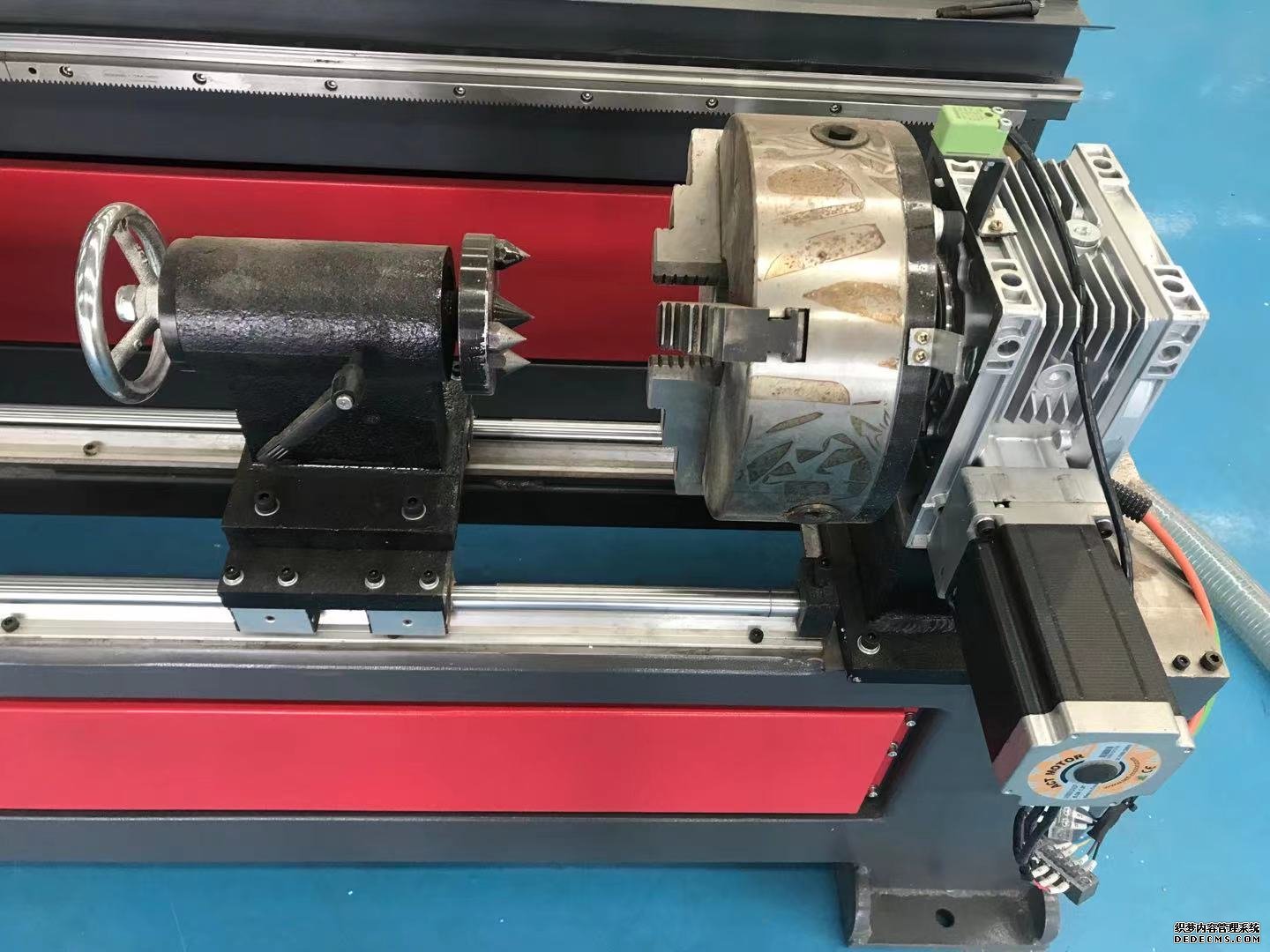

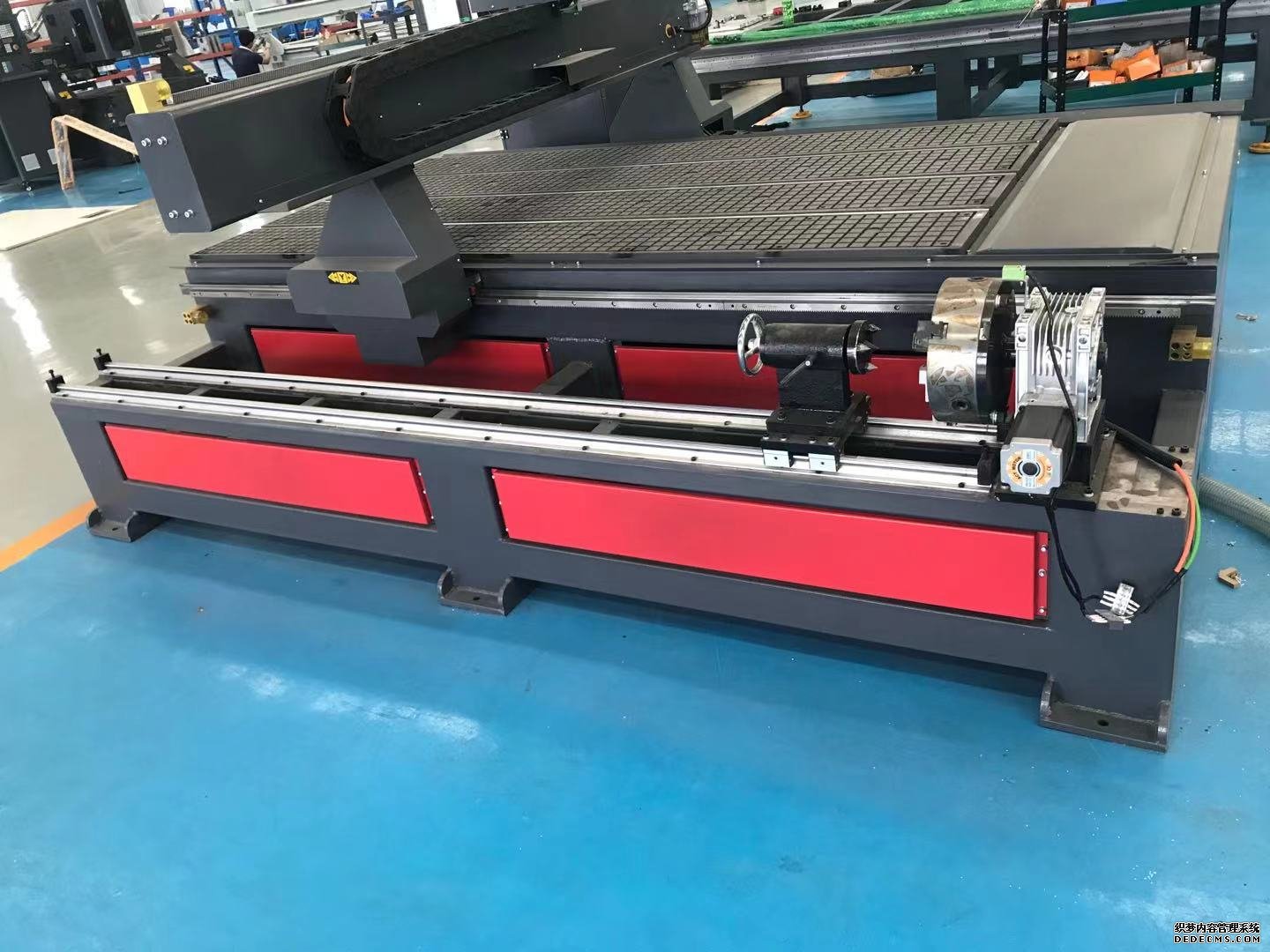

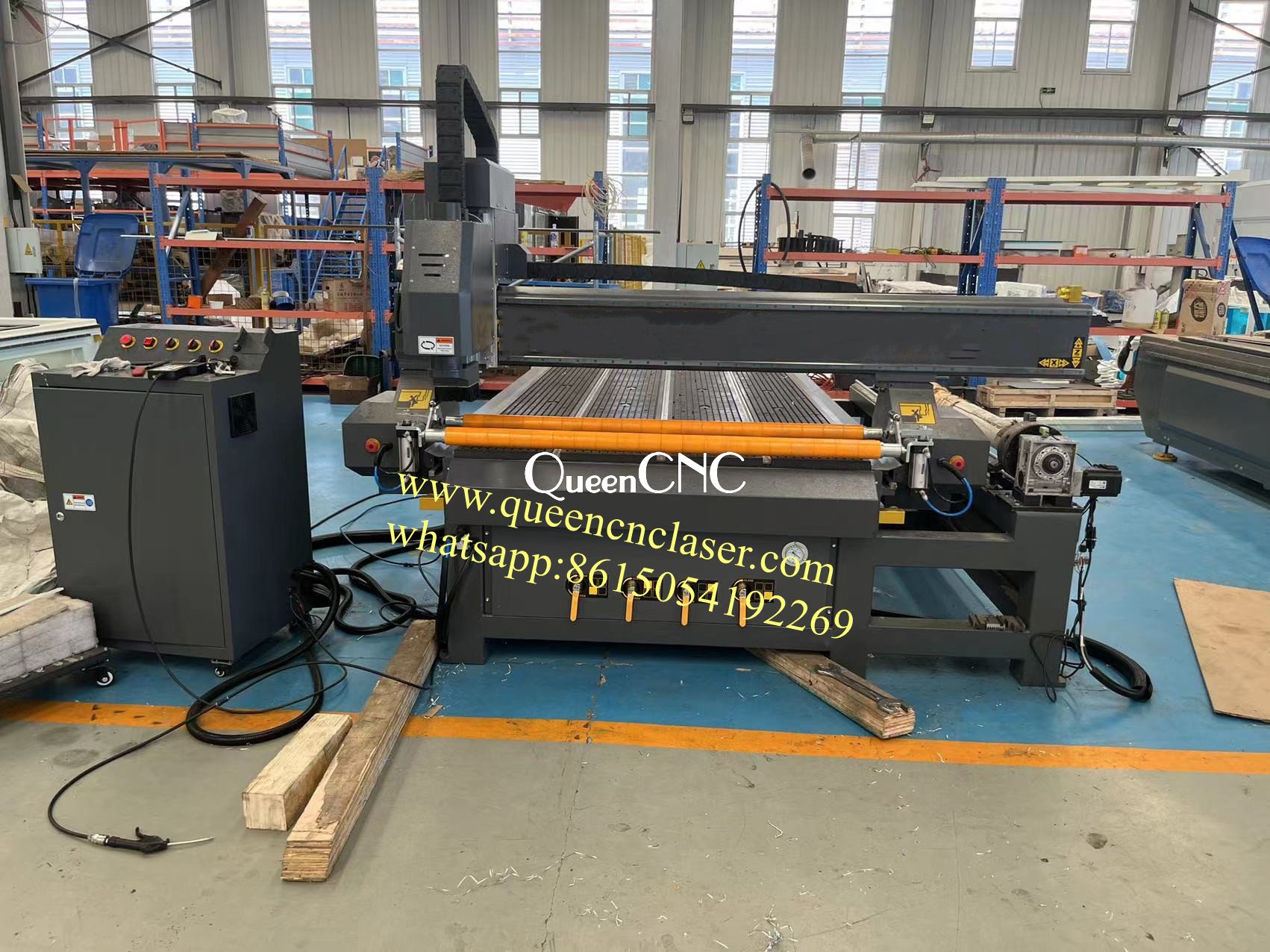

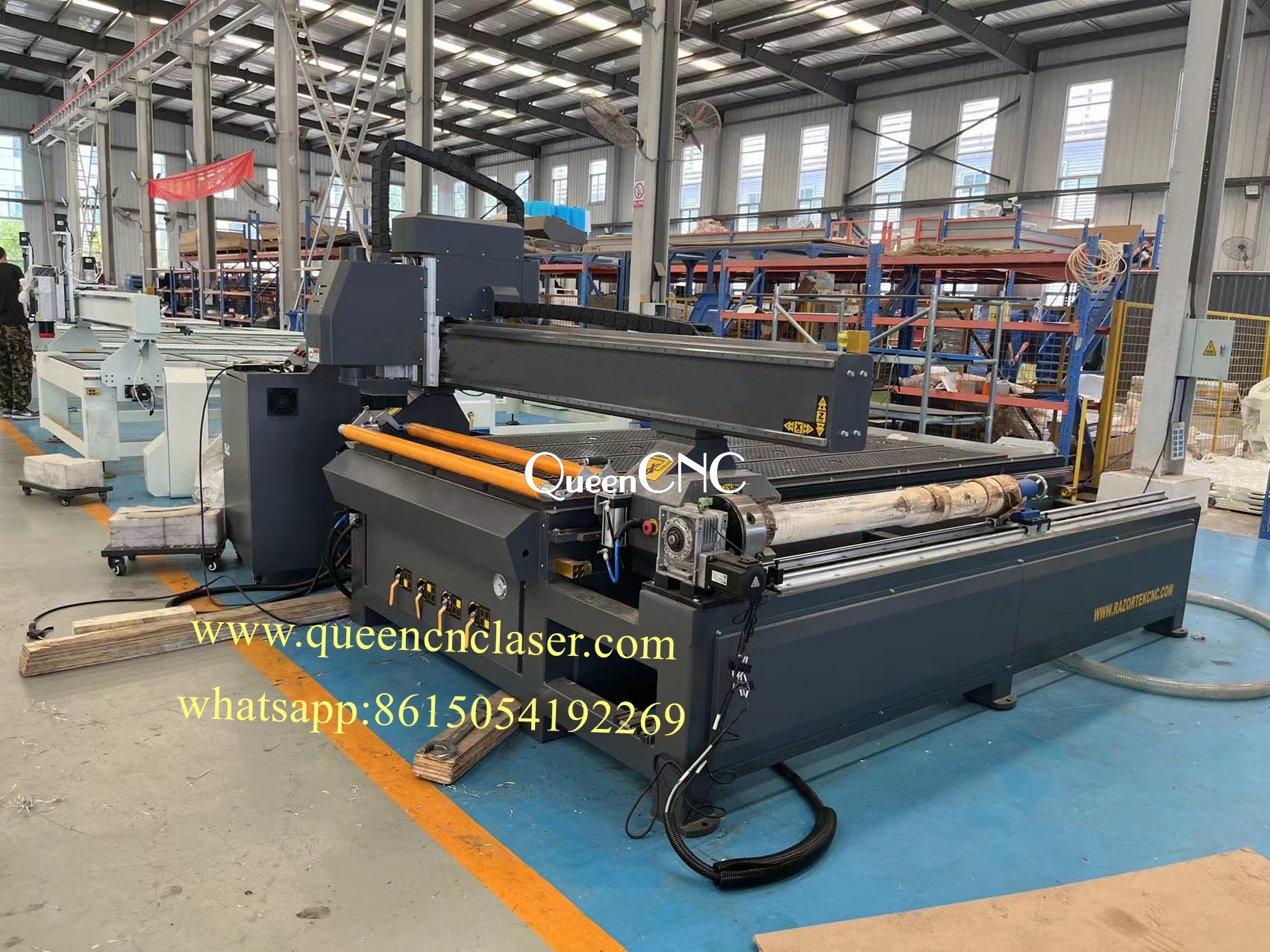

 4 axis QN1325 cnc router machine with rotary axis:








Q: What's your MOQ? What's your delivery term?
A: Our MOQ is 1 set machine, we usually require 10-25 days for manufacturing, 1 day for packaging. The exact time will be depended on your order quantity and customized level.
Q: Whats your warranty time ? What you can supply to us after we bought your machine?
A: We give customer 1 year quality warranty. if you have any question, we will give permanent technic support and spare parts supplying.
Q:This is the first time I use this kind of machine, is it easy to operate?
A: There are english manual or teaching video that show how to use machine. If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.
Q: If I do not find the type what I need,what I should do?
A: We can produce customized products according to your drawing or samples.
Q: How about the documents after shipment?
A: After shipment, we will send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
