QN2040 ATC cnc router with auto loading system and drilling

Release Time:2025-11-06 10:56 Reading Times:

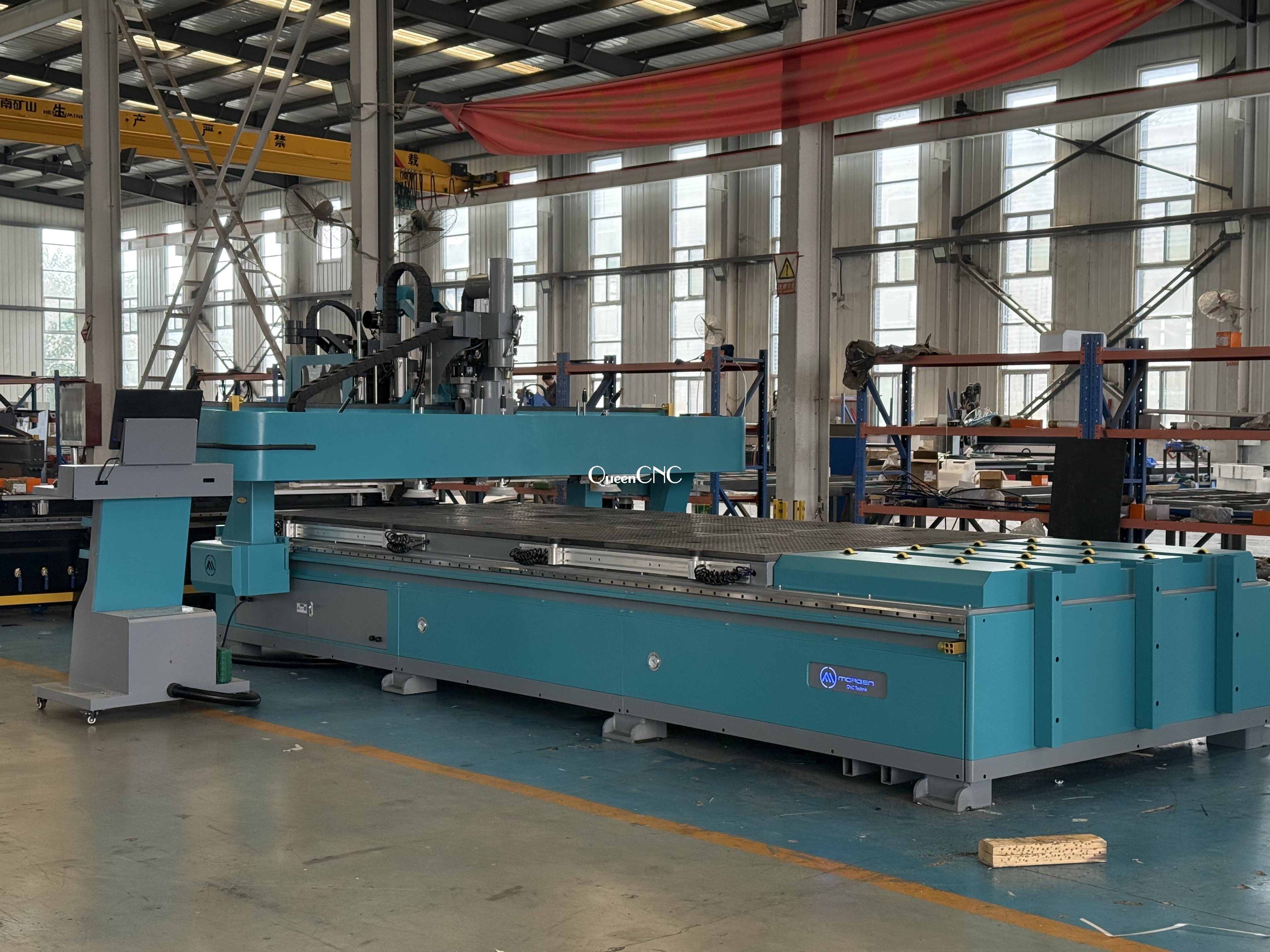

QN2040 ATC cnc router with auto loading system and drilling system

This QN2040 atc cnc router machine is totallly custozmized accoring to Germany customer's requirement.

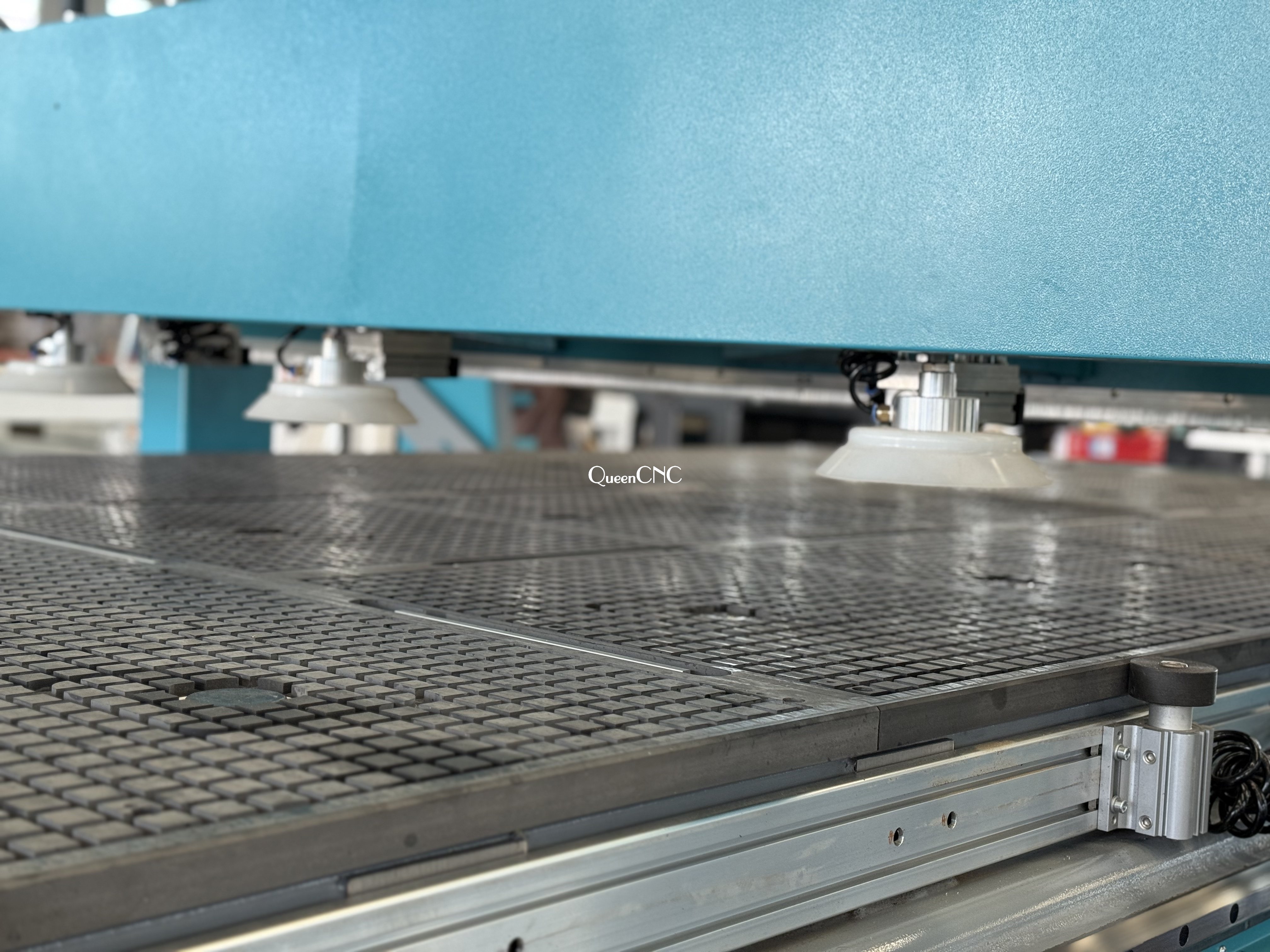

It adopts moveable pop up positioing system to positioning any size working plate.
It adopts 8mm thicken steel tube welded machine frame,stressed is relieved by tempering to ensure frame stability and durable.
It adopts two layer tables to achieve best performace on machine.
It adopts Japan Yaskawa sevo motor and driver,Taiwan T-win high precison rails,High soft and durable tank chain ... ect many good features on this machine.

Machine technical specs:

Model	QN2040 CAROUSEL TYPE ATC CNC ROUTER WITH AUTO LOADING SYSTEM
Machine frame	8mm steel thickness with heat treatment
Working size	20004000300mm
Machine table	Vacuum table made according to customer’s design,two layers table, control individual vacuum sections electrically
spindle	9.0kw air cooled ATC spindle,ISO30 tool holder
Oil mist cooling system	Yes
Drill units	7+4 drill block
Customized cover	Yes,with customer logo and LED show machine condition
Driver motor and driver	Japan Yaskawa 850w servo motor and drivers
Reducer	Japan SHIMPO reducer
Inverter	Foling inverter

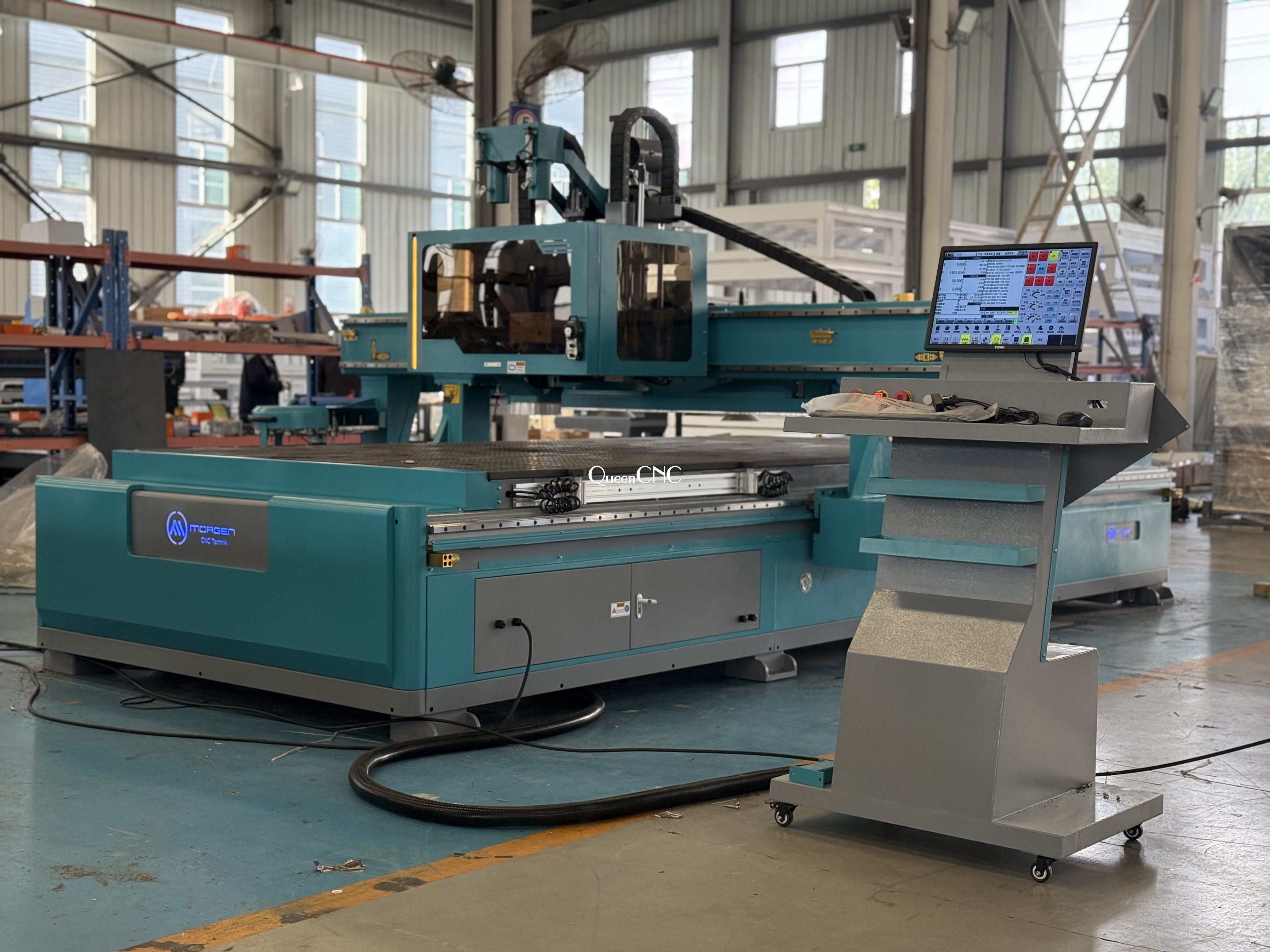

Control system	Taiwan LNC control system,2200，inside control cabinet and Separate display cabinet with 15 inch touch screen,wireless type handwheel,support internet transfer
Linear rails	Taiwan T-win 30mm linear square rails
Tool magazine	Rotary type with 16 tools
Z axis transmission	Germany ball screw transmission
Rack and pinion	High precision helical Rack and pinion
Auto Tool sensor	Yes

safety strips on the left and right on the portal	Yes
Limit switch	Yes

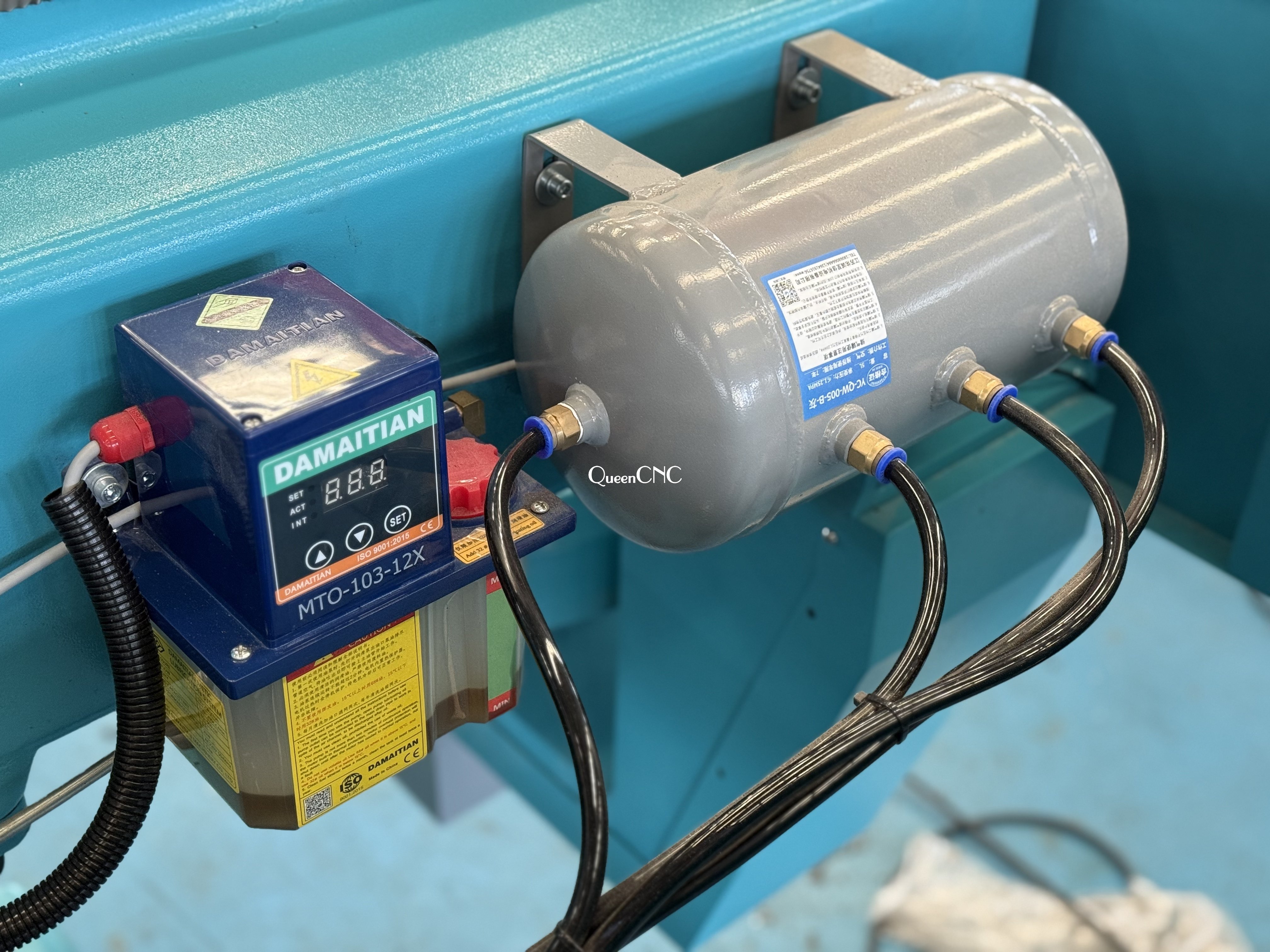

Oiling system	Auto oiling system
Tank chain	High-speed silent compartments tank chain

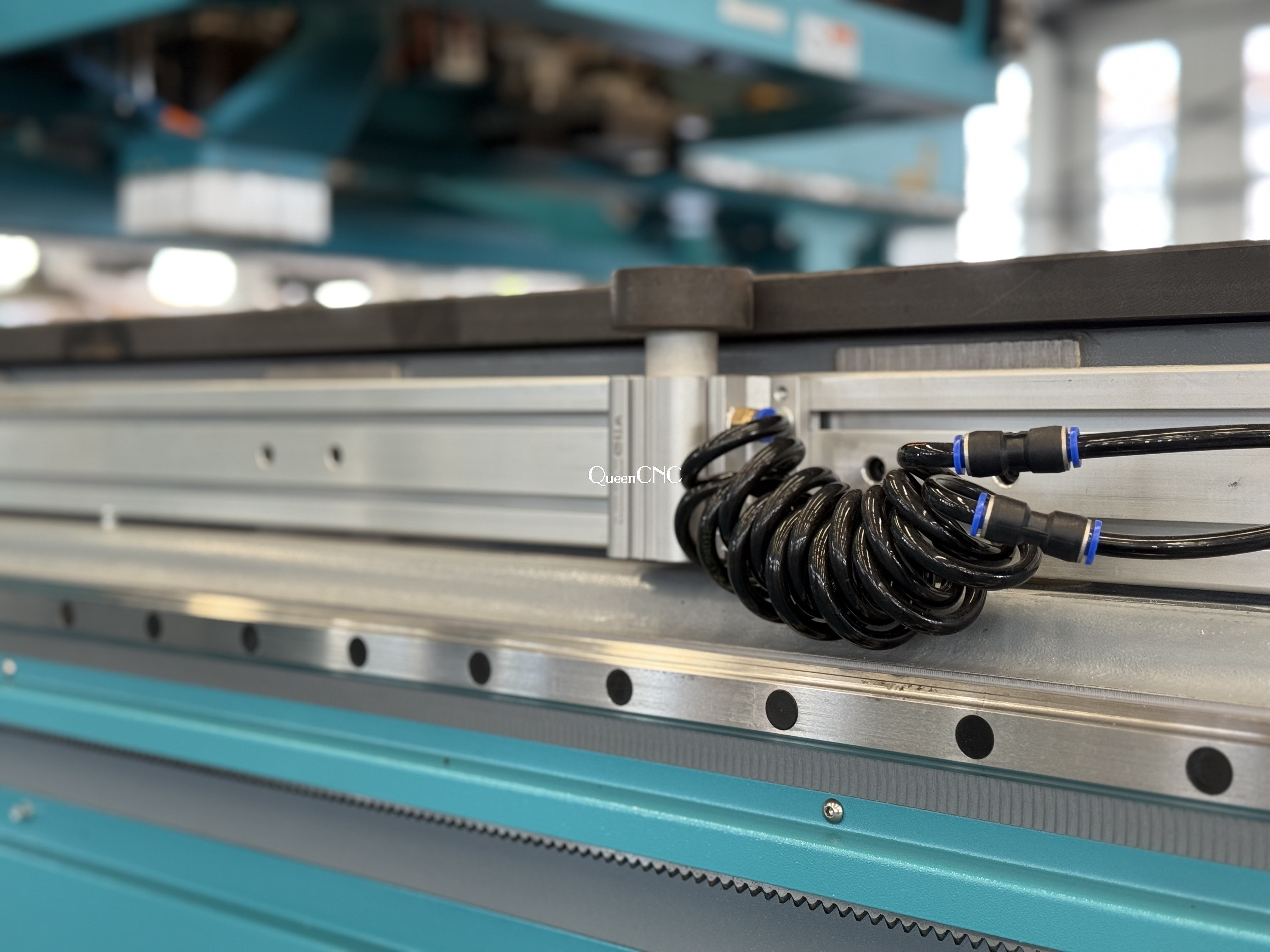

Positioning system	Yes,Adjustable position Cylinder in X4 and Y5
Vacuum pump	Yes,two sets 7.5kw air recycle vacuum pump
Voltage	380v,three phase,50/60HZ
Max speed	70m/min
Precision	<0.1mm
Machine frame	Thicken heavy duty
Net weight	3500KG
Gross weight	3700KG

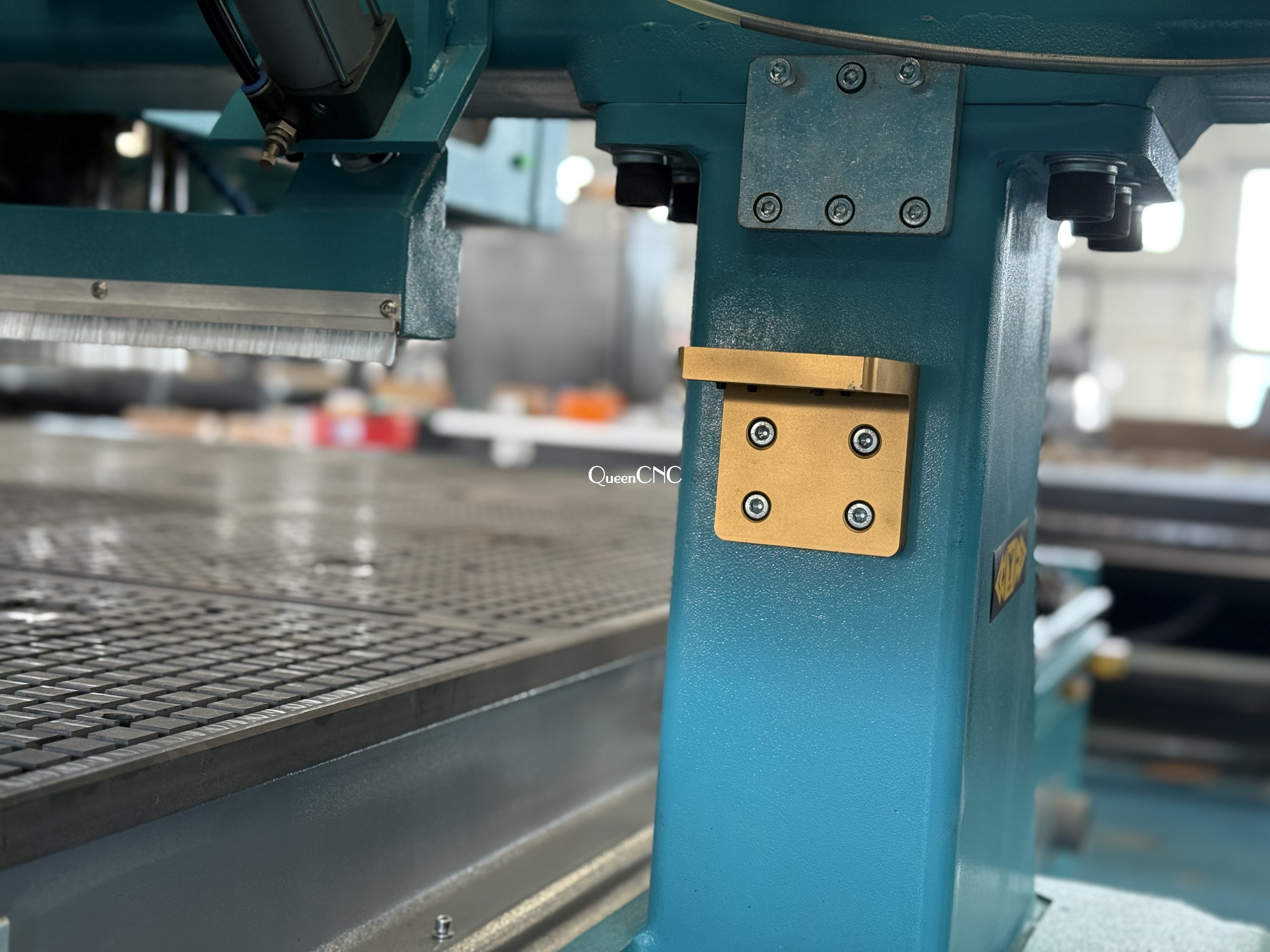

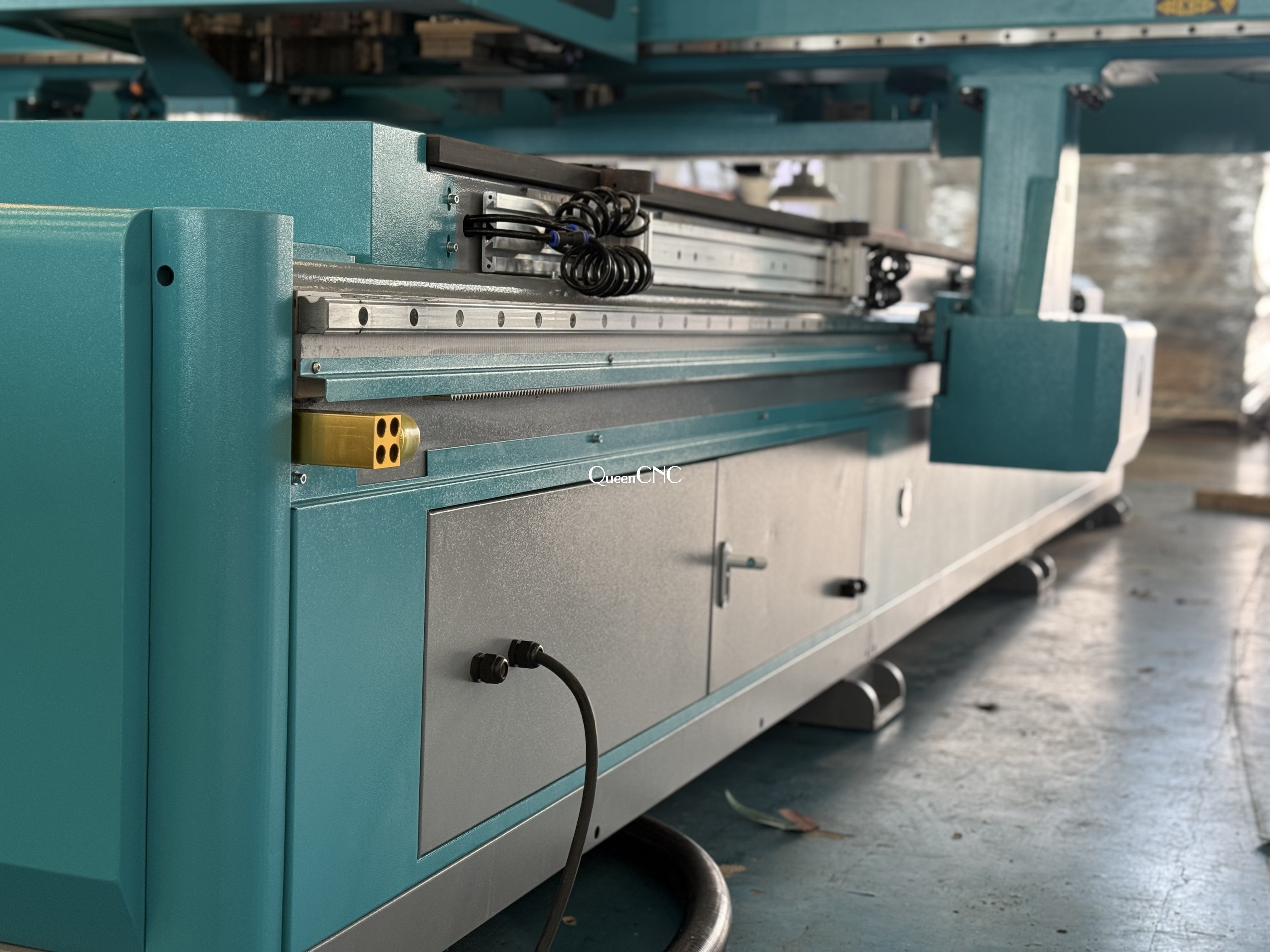

CNC router machine quality comes from details,please check more pics of our deatils:

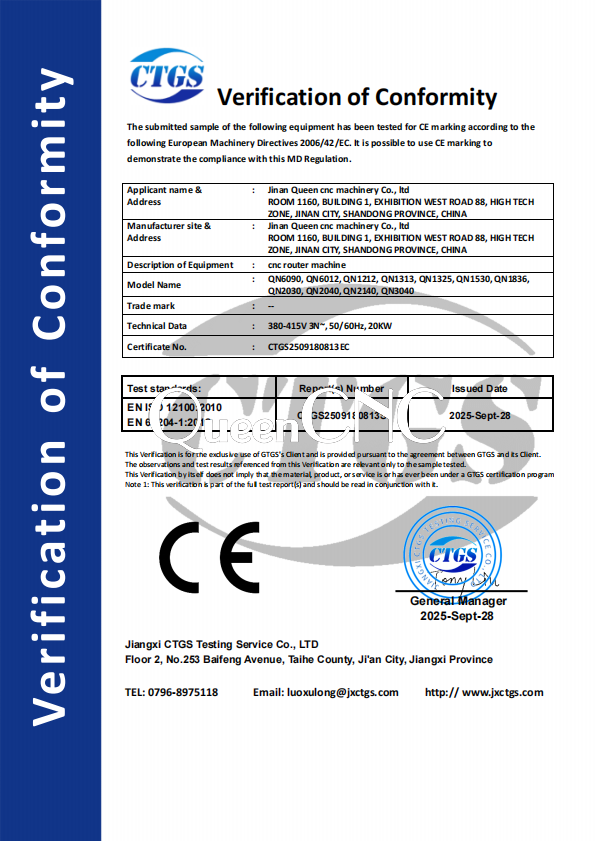

Our cnc router machines are CE certified,You can totally feel free about our quality and service!

The working video of this QN2040 atc cnc router please browse:
https://youtu.be/EDUDX8--qhI

If you are interested in this machine,please contact me freely to get more info!Hope we can be your reliable partner!
