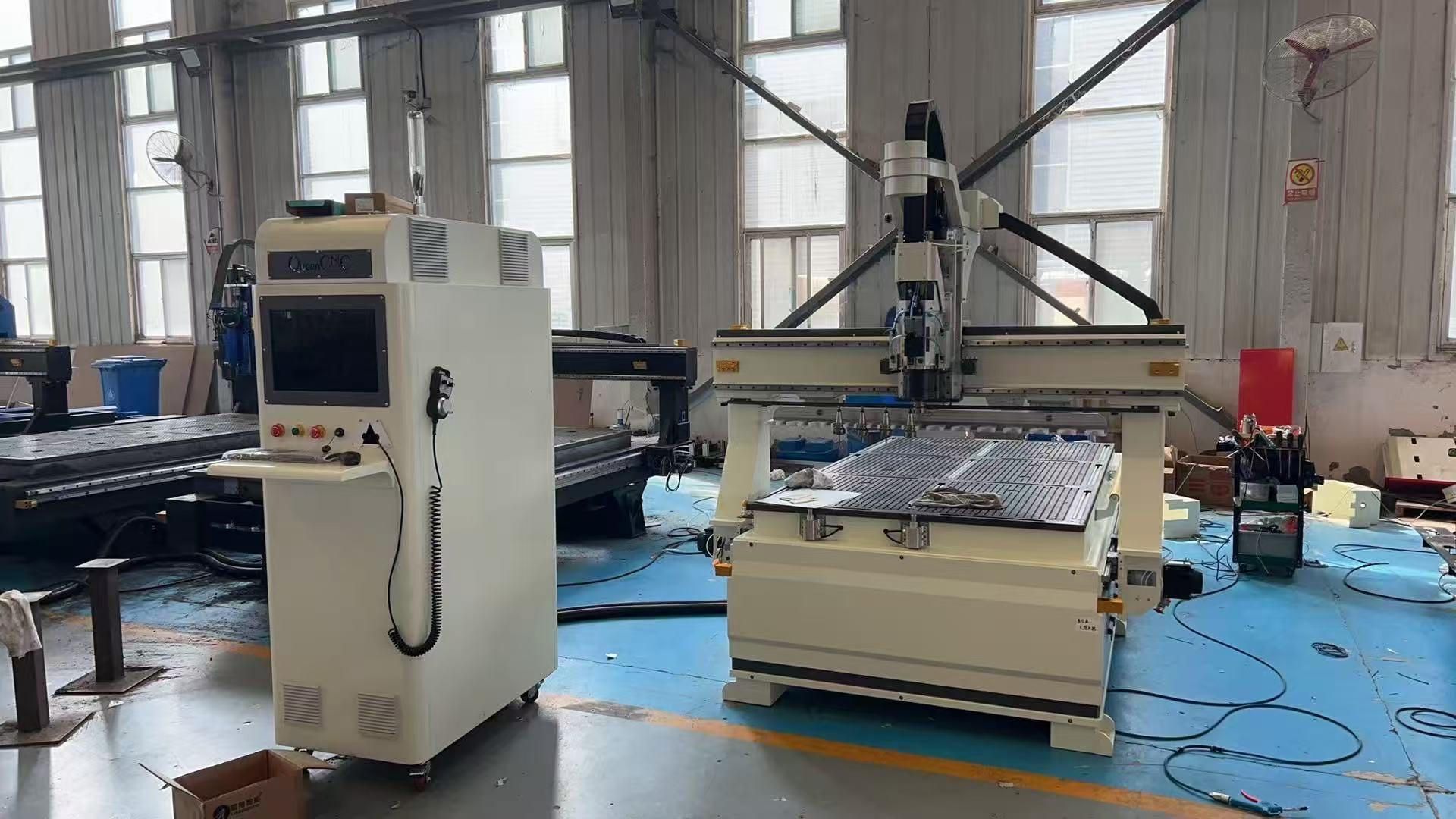

4x8 CNC Router for Cabinet Door Production

Real 1325 atc cnc router working demo:

Item	Specification
Model	1325 CNC Router Machine
Working Area	1300 × 2500 mm (4 × 8 ft)
Table Size	4x8 Feet
Machine Structure	Heavy-duty Welded Steel Frame
Table Type	T-slot Table / Vacuum Table (Optional)
X,Y Structure	Helical Rack & Pinion Transmission
Z Structure	Ball Screw Transmission
Guide Rail	Hiwin Square Linear Guide Rails
Spindle Power	3.0 / 4.5 / 6.0 kW/9.0kw (Optional)
Spindle Type	Air/Water-cooled Spindle
Spindle Speed	0 – 24,000 RPM
Drive Motors	Servo Motor
Max Traveling Speed	25,000 mm/min
Max Working Speed	15,000 mm/min
Positioning Accuracy	±0.03 mm
Repeat Positioning Accuracy	±0.02 mm
Control System	Mach3 / NcStudio / LNC/SYNTEC
Command Language	G Code
Working Voltage	AC380V / 3 Phase / 50Hz (Customizable)
Dust Collector	Optional
Lubrication System	Automatic
Software Compatibility	ArtCAM / Type3 / Aspire / Fusion360
Supported Materials	Wood, MDF, Plywood, PVC, Acrylic, Aluminum, Composite Panel
Machine Dimension	Approx. 3100 × 2100 × 1800 mm
Net Weight	Approx. 1200–1500 KG
