New arrival! 2030 atc cnc router with drilling

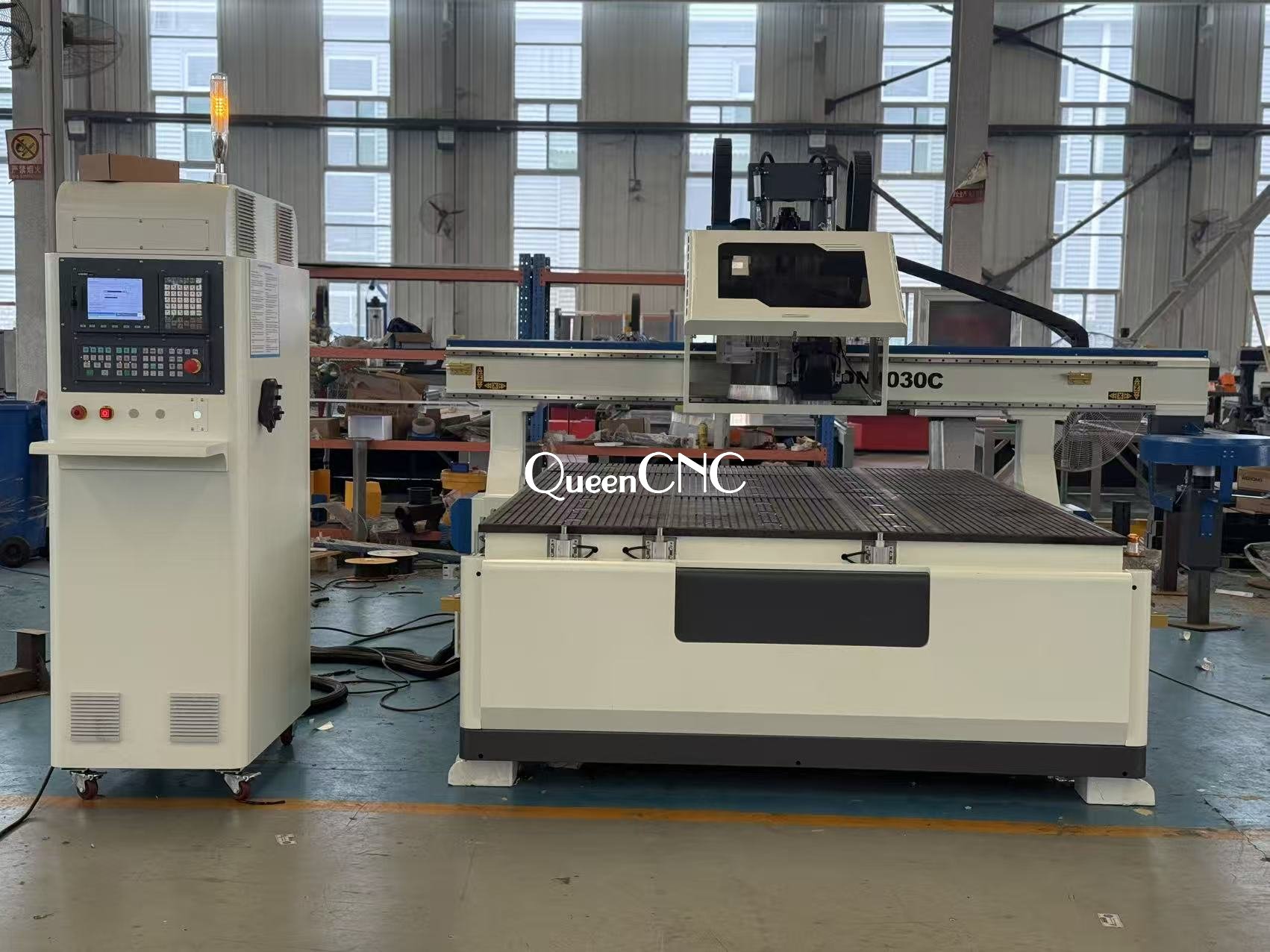

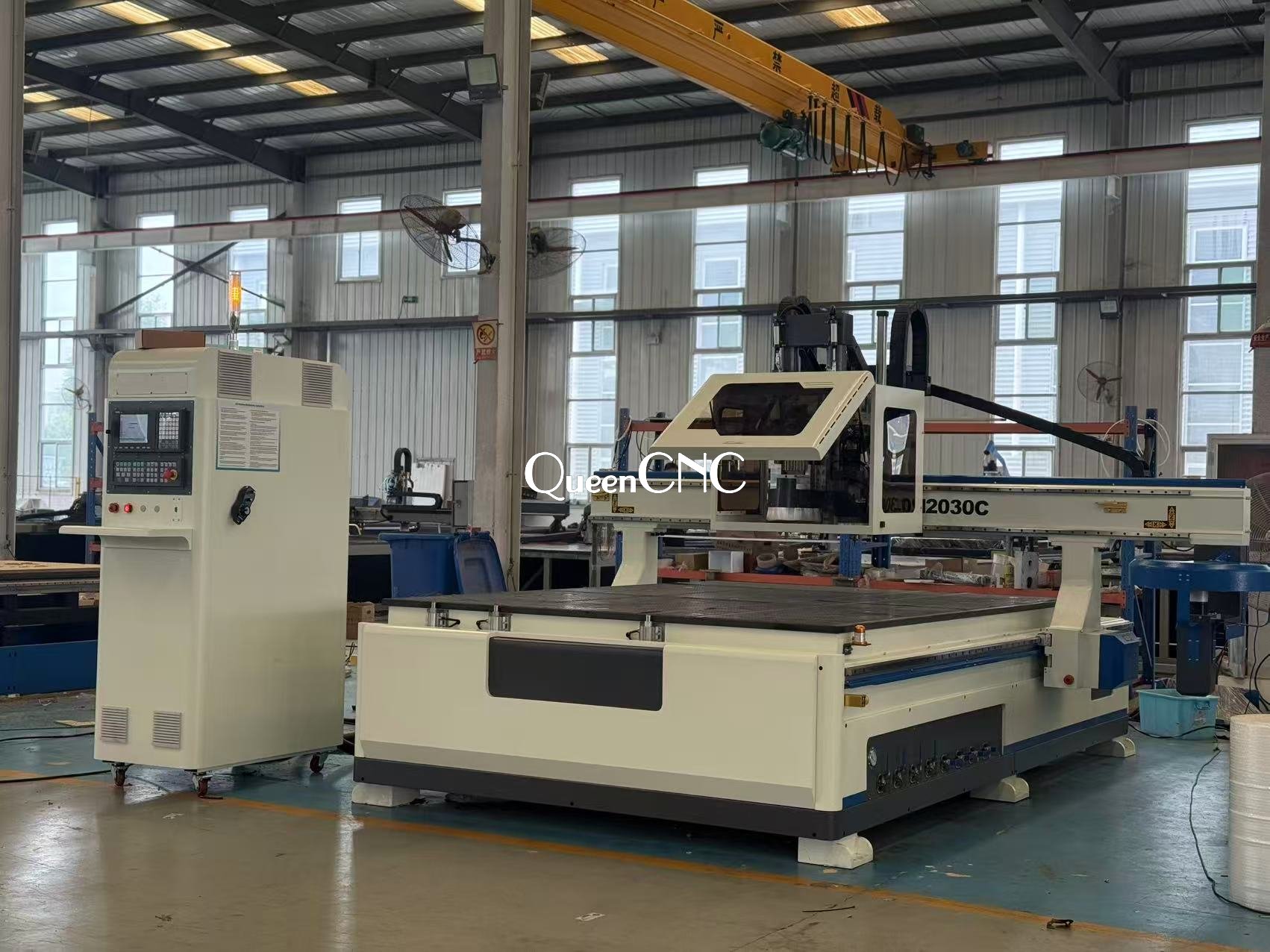

cnc router machine pics:
2030 atc cnc router technical specs:
|
Model |
QN2030 disc auto tool changer cnc router |
|
Working size |
2080*3050*300mm |
|
Machine table |
Vacuum table with T-slot |
|
Z axis |

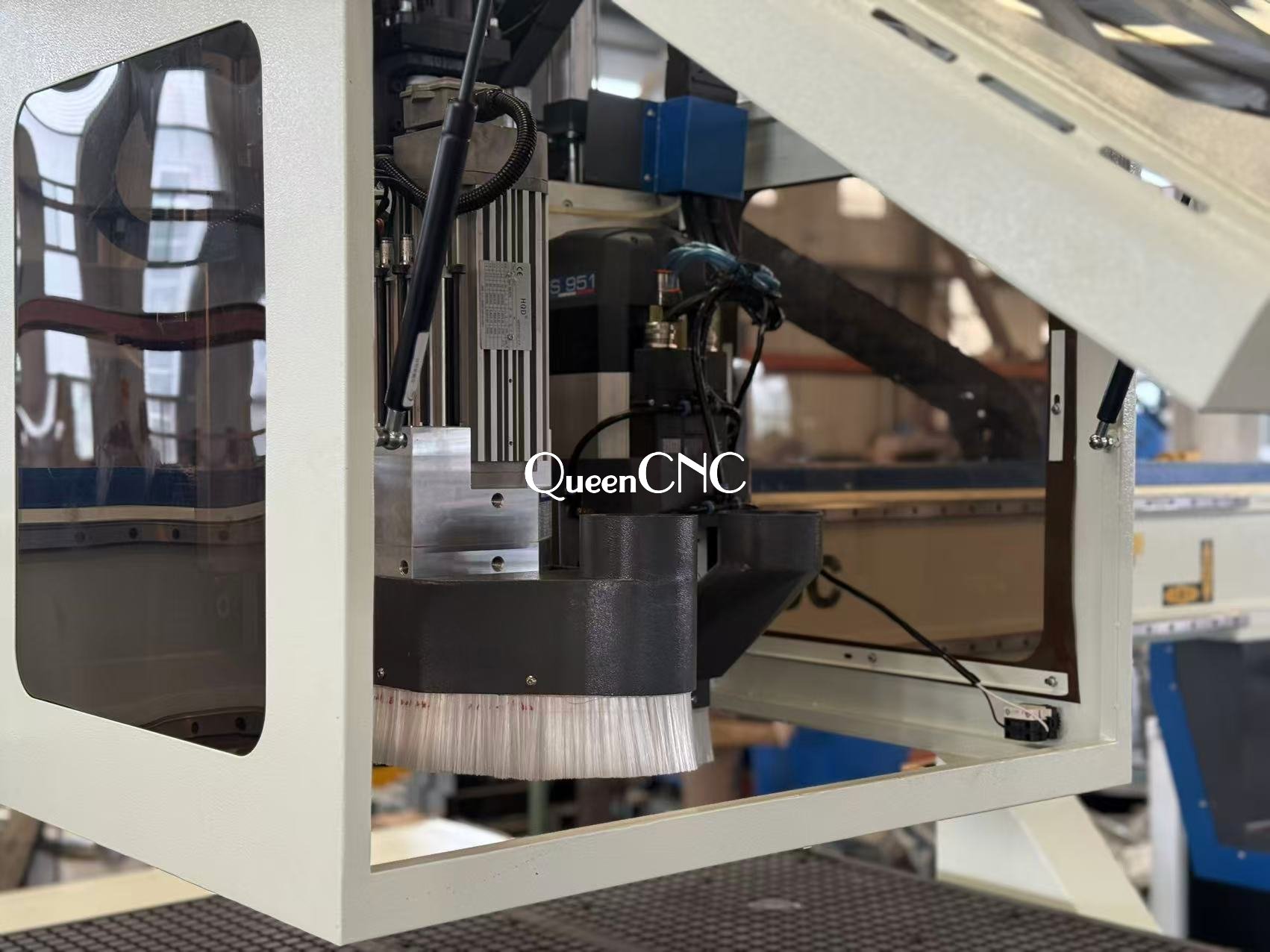

9.0kw HSD air cooled ATC spindle and 5+4 drill unit |
|
Driver motor and driver |
Japan Yaskawa 850w servo motor and drivers |
|
Reducer |
Japan SHIMPO reducer |
|
Inverter |
Delta inverter |
|

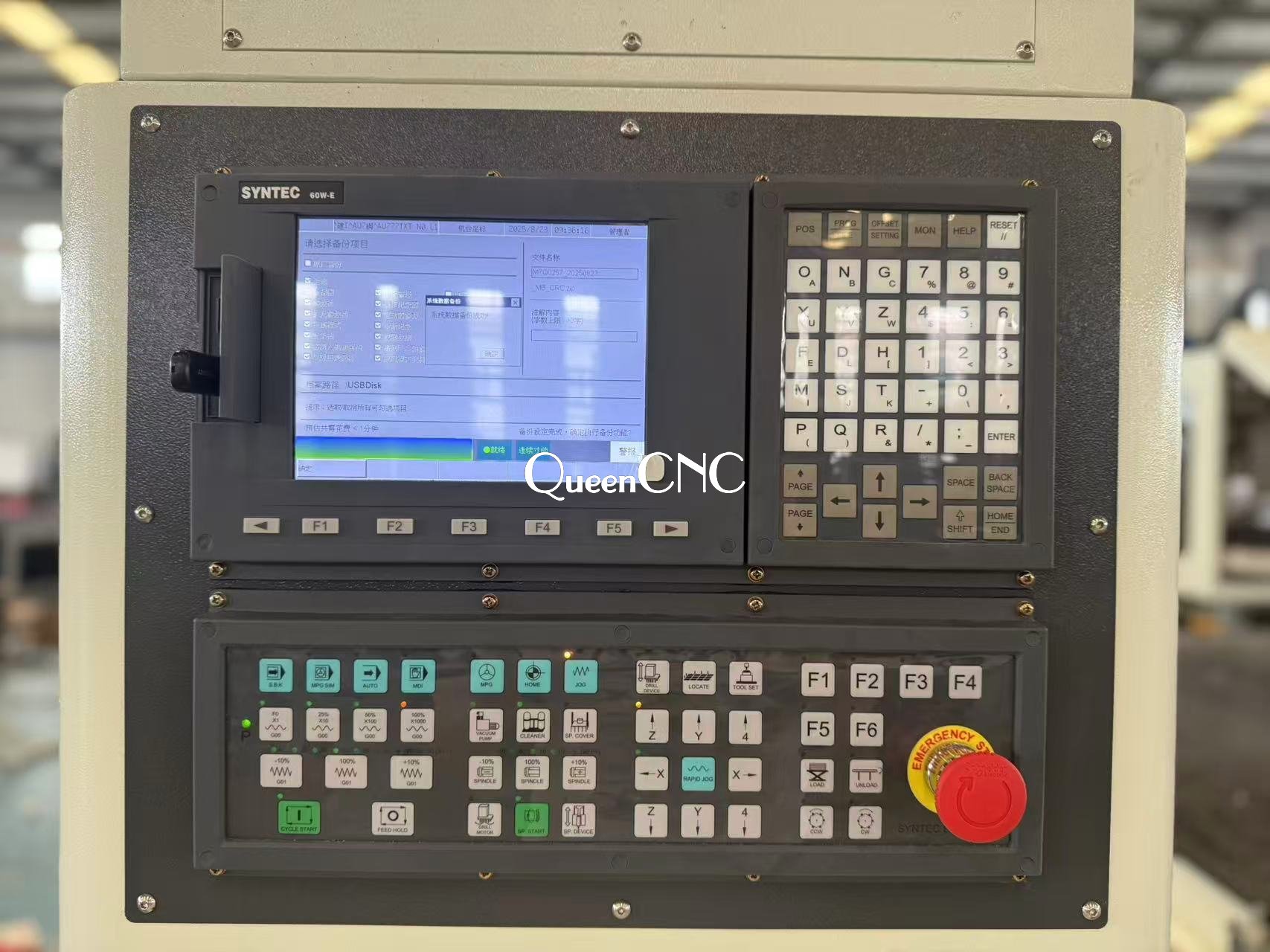

Control system |
Taiwan SYNTEC control system |
|
Linear rails |
Taiwan T-win linear square rails |
|

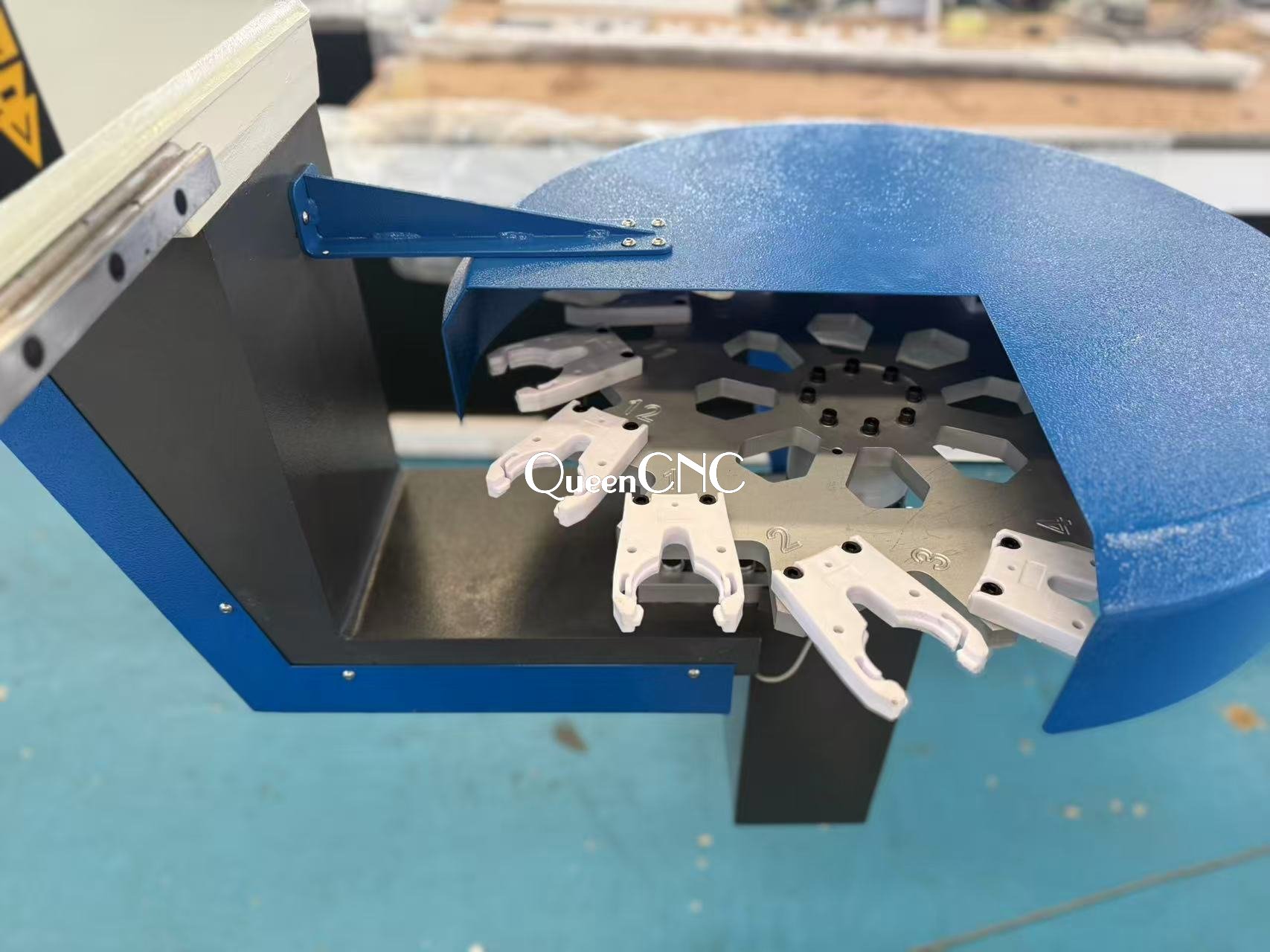

Tool magazine |
Disc type,12 tools |
|
Z axis transmission |
Germany ball screw transmission |
|
Transmission |
Rack and pinion |
|
Auto Tool sensor |
Yes |
|
Limit switch |
Yes |
|
Oiling system |
Auto oiling |
|
Positioning system |
Yes |
|
Vaccum pump |
Yes,two sets 7.5kw rotary vane vacuum pump,265cubic |
|
Tool holder |
total 18 pcs |
|
Voltage |
380v,three phase,50/60HZ |
|
Max speed |
70m/min |
|
Precision |
<0.1mm |
|
Machine frame |
Thicken heavy duty |
|
Net weight |
2300KG |
|
Gross weight |
2400KG |
|
Spare parts |
Standard parts with machine |
cnc router with drilling application:
Panel furniture processing
• Drilling operation: Precise holes can be drilled on the board to install hinges, three-in-one connectors (such as eccentric wheels, connecting rods), as well as positioning holes and screw holes for fixing the board. This is a crucial process before assembling the panel furniture.
• Carving decoration: It can carve decorative elements such as patterns, designs and text on the surfaces of cabinet doors, side panels and other components, enhancing the aesthetic appeal and individuality of the furniture.
Processing of solid wood products
• Drill holes in the solid wood panels for use in mortise installation, attaching hardware, etc.; at the same time, various techniques such as relief engraving and line engraving can be applied to the surface or edges of the solid wood to create handicrafts, solid wood ornaments, and decorative parts for antique furniture, etc.
Customized woodworking processing
• Customized wooden partitions and storage racks, for instance, need to be drilled and fixed according to design requirements. They may also require engraving of labels or decorative patterns. Similarly, wooden signs and display stands need to be installed by drilling and also require engraving of text or graphics.
The advantage of these devices lies in their ability to reduce process transitions and enhance processing efficiency. They are suitable for small and medium-sized woodworking workshops or scenarios requiring integrated processing.
