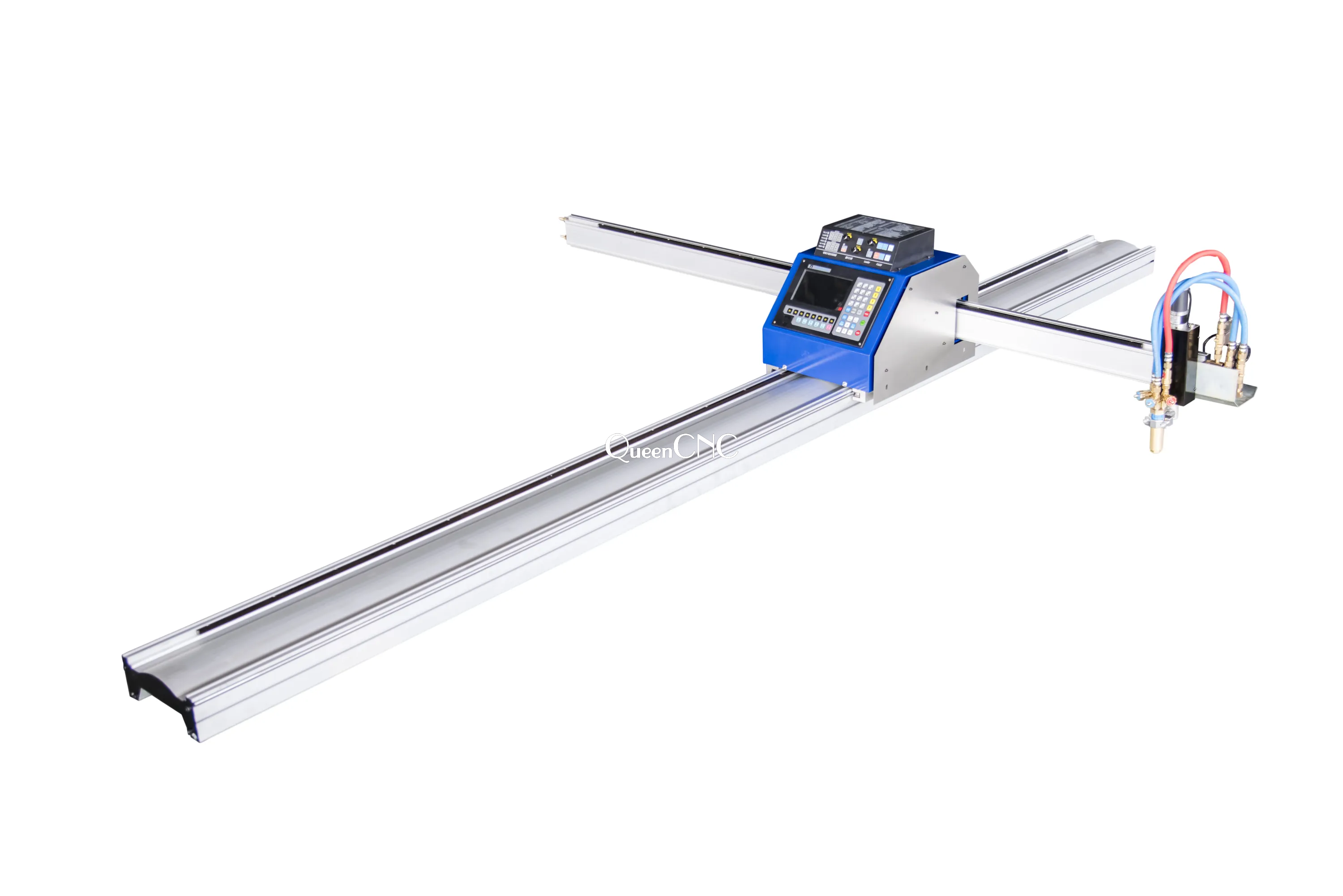

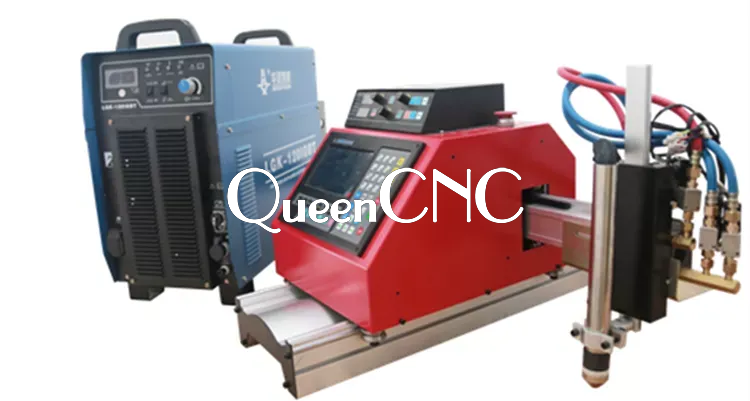

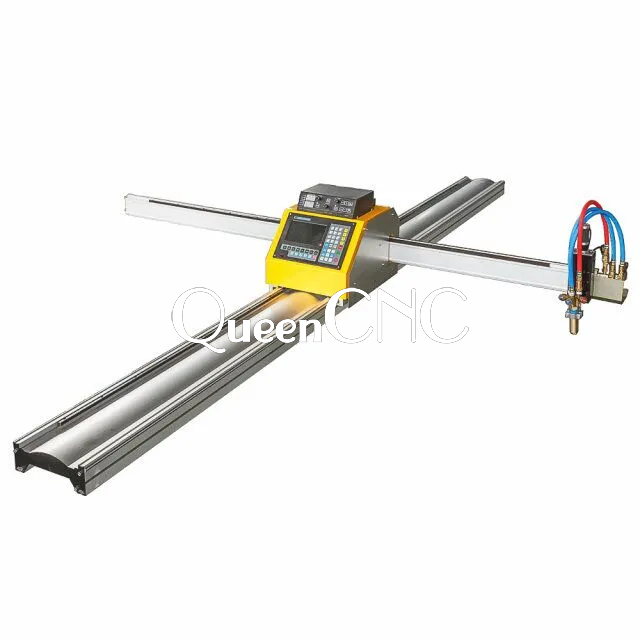

Portable plasma cutting machine
Release Time:2023-02-01 16:48 Reading Times:
|
Product name
|
CNC plasma cutting machine
|
|
Motor Type
|
Stepper Motor
|
|
Power source
|
AC 220/380±10%VAC 50/60Hz
|
|
Cutting mode
|
O2/C3H8 or C2H2
|
|
Effective cutting range(mm)
|
1500*6000 1500*3000
|
|
Brand Name
|
Rayman
|
|
Model Number
|
001
|
|
Input Voltage
|
220V, 50HZ
|
|
Dimension(L*W*H)
|
3.56*0.29*0.22m
|
|
Cutting speed(mm/min)
|
8000mm/min
|
|
Cutting thickness(Flame)
|
6-160 mm (O2/C3H8 or C2H2)
|
|
Cutting thickness(Plasma)
|
According to plasma power source
|
|
Move precision
|
±0.2mm/m
|
|
Plasma THC
|
YES
|
|
Processing thickness(mm)
|
0.3-32mm
|
|
Cutting system
|
Shanghai Fangling F2100B control system
|
|
Host weight(kg)
|
19kg
|
|
Gas pressure(Mpa)
|
Max.0.1
|
|
Oxygen pressure(Mpa)
|
Max.0.7
|
|
Type of gas
|
C3H8 C2H2
|
|
Emergency stop
|
Yes
|
|
Working temperature
|
-5~45℃
|
|
Plasma power
|
Chinese brand IGBT Plasma sources; 200A
|
|
ARC
|
Untouched arc striking
|
|
Weight
|
120kg
|
|
After sales service
|
Engineers avaiable to service
|
|
After warranty service
|
Video technical support
|
|
Certificate
|
CE certificate
|
|
Material Available
|
Iron, stainless steel, carbon steel, copper sheets; aluminum sheets, galvanized sheets, Titanium plates and other kinds metal
|
