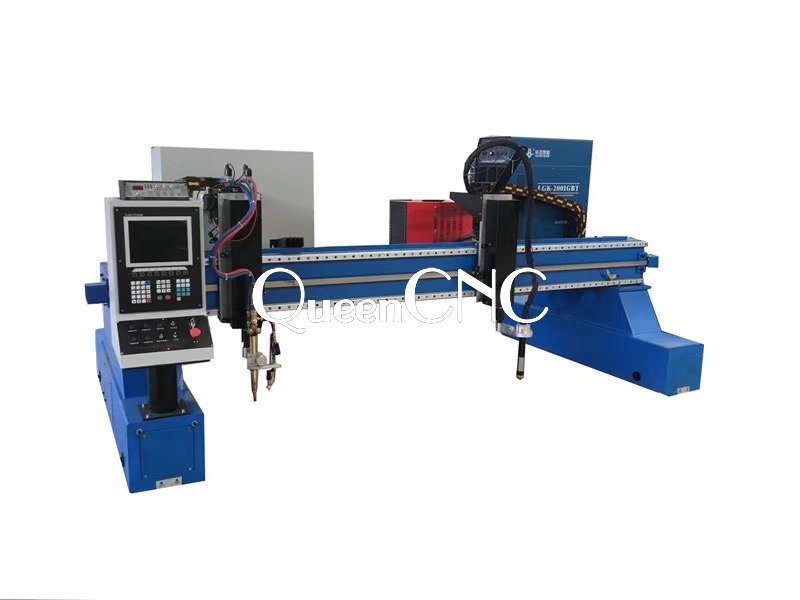

Gantry type CNC plasma cutting machine for carbon steel stainless steel cutting with LGK huayuan plasma source
|
Type
|
CNC Gantry Plasma Cutting Machine |
|
Type
|
inverter air plasma cutting and shearing machine
|
|
Structure
|
dual drive
|
|
Track span & Guide rail
|
3000×6000mm
|
|
Effective cutting size
|
2400×4500mm
|
|
Transmission
|
rack & pinion
|
|
Tube Transmission
|
Industrial plastic drag chain
|
|
Cutting thickness
|
Oxy-fuel: 6-150 mm;
Plasma: depends on plasma capacity
|
|
Torch No.
|
1 oxyfuel station and 1 plasma station
|
|
Automatic Ignitoin
|
For oxyfuel torch (option)
|
|
Servo system
|
Panasonic AC servo driver (400w)
|
|
CNC system
|
HB controller(CHINA)
|
|
Speed regulation range
|
0--12 m/min
|
|
Program Software
|
FastCAM Professional Edition
|
Main Features:
Compared with the current cutting machines produced by many domestic and foreign manufacturers, our company's cutting machines not only have the functions of each cutting machine, but also have the following famous characteristics:
1. Equipped with U disk interface and CAD graphics cutting code automatic conversion software. The conversion software displays all Chinese characters, the cutting process design is simple, and the unclosed graphics that other manufacturers cannot handle can be processed in the same way, so as to achieve co-edge cutting. The software function is more applicable and powerful.
2. Simple and clear graphical programming method. The programming input on the cutting machine adopts a very clear way, such as "straight line, 4th quadrant, X40, Y30". This display mode is very intuitive, and everyone can understand it.
3. Fool-type operation mode. The bottom of the display screen prompts various operating functions at any time, so the operator does not need to be trained or read the manual.
4. Fool-type maintenance method. There are various fault indications on the system screen, and the fault phenomenon is clear at a glance. The maintenance of the whole machine only needs to replace a certain function board according to the fault indication, which is very convenient and fast.
5. Better operation convenience. For example, above the cutting torch, there are various necessary movement alignment and various control keys, which are convenient for users to operate at the cutting torch. This function is very necessary for users.
6. The graphics can be automatically sorted on the cutting machine. The operator only needs to input the cutting quantity and arrangement direction to realize continuous automatic cutting in large quantities.
7. Higher reliability design. The cutting machine of our company adopts the most streamlined mode for the hardware design of the on-site cutting machine. The more streamlined the system, the easier it is to be reliable, thus maximizing the reliability of the equipment.
|
Model
|
|
|
Cutting Mode
|
|
|
|
|
Driving Mode
|
Servo motor or stepper motor
|
|
Cross beam Width(m)
|
2000*6000 3000*8000mm etc (can be customized)
|
|
Guide rail Length (m)
|
According to your cutting demands
|
|
Flame Cutting thickness(mm)
|
5-200 (specific type up to 300)
|
|
Plasma Cutting thickness(mm)
|
According to the plasma generator, common 1-30mm
|
|
Number of Cutting Torch
|
At customers' requests
|
|
Cutting Speed (mm/min)
|
50-8800
|
|
Running speed (mm/min)
|
12000
|
|
Control system
|
Beijing Starfire control system
|
|
Plasma Power
|
100A ,120A , 160A,200A ,300A ect .
|
