Plasma cutting machine

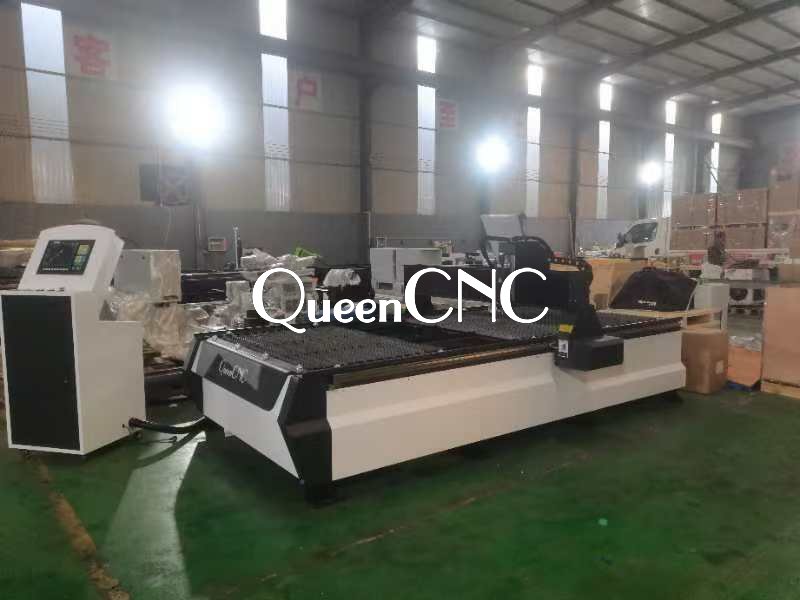

| Model | QN1530 plasma cutting machine |
| Working area | 1500*3000 |
| Z axis | 150mm |
| THC | Yes |
| Cutting thickness | 0.3-30mm |
| Structure | Cast steel structure |
| Control system | Start |
| Guide rail | Original taiwan PMI linear Square rails |
| Cutting speed | 0-9500mm/min |
| Cutting precision | <=0.01mm |
| Drive motor | Panasonic Ac servo motor and driver |
| Cutting mode | Plasma |
| Transmission | Rack and pinion drive |
| Working current | 200A LGK plasma power supply |
| Input voltage | 3 phase 380V or 220V |
| Air compressor | Yes,7.5kw |
| Power frequency | 50Hz/60HZ |
| Command code | G Code*、U00*、mmg*、nc |
| Interface | USB |
| software | FASTCAM |
| Application | steel, iron, aluminum, mild steel, and other metal steel |
