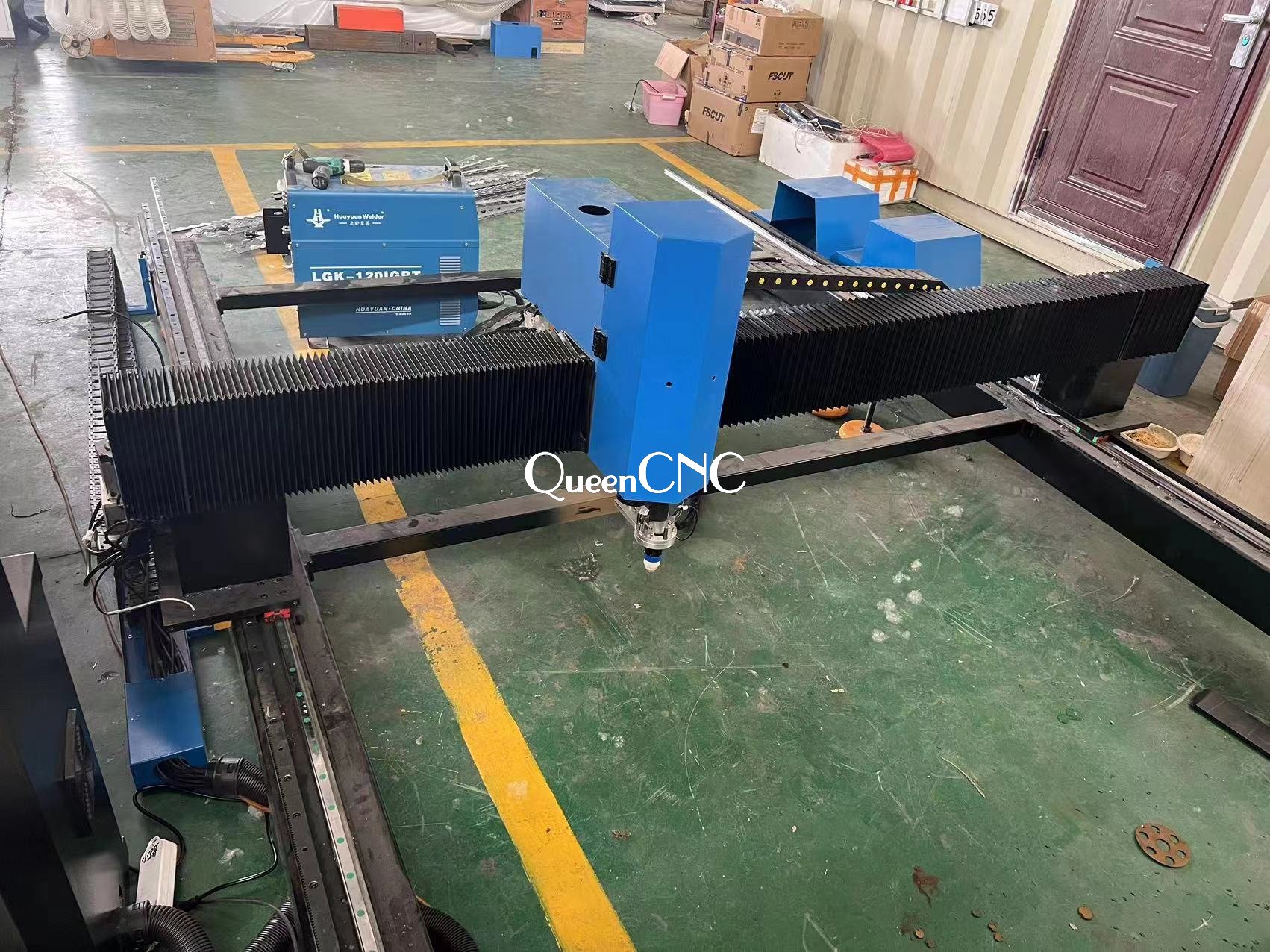

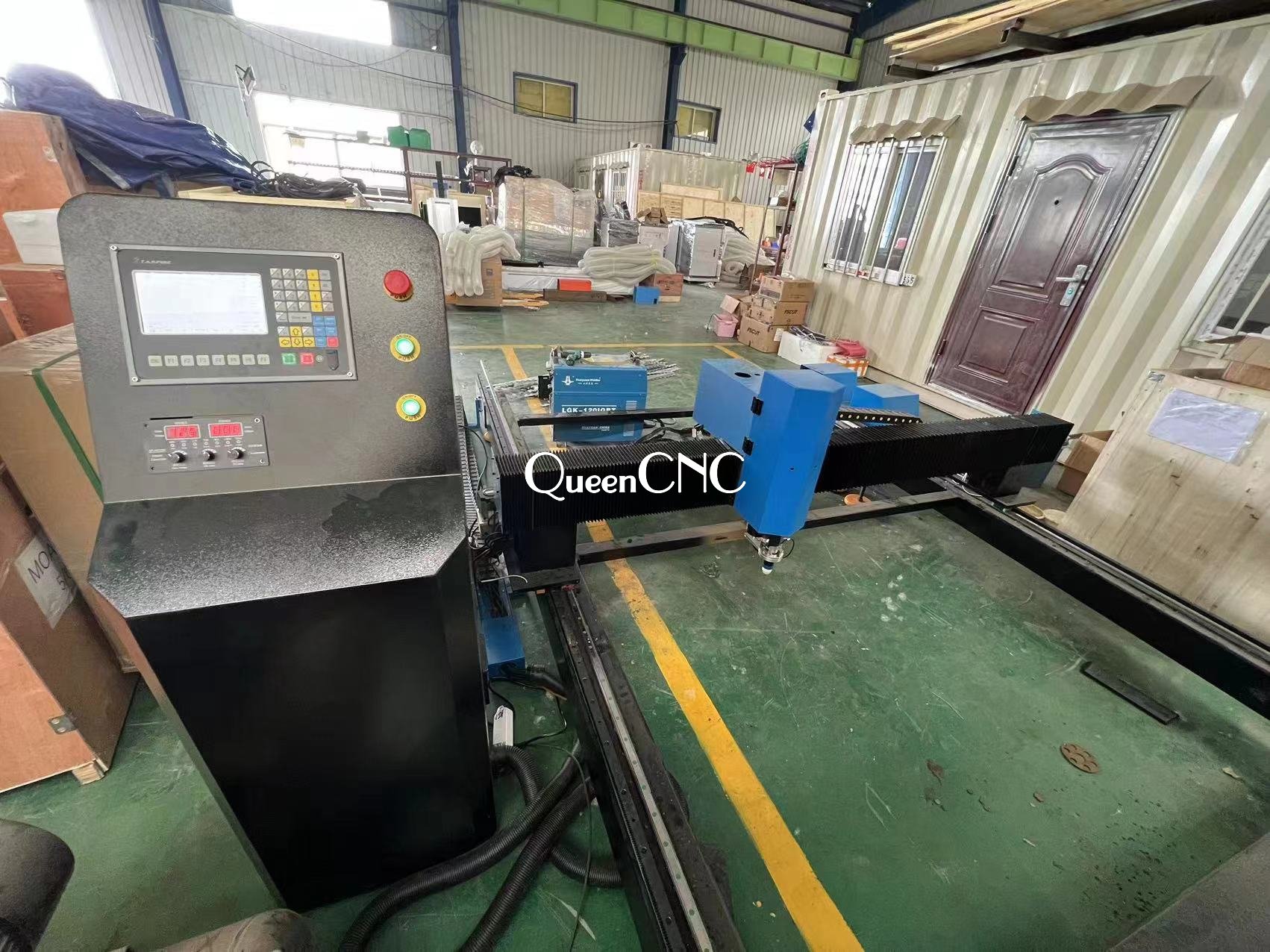

2x6m Gantry type plasma cutting machine for aluminum
Model QN2060 gantry plasma cutting machine
Machine structure Laser cutting, steel plate welding structure
with heat treatment
Effective cutting range（X/Y) 2000mm x 6000mm
Water cooling system Yes
Lateral rail spacing 3200mm
Longitudinal guide length 16000mm
The number of lifts Standard for the double moving lift device
Input voltage AV-220V Single phase AV-220V
input power About 2500W
Running speed 0-10000mm/min
Cutting type plasma cutting,without plasma power source
Torch lift ≤160mm
Operating accuracy 0.2mm/m
Driver motor Panasonic servo motor and driver
Reucer Yes
Control system Starfire/Start
Plasma cutting thickness According to the size of the plasma power supply
Package size 7000*500*300mm
3000*1000*700
Weight 1000kg
