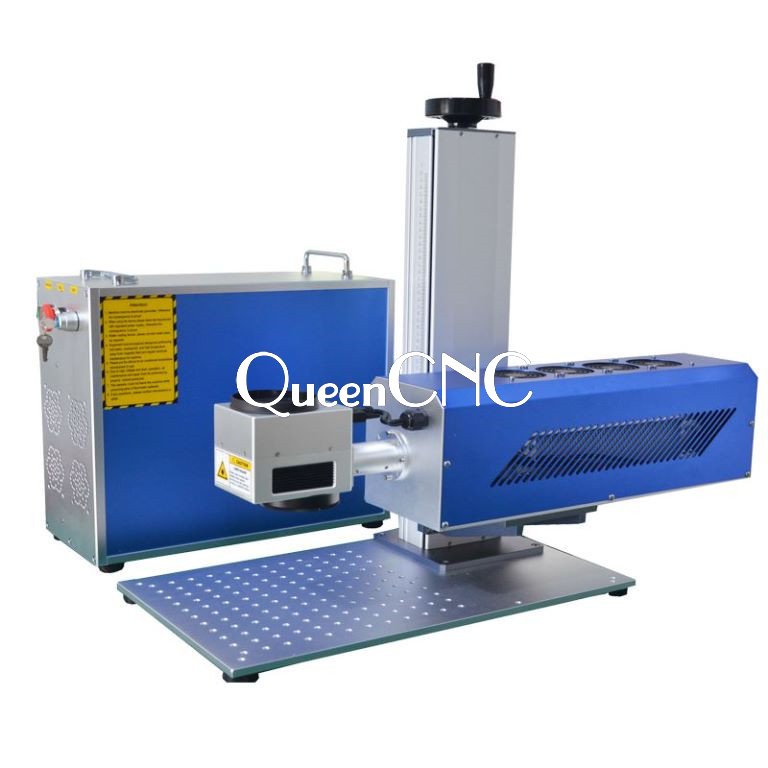

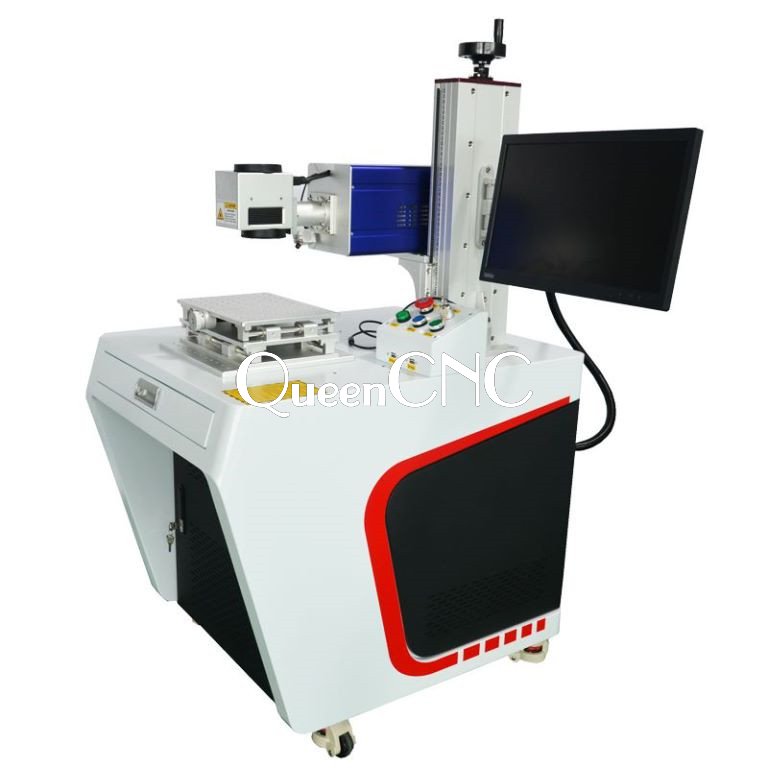

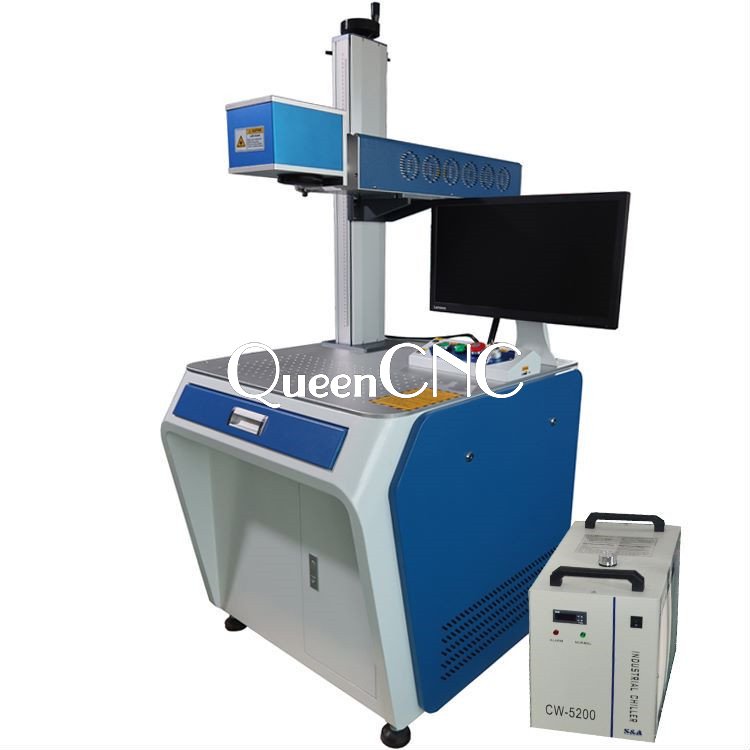

Fiber laser marking machine
| Model | NAJING CRD METAL TUBE 40w/60W |
| Marking Range | NANJING CRD marking lens 110x110mm,and 210x210mm,300x300mm |
| Marking head | Sino-Galvo marking head |
| Control card | Bejing JCZ original Ez cad control card with USB |
| marking speed | ≤8000mm/s |
| Minimum Character | 1.2 mm |
| Repeat Accuracy | ±0.001mm |
| Power Stability | <5%rms |
| focus spot diameter | <0.001mm |
| output power of laser | 10%-100%continuously to be adjusted |
| Repeat Frequency | 20KHz-80KHz |
| Cooling System | Water cooling |
| Operating Temperature | 15-35℃ |
| Power Supply | 220V/50Hz |
| Supporting format | BMP, GIF, JPG, PCX, TGA, TIFF, PLT, CDR, DMG, DXF etc. |
| Cw5200 water chiller | Yes |
| Computer | Yes,Lenovo computer with software installed |
| system operation environment | windows xp/wind7/wind8/win10 |
| General Power | 0.5KW |
| Machine dimension | 137×77×160cm |
| Gorss weight | 235kg |
