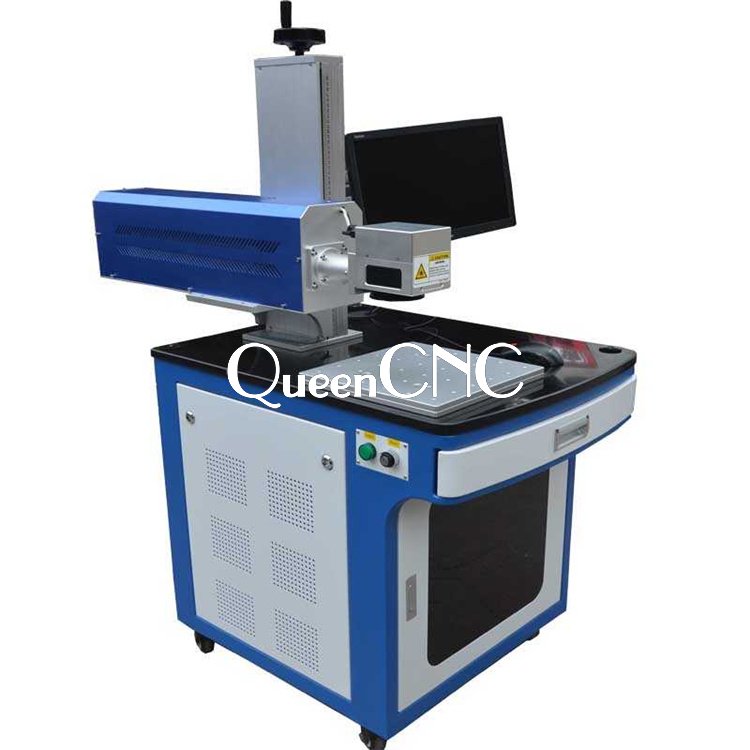

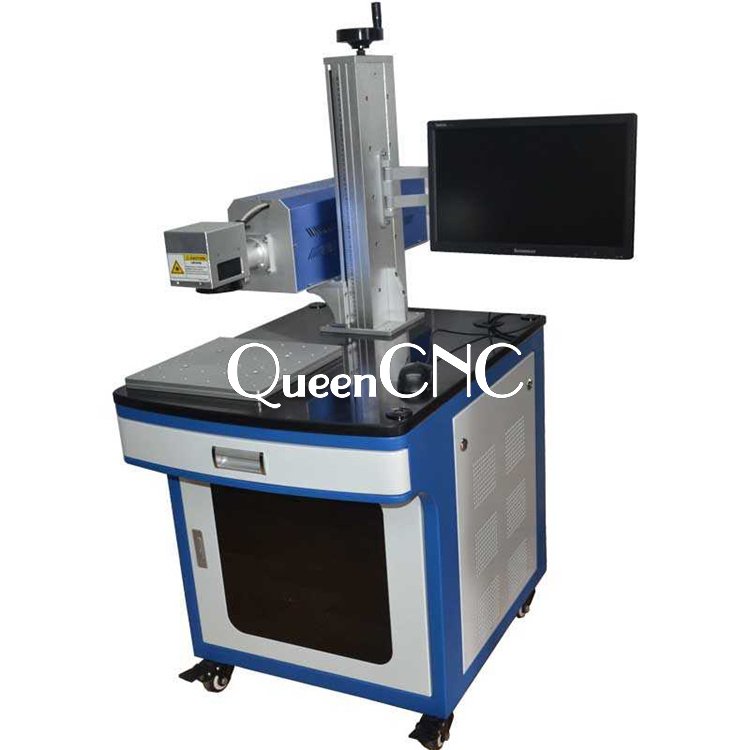

UV3w 5w 10w fiber laser marking machine Features
High precision UV laser marking machine adopts Ultraviolet laser which is mainly used in ultra-fine marking for plastics, including PC (polycarbonate), PP (polypropylene), PE (polyethylene), PA, ABS, PMMA, silicon, ceramics and crystal glass, now the UV laser engraving machine for sale at affordable price.
1. Perfect marking quality: 355nm output wavelength to reduce the thermal impact on the workpiece, high-precision galvanometer marking head can ensure fine and repeatable marking, high-precision fine spot to ensure the perfect marking results, The marking process is non-contact, the marking effect is permanent.
2. UV laser engraver machine has a large marking range.
3. Heat affected area is very small, there will be no thermal effect, the material is not deformed and charred.
4. High speed and high efficiency.
5. Machine performance is stable, small size, low power consumption.
6. The UV laser engraving machine is suitable for heat radiation reaction of large materials processing, if it's used for the production line with the automatic loading and unloading, it can realize automatic access to materials. It's suitable for the vast majority of metal and non-metallic materials on the marking industry.
SPECIFICATIONS FOR UV LASER MARKING MACHINE
Model
QN-UV-3W/5W
QN-UV-7W/8W/10W
Laser type/wave length
355nm
Laser output power
1W//3W/5W
7W/8W/10W
Beam quality
<1.1
<1.3
Marking speed
400 characters per second
500 characters per second
Repeated accuracy
±0.001mm
Working area
110×110mm or 180×180mm ( adjustable )
Machine power
800W
1200W
Power supply
220V/50-60Hz
Minimum character
0.1mm
Minimum line width
0.015mm
Life of the laser machine
100,000 hours~150000 hours
Cooling system
Diode Cooling / Air Cooling
Control interface
Standard USB
Overall dimensions
900mm×680mm×1200mm
Main Application:
(1) It is widely used in electronic components, battery chargers, electric wire, computer accessories, mobile phone accessories (mobile phone screen, LCD screen) and communication products.
(2) Automobile and motorcycle spare parts, auto glass, instrument appliance, optical device, aerospace, military industry products, hardware machinery, tools, measuring tools, cutting tools, sanitary ware.
(3) Pharmaceutical, food, beverage and cosmetics industry.
(4) Glass, crystal products, arts and crafts of surface and internal thin film etching, ceramic cutting or engraving, clocks and watches and glasses.
(5) It can be marked on polymer material, majority of the metal and non-metallic materials for surface processing and coating film processing, pervious to light polymer materials, plastic, fire prevention materials etc..
