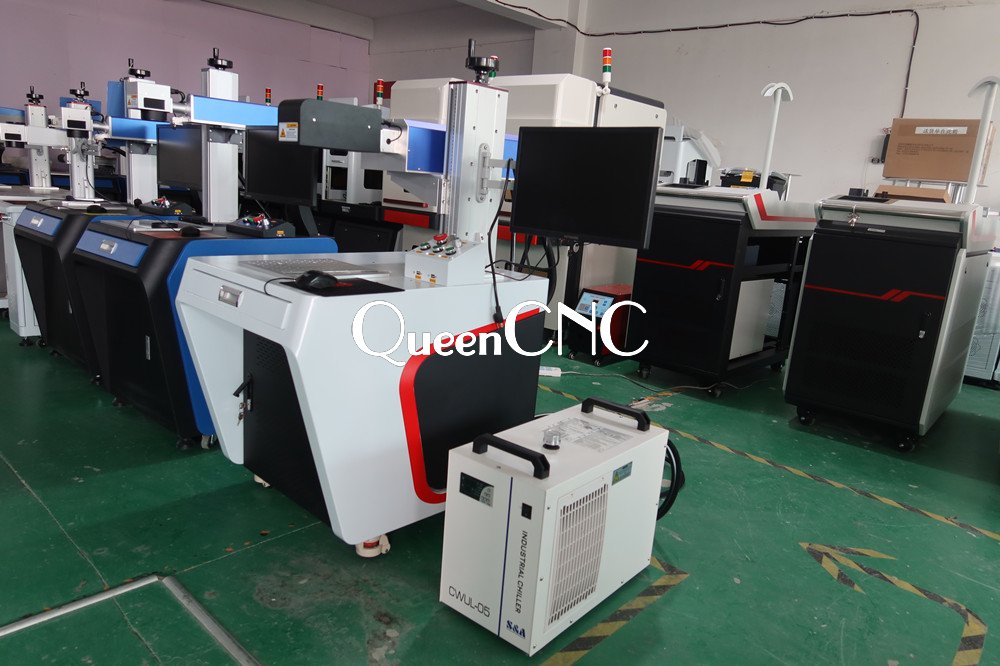

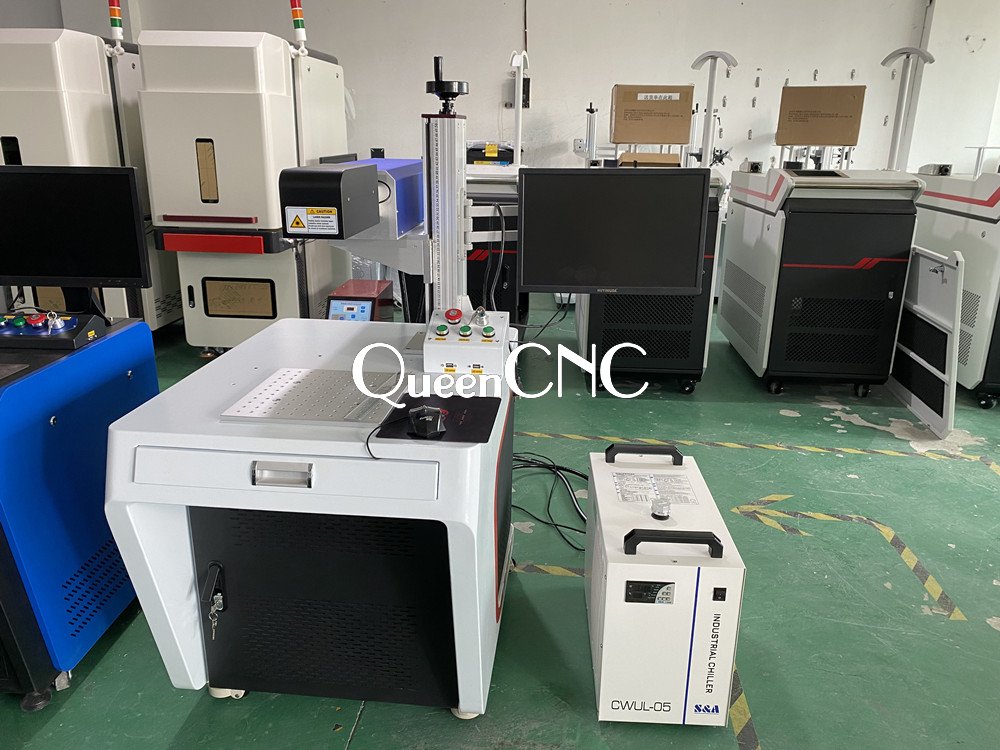

UV 3d dynamic focusing fiber laser marking machine for glass
Release Time:2023-02-02 15:04 Reading Times:

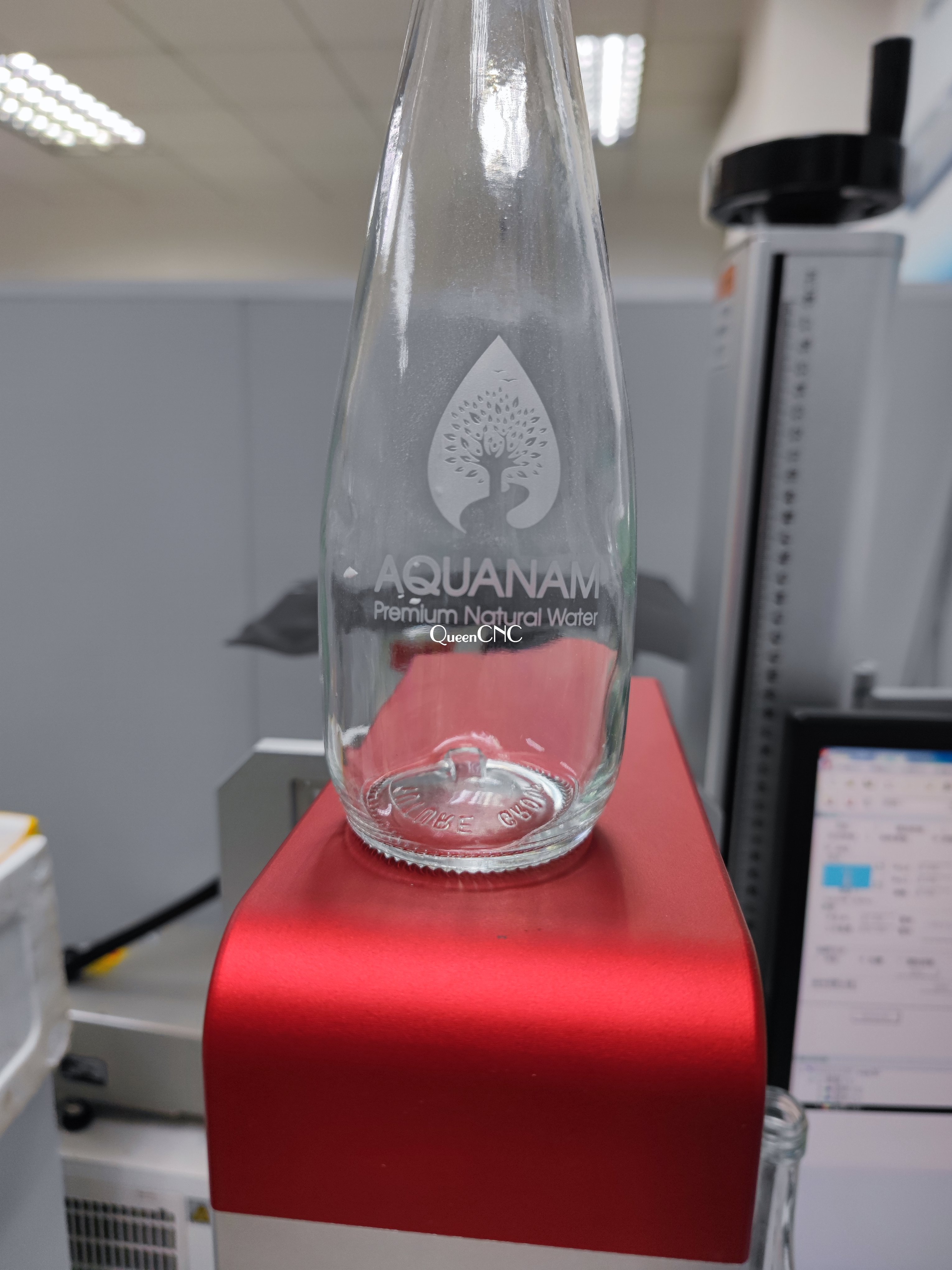

UV 3d dynamic focusing fiber laser marking machine for glassbottle
|
SPECIFICATIONS FOR UV LASER MARKING MACHINE |
|
|
|
Model |
QN-UV-3W/5W |
QN-UV-7W/8W/10W |
|
Laser type/wave length |
355nm |
|
|
Laser output power |
1W//3W/5W |
7W/8W/10W |
|
Beam quality |
<1.1 |
<1.3 |
|
Marking speed |
400 characters per second |
500 characters per second |
|
Repeated accuracy |
±0.001mm |
|
|
Working area |
110×110mm or 180×180mm ( adjustable ) |
|
|
Machine power |
800W |
1200W |
|
Power supply |
220V/50-60Hz |
|
|
Minimum character |
0.1mm |
|
|
Minimum line width |
0.015mm |
|
|
Life of the laser machine |
100,000 hours~150000 hours |
|
|
Cooling system |
Diode Cooling / Air Cooling |
|
|
Control interface |
Standard USB |
|
|
Overall dimensions |
900mm×680mm×1200mm |
|
Main Application:
(1) It is widely used in electronic components, battery chargers, electric wire, computer accessories, mobile phone accessories (mobile phone screen, LCD screen) and communication products.
(2) Automobile and motorcycle spare parts, auto glass, instrument appliance, optical device, aerospace, military industry products, hardware machinery, tools, measuring tools, cutting tools, sanitary ware.
(3) Pharmaceutical, food, beverage and cosmetics industry.
(4) Glass, crystal products, arts and crafts of surface and internal thin film etching, ceramic cutting or engraving, clocks and watches and glasses.
(5) It can be marked on polymer material, majority of the metal and non-metallic materials for surface processing and coating film processing, pervious to light polymer materials, plastic, fire prevention materials etc..
