3015 rotary axis fiber laser cutting machine with affordable

Release Time:2025-07-24 16:30 Reading Times:

3015 rotary axis fiber laser cutting machine with affordable price

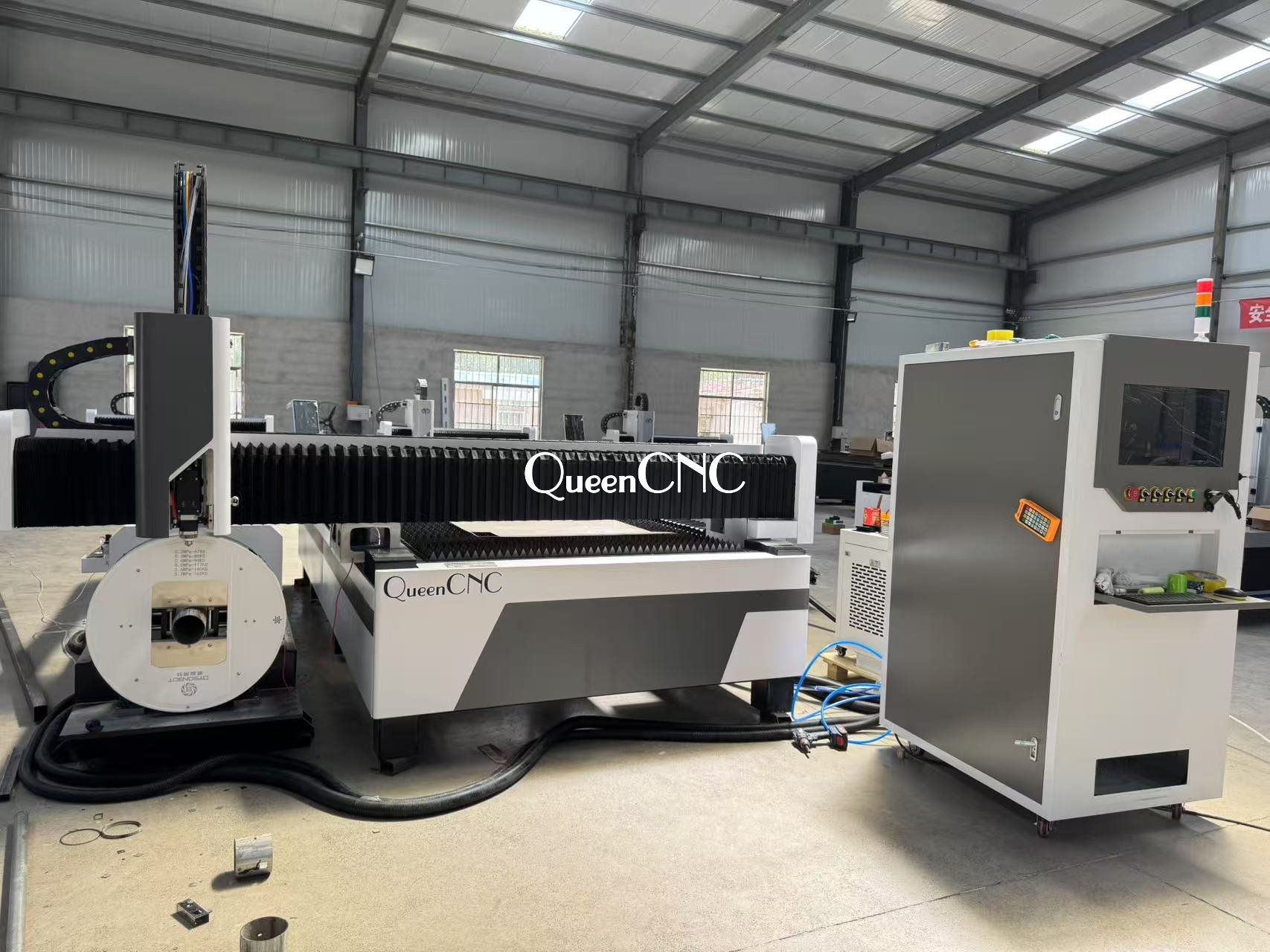

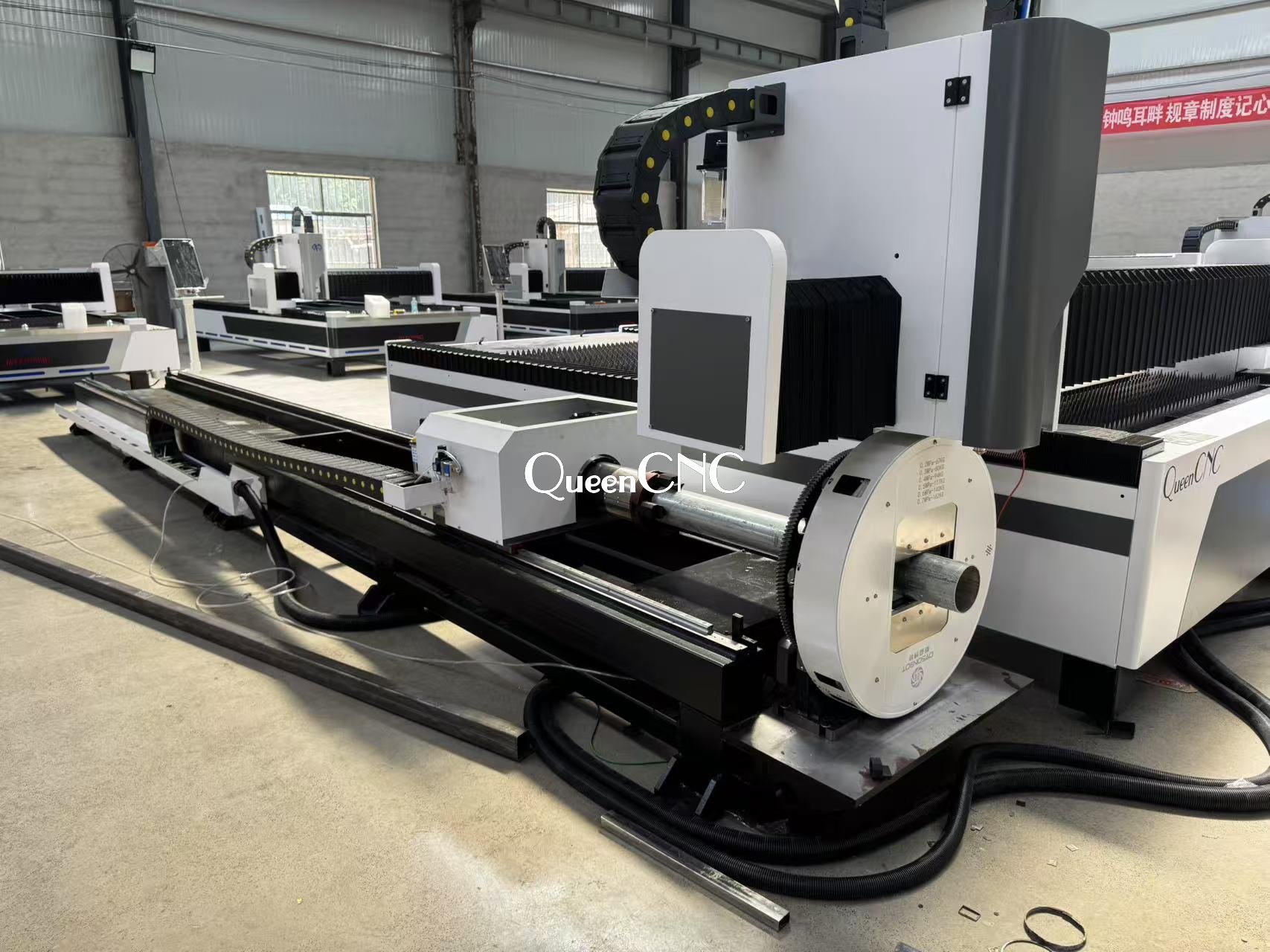

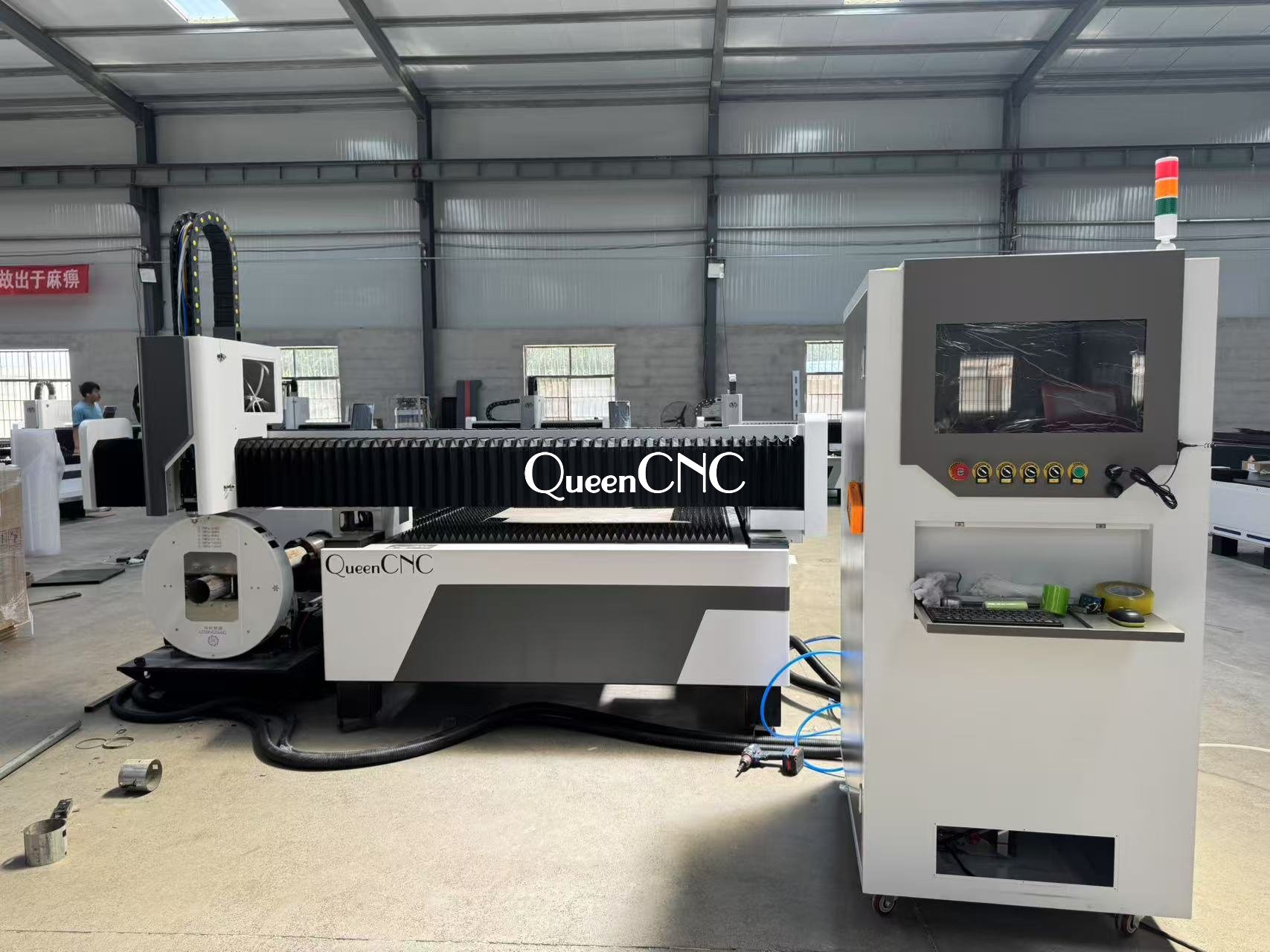

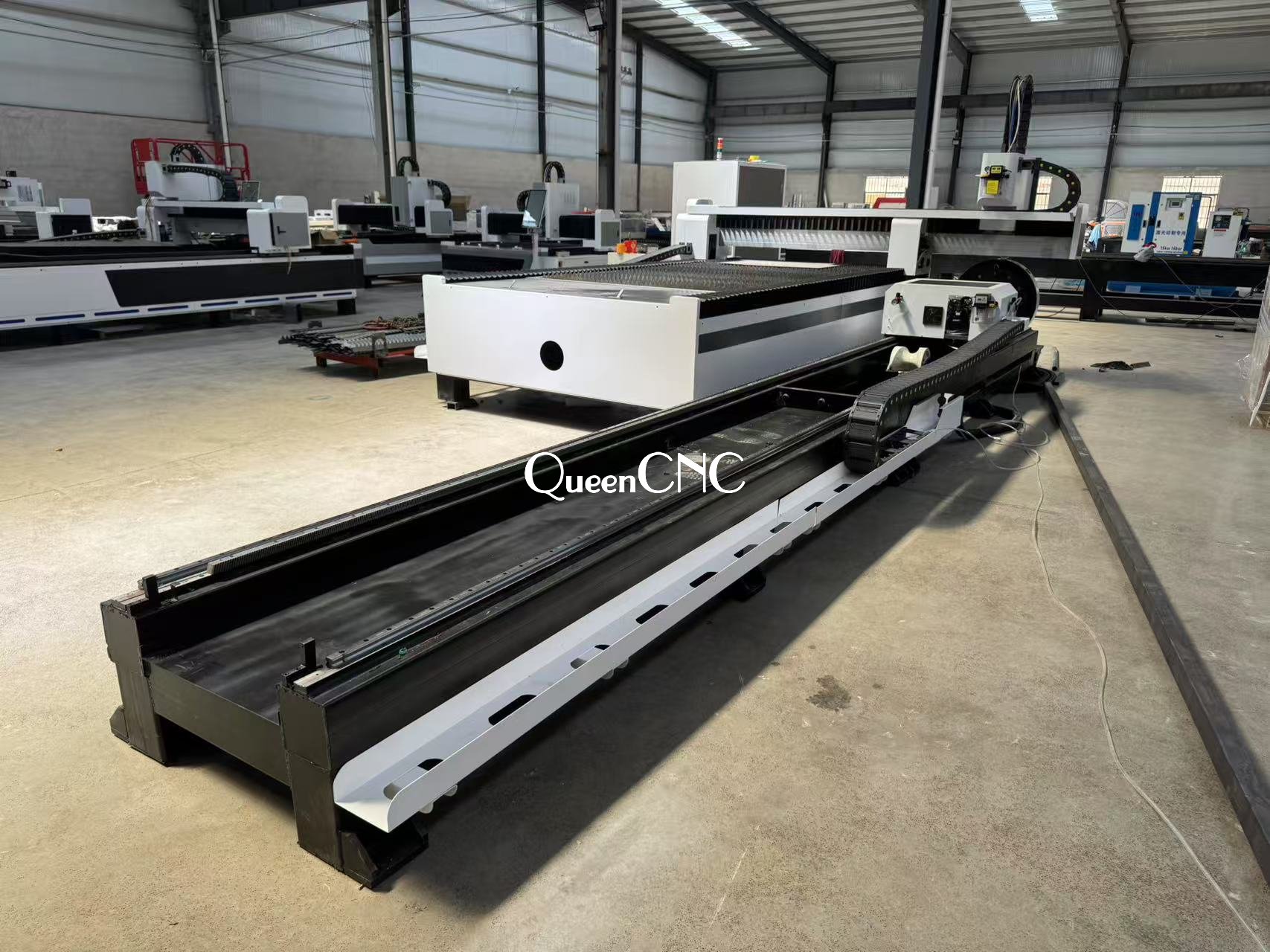

Recently new finished 3015 fiber laser cutting machine with 6000mm rotary axis for pipe cutting.This metal cutting machine built with Max 2kw fiber laser source with 220v single phase power to meet customer's volatge requirements.The 6000mm rotray axis be made two parts so that machine can be put into 20' container.Customzied 220v single phase air compressor to achieve better cutting performance.

if you have any metal cutting requirements,welcome to contact with me freely for more info.

machine technical specs:

Model	QN-3015LR
Working Area	3000mm*1500mm
Laser Type	Fiber laser generator
Laser Power	2000W/3000w/6000w
Transmission System	Gantry double-drive structure
Lubrication System	Fully automatic
Maximum Linkage Speed	80m/min
Maximum Acceleration	0.8G
Machine Body	Tube welded
Cutting Length for Tube	6000mm
Cutting Diameter for Tube	15~220mm
Positioning Accuracy	±0.02mm/1000mm
Repositioning Accuracy	±0.03mm/1000mm
Graphic Format Supported	CAD, DXF, etc
Working Environment	Temp:0-40℃,humidity:≤80%, no condensation
Total Power	28.3KW
Machine Size	781023772000mm
Gross Weight	3500kg

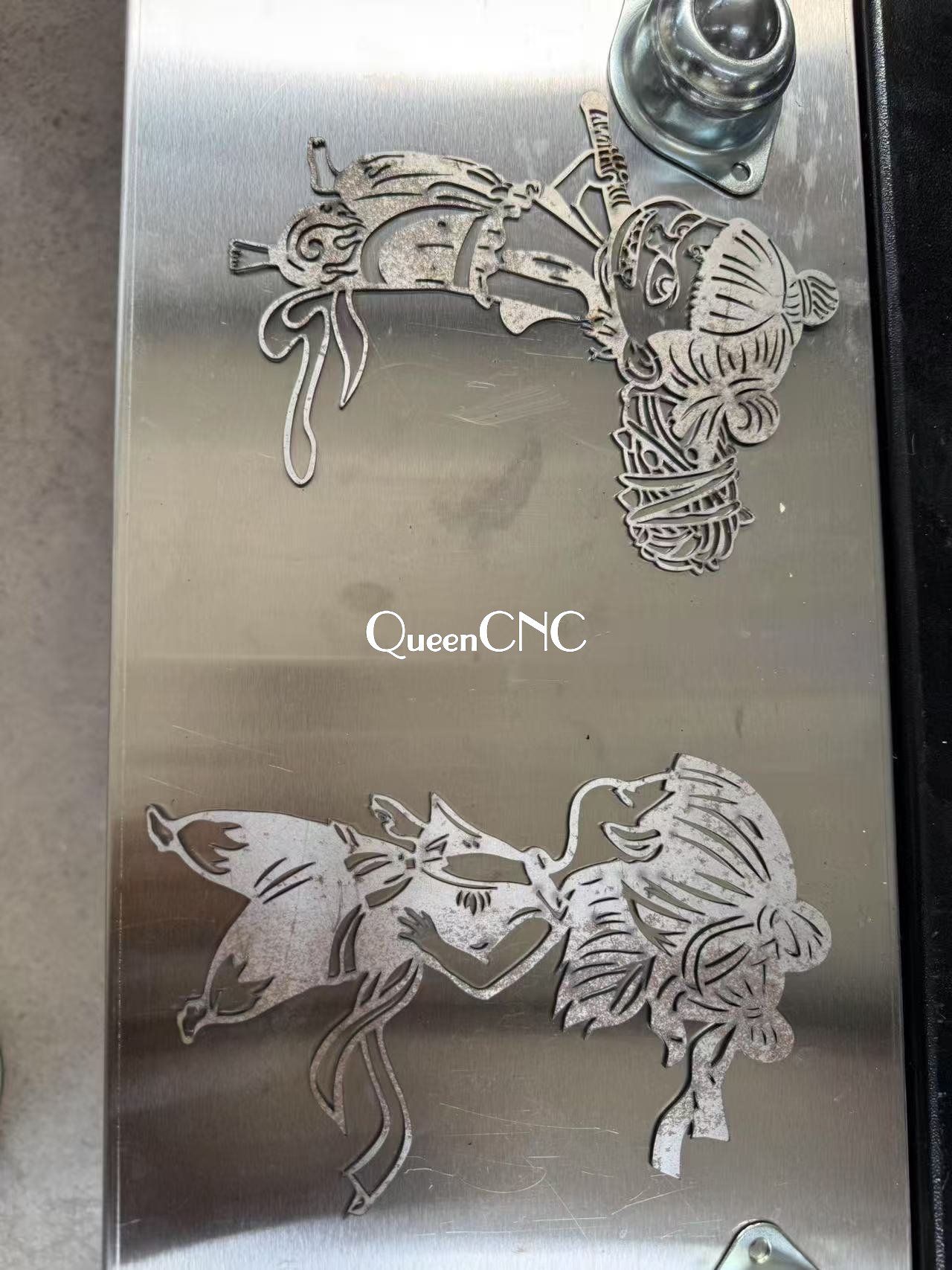

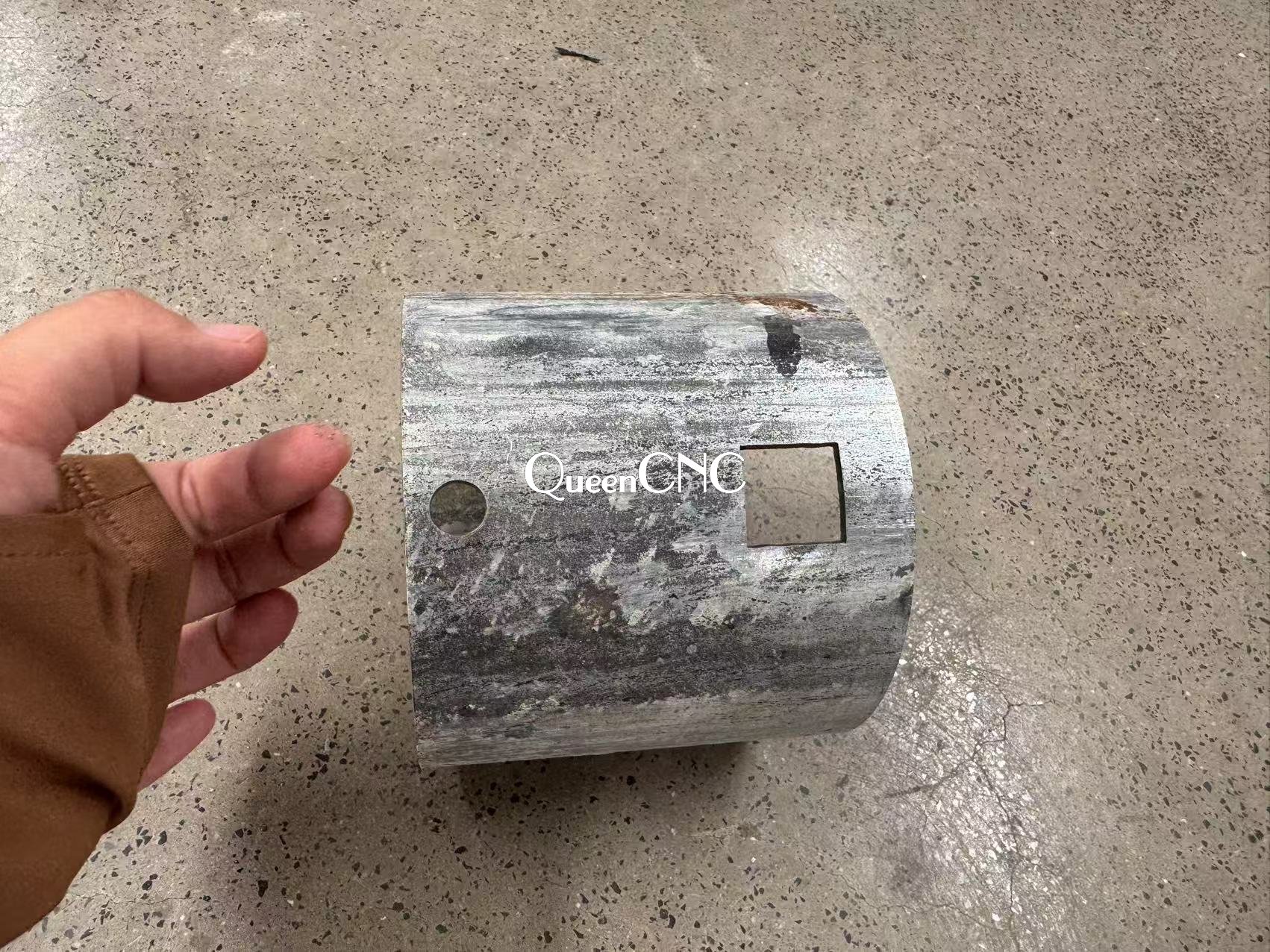

Machine cutting samples:

Any questions,welcome to contact with me foe more communication.
