Fiber laser cutting machine
QN3015 3000w fiber laser cutting machine
Release Time:2023-02-02 14:09 Reading Times:

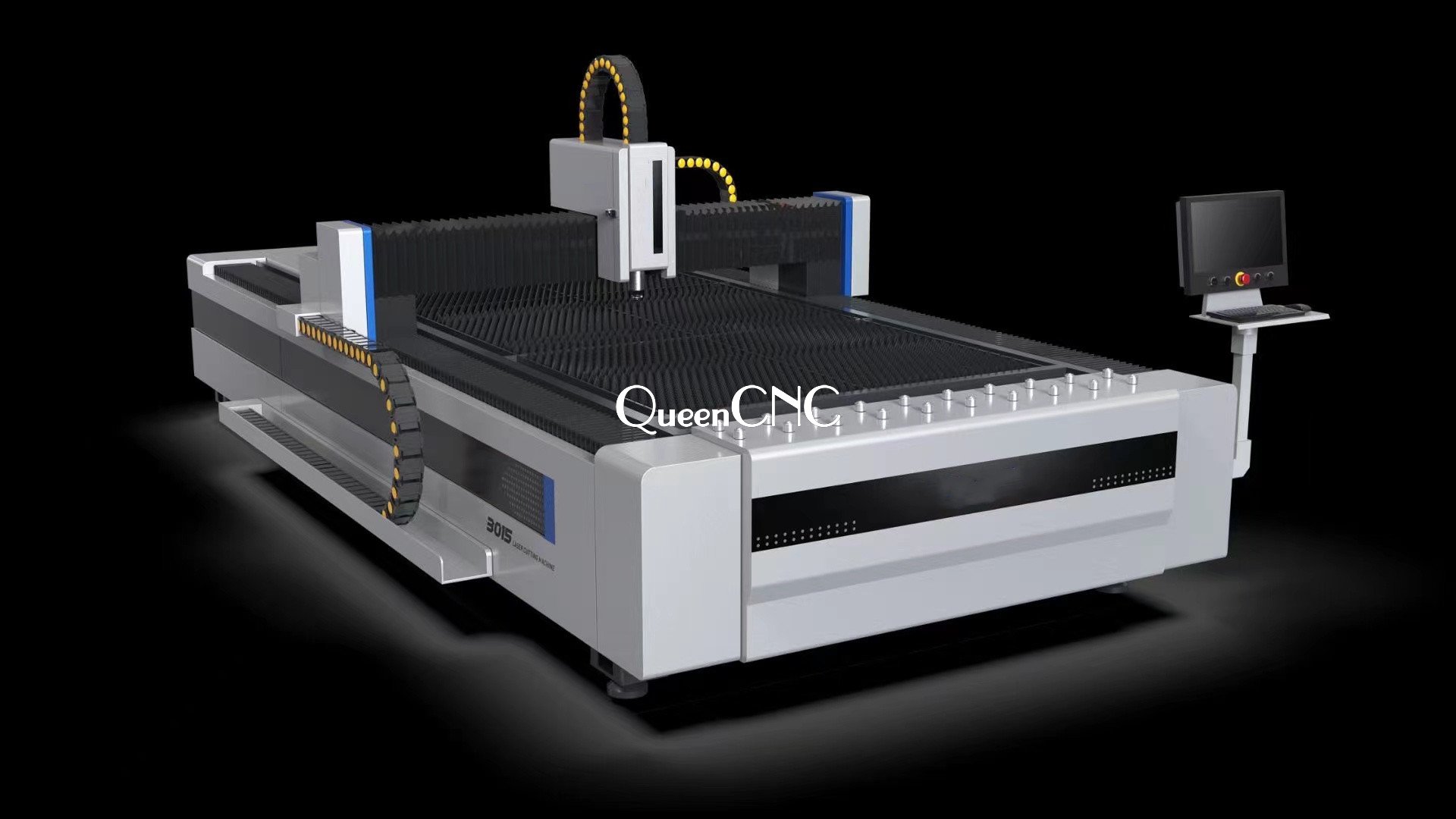

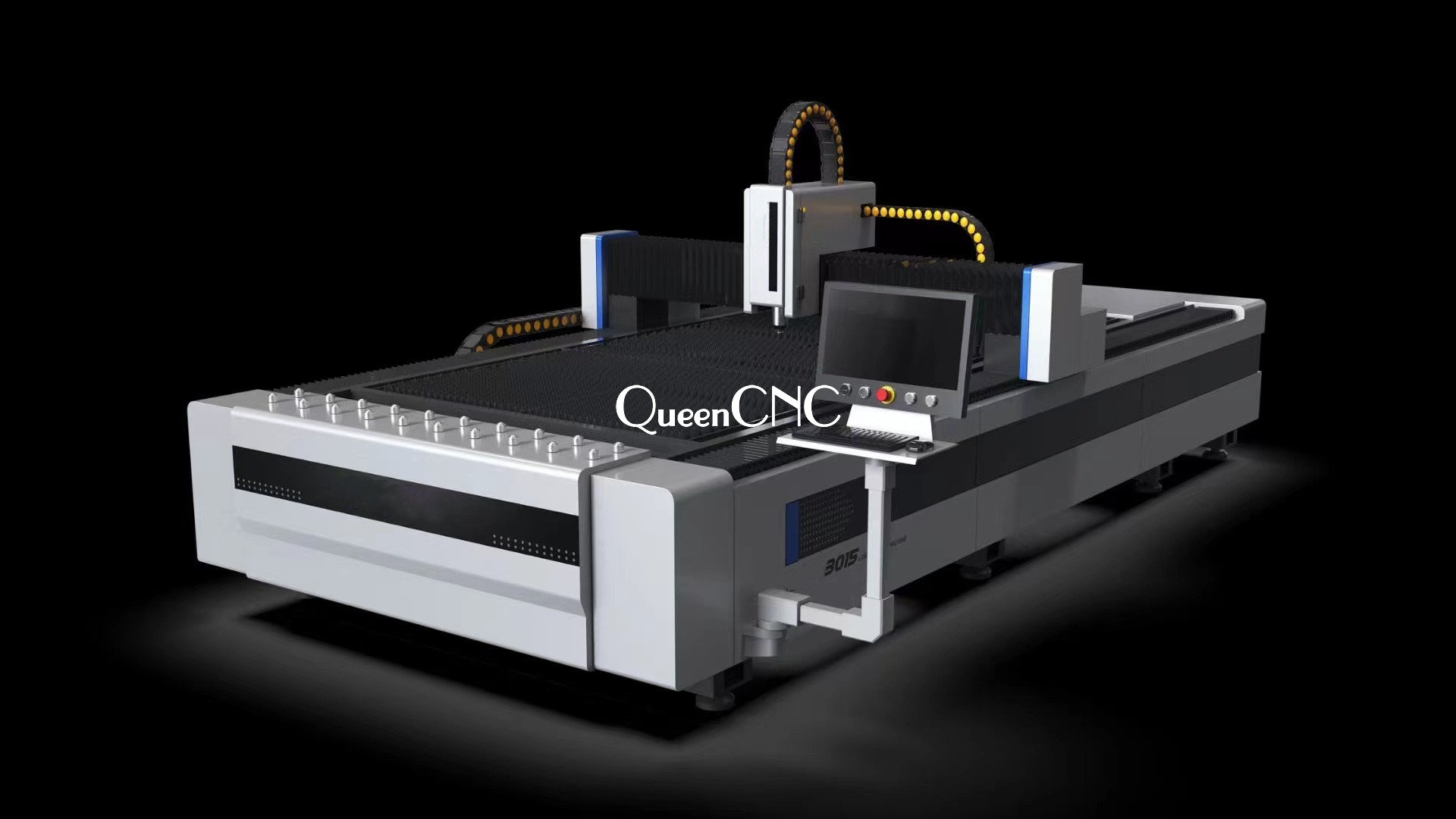

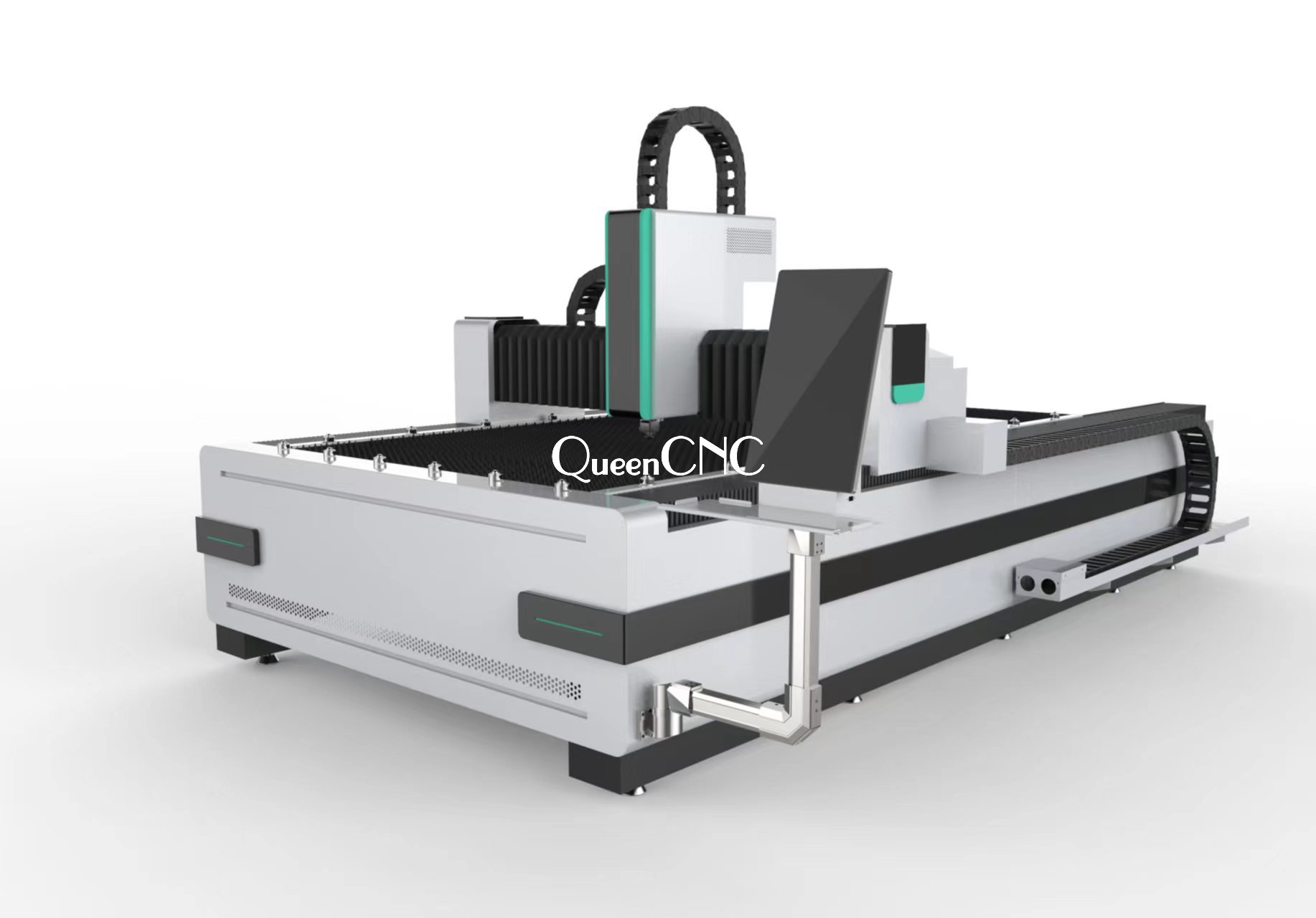

QN3015 3000w fiber laser cutting machine
QN3015 Metal Fiber Laser Cutting Machine Advantage
1.Low cost and the power consumption is 0.5-1.5kw/h; Customer can cut all kinds of metal sheets by blowing air;
2.Cypcut software enables graphic or text to be instantly designed or processed. Flexible and easy operation. 3. High-performance. Imported the original packaged fiber laser, with stable performance and the lifespan is over 100,000 hours; 4. High speed and efficiency, the speed of cutting metal sheets close to tens of meters; 5. The laser maintenance free; 6. The cutting edge looks perfect and the appearance is smooth and beautiful; 7. Imported the transmission mechanism and servo motor, and high cutting accuracy;
|
Model |
QN-3015S |
|
Fiber Laser source |
IPG/RAYCUS/Maxphotonics Laser Source |
|
Transmission system |
Taiwan brand YYC rack and pinion |
|
Speed Reducer |
France Motovario |
|
Servo Motor |
FUJI from Japan |
|
Guiderail |
Taiwan brand HIWIN |
|
Cutting Head |
Switzerland Raytools |
|
Valve |
Japan SMC |
|
Electric parts |
France Schneider |
|
Cooling system |
Hanli brand (Dual comperature, dual control) |
|
System |
FSCUT (Cypcut 2000C ) |
|
Spare parts |
Nozzle, Protective lens, Focus lens, Collimation lens, ceramic ring |
|
Blower (Exhaust fan) |
YES |
|
Compressed Air Cutting |
YES |
|
Wireless remote controller |
YES |
|
Automatic lubrication system |
YES |
|
Dust cover protector |
YES |
|
Low pressure alarm function |
YES |
|
Automatic dust removal device |
YES |
|
Laser abnormal alarm |
YES |
|
Cutting abnormal alarm |
YES |
|
Waste collection box |
YES |
|
Gas low pressure alarm |
YES |
|
WATER COOLER ABNORMAL ALARM |
YES |
|
Model |
Name |
Quantity |
|
Standard |
fiber laser cutting laser bed |
1 set |
|
Standard |
Fiber laser head |
1 set |
|
Standard |
Water chiller |
1 set |
|
Standard |
Industrial computer |
1 set |
|
Standard |
Nozzles |
10 pcs |
|
Standard |
Protective lens |
2 pcs |
|
Standard |
Blower |
1 set |
|
Working area (L*W) |
3000*1500 mm |
|
X-axis running area |
3000 mm |
|
Y-axis running area |
1500 mm |
|
Z-axis running area |
300 mm |
|
X/Y axis Repeated Position Precision |
±0.03 mm |
|
Max Speed |
120m/min |
|
Max Acceleration |
1.5G |
|
Phase |
3 phase |
|
Voltage |
380V |
|
Frequency |
50HZ |
