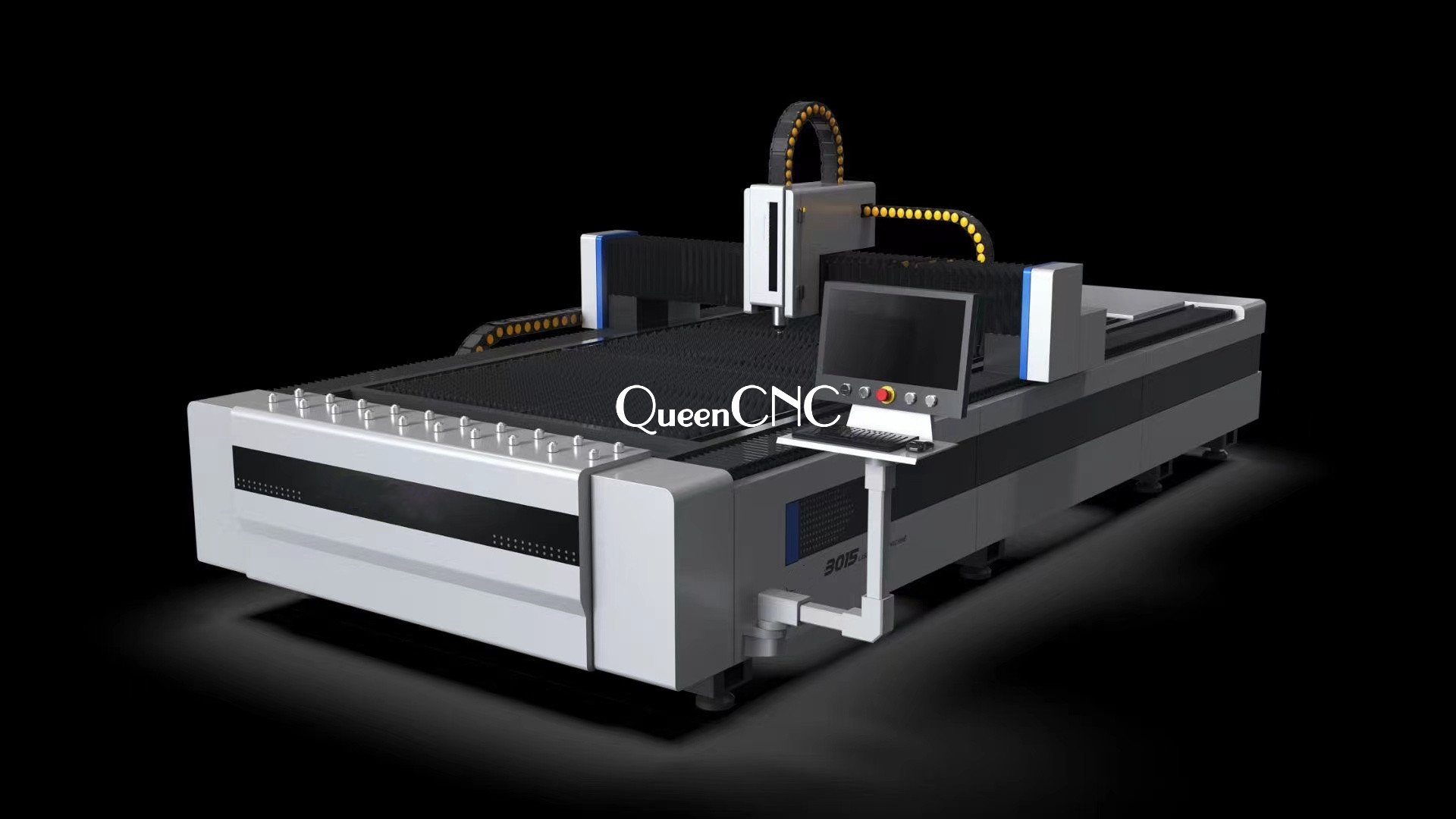

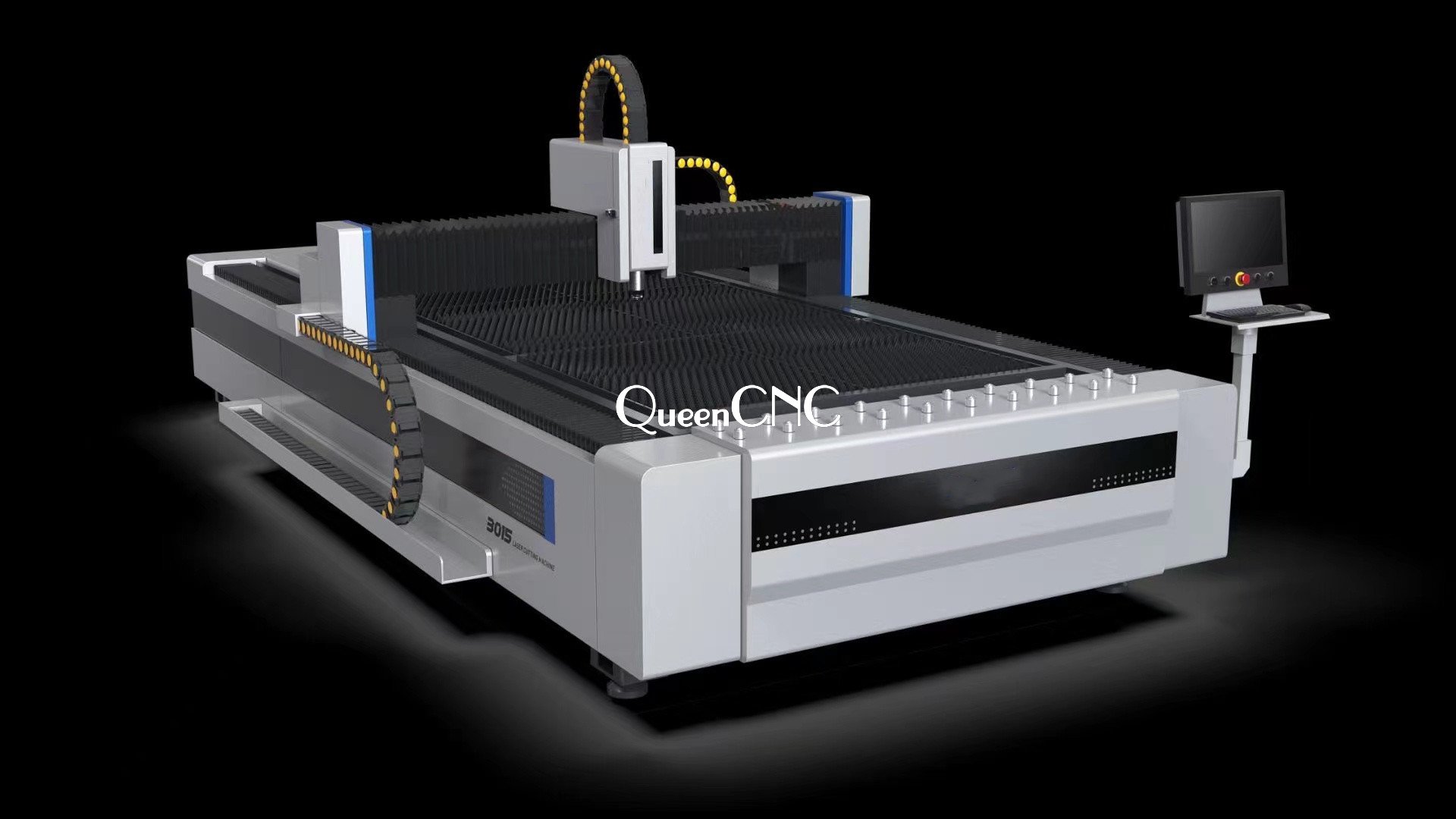

QN3015 2000w fiber lser cutting machine

QN3015 Metal Fiber Laser Cutting Machine Advantage

1.Low cost and the power consumption is 0.5-1.5kw/h; Customer can cut all kinds of metal sheets by blowing air;
2.Cypcut software enables graphic or text to be instantly designed or processed. Flexible and easy operation. 3. High-performance. Imported the original packaged fiber laser, with stable performance and the lifespan is over 100,000 hours; 4. High speed and efficiency, the speed of cutting metal sheets close to tens of meters; 5. The laser maintenance free; 6. The cutting edge looks perfect and the appearance is smooth and beautiful; 7. Imported the transmission mechanism and servo motor, and high cutting accuracy;
Model QN-3015S
Fiber Laser source IPG/RAYCUS/Maxphotonics Laser Source
Transmission system Taiwan brand YYC rack and pinion
Speed Reducer France Motovario
Servo Motor FUJI from Japan
Guiderail Taiwan brand HIWIN
Cutting Head Switzerland Raytools
Valve Japan SMC
Electric parts France Schneider
Cooling system Hanli brand (Dual comperature, dual control)
System FSCUT (Cypcut 2000C )
Spare parts Nozzle, Protective lens, Focus lens, Collimation lens, ceramic ring
Blower (Exhaust fan) YES
Compressed Air Cutting YES
Wireless remote controller YES
Automatic lubrication system YES
Dust cover protector YES
Low pressure alarm function YES
Automatic dust removal device YES
Laser abnormal alarm YES
Cutting abnormal alarm YES
Waste collection box YES
Gas low pressure alarm YES
WATER COOLER ABNORMAL ALARM YES

Model Name Quantity
Standard fiber laser cutting laser bed 1 set
Standard Fiber laser head 1 set
Standard Water chiller 1 set
Standard Industrial computer 1 set
Standard Nozzles 10 pcs
Standard Protective lens 2 pcs
Standard Blower 1 set

Working area (L*W) 3000*1500 mm
X-axis running area 3000 mm
Y-axis running area 1500 mm
Z-axis running area 300 mm
X/Y axis Repeated Position Precision ±0.03 mm
Max Speed 120m/min
Max Acceleration 1.5G
Phase 3 phase
Voltage 380V
Frequency 50HZ

Workig video:
