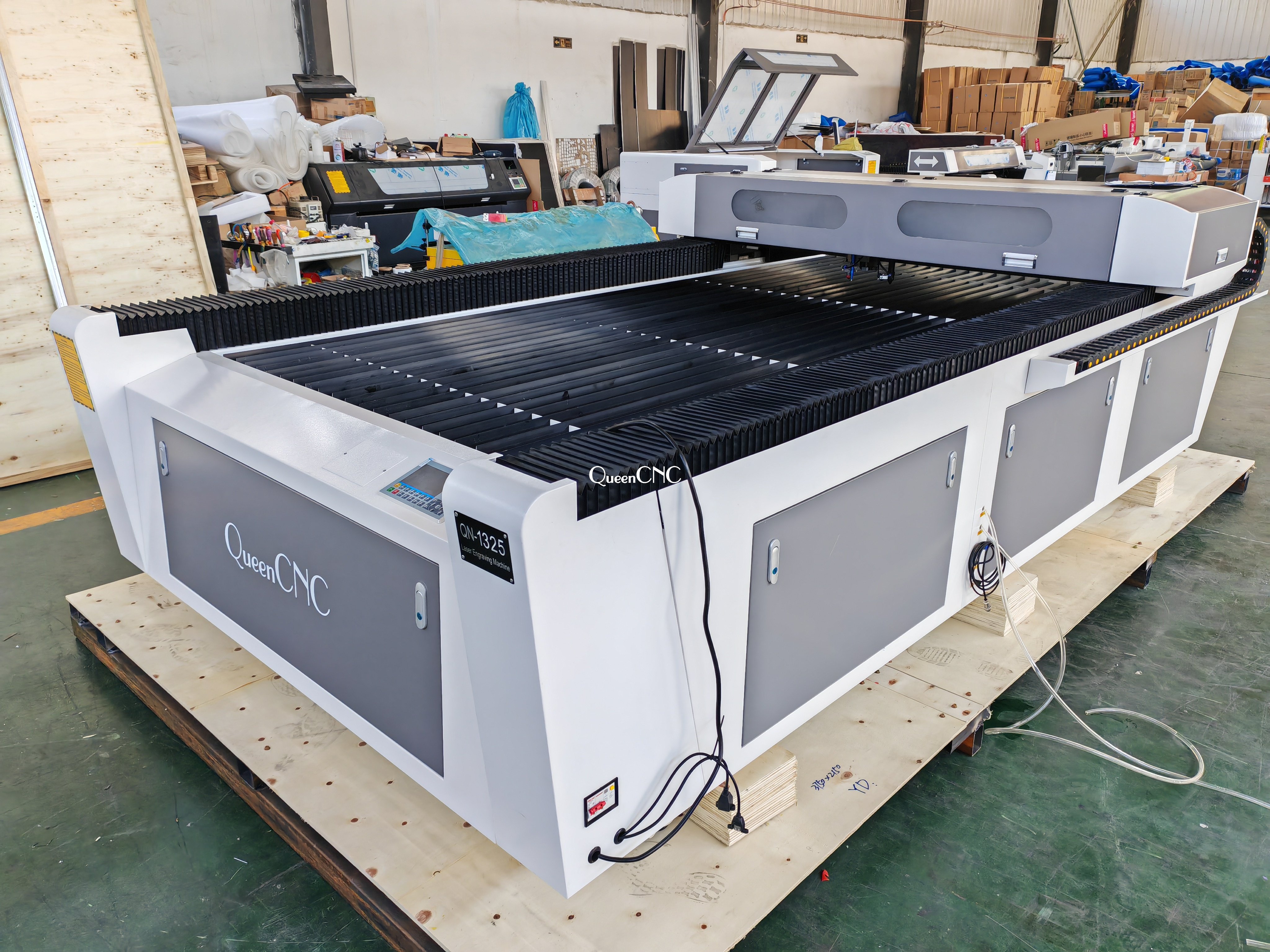

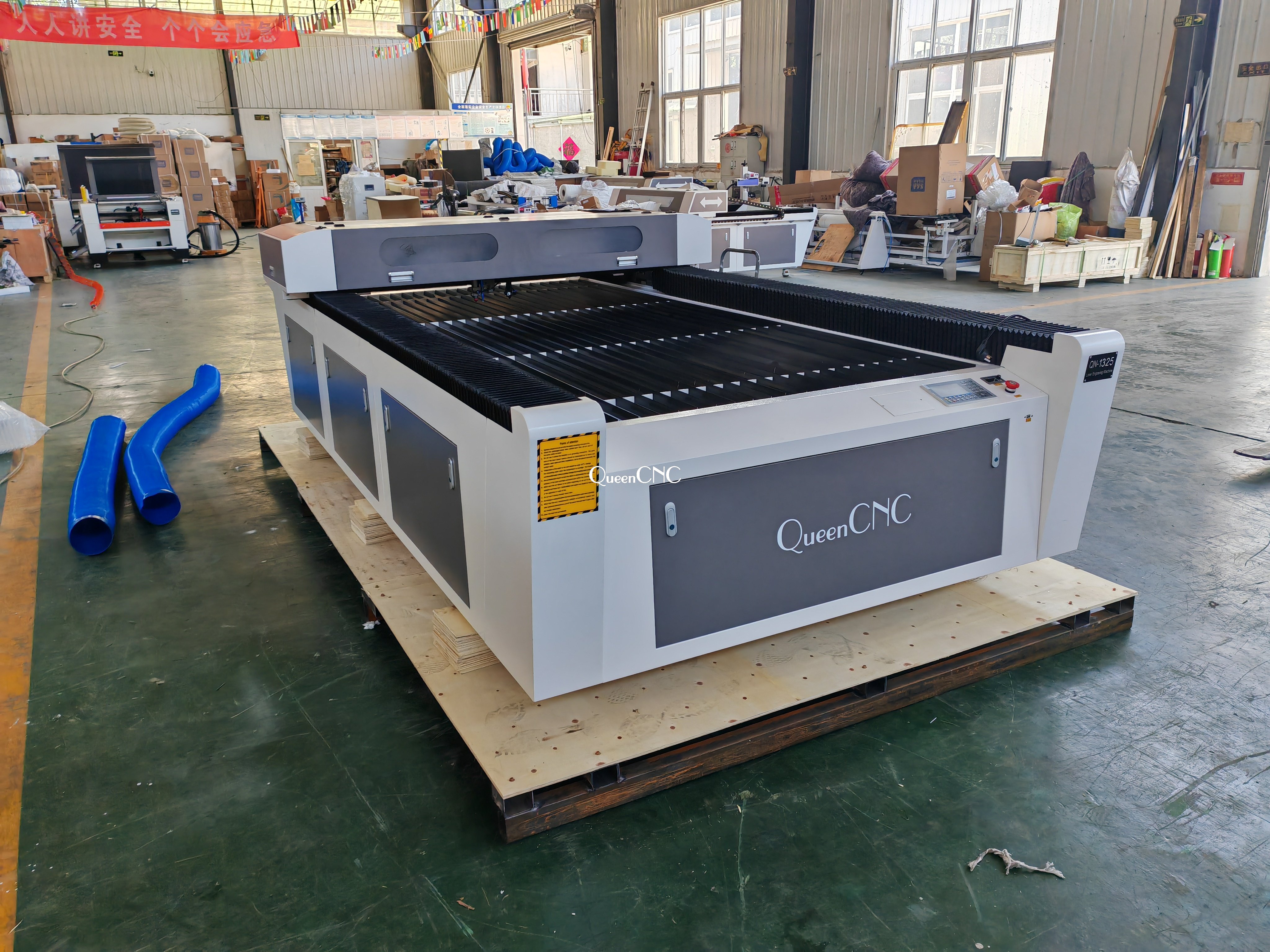

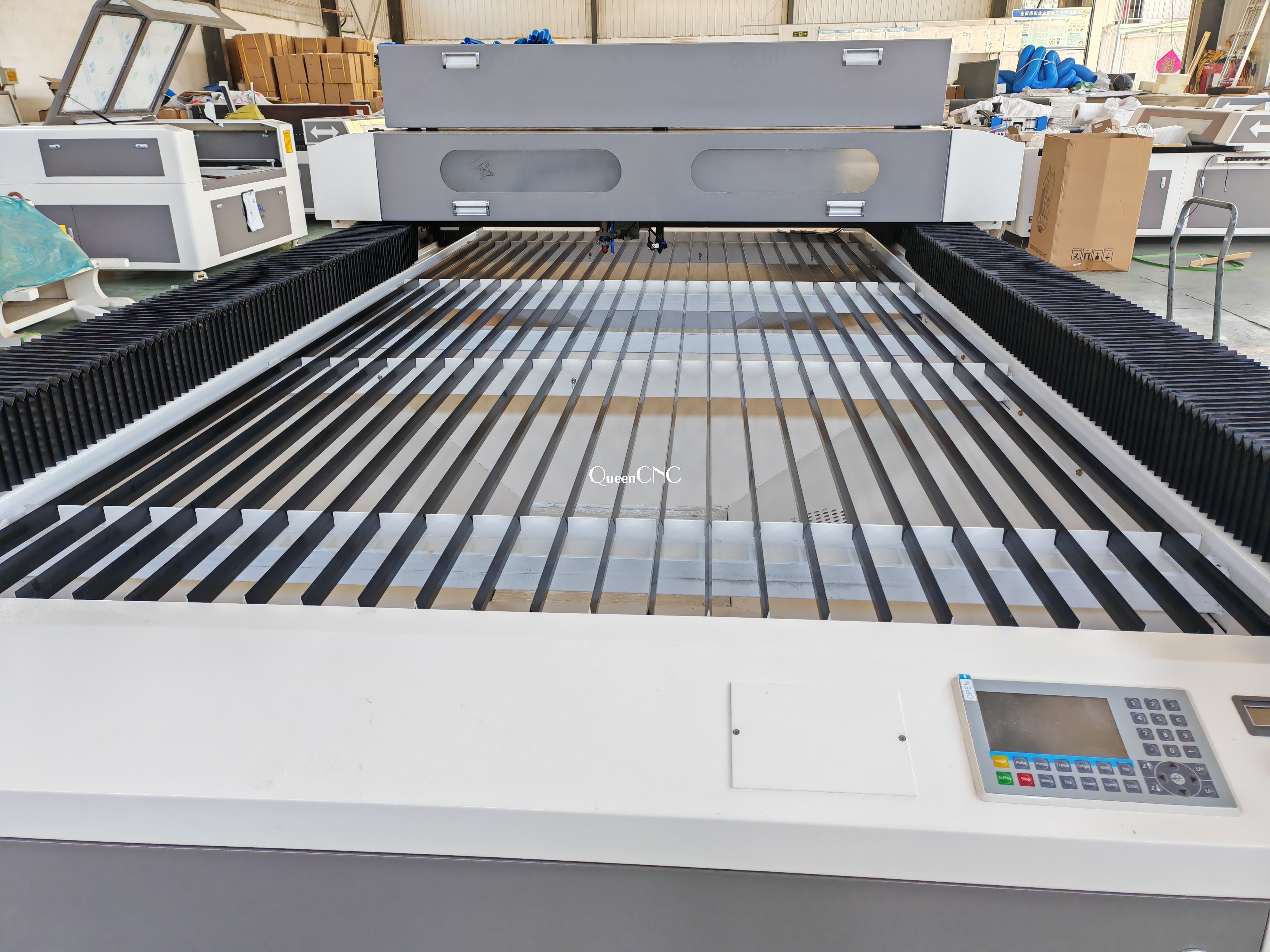

Co2 laser engraving and cuttin
| Working Area | 1300*2500mm |
| Laser power | Dual laser heads,one is with 300w,another is with 80w,Yongli Brand,12 months warranty |
| Working table | Honeycomb table |
| Control card | Ruida card,6445S,support lightburn software |
| Drive and motor | Stepper motor and driver |
| Cooled down method | Water cooling and the protection system |
| Engraving speed | 0-60000mm/min |
| Graphics format supported | BMP/HPGL/PLT/DST/AI |
| Compatible software | CorelDraw/AutoCAD/Photoshop |
| Guid rail | Taiwan HIWIN linear guider |
| Transmission | Belt |
| Interface | USB |
| CW6000 water chiller | Yes ,one set |
| Power source | AC220v，single phase,50HZ |
| Other standard parts with machine | Exhaust fan,Air compressor and other standard parts |
