Co2 laser engraving and cuttin
| Effective working area | 1300*900mm | |
| Driver and motor | Stepper motor and driver | |
| Laser type | Hermetic and detached co2 laser tube | |

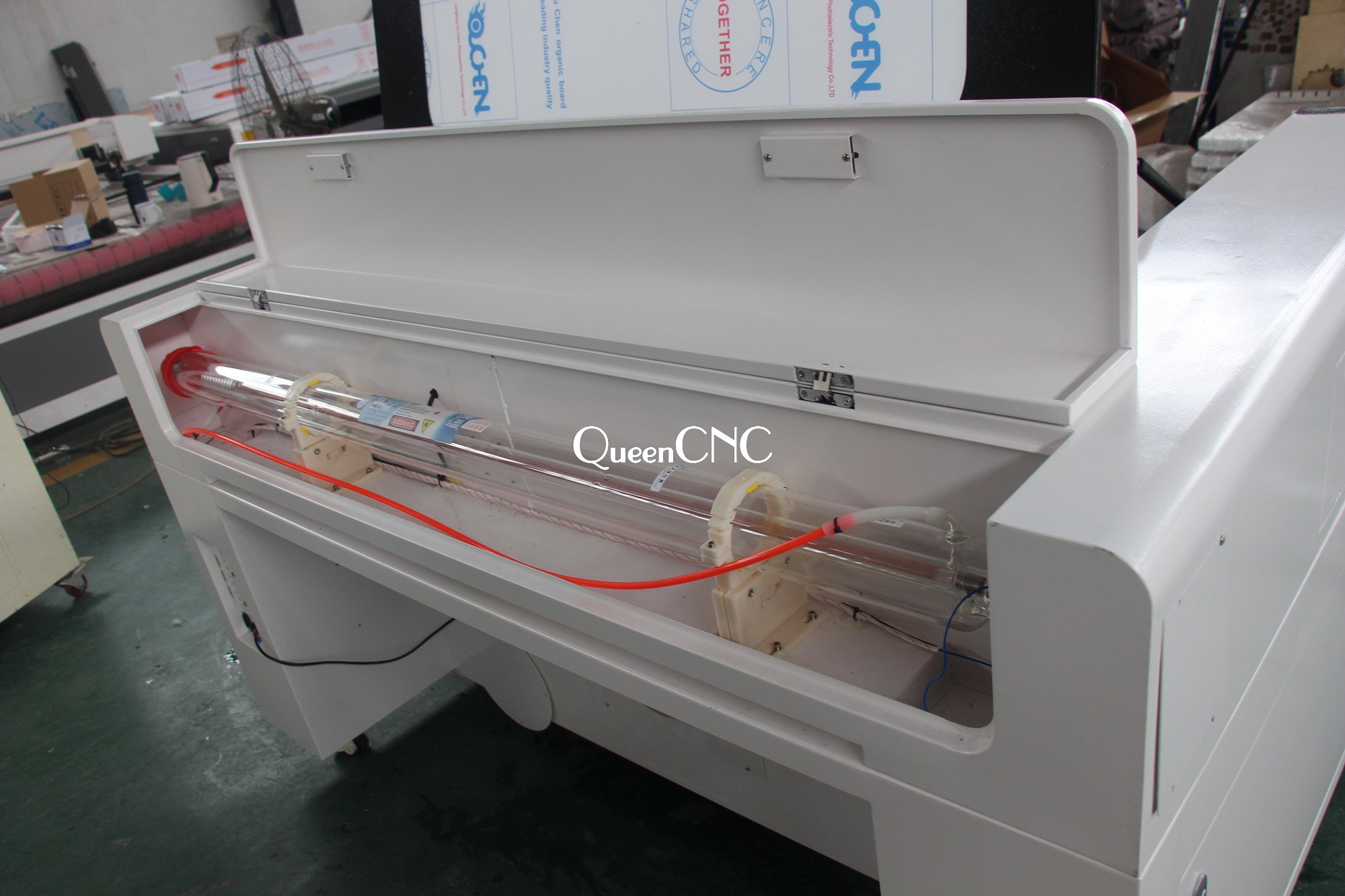

| Laser power | Yongli 100w laser tube and power supply,International warranty service | |

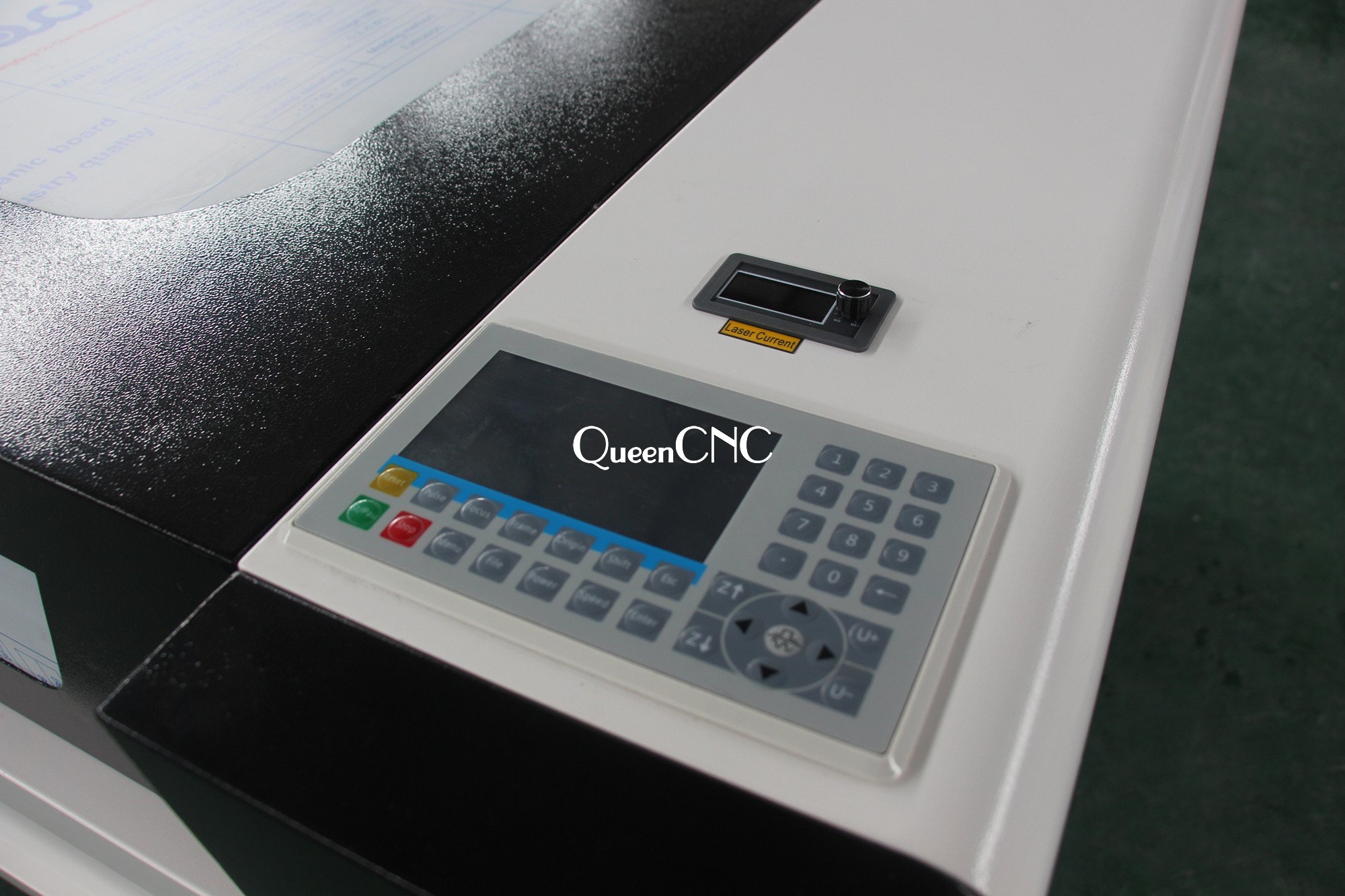

| Control card | RD6445G | |

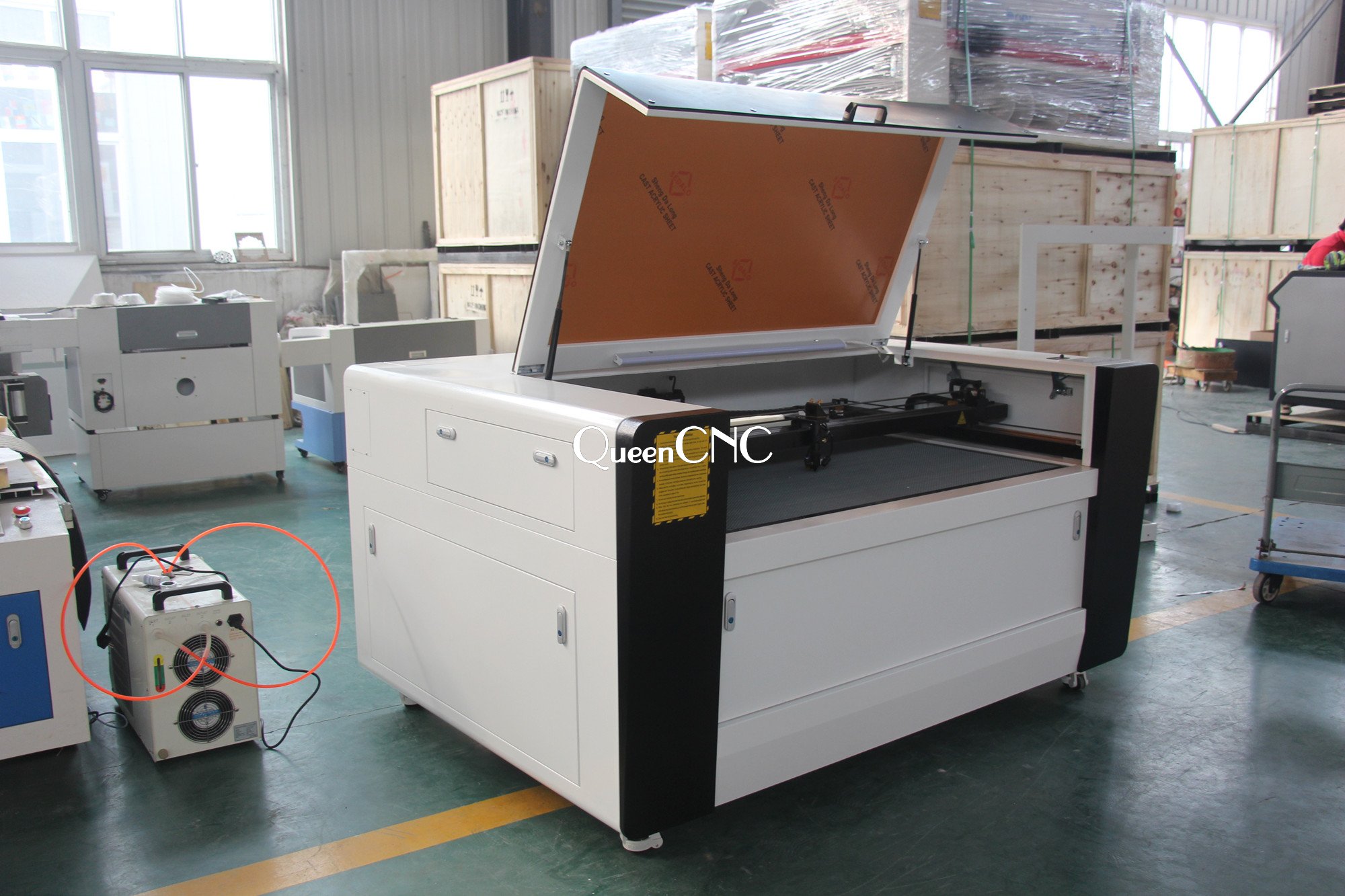

| Water chiller | Yes,CW5000 | |
| Working table | Honeycomb table | |
| Cooling down method | Water cooled and protection system | |
| MAX Engraving speed | 0-75000mm/min | |
| MAX cutting speed | 0-40000mm/min | |
| Resolution | 4500dpi | |
| Mini character | English 1*1mm | |
| Lens and mirror | US II-VI lens | |
| System environment | WINDOW2000/WINDOW XP/WIN 7/WIN10 | |
| Graphics format supported | BMP/HPGL/PLT/DST/AI | |
| Compatible software | CorelDraw/AutoCAD/Photoshop | |
| Guid rail | Taiwan HIWIN linear guider | |
| Transmission | Belt | |
| Interface | USB | |
| Red light positioning | Yes | |
| Power source | AC220v,50/60HZ,single phase | |
| Net weight | 400KG | |
| Gross weight | 500KG |
