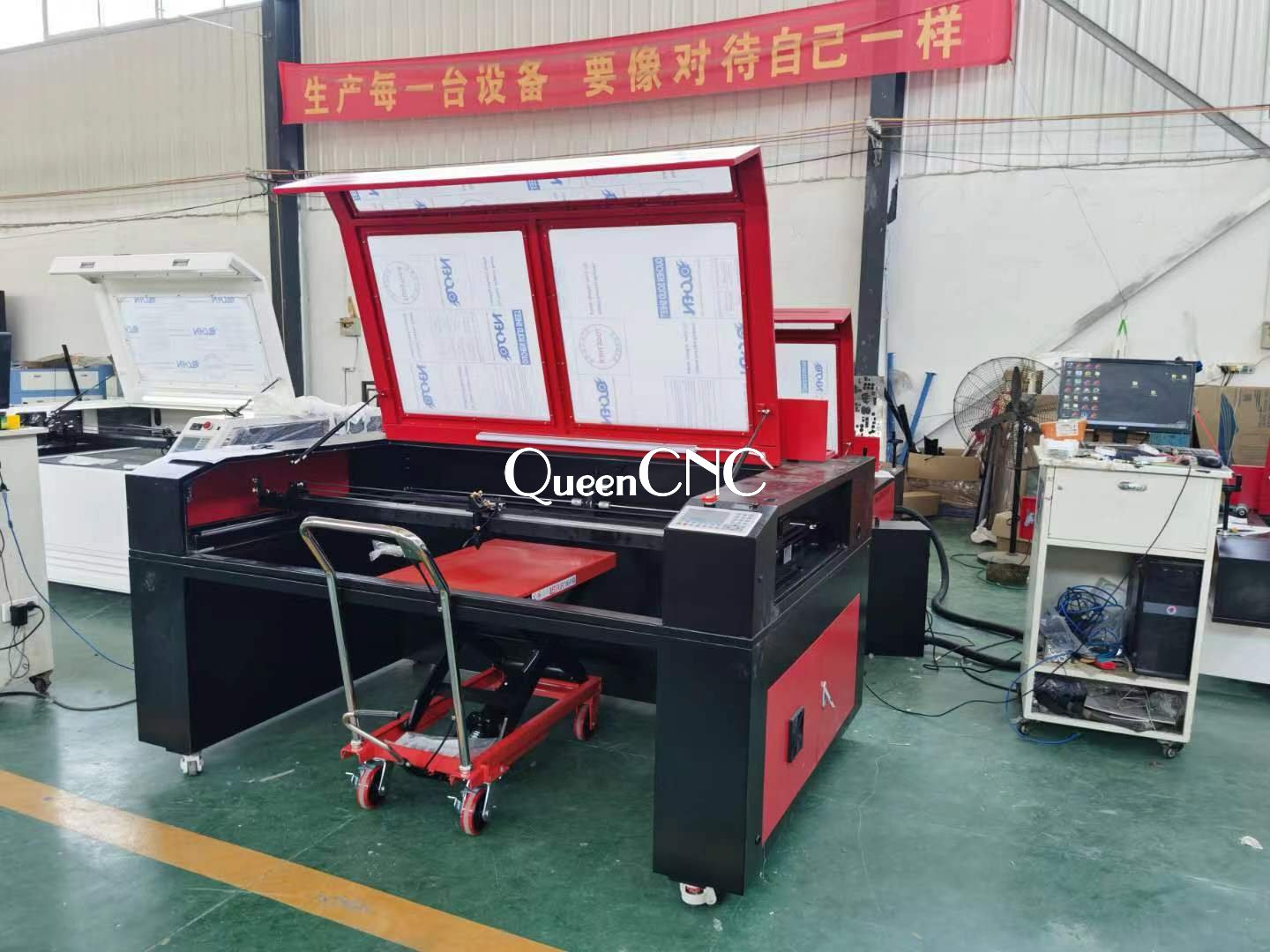

QN1410 co2 laser engraving machine for stone
Machine specs:
Effective working area 1400*1000mm
Driver and motor Stepper motor and driver
Laser type Hermetic and detached co2 laser tube
Laser power 100w laser tube and power supply,International warranty service
Control card RD6445G
Water chiller Yes,CW5000
Working table Lifting trolley
Cooling down method Water cooled and protection system
MAX Engraving speed 0-75000mm/min
MAX cutting speed 0-40000mm/min
Resolution 4500dpi
Mini character English 1*1mm
Lens and mirror US II-VI lens
System environment WINDOW2000/WINDOW XP/WIN 7/WIN10
Graphics format supported BMP/HPGL/PLT/DST/AI
Compatible software CorelDraw/AutoCAD/Photoshop
Guid rail Taiwan HIWIN linear guider
Transmission Belt
Interface USB
Red light positioning Yes
Power source AC220v,50/60HZ,single phase
Net weight 500KG
Gross weight 550KG
