QN1325 CNC Router New Design for Panel Furniture

Nesting CNC router working demo:

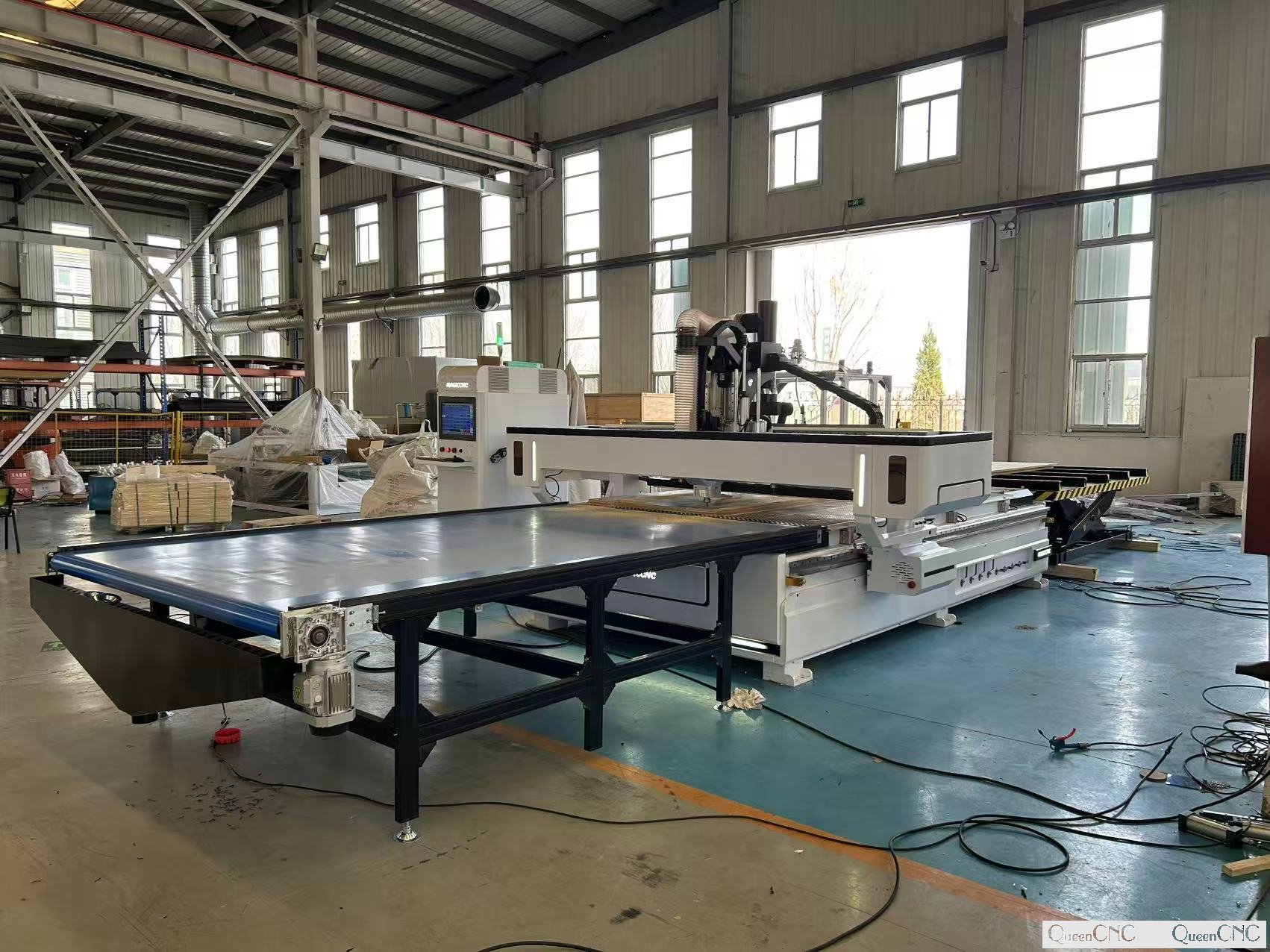

Actual Pic of CNC Router Machine

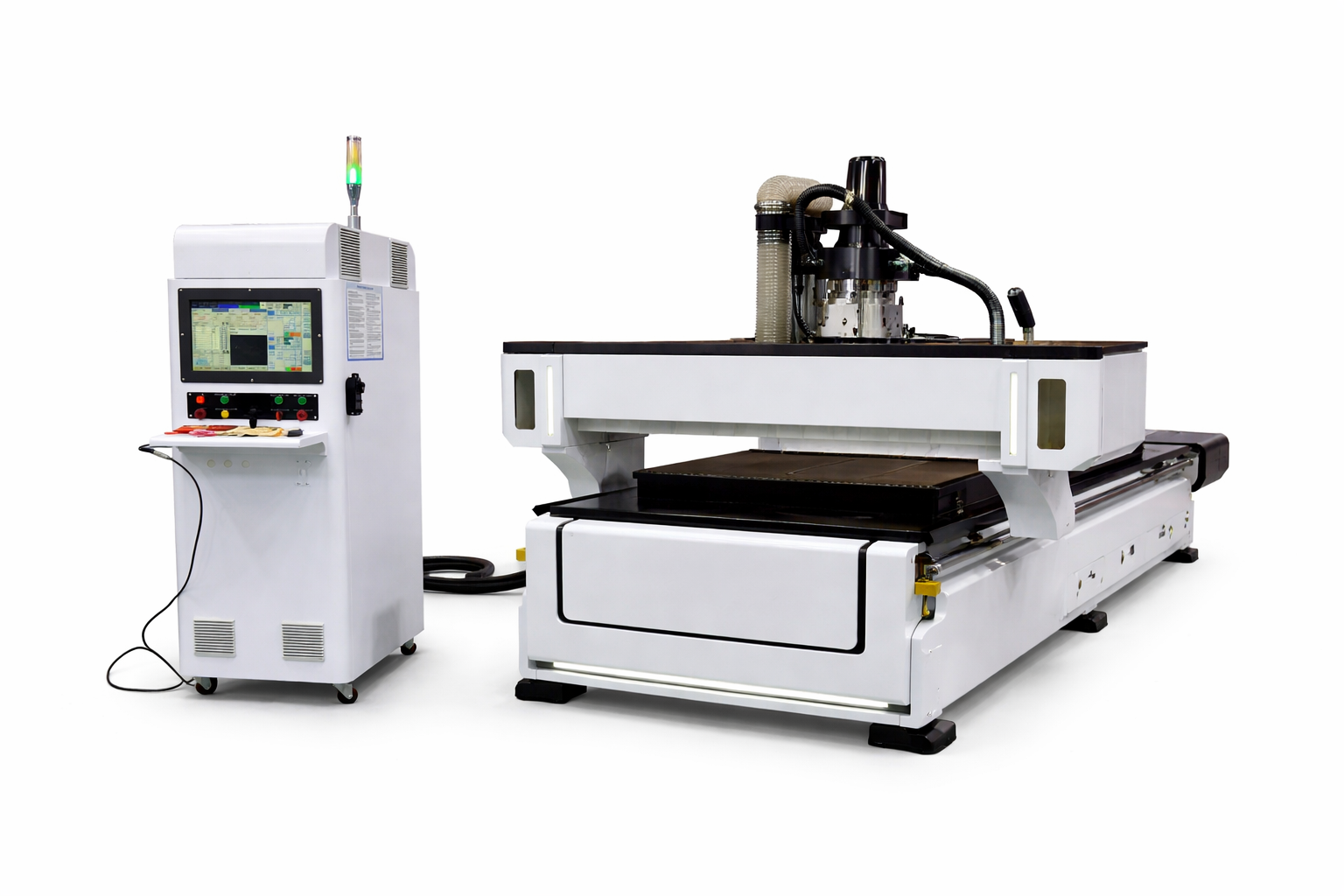

QN1325 ATC CNC Router machine

Technical Specs of CNC Router Machine

Item Specification
Model QN1325 ATC CNC Router
Working Area (X/Y/Z) 1300 × 2500 × 200 mm
Table Structure Vacuum Table + T-slot Combination
Frame Structure Heavy-duty welded steel frame
Spindle Type Air Cooling ATC Spindle
Spindle Power 6.0 kW / 9.0 kW (Optional)
Spindle Speed 0 – 24,000 RPM
Tool Changer Linear / Disc ATC (8–12 tools optional)
Drive Motor Servo Motor System
Transmission (X/Y) Helical Rack & Pinion
Transmission (Z) Precision Ball Screw
Max Traveling Speed 60–80 m/min
Max Working Speed 20–30 m/min
Positioning Accuracy ±0.05 mm
Repeat Position Accuracy ±0.03 mm
Control System SYNTEC / LNC / Weihong (Optional)
Command Language G Code
Operating Voltage AC380V / 3 Phase / 50–60Hz
Lubrication System Automatic Lubrication
Dust Collection Double Bag Dust Collector
Software Compatibility Type3 / Artcam / Alphacam / Fusion360
Supported Materials MDF, Plywood, Wood, Acrylic, PVC, Aluminum

What Other Options You Can Choose?

  • Italy HSD ATC spindle
  • 4 Axis rotary device
  • Automatic loading & unloading
  • Auto labeling system
  • Safety light curtain

Advantages of This ATC CNC Router Machine

1. High Precision Machining（高精度加工）

  • Heavy-duty welded steel frame ensures stability
  • High positioning accuracy and repeatability
  • Smooth cutting surface without burrs
