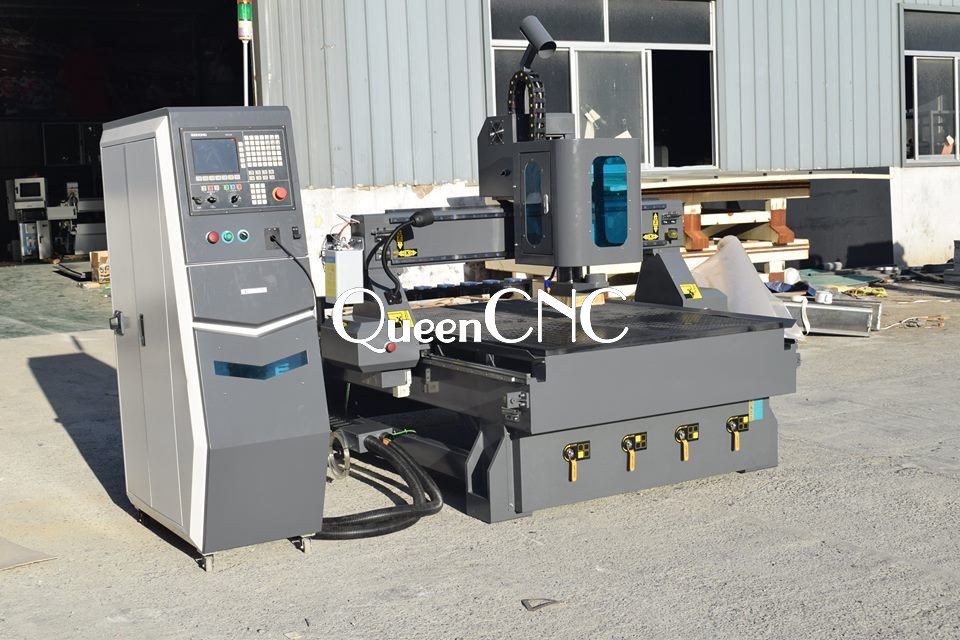

QN1313L heavy duty design atc cnc router machine for wood
Release Time:2023-02-07 17:35 Reading Times:
Look this clean and heavy design,do you like it?Beside this,it also with a pretty good performance.

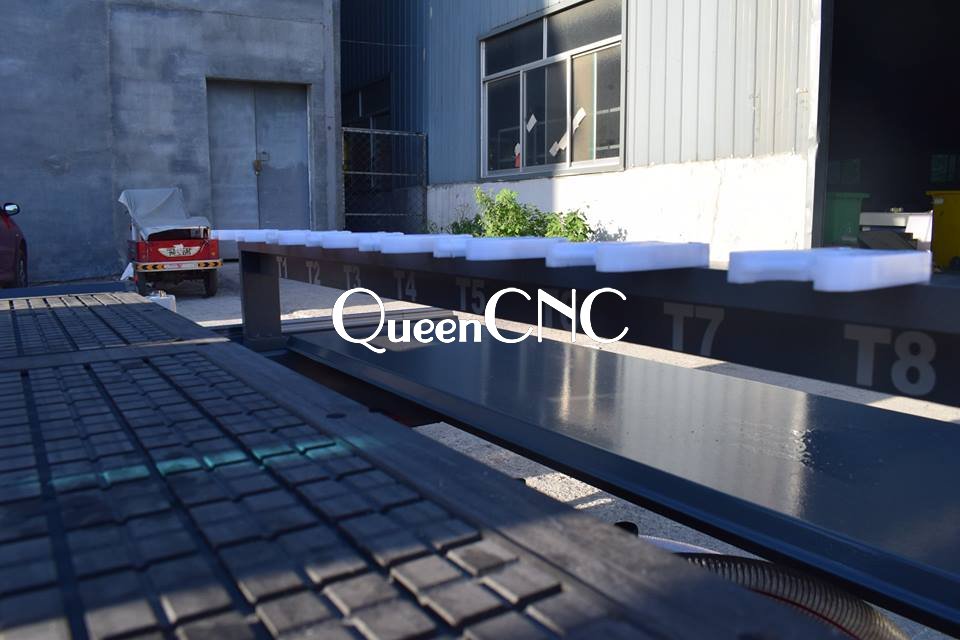

1. With 8 or 12 sets of tools to change automatically, which can saving time of tools changing and improving working efficiency.
2. 2.Vacuum table using high-density material with great suction strength, comfortably accommodate all sizes of work piece.
3. 3.control system is simple, convenient and easy to learn, users can quickly get the flexiblity to master the use of equipment, strong independence.
4. 4.The frame adopts the gantry column structure, the machine parts are produced and assembled with extremely high precision to ensure the high performance and stability of the machine, excellent quality and tolerance.
Technical parameter of QN1313L heavy duty design atc cnc router machine for wood
Machine technical specs:
|
Model |
QN1313 linear type auto tool change cnc router |
|
Working size |
1300*1300*300mm |
|

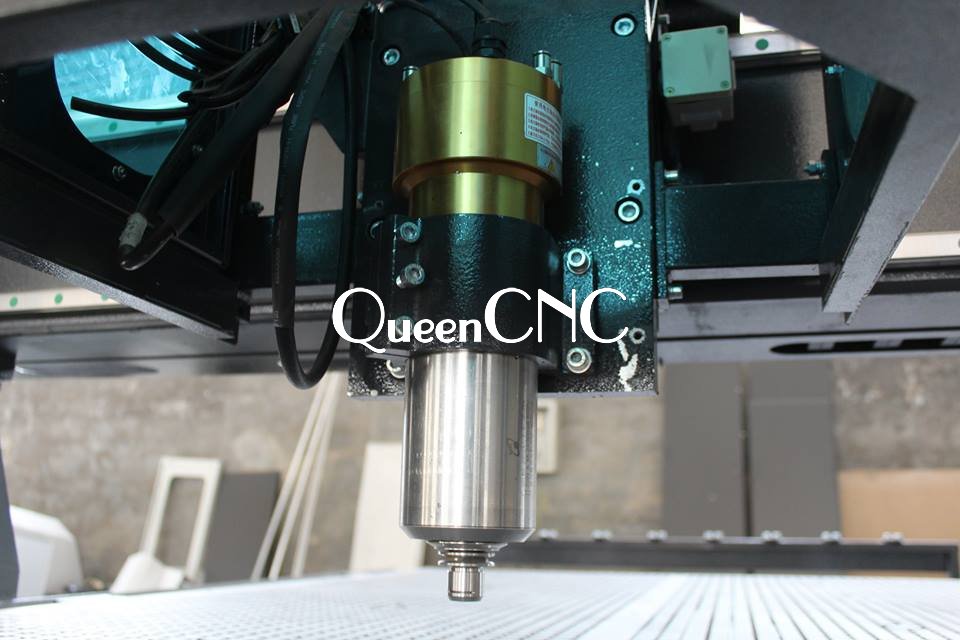

Spindle |
9.0kw air cooled auto tool changer spindle |
|
Driver motor |
leadshine servo motors and drivers 1500w |
|
Inverter |
Fuling inverter 11kw |
|
Machine table |
Vacuum and T-slot combined |
|
Positioning system |
Yes |
|
Control system |
Syntec control system |
|
Linear rails |
Taiwan T-win linear square rails |
|
Z axis transmission |
Germany Ball screw transmission |
|
Transmission |
Rack and pinion |
|
Auto Oiling system |
Yes |
|
7.5kw vacuum pump |
Yes,one set |
|
Voltage |
380v,Three phase,50HZ/220v,single phase |
|
Precision |
<0.1mm |
|
Max speed |
70m/min |
|
Tool sensor |
Yes |
|
Limits |
Yes |
|
Tool chuck |
8 pcs |
|
Machine frame |
Thicken heavy duty |
|
Net weight |
1200KG |
|
Gross weight |
1300KG |
